43AU7*** 4K Smart TV
Installation Guide

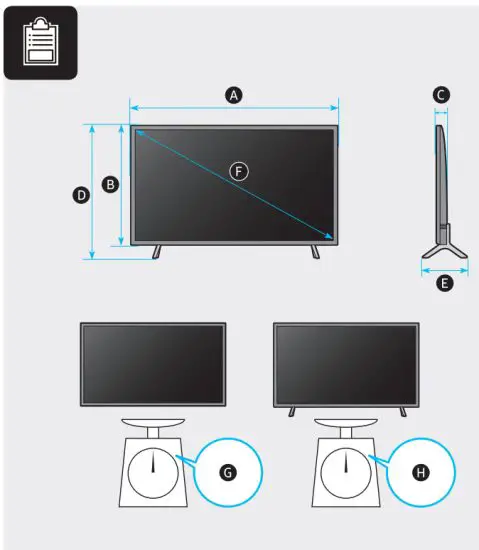

| A | B | C | D | E | F | G | H | |
| 43AU7*** 43UA7*** | 37.9 inches (963.9 mm) (96.39 cm) | 22.0 inches (558.9 mm) (55.89 cm) | 2.3 inches (59.6 mm) (5.96 cm) | 24.7 inches (627.8 mm) (62.78 cm) | 7.6 inches (192.5 mm) (19.25 cm) | 42.5 inches (108 cm) | 17.9 lbs (81 kg) | 18.3 lbs (8.3 kg) |
| 50AU7*** 50UA7*** | 44.0 inches (1116.8 mm) (111.68 cm) | 25.4 inches (644.2 mm) (64.42 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 28.3inches (7191 mm) (71.91cm) | 9.9 inches (250.2 mm) (25.02 cm) | 49.5 inches (125 cm) | 25.1 lbs (11.4 kg) | 25.6 lbs (11.6 kg) |
| 55AU7*** 55UA7*** | 48.4 inches (1230.5 mm) (123.05 cm) | 27.8 inches (707.2 mm) (70.72 cm) | 2.4 inches (59.9 mm) (5.99 cm) | 30.8 inches (783.3 mm) (78.33 cm) | 9.9 inches (250.2 mm) (25.02 cm) | 54.6 inches (138 cm) | 30.6 lbs (13.9 kg) | 31.3 it’s (14.2 kg) |
* : 0~9, A~Z

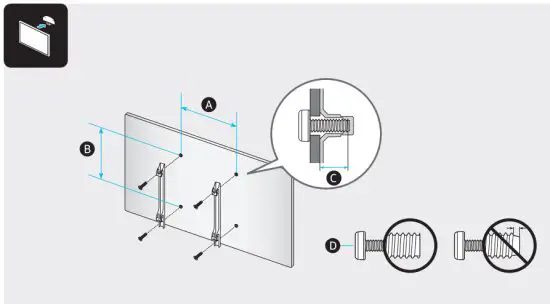

| VES A x B (mm) | C(mm) | D x 4 | |
| 43AU7*** 43UA7*** | 200 x 200 | 20-22 | M8 |
| 50AU7*** 50UA7*** | |||
| 55AU7*** 55UA7*** |
* : 0~9, A~Z
BN68-12557A
