V-TAC VT-984 LED Solar Lawn Lamp
V-TAC VT-984 LED Solar Lawn Lamp
TECHNICAL DATA:
| SKU | 2894 |
| LUMENS | 110LM |
| NO. OF LEDs | 24 Pcs |
| BEAM ANGLE | 170° |
| DIMENSION | 17.5×17.5x93cm |
| BATTERY CAPACITY | AC: 3.7V, 2200mAh, 18650 Li |
SOLAR PANEL DATA:
| SOLAR PANEL WATTS | 2W, DC: 5.5V |
| CHARGING TIME | 5-6 Hours |
| WORKING TIME | 3-12 Hours |
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installation and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. This product is warranted for manufacturing defects only.!
WARNING
- Installation must be performed by a qualified person.
- The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole luminaire should be replaced.
- Replace any cracked protective shield.
- Don’t immerse in the water
- Luminaire cannot be installed in low-lying areas, so as not to soak.
This marking indicates that this product should not be disposed of with other household wastes.

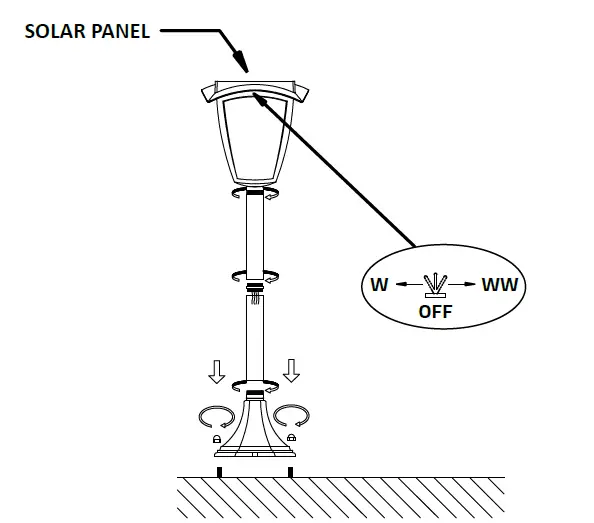

INSTALLATION DIAGRAM:
INSTALLATION INSTRUCTION
- Drill the holes in the ground.
- Dig the plastic into the hole.
- Fix the plate onto the ground and tighten the screws
SWITCH FUNCTION:
- Towed the switch to the right: to change the color into Warm White
- Towed the switch to the left: to change the color into White
- Towed the switch to the middle: to switch off the light
OPERATING MODES:
- At the dusk, automatically turn on the light to 100% brightness. (up to 12 hours)
- At the dawn, light will automacally turns off
In case of any query/issue with the product, please reach out to us at: [email protected] For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
tac.eu
