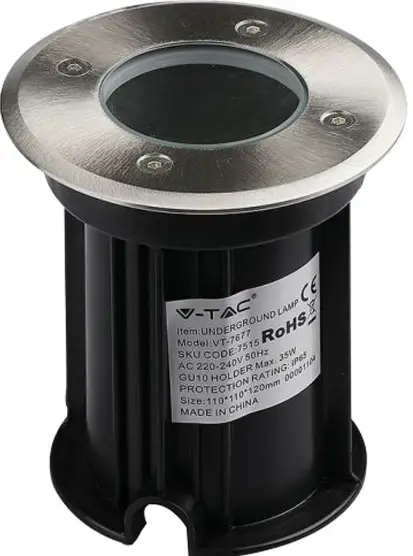

V-TAC VT-7677 Underground Lamp
Installation Instructions

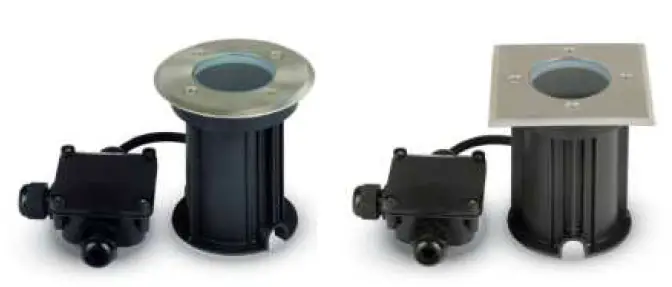

UNDERGROUND FITTING VT-7677
TECHNICAL DATA
| SKU No. | 7515, 7516 |
| Input Voltage | AC:220-240V, 50Hz |
| Holder | GU10 35W(MAX) |
| Protection Rating | IP65 |
| Unit size | 110x110x120mm |

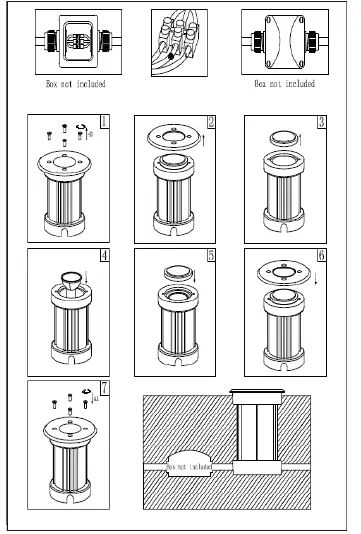

INSTALLATION DIAGRAM
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully before starting the installing and keep this manual handy for future reference. If you have any another query, please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the best.
The warranty is valid for 3 years from the date of purchase. The warranty does not apply to damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only.
WARNING
- Ensure that the power is switched off before installation.
- Install only by certified electrician.
- Keep this manual handy for future references.
INSTALLATION INSTRUCTION
- Open the lamp and install the bulb in the lamp
- Connect the supply leads with terminal (The box not included).
- Fix the lamp body on the ground.
- Switch on and test.
In case of any query/issue with the product, please reach out to us at:
[email protected]
