C01
User Manual
Thanks for using our wireless electronic products. For a good user experience, please read the manual carefully before using the products. Notice: To avoid unnecessary troubles please do not disassemble these products by yourself and use the standard charger to charge.

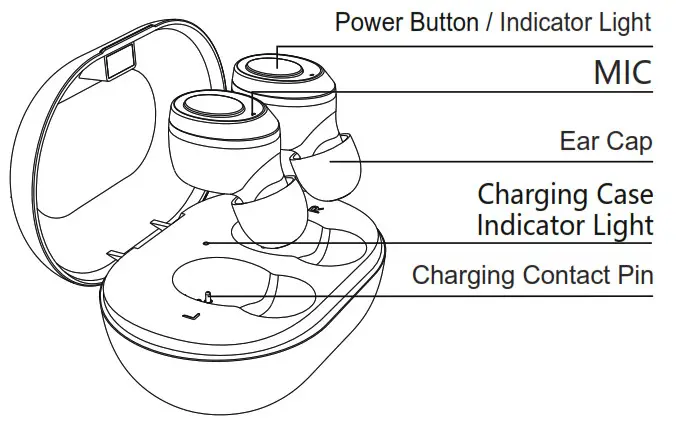

Product Overview

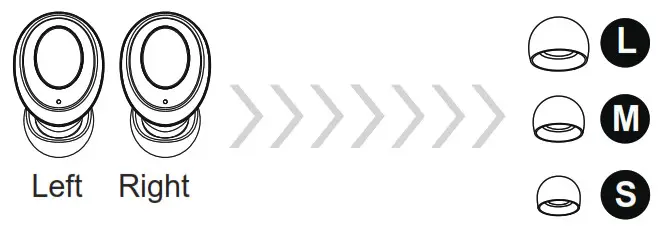

Ear Cap Options
We offer three different sizes of ear caps: large, medium, and small. Please try different sizes of ear caps to find the right fit for you.

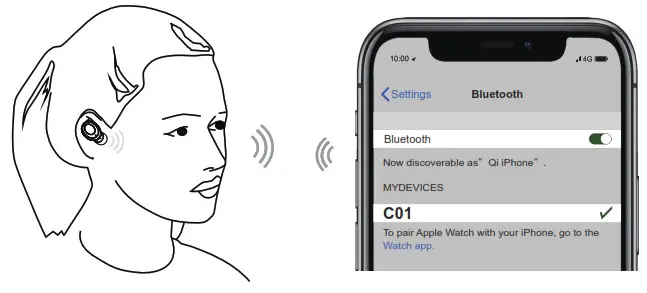

Earbuds Manual
Pairing Manual
- Take out the two earbuds from the charging case and peel off the insulating film.
- Put the two earbuds into the charging case to charge ( the earbuds are in a charging state).
- Take out the two earbuds, they will turn on and pair automatically and will be prepared for pairing to the phone (the indicator will turn red and blue alternately).
- After successfully pairing, the master earbud indicator turns red and blue alternately, the slave earbud indicator goes off .
- Turn on the Bluetooth function on your phone search 【C01 】and connect it.
- After the earbuds are successfully paired to the phone, the indicators will go off.
Tips: If the earphones can’t be found and are not in the pairing mode, you can double click any earbud to enter the pairing mode.
Please restore the factory setting!
- Turn off the Bluetooth function of the mobile phone.
- Long press the headset for 3 seconds and then let go, and then press one of the headsets 4 times to clear the pairing.
- Please delete all paired records on the phone and re-search 【C01 】after clearing the pairing.
Siri and other Voice Assistant
IOS users and some of Android users can triple-click the left earbud or right earbud to turn on the Voice Assistant.
Turn ON
Take out the earbuds from the charging case. Or hold the power button for 3 seconds until the blue indicators flash once while earbuds are powered off.
Turn OFF
Put the earbuds into the charging case, they would turn off and start charging. Or disconnect the Bluetooth, they would turn off in about 5 minutes.
Charge
Earbuds Charge
- Put both earbuds in the charging case, the indicator turns red when they are charging.
- While in charging status, the red signal light will stay solid.
- The red signal light will turn blue and then turn off when the earbuds are fully charged.
Charging Case Charge
Please use the charger with an output of DC5V/1A.
You can use the USB cable to charge the charging case with a computer or other devices which have USB ports. (Please use a factory-certified charger).
| Turn on | Take earbuds out to turn on |
| Turn off | Put back into charging case to turn off |
| Previous | Press the left power button twice |
| Next | Press the right power button twice |
| Volume + | Hold the right power button |
| Volume – | Hold the left power button |
| Play/Pause | Press left or right power button once |
| Pick up phone | Press left or right power button once |
| Hang up | Press left or right power button once |
| Reject in calling | hold and press any power button for about 2s |
Parameter specification
| Version | V5.2+EDR |
| Support | A2DP,AVRCP,HFP,HSP |
| Transmission distance | 10m |
| Frequency range | 2.402GHz~2.480GHz |
| Hi-fi equipment | Φ6mm*2 |
| Impedance | 16 Ω |
| Standby time | 70 hours |
| Talk time | 4 hours |
| Music time | 5 hours |
| Earbud battery capacity | 55 mAh |
| Charging time | 1 hours |
| Charging case battery capacity | 400mAh |
| Charging case charging time | About 1 hours |
| Weight(single earbud) | 4.0 g |

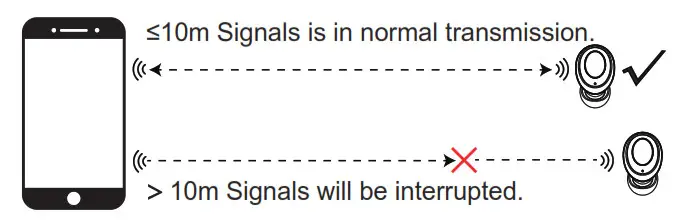

Signal transmission distance is shown as below:
Attentions
- Do not use corrosive liquid to clean this product.
- Do not use this product under extreme circumstances for temperatures below -10 degrees Celsius or above 60 degrees Celsius.
- To avoid an explosion, please do not throw this product into fire.
- To avoid scratches, please do not touch the earbuds with sharp objects.
- Do not insert objects into the earbuds, otherwise, it would cause damage to the internal components.
- Do not disassemble the earbud.
- In case the earbuds run out of battery, please charge the earbuds when it’s out of use for more than a month.
- Please do not charge the product with the power adapter of a current greater than 2A. Excessive current flow could cause damage to the battery.
Battery Warning！
There is a built-in lithium battery in this product. To avoid explosion, do expose the product to strong sunlight, fire, or throw it into the fire.
FCC Caution
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirements. The device can be used in portable exposure conditions without restriction.
