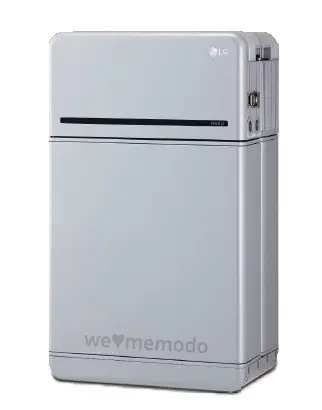

LG RESU10H Prime Energy Solution Home Battery
Compatible storage Inverters with RESU Prime
All RESU installations require a compatible inverter. Using a non-approved inverter will void the warranty provided by LG Energy Solution. See below important instructions when installing and using RESU Prime.
- Battery/Hybrid inverters should operate in On-Grid only. (Not in Off-Grid)
- For On-Grid applications where Back-up mode may be sometimes utilized, the backed-up circuits and inverters AC draw must not exceed the battery current limit specifications.
Following list of Inverters are currently compatible with LG Energy Solution home battery, RESU Prime Series.
[US]
| INVERTER | BATTERY | REMARK | |||
| Brand | Model | Software Version 1) | RESU10H Prime | RESU16H Prime | |
 | SE3000H-US SE3800H-US SE6000H-US SE7600H-US | 4.13 or above | ○ | ○ | – Can use in Back-up Mode |
|
| E8-TL-US E6-TL-US E4-TL-US E8-TL-US(AC) E6-TL-US(AC) E4-TL-US(AC) |
03.01.14 or above |
○ |
○ | – Can use in Back-up Mode |
|
SBS3.8-US SBS5.0-US SBS6.0-US |
3.12.23.R or above |
○ | – Can use in Back-up Mode – Multi Battery mode will be available soon – Battery software package version : 23.12.0.R or above – In case of blackout the battery must not manually be switched off and on via the breaker since this will hinder the blackstart ability of the system. Only use the secure power supply /blackstart switch of the inverter | |
 | GW5000A-ES GW6000A-ES GW7000A-ES GW7600A-ES GW8600A-ES GW9600A-ES | Master DSP 04 Slave DSP 04 ARM 17 |
○ |
○ | |
Compatible storage Inverters with RESU Prime
All RESU installations require a compatible inverter. Using a non-approved inverter will void the warranty provided by LG Energy Solution. See below important instructions when installing and using RESU Prime.
- Battery/Hybrid inverters should operate in On-Grid only. (Not in Off-Grid)
- For On-Grid applications where Back-up mode may be sometimes utilized, the backed up circuits and inverters AC draw must not exceed the battery current limit specifications.
Following list of Inverters are currently compatible with LG Energy Solution home battery, RESU Prime Series.
[EU]
| INVERTER | BATTERY | REMARK | |||
| Brand | Model | Software Version 1) | RESU10H Prime | RESU16H Prime | |
| SE2200H SE3000H SE3500H SE3680H SE4000H SE5000H SE6000H |
4.13 or above |
○ |
○ | |
|
|
SBS3.7 SBS5.0 SBS6.0 |
3.12.23.R or above |
○ |
○ | – Can use in Back-up Mode – Multi Battery mode will be available soon – Battery software package version : 23.12.0.R or above – In case of blackout the battery must not manually be switched off and on via the breaker since this will hinder the blackstart ability of the system. Only use the secure power supply/blackstart switch of the inverter |
Compatible storage Inverters with RESU Prime
All RESU installations require a compatible inverter. Using a non-approved inverter will void the warranty provided by LG Energy Solution. See below important instructions when installing and using RESU Prime.
- Battery/Hybrid inverters should operate in On-Grid only. (Not in Off-Grid)
- For On-Grid applications where Back-up mode may be sometimes utilized, the backed up circuits and inverters AC draw must not exceed the battery current limit specifications.
- Custom Conduit Gland for AU must be installed – Cobalt Solar Part (CSE-CHG-3/4NPT-H3-5.5-1B)
Following list of Inverters are currently compatible with LG Energy Solution home battery, RESU Prime Series. It is installer’s responsibility to check that compatible inverters have required Standards approvals
[AU]
| INVERTER | BATTERY | REMARK | |||
| Brand | Model | Software Version 1) | RESU10H Prime | RESU16H Prime | |
| SE3000H SE5000H SE6000H SE8250H SE10000H |
4.13 or above |
○ |
○ | – Energy Hub series only – Required Interface: SESTI-S4 or DC Combiner Box – Back-up option requires Solar Edge Back-up Interface |
| GEH5-10kW | ARM 18 or above | ○ | ○ | |
Tower1, 108, Yeoui-daero, Yeongdeungpo-gu, Seoul, Republic of Korea. 07335 TEL : (82) 2-3773-1114 FAX : (82) 2-3773-7005
http://www.lghomebattery.com http://www.lgensol.com
