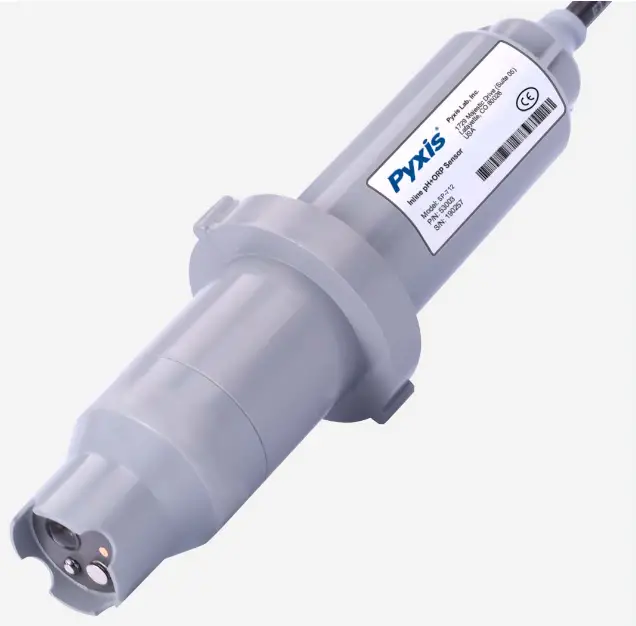

pyxis ST-71X Series Inline pH Sensor
pyxis ST-71X Series Inline pH Sensor
Wiring Guides

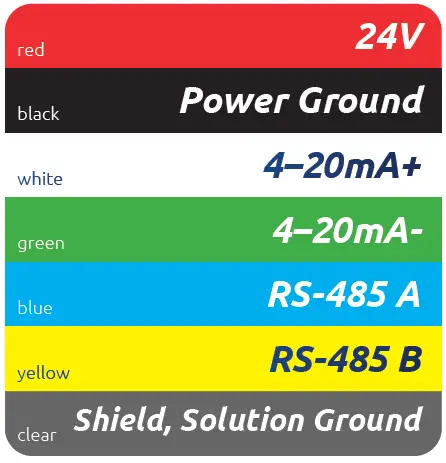

ST-710 & ST-711
* Depending on the controller, you may need to add a jumper from 24V- (Power Ground) to 4–20mA-

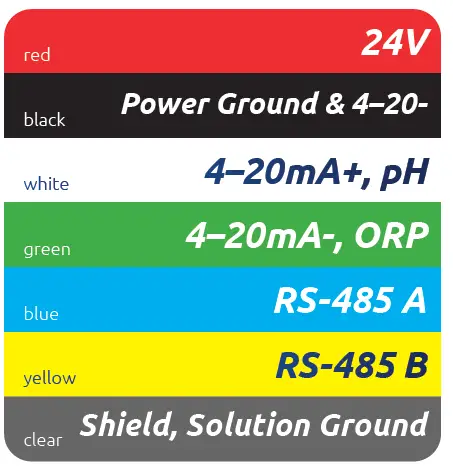

ST-712

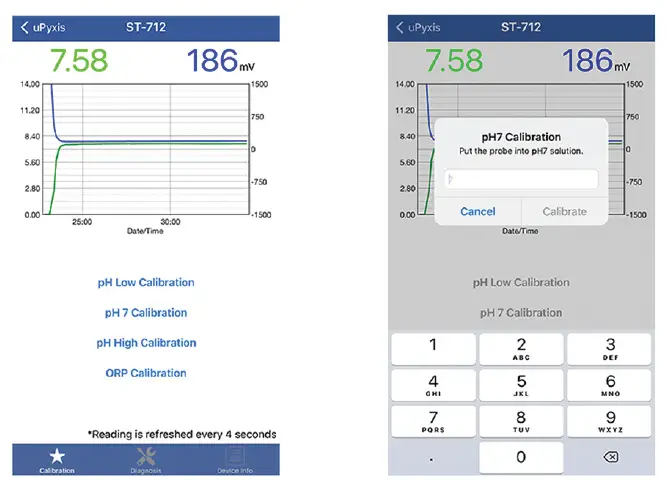

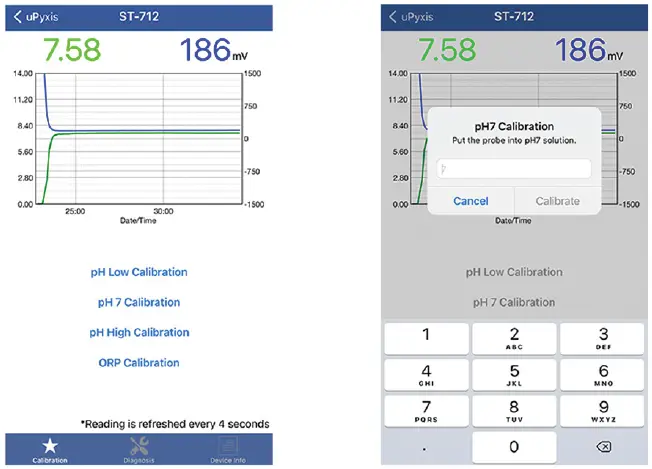

Using uPyxis®
Place your sensor into the necessary Pyxis Lab® pH or OPR solution, then on uPyxis® select your desired Calibration Method & enter the specific concentration. Press ‘Calibrate’ to finish!
Under ‘Diagnosis’ you can send diagnostic information straight to our Customer Service department. Under ‘Device Info’ you can customize Device Name, Product Name & Modbus Address!
Download the app!
