level one Gigabit PCI network card 1 x RJ45 User Guide

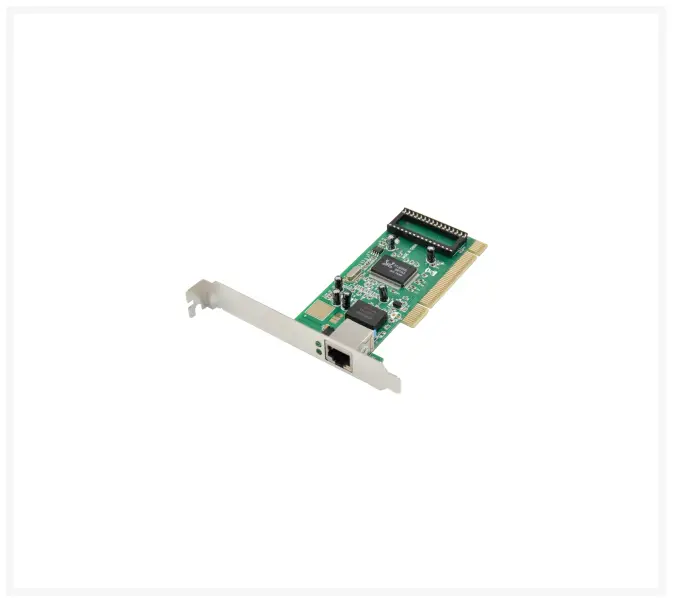

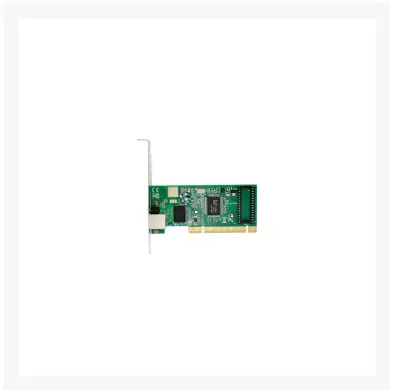

Product Images
Short Description
802.1Q tag-based VLAN for network segmentation to improve performance and security Supports IEEE 802.1P L2 packet prioritization to optimize data flow Integrated Wake-on-LAN for remote starting of computers Supports most Network Operating Systems (NOS) IEEE 802.3x flow control protects against packet loss and ensures reliable data transmission
Description

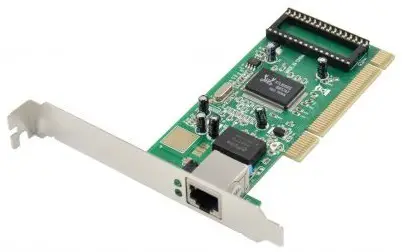

Product overview The LevelOne GNC-0105T is a 32-bit Gigabit Ethernet PCI adapter for desktop computers. It supports 1000Mbps half-duplex and 2000Mbps full-duplex data traffic for Windows 98SE / ME / 2000 / XP and Vista-based operating systems. Gigabit PCI adapter The Gigabit GNC-0105T PCI adapter is plug-and-play capable and does not require any additional software installation. It supports 802.1Q prioritization for optimized data traffic and offers Auto-MDI / MDI-X on the RJ-45 LAN port. The LED display shows network connection, link speed and activity. The GNC-0105T complies with the FCC, CE and C-Tick standards.
Additional Information
| Approvals and Compliance | CE, FCC, RoHS |
| Max. operating humidity (%) | 90 |
| Max. operating temperature in °C | 55 |
| Max. storage humidity (%) | 90 |
| Max. storage temperature in °C | 70 |
| Min. operating humidity (%) | 10 |
| Min. storage temperature in °C | -40 |
| Supported Operating Systems | Windows XP / ME / Server 2000 / Server 2003 / Server 2008 / Vista / Win 7 / Win 8 / Win 8.1 / Win 10 32&64Bit |
| Jumbo-Frames (KB) | 9 |
| processor | RTD169SS |
| Standards | IEEE 802.3z, IEEE 802.3, IEEE 802.1Q VLANs, IEEE 802.3x, IEEE 1588, IEEE 802.3az – Energy Efficient Ethernet (EEE) |
| basic functions | Data rate 10/100/1000 Mbps (Auto-Negotiation capability), Support ACPI and PCI power management, Automatic crossover support for crossover or regular cable |
| Product weight (kg) | 0.0478 |
| Product width (mm) | 58 |
| Product depth (mm) | 117 |
| Product height (mm) | 16 |
| colour | Green |
| EAN | 4015867224175 |
| model number | GNC-0105T |
| scope of delivery | GNC-0105T Quick Installation Guide Resource CD (Instruction Manual, Driver) Flat Bracket |
| Gigabit RJ45 | 1 |
