SXEC1615
16A Portable EV Charger (Mode 2)
Product Manual
Please read all instructions before using, operating, or maintaining.
PRODUCT DESCRIPTION
The SINOX Portable EV Charging Cable is a convenient, portable, and plug-and-play way to Power your Electric Car. This product is independently researched and in accordance with all the latest national standards. It can be used on any EV cars. This cable delivers high performance when charging with the reassurance of advanced electric protections and a direct human-computer interaction interface. The control box enjoys an ergonomic surface design which makes the shell become both solider and stronger.

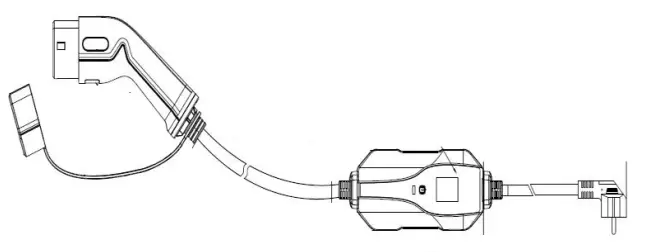

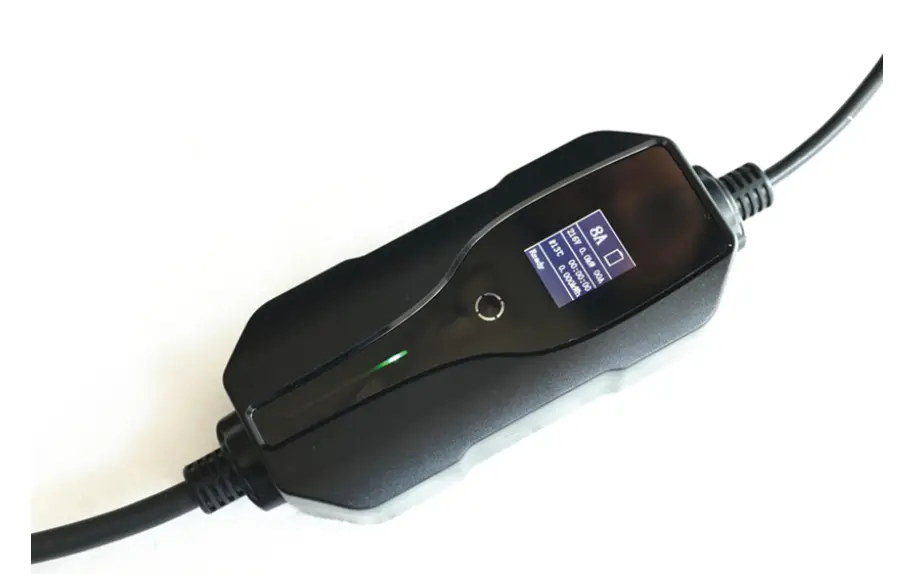

Appearance

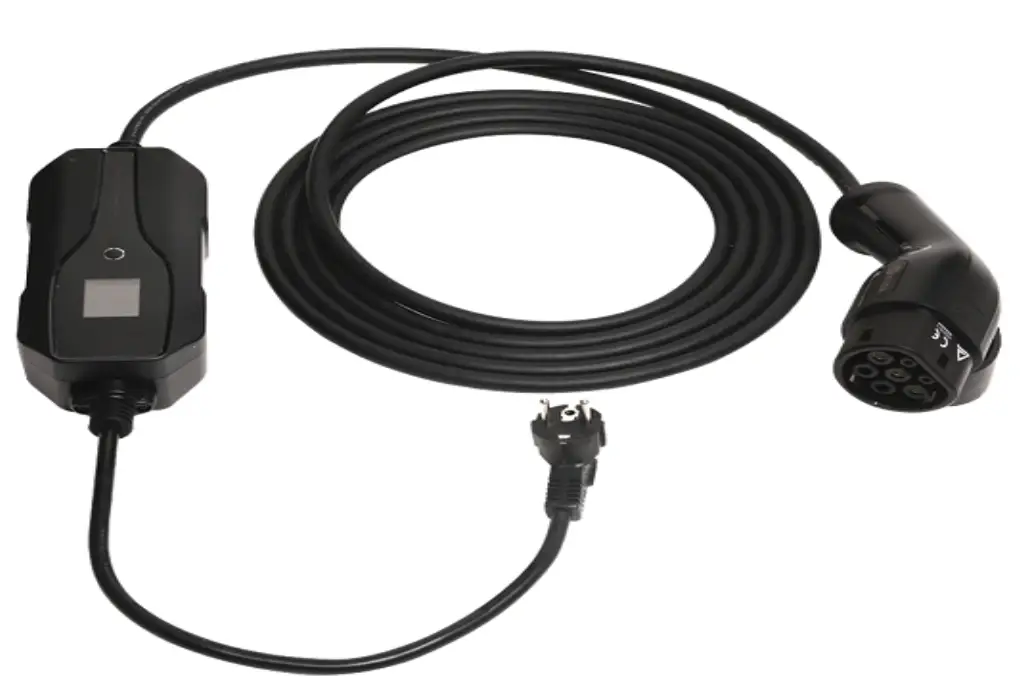

16A Adjustable EV Charger with EU Schuko Plug
SPECIFICATION
| Item | Mode 2 EV Charger Cable 16A |
| Model | SXEC1615 |
| Install | Portable, Plug and Play |
| Output Current | 6A,8A ,10A ,13A,16A Max. |
| Rated power | 3.6KW Max |
| Input Voltage AC | 110V-250V 50Hz/60Hz |
| Waterproof Degree | IP66 |
| Output Detection | 1. Short circuit protection 2. Over and under frequency protection 3. Over Current Protection 4. Leakage Current Protection (restart recover) 5. Over Temperature Protection 6. Overload protection (self-checking recover) 7. Ground Protection 8. Over voltage and under-voltage protection |
| Operating Temperature | -25°C∼+55°C |
| Storage Temperature | – 40T∼+80°C |
| Operating Humidity | 20%-85% |
| EV Charger Box Dimension | 200mm(L) X 93mm(W)X51.5mm(H) |
| Cable Length | 5.0m |
| Weight | 2.30kg |
| Standard | IEC 62752, IEC 61851 |
| Carton Measure | 42CM*42CM*8CM |

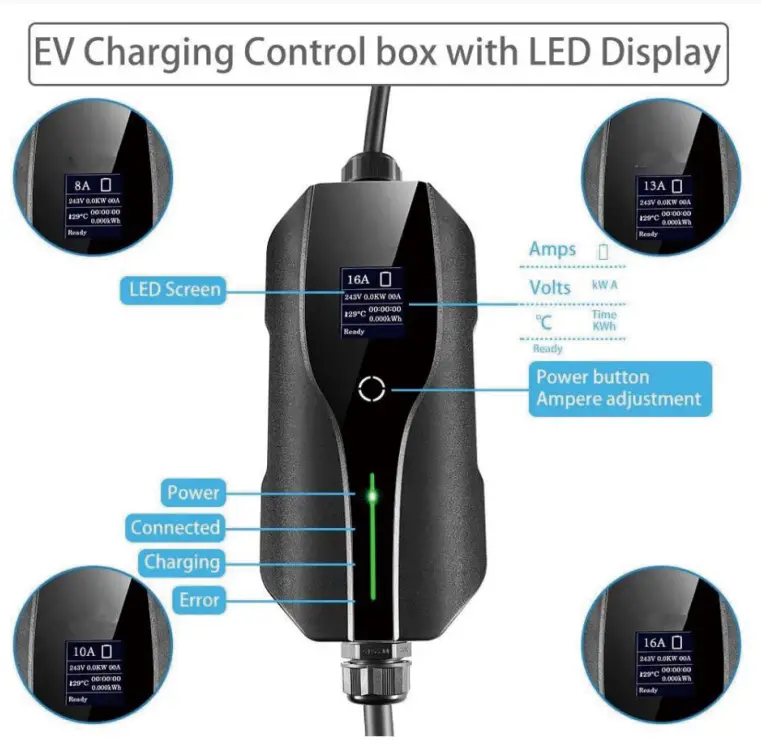

LED DISPLAY
| Condition | LED Display Status | |||
| Green(One) | Green(Two) | Green(Three) | Fault(Red) | |
| Initial Mode | Light on | Lights Out | Lights Out | Lights Out |
| Connected Mode | Light on | Twinkle (1S) | Lights Out | Lights Out |
| Charging Mode | Racing Light | Racing Light | Racing Light | Lights Out |
| Finished Mode | Light on | Light on | Light on | Lights Out |
| Fault(Red) | Lights Out | Lights Out | Lights Out | Twinkle |
HOW TO ADJUST SETTING
Use the switch button to select the maximum charging. Select the required charging current for your car before inserting the charging plug(check CAUTION on page 7).
OPEARATING INSTRUCTION
How to start charging
Step 1. Take out the charger and firmly insert the plug into your Power socket-outlet.
Step 2. Remove the cap on the connector and completely plug the vehicle connector into the vehicle inlet.
Step 3. The device will start charging automatically when the READY/CHARGE, POWER indicators are all green.
Step 4. The Factory default current setting is 16A. Press the button of “CURRENT SETTING” to adjust to the required amperes – max. 16 ampere(check CAUTION on page 7). The device will default to the last current setting when charging the vehicle next time.
Step 5. We recommend that the charging cable is not used for more than 2 hours.
Step 1. Press the Power/Ampere adjustment button and disconnect the vehicle connector from the vehicle inlet.
Step 2. Close protective cap of the vehicle inlet and put on the protective cap of the vehicle charging connector.
Step 3. Disconnect the plug from the Power source socket-outlet.
Step 4. Pack up the EV charger cable and put it into the bag.
WARRANTY
This Charging equipment has been subjected to high-pressure inspection testing, and extensive product trial, so the customer can be assured of the highest quality and performance.
This product is covered by a one-year warranty to cover product failure or quality problems. Any product issues due to improper handling, installation, use, and maintenance negligence that might lead to product damage or to a situation where the product cannot be used properly, are not included in this warranty. The warranty is only valid to the original purchaser and is not transferable.
CAUTION
- Have a professional electrician check that each Power source socket- outlet to which the cable is to be connected complies with the applicable standards and regulations in your country, and in particular that it has:
– A HFI / PHFI relay, which only supplies outlets for chargers
– A fuse / aut. fuse that only supplies outlets to the charger
– Earth
– Cable with a cross-sectional area that can supply the charger
– A Power source socket with a dedicated connection without a switch
– HFI relay - Before connecting the cable, check the nominal voltage and make sure that the socket and the mains have sufficient power to charge your car. The maximum rated voltage varies between countries and suppliers.
- Do not use a connector that shows signs of wear, overheating, damage, or discoloration.
- Keep the charging cable out of the reach of children.
- Do not use extension cords, connectors, or adapters.
- Avoid touching the cable connector, the socket, or the vehicle’s charging connector.
- The cable must not be disassembled or modified in any way.
- Do not use the charging cable near water, in case of corrosion or if there are foreign objects in the cable connector.
- If a malfunction or anomaly occurs, or if the ERROR warning light comes on or flashes, stop using the cable immediately. See the guide on the meaning of the indicators.
- Do not use the cable if parts are broken, frayed, open, or show other signs of damage.
- Use the cable gently, avoid dropping it, run over it, and do not pull hard on it.
