USER’S MANUAL

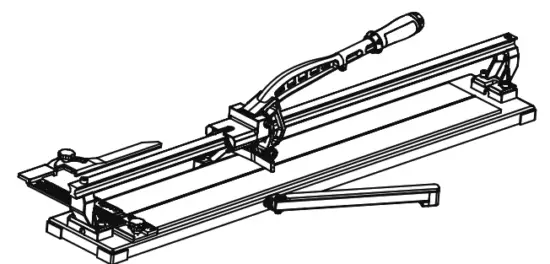

Tile Cutter
TL35162

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Operating Instructions

1. Put the tile on a bed of the cutter
2. Position the tile cutter wheel on the base of the tile to be cut,
3.  Score tile by moving the handle forward while pressing down lightly, keep steady pressure for the full length of the tile
4.  At the end of the score the wheel “Dock” leaving the anvil in a position over the score line,
5. When the wheel is docked, press down slightly applying increasing pressure until the tile snaps( Tip: when pressing down on the handle with one hand down where you started score with the other hand

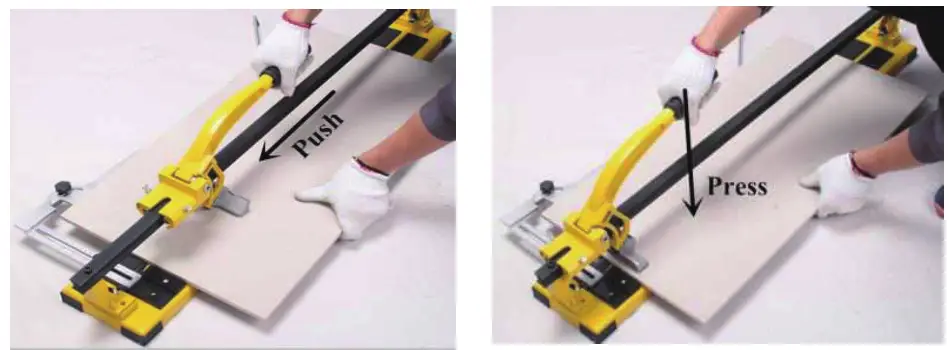

1. Straight cut

Pull the handle from the end to top to score	Snap the end of the handle to break the tile

2.Angle cut

Pull the handle from the end to top to score	Snap the end of the handle to break the tile

Warning Notice:

1. Safety gloves are required while operating this machine. Always keep it away from any crash and corrosive liquid.
2. The tile cutting machine is fitted with a replaceable circular blade. Keep the tile cutter and blade away from children.
3. After use, the machine must be stored in a safe and dry place.
4. This machine has been designed for cutting and breaking glazed tile, and shall not be used for any other purpose.
5. When using the tile cutting machine always keep extension leads away from the machine.
6. Always place the tile cutting machine on a level and firm surface.
7. CAUTION! The edges of cut tiles are sharp.
