Technical Support Wiring Tool Diagrams
368-4493h 05.12.2021

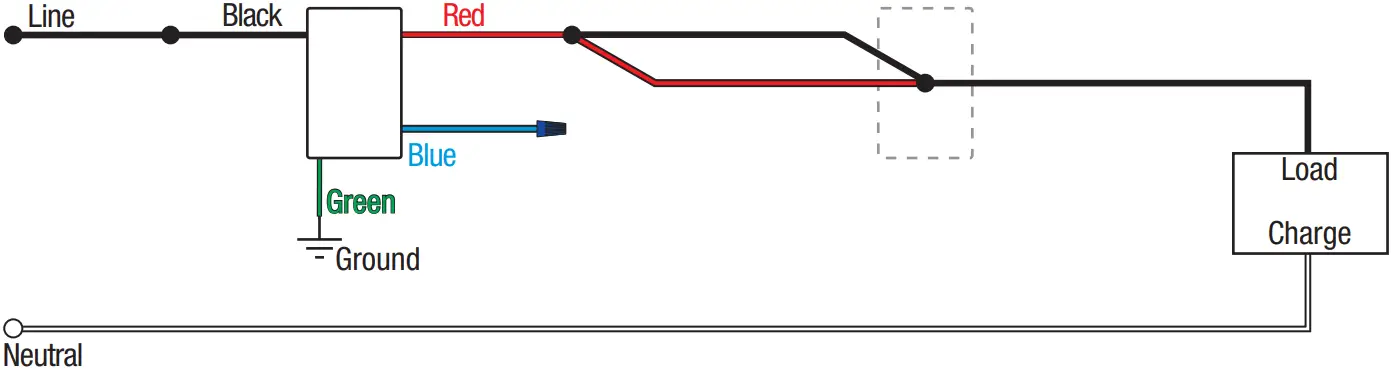

Image #85 — Caséta Switch with One Black Wire, One Red Wire, and One Blue Wire in a 3-way Application with a Pico Remote

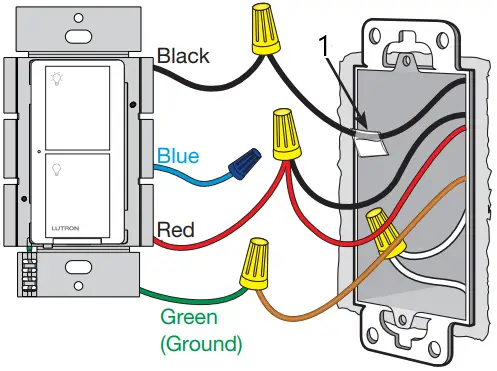

Location 1
- Tagged Wire

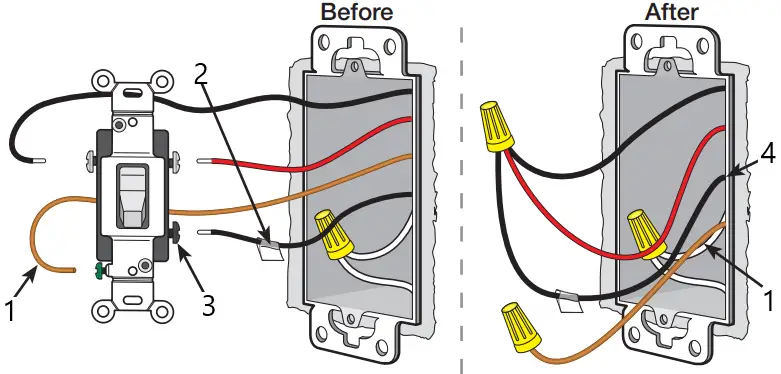

Location 2
- Ground (Green or Bare Copper)
- Place tag – to identify wire on different color screw.
- Different Color Screw
- Tagged Wire
Not sure this is the correct wiring for your Lutron product?
For more information, refer to the Lutron DIY Wiring Tool or visit the Lutron Support Center.
