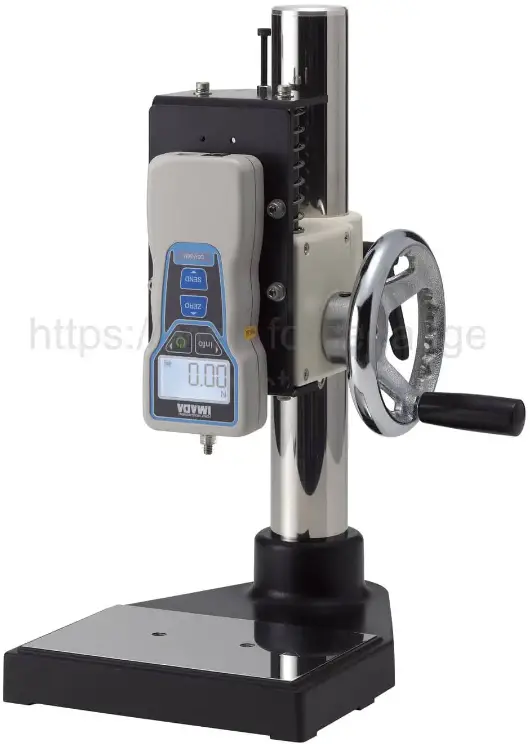

IMADA SVL-1000N, SVH-1000N Force Test Stand User Manual
Features
| Feature 1 | Feature 2 | Feature 3 | Feature 4 |
| Up to 1000N measurement | Stroke control by mechanical stopper | Various options are available | Easy carry with light weight |
| Both tensile and compressive force can be measured with this manual test stand with force gauge. | Stroke is adjustable by mechanical stopper function. | Various options are available such as length meter and long stroke for wide measurement needs. | Light weight body enable to measure force at diverse places. |
Measurement example

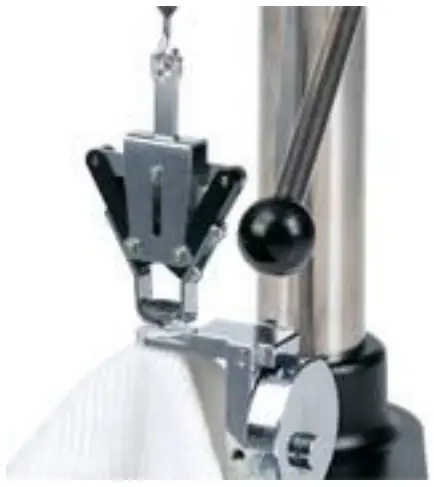

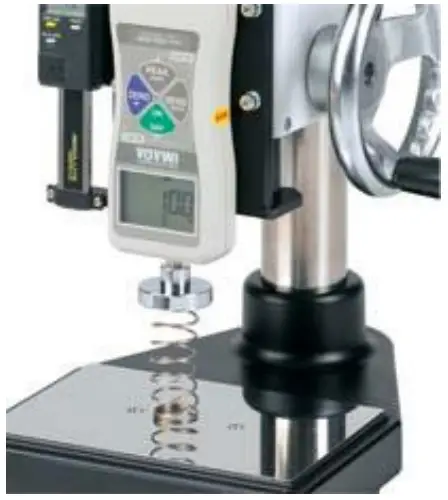

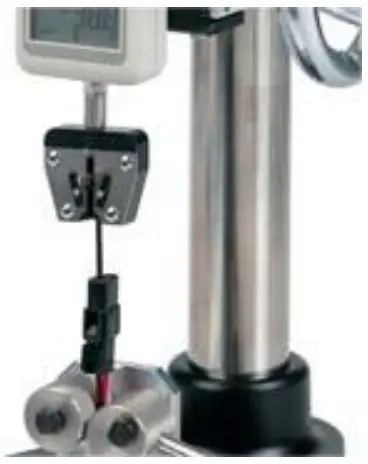

| Simple spring test | Sewed strength of button | Pull off strength of connector |
|
|
|
Specifications
| Model | SVL-1000N | SVH-1000N |
| Capacity | 1000N | |
| Force direction | Tension and compression | |
| Travel method | Lever | Handle |
| Travel per 1 turn | 60mm per 170 degrees | 3 mm |
| Max. Sample Height *1 | Approx. 225mm | |
| Stroke | 60 mm | |
| Function | Mechanical stopper | |
| Weight | Approx. 7.3 kg | Approx. 7.7 kg |
| Dimension | See [Dimensions] | |
| Fixable force gauge *2 | Digital force gauge: DST, DSV, ZTS, ZTA series Mechanical force gauge: FB, PS, PSM series | |
- The Max. Sample Height refers to the distance between the test stand table and the tip of force gauge (1000N or less of ZT series) measuring shaft when the head is at the top.
- 2 Some high capacity model force gauges (with M10 thread) and load cells cannot be mounted to the test stand. Please check the dimensions before purchase.
Available Options

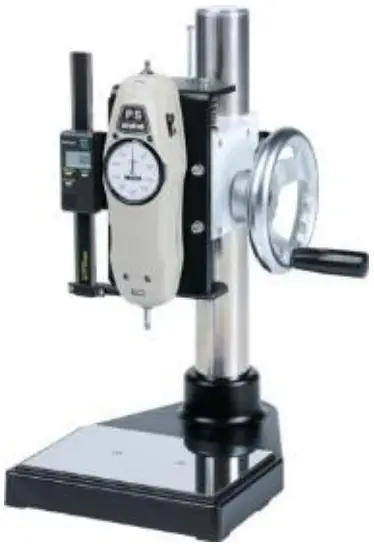

| Extended column Order code: -EXT Ex) SVH-1000N-EXT | Length meter Order code: -S Ex) SVH-1000N-S | Grip mounting adapter GF-1 |
 |  |  |
| For bigger sample measurement The column and max. sample height extend 200mm The stroke does not extend. | Digital display of displacement Resolution: 0.01mm | Mount attachments to test stand base |
Recommended force gauge
| Simple measurement | Simple measurement | With more functions |

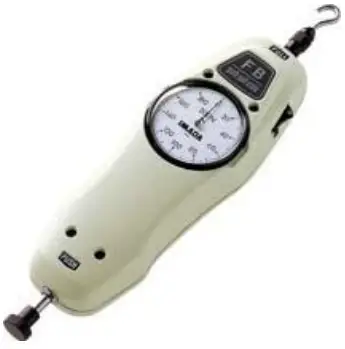

Mechanical force gauge FB series |

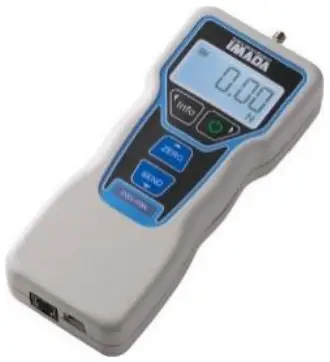

Digital force gauge DST/DSV series |

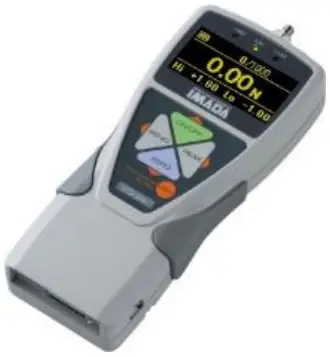

Digital force gauge ZTS/ZTA series |

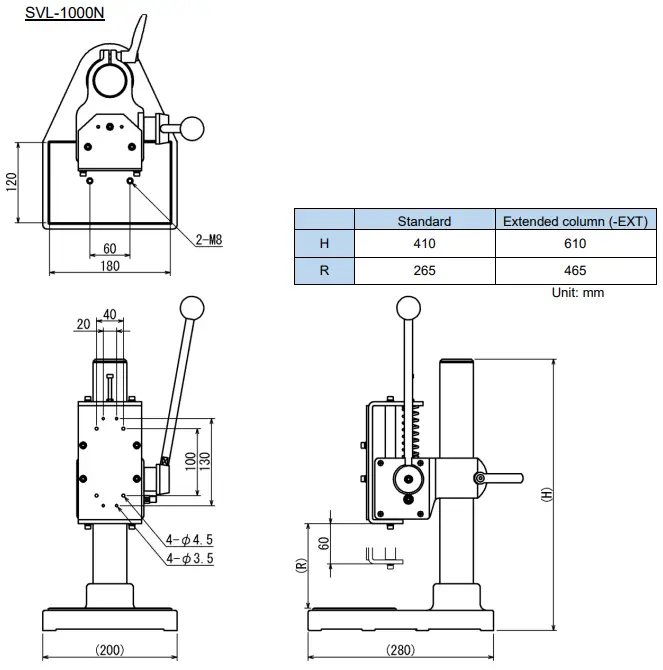

Dimensions

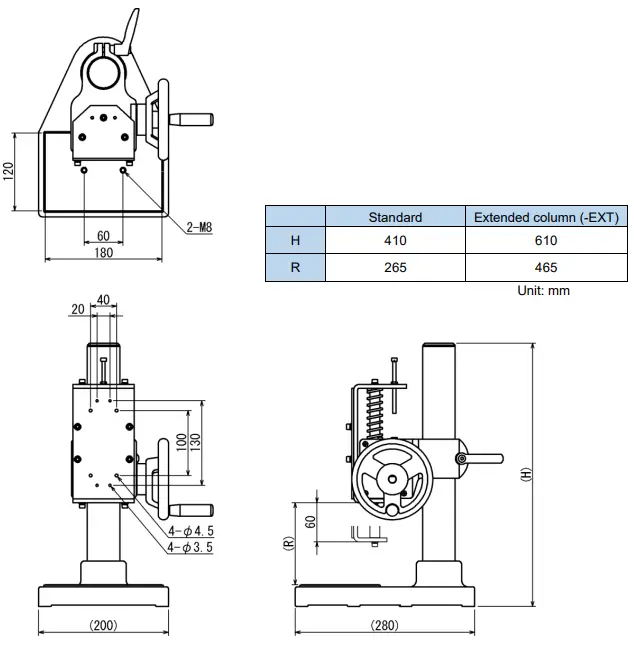

SVH-1000N
Cautions
- Information in this document is subject to change without prior notice.
- This document is product descriptions and handling precautions, and do not guarantee various characteristics or safety.
- This product is designed for force measurement purpose only.
- Do not copy and use this content without authorization.
- A force gauge (sold separately) is required to use this product.
- Do not use this product in the environments including fierce temperature changes, high temperature, high humidity, near water, dusty place.
