IKEA logoBROGRUND

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - figIKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig

Installation must be performed in compliance with current local construction and plumbing regulations. If in doubt, contact a professional.

Warning icon Switch off the main shut-off valve before changing the mixer tap.

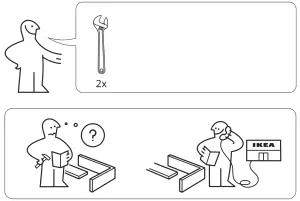

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 1

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 2

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 3

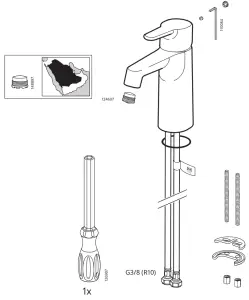

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 4

1.

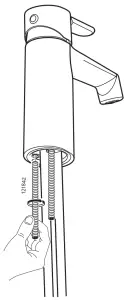

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 5



2.

3.

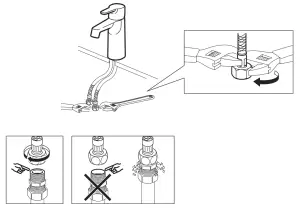

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 7IMPORTANT! Do not tighten too hard: this can damage hoses/pipes and washersIKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 9

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 10

Before use: Unscrew the Aerator/Flow Guide with a coin and allow the water to run freely for a few minutes. Then screw the Aerator/Flow Guide back
in place up to the stop DO NOT OVERTIGHTEN.

IKEA 403 430 82 Brogrund Bath Faucet with Strainer - fig 11Check at regular intervals to make sure that the installation is not leaking.
