POWERSMART logo

INSTRUCTION MANUAL
24/26 inch Two Stage Gas Snow Thrower
Model # PSSAM24BS/PSS2260BS

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - stopPROBLEMS? QUESTIONS?
DO NOT RETURN TO THE STORE
CALL OUR CUSTOMER HELPLINE
(800)791-9458 Mon-Fri 9-5 EST

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual

Have product questions or need technical support? Please feel free to contact us!

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - qr code

Website: www.PowerSmartUSA.com
Toll free: 1-800-791-9458 Mon-Fri 9-5 EST
Email: [email protected]

TECHNICAL DATA

24-inch Two-Stage Electric Start Snow Thrower26-inch Two-Stage Electric Start Snow Thrower
Model #PSSAM24BSPSS2260BS
Engine:208cc snow engine250cc snow engine
Engine oil Capacity:20.29 fl. oz20.29 fl. oz
Fuel Tank Capacity:0.8 Gallon0.71 Gallon
Start System:120V Electric / Recoil120V Electric / Recoil
Clearing Width:24 in.26 in.
Clearing Height:20 in.20 in.
Chute Rotation Angle:180°180°
Speed:Forward&ReverseForward&Reverse
Tire Size:13 in. snow tire13 in. snow tire
Overall Dimensions:32.3×24.8×23.63in.31.9×27.2x24in.
Weight:147.731bs147.91bs

Thank you for purchasing PowerSmart products.

It is crucial and highly recommended that you read this instruction manual in its’ entirety, as this is an invaluable tool and reference point in understanding the operation of your unit.

Please register your unit online at www. Amerisuninc.com. This process will allow us to track your warranty information and update our records regarding your unit accordingly.

Important: Our company does not provide email or personal information to any third party for any reason. For any questions check our website or call customer service at (800)791 9458.

INTRODUCTION,

Thank you for purchasing a PowerSmartt Product. This manual provides detailed information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of the information in this document. PowerSmartt reserves the right to change this product and specifications at any time without prior notice.

Please keep this manual available to all users during the entire life of the product.

PHILIPS HD920X 4.1 Litre Air Fryer - CautionThis manual contains special messages to bring attention to potential safety concerns, product damage as well as helpful operating and servicing information. Please read all the information carefully to avoid injury and machine damage.

QUESTIONS? PROBLEMS?
To answer questions and resolve issues in the most efficient and timely manner, please contact Customer Service at (800) 791-9458, Mon-Fri 9 am-5 pm EST or email: [email protected].

NOTICE REGARDING EMISSIONS
Engines that are certified to comply with U.S. EPA emission regulations for SORE (Small Off-Road Equipment), are certified to operate on regular unleaded gasoline and may include the following emission control systems: (EM) Engine Modifications and (TWC) Three-Way Catalyst (if so equipped).

SAFETY INFORMATION

PHILIPS HD920X 4.1 Litre Air Fryer - CautionThis symbol points out important safety instructions which, if not followed, could endanger the personal safety and or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury.

PHILIPS HD920X 4.1 Litre Air Fryer - Caution WARNING! This machine was built to be operated according to the safe operation practices in this manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating fingers, hands, toes, and feet and throwing foreign objects. Failure to observe the following safety instructions could result in serious injury or even a fatal occurrence.

It is your responsibility to restrict the use of this power machine to persons who read, understand, and follow the warnings and instructions in this manual and on the machine.

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - ROTATING PARTS ROTATING PARTS! Only use a clean-out tool to clear blockages. NEVER use your hands.
POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - NEVER NEVER direct discharge towards persons or property that may be injured or damaged by thrown objects.
POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - Keep people Keep people away from the unit while operating. Keep children out of the work area and under the watchful care of a responsible adult.

TRAINING
Read, understand, and follow all instructions on the machine and in the manual(s) before attempting to assemble and operate. Keep this manual in a safe place for future and regular reference.

  • Be familiar with all controls and their proper operation. Know how to stop the machine and disengage them quickly.
  • Never allow children under 14 years of age to operate this machine. Children 14 and over should read and understand the instructions and safe operation practices in this manual and on the machine and be trained and supervised by an adult
  • Never allow “non-trained” adult personnel to operate this machine without proper instruction.
  • Thrown objects can cause serious personal injury. Plan and map out your snow-throwing pattern to avoid discharge of material toward roads, bystanders, and the like.
  • Keep bystanders, pets, and children at least 75 feet from the machine while it is in operation. Stop the machine if anyone enters the area.
  • Exercise caution to avoid slipping or falling, especially when operating in reverse.

PREPARATION
Thoroughly inspect the area where the equipment is to be used. Remove all doormats, newspapers, sleds, boards, wires, branches, and other foreign objects, which could be hazardous and damage the auger system.

  • Always wear safety glasses or eye shields during operation and while performing an adjustment or
    repair to protect your eyes, as thrown objects can ricochet and cause serious injury to the eyes.
  • Do not operate without wearing adequate, winter outer gannets. Do not wear jewelry, long scarves, or other loose clothing, which could become entangled in moving parts, and wear footwear that will improve footing on slippery surfaces.
  • Use a grounded “three-wire” extension cord and receptacle for all machines with electric start
  • Adjust skid shoe and/or housing height to clear gravel or crushed rock surfaces.
  • Disengage all control levers before starting the engine.
  • Never attempt to make any adjustments while the engine is running, except where specifically recommended in the instruction manual.
  • Let engine and machine adjust to outdoor temperature before starting to clear snow.

PERSONAL SAFETY

  • Engine exhaust and certain vehicle components contain or emit chemicals known to cause cancer, birth defects, or other reproductive harm.
  • Read, understand and follow all instructions on your snow thrower unit and in this instruction manual before attempting to assemble and operate your machine.
  • Keep this instruction manual in a safe place for future and regular reference. If replacement parts are needed, refer to the Panel, Chute, Frame, and Housing Diagrams and Parts’ Listings on pages 25-30.
  • Stay alert, watch what you are doing, and use common sense when operating your snow thrower unit.
  • Do not use your snow thrower unit while you are tired or under the influence of drugs, alcohol, A moment of inattention while operating the snow thrower may result in severe bodily injury.
  • NEVER LEAVE YOUR RUNNING SNOW THROWER UNATTENDED. Stop the engine!
  • Do not leave your snow thrower unit until it has come to a complete stop.
  • When stepping backward, be cautious about any obstacles beneath your feet or behind you to avoid

SERVICE

  • Stop the engine before making any adjustments. Check for misalignment, breakage, or binding of moving parts, and any other conditions that may affect operation.
  • If damaged, have the snow thrower unit serviced by an authorized service center using only specified, manufactured replacement parts. This will ensure that the safety of the snow thrower unit is maintained.

SAFE HANDLING OF GASOLINE
To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite, therefore wash your skin and change clothes immediately.

  • Use only an approved gasoline container.
  • Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
  • Never fuel the snow thrower unit’s engine indoors.
  • Never remove the gas cap or add fuel while the engine is hot or running.
  • Allow the engine to cool at least two minutes before refueling.
  • Never overfill the fuel tank.
  • Replace the gasoline cap and tighten securely.
  • If gasoline is spilled, wipe it off the engine and equipment. Move the machine to another Wait 5 minutes before starting the engine.
  • Never store the machine or fuel container inside where there is an open flame, spark, or pilot light (e.g. furnace, water heats, space heater, clothes dryer, etc.).
  • Allow the machine to cool at least 5 minutes before storing.
  • Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
  • If possible, remove gas-powered equipment from the truck or trailer and refuel it on the ground.
  • If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
  • Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock open device.

OPERATION

  • Do not put hands or feet near rotating parts, in the auger impeller housing or chute assembly. Contact with the rotating parts can amputate hands and feet.
  • The auger (impeller) control lever is a safety device. Never bypass its operation. Doing so makes the machine unsafe and may cause personal injury.
  • The control levers must operate easily in both directions and automatically return to the disengaged (vertical) position when released.
  • Never operate with a missing or damaged chute assembly. Keep all safety devices in place and
  • Never run an engine indoors or in a poorly ventilated Engine exhaust containing carbon monoxide, an odorless and deadly gas.
  • Do not operate the machine while under the influence of alcohol or dings.
  • Muffler and engine become hot and can cause burning. Do not touch. Keep children away.
  • Exercise extreme caution when operating on or crossing gravel surfaces. Stay alert for hidden hazards or traffic.
  • Exercise caution when changing direction and while operating on slopes.
  • Plan your snow-throwing pattern to avoid snow discharge towards windows, walls, cars, etc., thus avoiding possible property damage or personal injury caused by ricocheting debris.
  • Never direct discharge at children, bystanders, and pets or allow anyone in front of the machine.
  • Do not overload machine capacity by attempting to clear snow at too fast of a rate… Remember! Slow and steady operation is best to avoid clogs of snow being impelled too rapidly.
  • Never operate this machine without good visibility or light. Always be sure of your footing and keep a firm hold on the handles. Walk, never run.
  • Disengage power to the auger system (auger/impeller) by releasing the auger control (lever) when transporting or not in use.
  • Never operate machines at high transport speeds on slippery surfaces. Look down and behind and use care when backing up.
  • If the machine should start to vibrate abnormally, stop the engine, disconnect the spark plug wire, and ground it against the engine. Inspect thoroughly for damage. Repair any damage before starting and operating.
  • Disengage all (drive and auger) control levers and stop the engine before you leave the operation position (behind the handles).
  • Wait until the auger /impeller comes to a complete stop before unclogging the chute assembly, making any adjustments or inspections.
  • Never put your hand in the discharge or collector openings. Always use the clean-out tool provided to unclog the discharge opening. Do not unclog chute assembly while the engine is running. Shut off the engine and remain behind handles until all moving parts have stopped before unclogging.
  • Use only attachments and accessories approved by the manufacturer (e.g. wheel weights, tire chains, cabs, etc.).
  • When starting the engine, pull the cord slowly until resistance is felt, then pull rapidly, Rapid retraction of starter cord (kickback) will pull hand and arm toward engine faster than you can let go. Broken bones, fractures, bruises, or sprains could result.
  • If situations occur which are not covered in this manual, use care, and good judgment to contact customer support for assistance.

MAINTENANCE & STORAGE

  • Never tamper with safety devices. Check their proper operation regularly. Refer to the maintenance and adjustment sections of the manual.
  • Before cleaning, repairing, or inspecting the machine disengage all control levers and stop the engine.
  • Wait until the auger impeller comes to a complete stop. Disconnect the spark plug wire to prevent unintended starting.
  • Check bolts and screws for proper tightness (every time before & after use) as engine vibration could cause hardware to loosen.
    This process will keep the machine in safe working condition. Also, visually inspect the machine for any damage.
  • Verify that the auger gearbox, located between your right and left auger blades, has substantial lubricant in the casing.
    The gearbox fill and drain plugs (bolts) are the only “vertical” plugs (bolts) on the gearbox assembly when viewed in the standing position. The top plug (bolt) is used for filling…the bottom plug (bolt) is for draining. Simply remove the top plug (bolt) for verification of lubricant, as it should be inside. To drain, simply remove the bottom plug (bolt).
  • Do not change the engine governor setting or over-speed the engine. The governor controls the maximum safe operating speed of the engine.
  • Snow thrower auger belts, shave plates, shear pins and skid shoes are subject to wear and damage, therefore it is expected that the owner assumes personal responsibility for the maintenance (removal & installation) of these items.
  • For your safety protection, frequently check all components and replace them with original equipment manufacturers (OEM) parts only. Use of parts that do not meet the original equipment specifications may lead to improper performance and compromise safety.
  • Check (drive & auger) control lever (handles) and cables periodically to verify they engage and disengage properly and adjust, if necessary. Refer to the adjustment section in this operator’s manual for instructions.
  • Maintain or replace safety and instruction labels, as necessary.
  • Observe proper disposal laws and regulations for gas, oil, etc. to protect the environment.
  • Prior to storing, run the machine for a few minutes to clear snow from the machine and prevent freeze-up of auger impeller and completely wipe down unit, while inspecting for frozen components.
  • Never store the machine or fuel container inside where them is an open flame, spark, or pilot light such as water heater, furnace, clothes dryer, etc.
  • Always refer to the operator’s manual for proper instructions on off-season storage.
  • Check fuel line, tank, cap, and fittings frequently for cracks or leaks. Replace if necessary.
  • Do not crank engine with spark plug removed.
  • Have the machine inspected annually by an authorized service dealer to ensure that all mechanical and safety systems are working properly and have not worn excessively*? Failure to do so can result in accidents, injuries, or death.

*Please note that an annual inspection is not covered within the warranty program…only REPAIR service.

CLEANING

  1. To clean your Snow Thrower, use a damp cloth and mild detergent on the surfaces only. Never get soap or water inside the working mechanisms of your Snow Thrower. Do not clean with water. Water will freeze due to low temperature and damage the machine.
  2. Clean the Snow Thrower of snow and ice buildup before storing or transporting. Be sure to secure the unit while transporting.
  3. Inspect the Snow Thrower carefully for worn, loose, or damaged parts. Check connections and screws and tighten if necessary.

DO NOT MODIFY THE ENGINE

To avoid serious injury or death, do not modify the engine in any way. Tampering with the governor setting can lead to a runaway engine and cause it to operate at unsafe speeds. Never tamper with the factory setting of the engine governor.

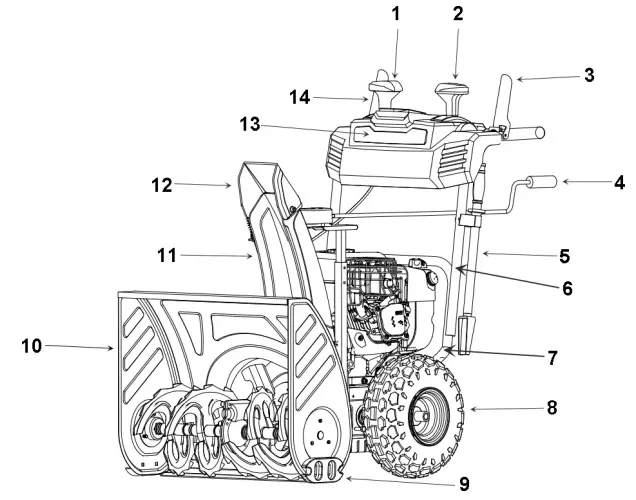

KNOWING YOUR SNOW THROWER

Use the illustrations below to become familiar with the locations and functions of the various components and controls of this snow thrower.

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - KNOWING YOUR SNOW THROWER

1 Chute Deflector Control Lever
2 Speed Control Lever
3 Auger Control Trigger
4 Chute Rotation Handle
5 Clean Out Tool
6 Upper Handle
7 Lower Handle
8 Tire
9 Skid Shoe
10 Auger Housing
11 Discharge Chute
12 Discharge Chute Deflector
13 Light
14 Drive Control Trigger

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - KNOWING YOUR SNOW THROWER 2

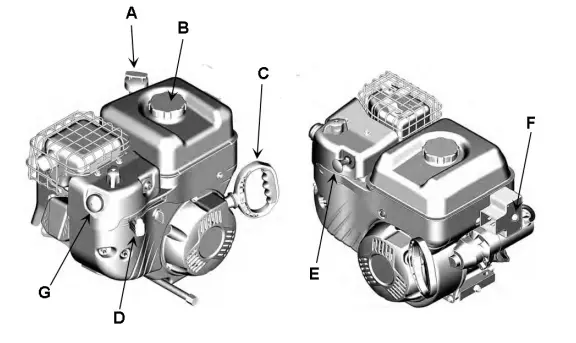

A Dipstick/Oil Fill
B Fuel Tank and Cap
C Starter Cord Handle
D Throttle Control (if equipped)
E-Safety Key (if equipped)
F Push Button Electric Start
G Primer

Drive Control Trigger
Located on the right side of the upper handle, the Drive Control Handle is used to engage and disengage the drive wheels. Squeeze the Drive Control Handle against the upper handle to engage the wheels; release to disengage.

Drive Speed Control Lever
The Speed Control is located at the center of the panel and is used to set the drive speed and direction of travel. The speeds include forward and reverse.

Auger Control Trigger
Located on the left side of the upper handle, the Auger Control Handle is used to engage and disengage the augers. Squeeze the Auger Control Handle to engage the augers; release to disengage the augers.

Chute Rotation Handle
To adjust snow discharge direction, rotate the handle clockwise or counter-clockwise…. should rotate 180 degrees.

Skid Shoe
Position the shoes based on the surface conditions. Adjust upward for hard-packed snow. Adjust downward when operating on gravel or crushed rock surfaces.
Auger Blade and Impeller
When engaged, the auger blades rotate to cut snow and direct it into the auger/impeller housing to be discharged out the chute.

Clean-out Tool
The chute Clean-out Tool is conveniently fastened to the rear of the auger housing with a mounting clip. It is used to clean the chute assembly and chute opening when snow and ice become lodged. WARNING! Never use your hands to clear a clogged chute assembly. Shut off the engine and remain behind handles until all moving parts have stopped before unclogging.

Wheel
13-inch snow tire

LED Light
Located on the front of the panel, this feature provides extra light for increased visibility.

Heated Handle
Open the switch on the back of the panel, handles began to heat up.

One-Hand Operation
When you activate the drive control trigger and auger control trigger at the same time, the auger control trigger will be temporarily locked. Release the auger control trigger(left hand)and the auger switch trigger will remain engaged. This feature allows you to adjust the auger speed, self-propelling speed, and discharging direction of the snow while the auger rotates. To stop the auger, release the drive control trigger and both the auger and the self-propel function will stop.

SNOWTHROWER PREPARATION,

ADD OIL
The snow thrower is shipped without oil. The user must add the proper amount of oil before operating the snowblower for the first time. The oil capacity of the engine crankcase is 20.29 fl. oz. For general use, we recommend 5W-30, 4-stroke engine oil.

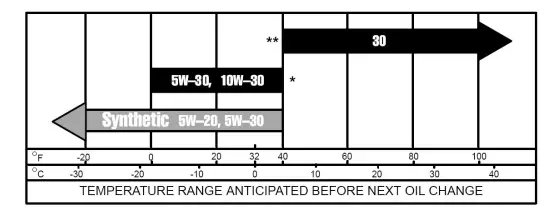

ENGINE OIL RECOMMENDATIONS

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - ENGINE OIL RECOMMENDATIONS

Select good quality detergent oil bearing the American Petroleum Institute (API) service classifications SJ, SL, or SM (synthetic oils may be used). Use the ASE viscosity grade of oil from the following chart that matches the starting temperature anticipated before the next oil changes.

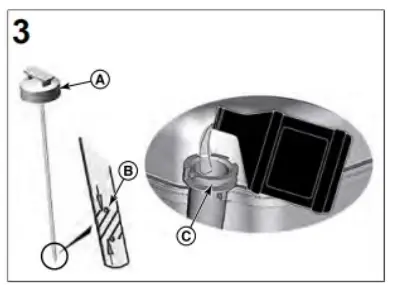

Check Oil Level

  1. Remove the dipstick (A, Figure 3) and wipe with a clean cloth.
  2. Install and tighten the dipstick (A, Figure 3).
  3. Remove the dipstick and check the oil level. Correct oil level is at the top of the full indicator (B, Figure 3) on the dipstick.

Add Oil

  1. If the oil level is low, slowly add oil into the engine oil fill (C, Figure 3). Do not overfill. After adding oil, wait one minute and then check the oil level.
  2. Reinstall and tighten the dipstick (A, Figure 3).
    ADD GASOLINE

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - Check Oil Level

Use fresh (within 30 days from purchase), lead-free gasoline with a minimum of 87 octane rating. Do not mix oil with gasoline.
To add gasoline, follow these steps:

  1. Make sure the snow thrower is on a level surface.
  2. Unscrew the fuel tank cap and set it aside. NOTE: The fuel cap may be tight and hard to unscrew.
  3. Slowly add unleaded gasoline to the fuel tank. Be careful not to overfill. The capacity of the fuel tank is 0.8gallons for model#PSSAM24BS; 0.71gallons for model#PSS2260BS.
    NOTE: Do not fill the fuel tank to the very top. Gasoline will expand and spill over during use even with the fuel cap in place.
  4. Reinstall the fuel cap and wipe clean any spilled gasoline with a dry cloth.

IMPORTANT:

  • Never use an oil/gasoline mixture.
  • Never use old gasoline.
  • Avoid getting dirt or water into the fuel tank.
  • Gasoline can age in the tank and make starting difficult. Never store snow throwers for extended periods of time with fuel in the tank or the carburetor.

NOTE: After completing the above preparation, the engine is ready to be started.
WARNING! Keep the area of operation free from foreign objects that can be thrown by the auger and/or impeller blades. Perform a thorough inspection of the area since some objects may be hidden from view by surrounding snow. If the snow thrower hits an obstruction or picks up a foreign object during use, stop the snow thrower immediately, remove the obstruction, and inspect it for damage. Repair or replace any damaged parts before restarting and operating your snow thrower.

  • Keep children, pets, and bystanders away from the area of operation. Be aware that the normal noise of the snow thrower when turned on may make it difficult for you to hear approaching people.
  • Start your clearing path by throwing snow in a back and forth motion. To clear in the opposite direction, stop your snow thrower and pivot it on its’ wheels to face the opposite direction. Make sure to overlap clearing paths.
  • Determine the direction of the wind. If possible, move in the same direction as the wind so that the snow is not thrown against the wind, back into your face, and on the just cleared path.

WARNING! DO NOT USE YOUR HANDS TO UNCLOG THE CHUTE. Stop the motor before removing debris. Use the supplied Clean-out tool to unclog the chute. Do not walk in front of your running snow thrower. Do not direct discharged snow towards bystanders.

  • Do not apply additional man-made load to the engine since this may damage the engine.
  • Some parts of your snow thrower may freeze under extreme temperature conditions. Do not attempt to operate your snow thrower with frozen parts. If the parts freeze while your snow thrower is in use, stop the unit and inspect it for frozen parts. Thaw all parts before restarting and operating your snow Never force parts or controls that are frozen. Never use an open flame of any sort to thaw frozen parts.

Pre-operation Inspection – IMPORTANT!!!
Before using your snow thrower for the first time, check the following:

  • Have you read and followed all setup and operation procedures for the engine as outlined?
  • Has the engine been filled with oil and gasoline to the proper level?
  • Are all snow thrower components properly attached and assembled?
  • Are there any broken or damaged parts?
  • Are all fasteners tight?
  • Are the tires inflated to the proper pressure?

NOTICE: If you are unsure about the assembly or condition of any of your snow thrower parts, please call our customer service department at (800)791 9458.

AUGER AND DRIVE CONTROLS

  1. To engage the auger (blades), press down on the auger control lever (left side handle).
  1. To engage the drive, press down on the drive control lever (right side handle). The machine should start moving in the direction and speed for the respective setting on the speed/gear control.

When finished clearing a snow path, release the auger control lever (handle) and the drive control lever (handle)Attention: Release (disengage) the auger and drive control lever (handles) before adjusting the drive speed control lever. NEVER change the drive/gear speed while your snow thrower is in motion, as it will damage the drive mechanism and void the warranty.

DRIVE SPEED CONTROL
Move the drive speed control lever to the desired speed. There are forward and reverse speeds.

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - CONTROL

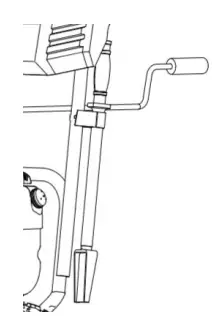

CHUTE DISCHARGE DIRECTION ADJUSTMENT

PHILIPS HD920X 4.1 Litre Air Fryer - Caution WARNING – Never direct the snow discharge chute at the operator, bystanders, vehicles, or nearby windows. Discharged snow and foreign objects accidentally picked up by the Snow Thrower can cause serious damage and severe bodily injury. Always point the discharge chute in the opposite direction from potential hazards.

The discharge chute can be adjusted 180° by rotating the chute rotation handle. Rotate the chute rotation handle clockwise to move the discharge chute to the right; counterclockwise to move the chute to the left.

SKID SHOE ADJUSTMENT

Adjustment of the skid shoes sets the height above the ground at which the auger shave plate operates. For clearing snow from concrete, asphalt, and other smooth surfaces, set the auger shave plate so that the bottom of the plate is just above the ground.

For clearing snow from gravel, dirt, and other rough surfaces set the auger shave plate slightly above the ground to avoid dirt and gravel from entering the auger.

The optimal height of the plate will vary depending on the type of surface being cleared. Surfaces with larger gravel or stones require a higher shave plate setting.

  1. Move the snow thrower to a solid, smooth, and level surface.
  2. Place a spacer board on the ground underneath the auger shave plate between the skid shoes. The thickness of the board should die the same as the height above the ground you wish to raise the auger shave plate. The skid shoes should not touch the board.

With the two nuts, loose allows the skid shoe to slide to the ground then tighten the nuts to secure the skid shoe.

OPERATING YOUR SNOW THROWER

MANUAL START THE ENGINE

To manual start the engine, perform the following steps:

  1. Check the engine oil. See the Check Oil Level
  2. Make sure equipment drive controls, if equipped, are disengaged.
  3. Move the throttle control (A, Figure 5), if equipped, to the fast Operate the engine in the fast position.
  4. Move the fuel shut-off (B, Figure 5), if equipped, to the open
  5. Insert the key (C, Figure 5), and turn to the on position.
  6. Move the choke control (E, Figure 5) to the choke position. Note: Choke is usually unnecessary when restarting a warm engine.
    POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - THROWER
  7. Push the primer (F, Figure 5) two times.
    Note: Priming is usually unnecessary when restarting a warm engine.
  8. Rewind Start, if equipped: Finely hold the starter cord handle. Pull the starter cord handle slowly until resistance is felt, then pull rapidly.

ELECTRIC START THE ENGINE
Connect the extension cord to the power cord receptacle 120V and then into a wall receptacle. Depress the push button. After you start the engine, disconnect the extension cord from the wall receptacle and then from the power cord receptacle.
As the engine warms up, move the choke control (E, Figure 5) to the run position.

CLEARING SNOW
Start the engine once your snow thrower has been running outside for several minutes, it is now ready for use. Make sure the path in front of your Snow Thrower is free from people, animals, objects, and all other obstructions except for the snow.
Adjust the chute outlet to the desired direction.
Turn the chute rotation handle clockwise or counter-clockwise until the desired position is reached.

WARNING! Never direct the chute outlet toward people or animals. While snow may seem harmless, it can contain rocks or other debris that can cause serious injury when projected through the chute.

  1. Engage/depress the auger control lever (handle) to start the augers and impeller turning.
  2. Set the desired direction and speed using the speed/gear control lever.
  3. Engage/depress the drive control lever (handle) and direct the snow thrower into the snow to be cleared.

NOTICE: NEVER change speed/gear positions while the drive control lever (handle) is engaged. Disengage the drive control handle BEFORE changing speeds or directions. If the snow is deeper than the height of the auger, remove it in several steps taking narrower swaths. Make several passes with the auger overlapping the cleared areas and reduce forward speed.

For the best clearing efficiency, clear snow before it melts refreezes, and hardens. Hard-packed and wet snow can be very difficult to clear.

Clearing wet heavy snow can be a challenge, depending on ambient temperature, humidity levels, and overall climate conditions including actual snow conditions, there may be no 100% solution as snow may be too wet or compacted to move or throw. Wet snow will tend to clog and stick more to the augers and chute. Keep the auger engaged as much as possible when clearing wet snow to help prevent clogging.

WARNING! If snow is filled with foreign material, damage to the snow thrower may result. Avoid snow with foreign materials.

STOPPING

When finished using your snow thrower, perform the following steps to shut it down.

  1. Engage the auger and impeller for 30 seconds to clear any remaining snow inside your snow thrower
  2. Stop the auger blade rotation by releasing the (left) auger control lever (handle).
  3. Key, if equipped: Turn the key (C, Figure 5) to the off position. Remove the key and keep it in a safe place out of the reach of children.
  4. After the engine stops, move the fuel shut-off (B, Figure 5), if equipped, to the closed position.
  5. Remove snow from all snow thrower surfaces including the auger housing and chute areas.

CLEARING RESTRICTIONS

If the snow discharge chute or auger housing becomes clogged, STOP the engine. Remove the Engine Safety key and make sure that all rotating parts have come to a complete stop. Use the supplied snow clean-out tool to clear the obstruction. After unclogging, wipe the tool clean, and place it in the holder on top of the auger housing.

MAINTENANCE

TIRE INFLATION
Before each use of your Snow Thrower, check the tire pressure. The pressure in each tire should be in the range of 20-24 psi for the best performance. The pressure can be checked using an ordinary tire pressure gauge. Fill the tires using a small or pressure-regulated air compressor.

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - MAINTENANCE

WARNING! DO NOT OVERINFLATE THE TIRES. Over-inflating could cause a tire to burst and cause severe bodily injury.

SHAVE PLATE REPLACEMENT
Remove both skid shoes and hardware including carriage bolts and nuts which attach shave plate to snow thrower housing. Reassemble new shave plate, making sure heads of the carriage bolts are to the inside of the auger housing.

AUGER OR IMPELLER JAMS
WARNING!
The auger and impeller rotate at fast speeds which can cause harm or even amputation to a person’s body parts. Even if you do not see the auger or impeller rotating, it may start at any time if the engine is running. Remove the Safety Key before cleaning the jams. The chute clean-out tool is fastened to the upper tube with mounting clips.

  1. Always turn OFF the engine before attempting to clear any clogs or jams.
  2. Keep hands and feet away from rotating parts while the engine is running.
  3. Do not wear loose-fitting clothing that can become entangled in rotating parts.
  4. Wait until the auger and impeller have come to a full stop.
  5. Clear any visible jams using the clean-out tool attached to your machine.

WARNING! DO NOT try to clear jams with your hands or feet.

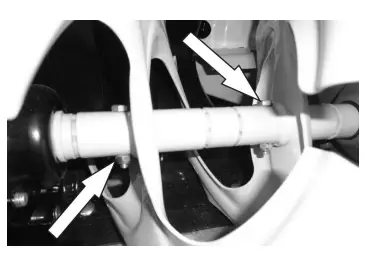

AUGER SHEAR PINS REPLACEMENT
Shear pins are used to attach the auger shaft to the auger blades. Stop the engine by removing the safety key. A clog or jam in the augers may cause one or multiple shear pins to break. The shear pins are a safety mechanism designed to break under high load or impact and protect the auger drive system from damage. Replacement shear pins and nylon lock nuts are provided with your snow thrower.

For additional replacement shear pins, please call the customer service department at (800)791 9458.

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - REPLACEMENT

  1. Turn off the engine and wait for all moving parts to come to a complete stop. Remove any remnants of the broken shear pin. It may be necessary to unscrew the nut from the broken shear pin and drive out the broken pin.
  2. Insert a new shear pin through the hole in the auger shaft and tighten using the shear pin nylon lock nut. Do not over-tighten the nylon lock nut.
    Note: Never replace the shear pins with standard pins or fasteners. Damage may occur to the snow blower and drive systems.

NOTICE: Never replace the shear pins with standard pins or fasteners. Damage may occur to the snow blower and drive systems.

TROUBLESHOOTING

Problem

Causes

Remedy

WARNING – Before attempting to make any inspections, repairs, or adjustments, stop the engine, wait for all moving parts to stop moving, and carefully disconnect the engine spark plug wire. If tipping or turning the snowblower is required for any inspection or repair, first, wait until the engine is cool to the touch and then drain the engine of all fuel and oil into suitable containers and store or dispose of in a proper manner.
Engine Systems – Note: For all engine problems, see the below-troubleshooting information.
Engine Fails to Start (Engine cranks over)Spark plug wire disconnectedConnect a wire to spark plug
Faulty spark plugClean, adjust the gap, or replace the spark plug.
Engine flooded with fuelDiscontinue choke or primer use, clean, or replace the spark plug.
Safety key not inserted in engine ignitionInsert the key fully into the switch
Choke not in START positionMove to choke to START position, after the engine starts slowly move to RUN position as engine speed and operation stabilizes at the set rpm. If the engine still does not; tart mow to half choke and crank engine.
Fuel incorrect, old or stale, will not igniteEmpty and clean fuel tank & carburetor, refill with fresh, lean gasoline. (Note: Fuel may become stale after 30 Jays in some cases)
Blocked or clogged fuel system or lineClean fuel system or line
An extension cord is not properly attached to the electric starter terminalRe-insert extension cord into electric starter terminal.
Engine electric starter will not crank the engineNo power from the power supply, tripped breakerCheck power supply extension cord is attached to.
Extension cord wire gauge is too small, or cord is too longUse proper rated and length extension cord
CHOKE in ON or partial ON positionMove CHOKE lever to RUN
Engine runs erratic, stalls or seems low on powerFuel incorrect, old or staleEmpty and clean fuel tank & carburetor, refill with fresh, clean gasoline. (Note: Fuel may become stale after 30 days in some cases)
Blocked or clogged fuel system or lineClean fuel system or line
The carburetor is in need of cleaningClean fuel system and carburetor
Spark plug wire loseConnect and tighten spark plug wire
Faulty spark plugClean, adjust gap or replace the spark plug, see Engine Operator’s manual
Engine oil overfilledDrain oil to the proper level. Oil should not be above the top 2 threads of the LOWER fill plug.
Engine oil level low or emptyAdd oil
Drive system
No forward or reverse drive movement when Jrive handle : gagedDrive belt loose or damagedCheck drive belt tension pulley for damage or incorrect tension, repair as necessary. Replace drive belt.
The friction drive wheel is worn or damagedReplace friction drive wheel
Friction drive wheel wet or slippingAllow snowblower to dry and or warm-up or adjust drive cable tension as necessary.
Drive speed control stuck in gear or won’t change gearsSpeed control lever lose or damaged, not moving speed control cablesCheck speed control lever and cables for damage or loose or missing parts. Repair or replace parts as needed, ensure pivot stud spring tension is correct, adjust pivot nut spring tension as needed.
Speed control cables lose, damaged, or bindingRepair, adjust, or replace as necessary
Drive speed control allows only I

direction

Speed control cables misadjusted, loose, damaged, or bindingCheck speed control lever and cables for damage or loose or missing parts. Repair or replace parts as needed. Adjust drive speed control cables, see Drive Speed Control Cables Adjustment
Drive engaged when drive control handle releasedDrive control cable binding, won’t release Repair, replace cable as necessaryRepair, replace cable as necessary
Friction drive wheel return spring broke or missingReplace spring, adjust cable as necessary
Auger System
Auger not rotating when the auger control handle engaged or Not blowing snow or Poor snow blowing performanceChute assembly cloggedClean chute and inside of auger housing with a clean-out tool
Auger shear pins brokenReplace shear pins. Check each auger blade shear pin.
Foreign object in auger or impeller causing auger to stop without shearing pinsRemove object from auger or impeller areas
Auger belt loss, slipping, worn, or damagedReplace auger belt
Auger belt tension cable lose, damaged, or bindingRepair, adjust, or replace as necessary
Auger blade(s) damaged or bentReplace auger blade(s)
Auger gearbox mechanical damage, auger drive system not rotating freely (binding)Check bearings, bushings, and all system parts for damage or mechanical binding. Repair or replace as necessary using proper lubrication
Impeller damagedReplace impeller
Impeller not connected to impeller shaft, impeller or shear pins brokenReplace shear pins or impeller as necessary
Forward speed too fast while blowing snow, overloadAllow the engine to maintain its speed.
Auger belt is broken or repeated failureAuger tension pulley arm return spring broken nr missingReplace tension arm return spring
Auger tension pulley arm stuck or bindingRepair or replace tension arm as necessary
Auger tension pulley arm or pulley misaligned or damaged tece scaryRepair, replace, or align tension arm and or pulley as
Foreign material on pulleys and belts, oil, rase, dirt, etc.Clean belt and pulleys as necessary, replace the belt if necessary
Auger pulleys misaligned, loose, damaged, or entReplace or align pulleys as necessary
Incorrect or damaged auger beltReplace with the correct size and type belt
Auger belt guide pin not adjustedAdjust belt guide pin to within 1/8 to 3/16 in. from the pulley. (Guide pin keeps the belt in pulley when disengaged)
Auger rotating when the auger control handle releasedAuger tension pulley arm return spring broken or missingReplace tension arm return spring

EXPLODED VIEW AND PART LIST

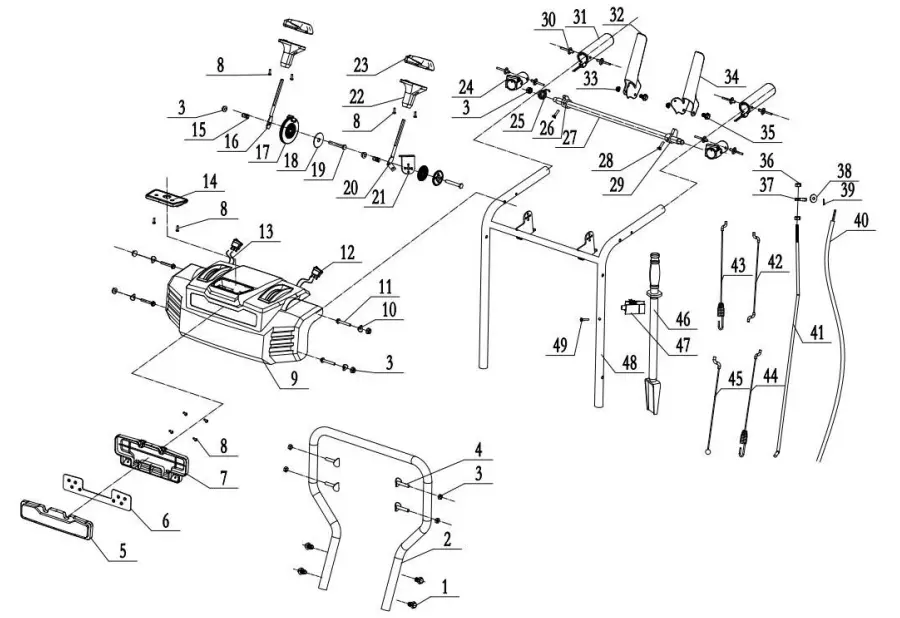

PANEL ASSEMBLY

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - PANEL ASSEMBLY

ItemStock#DescriptionOW
1303020240Hex Flange Screw4
2303160909Lower Handle1
3303030077Flange Lock Nut M811
4303020154Bolt M8×404
5203050729Lampshade1
6301013054Lamp board1
7203050730Lampshade cover1
8303010026Screw10
9203050728Panel1
10303043010Concave pad4
11303020275Bolt4
12301100037Switch2
13301040130Connecting line3
14306040055Driving board1
15303130074Compression spring2
16303071528Control lever1
17303071343Gear plate2
18203020380Tooth pad4
19303020072Bolt2
20303071527Travel control lever1
21303071536Travel control panel1
22203050740Lower cover2
23203050739Upper cover2
24203050682Self-locking seat2
25303071499Self-locking torsion spring1
26303060158Right self-locking cam1
27303170030Shaft1
28303160790Screw M5’182
29303060157Left self-locking cam1
30306110038Rivet8
31203070005Heated handle2
32303071520Right control trigger1
33303030025Nut2
34303071518Left control trigger1
35303020486Hex Flange Screw2
36303030076Flange Normal Nut M82
37303123034Connection Rod Pin1
38303042023Flat Washer1
39303160845Dowel Pin1
403010401366Connecting line1
41303071442ASpeed Control Connection Rod1
42303200060AUpper Auger Cable1
43303200130Upper Drive Cable1
44303200012Lower Auger Cable1
45303200050Lower Drive Cable1
46203050057Clean Out Tool1
47203050512Rocker Seat1
48303181339Upper Handle Welding1
49303010164Screw M6x201

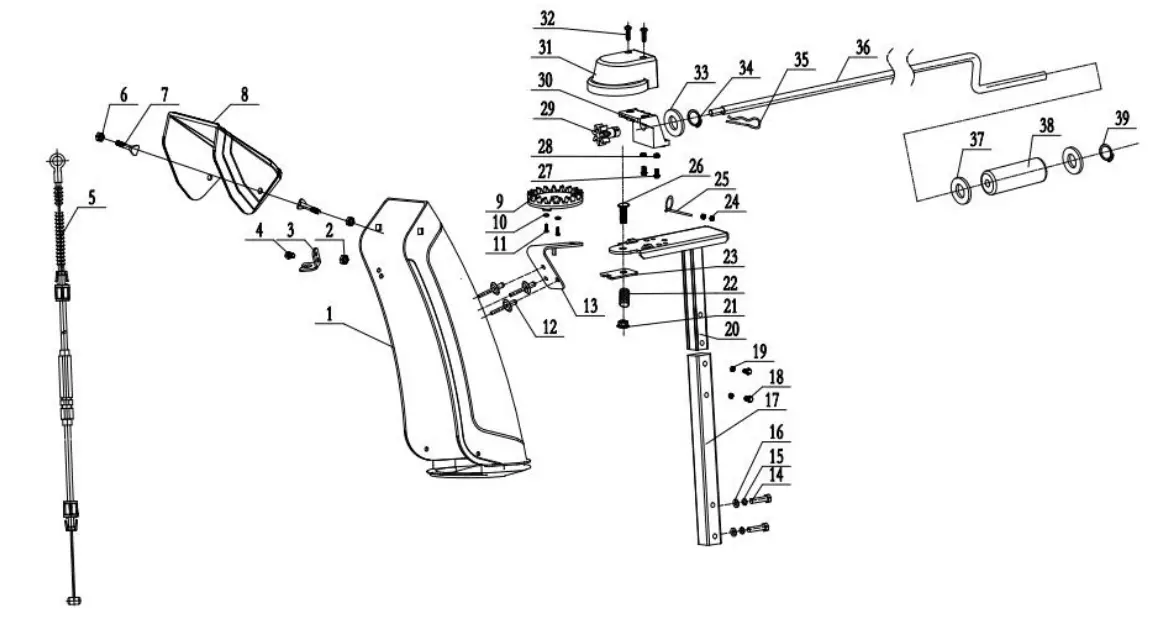

CHUTE ASSEMBLY

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - CHUTE ASSEMBLY

Item

Stock #Description

Qty

1203050514Chute1
2303030087Locknut M81
3303071344Cable seat1
4303020244Hex Flange Bolt M6×351
5303200117Chute cable1
6303030077Locknut M82
7303020622Bolt M8X202
8203050515upper Chute1
9203021301Steering gear1
10303042019Flat washer2
11303010026Screw2
12306110029Rivet3
13303071053Steering dead plate1
14303020655Hex Bolt2
15303041022spring washer2
16303042023Flat washer2
17303181010Chute Support tube welding1
18303020503Hex Flange Bolt M6x352
19303030087Hex Flange Lock Nut M62
20303181164Small Support Tube Welded1
21303030077Locknut M81
22303130369Pressure spring1
23303071056ALocating plate1
24303030087Locknut M82
25303160865Cable rod1
26303020655Bolt M8X451
27303020246Bolt M6X162
28303030032Locknut M62
29303060131ASteering pinion1
30203010818Steering gear seat1
31203010817Steering gear cover1
32303010026Screw 4X122
33303043058Flat washer1
34303050044Shaft Ring1
35303160845Dowel Pin1
36303160755AZ-long rocker1
37303042004Flat washer2
38203020384Rocker lever1
39303050029Shaft Ring1

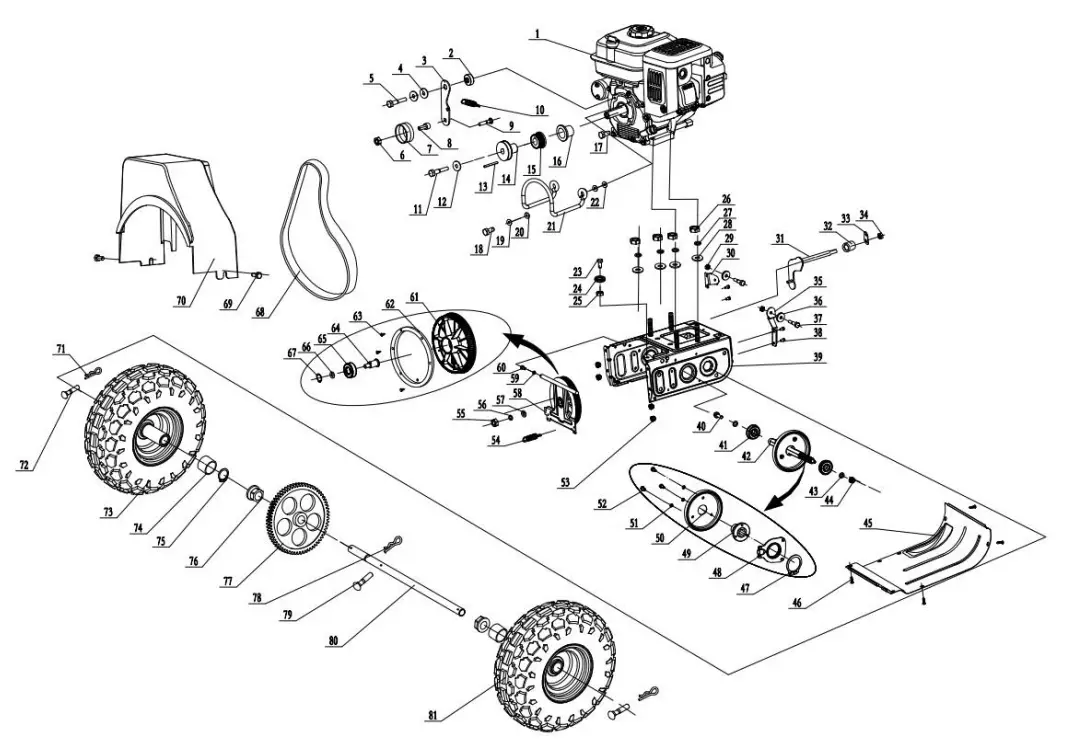

FRAME ASSEMBLY FOR MODEL#PSSAM24BS

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - FRAME ASSEMBLY

FRAME ASSEMBLY FOR MODEL#PSS2260BS

ItemStock #DescriptionQty
1303190341Engine MCC for monet#P9SAM24991
1303190342Engine 250CC for modeltiPSS2260BS1
2303160192Spacer bush1
3303070202Small tension plate1
4303042005Flat washer2
5303020664Outer hexagonal flange facing bolt1
6303030077Flange locknut M81
7203100004Tension wheel assembly1
8303160195ABushing1
9303020154Step bolt1
10303130094Friction wheel bracket spring1
11303020667Flange hexagonal bolt1
12303042005Flat washer1
139141960501Flat key1
14303160152AV-belt wheel1
15303060041Synchronous pulley wheel1
16303060040Adjustable pad1
17303160527Screw1
18303020664Outer hexagonal flange facing bolt1
19303041022Spring Washer 081
20303042023Flat washer2
21303081251Belt stop lever for modellePSSAM24 BS1
21303080144Belt stop lever for modeltIPSS2260BS1
22303043016External teeth lock washer1
23303160177Guide pulley Screw1
24203020364Guide pulley1
25303030032Locknut1
26303030066Nut4
27303041022Spring washer4
28303042023Flat washer4
29303030032Locknut M62
30303070418AGuide Wheel Plate1
31303181227Gear Shift Fork Welded1
32303160308Friction wheel support shaft sleeve tube1
33303160830AShift Pick1
34303030077Flange Lock Nut M81
35303071243Guide wheel plate1
36203020364Guide pulley2
37303160177Guide pulley Screw2
38303020444Flange hexagon bolt4
39303181006Chassis welded1
40303020239Hex Flange Bolt1
41303100051Grooved deep groove ball bearing2
42303160799Six square axis1
43303042004Flat Washer2
44303343043Locknut M101
45303525287Big raft1
46303120561Triangular head bolt4
47303050027Shaft ring 0301
48303210036Fork riveting1
49303160803Six square sleeve1
50202170009Friction Wheel Assembly1
51303041009Spring Washer 063
52303020244Hex Flange Bolt M6.143
53303030077Hex Flange Nut4
54303130094Friction wheel bracket spring1
55304315011Serrated nut1
56304375759Elastic washer1
57303042004Flat washer1
58303181163Friction %Ilsel support welding1
59304132767Flat washer1
60303020244Outer hexagonal flange bolt1
61303160801Large synchronous belt pulley1
62304618751Rim1
63304679499Cross recessed countersunk head screw3
64303160802Large synchronous belt shaft1
65304800995Deep groove ball bearing1
66303042169Flat Washer1
67303050519Ring 4)401
68302040078Synchronous belt1
69304922491Flange bolt M6X122
70203050335Belt cover1
71303160845Dowel Pin 1 92.52
72303160815Dowel Pin 2062
73302090220IT Wheel assembly1
74305165483Spacer bush2
75305226231Shaft ring1
76305286979Bushing2
77303160876Big gear1
78303160845Woodruff Key1
79303160815Elastic cylindrical pin1
80303160880Axle1
8130209022113″ Wheel assembly1

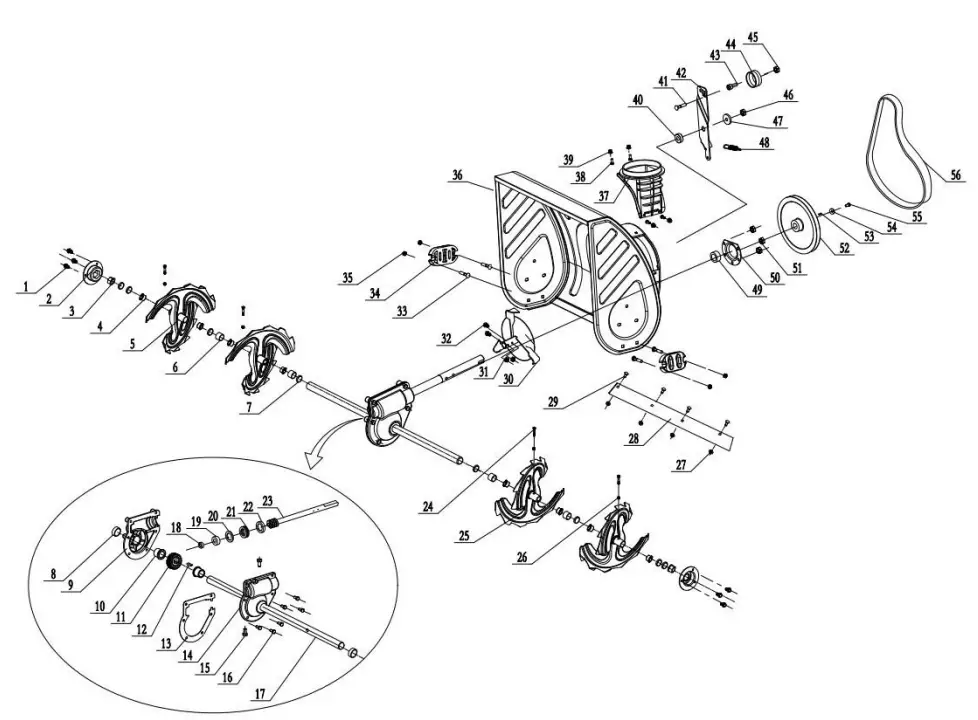

AUGER HOUSING ASSEMBLY

POWERSMART PSSAM24BS 24 26 inch Two Stage Gas Snow Thrower Instruction Manual - AUGER HOUSING ASSEMBLY

Item

Stock #Description

Qty

1303020245Hex Flange Bolt M8x146
2303070234Bearing Block2
3203060013Plastic Bearing2
4203060012Auger Sleeve8
5303180409Right Auger Welding2
6203050108Spacer Bush 18
7203050109Spacer Bush 26
8302130005Skeleton seal2
9303090032Worm gear Box Left1
10303060055Worm Gear Shaft Sleeve2
11303090033Worm Gear1
12303110022Woodruff Key1
13303070260Worm Gear Shaft Sleeve1
14303090031Worm gear Box Right1
15303020142Bolt M8x102
16303020489Bolt M6 x 186
1730316037024″ Auger Axle1
18303100030Deep groove ball bearing 6001Z1
19303100035Deep groove ball bearing 6904Z1
20303070179Worm Box Washer1
21303100039Bearing 511041
22302130002Skeleton seal1
23303160314Worm1
24303160355Shear Pin4
25303180410Auger Welding Left2
26303030032Lock Nut M64
27303030076Flange Normal Nut M84
2830307133024″ Shave1
29303020332Bolt M8 x 144
30303181158Impeller1
31303030032Lock Nut M62
32303020442Hex Washer Bolt2
33303020166Bolt M8 x 184
34203050681Skid Shoes2
35303030077Flange Lock Nut M84
36303181159Auger Housing Welding1
37203050511Lower chute seat1
38303020341Bolt M6x164
39303030087Flange Lock Nut M64
40303160192Small Tension Plate Spacer1
41303020154Bolt M8 x401
42303071345Big Tension Plate1
43303160195ATension Wheel Casing1
44203100003Tension Wheel Assembly1
45303030077Flange Lock Nut M81
46303030059Lock Nut M101
47303042078Flat Washer3
46303160175Large Tension Plate Tension Spring1
49303100040Bearing1
50303070233Bearing Plate1
51303030077Flange M83
52303160794A7109 Big Pulley1
53303110014Flat Key1
54303042005Flat Washer1
55303020279Hex Washer M8x201
56302040079V-Belt 720mm,4LXA1



TWO (21 YEARS LIMITED WARRANTY

PowerSmart is committed to building tools that are dependable for years. Our warranties are consistent with our commitment and dedication to quality.

TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE.

PowerSmart (“Seller”) warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from the date of purchase. Ninety (90) days for all PowerSmart Products, if the tool is used for professional or commercial use.

SELLER’S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Two (2) Years Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Center. To make a claim under this Limited Warranty, you must return the entire power tool product; transportation prepaid, to PowerSmart Include a legible copy of the original receipt, which lists the date of purchase (month and year) and the name of the company purchased from.

THIS LIMITED WARRANTY DOES NOT APPLY TO ANY ACCESSORY ITEMS INCLUDED WITH THE TOOL SUCH AS CIRCULAR SAW BLADES OTHER RELATED ITEMS OR TO ANY REPLACEMENT PARTS LISTED UNDER MAINTENANCE.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO TWO (2) YEARS FROM THE DATE OF PURCHASE. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL THE SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA, AND FROM COUNTRY TO COUNTRY.

For questions/comments, technical assistance, or repair parts —Please call toll free at 1-800-791-9458 (M-F 9 am — 5 pm EST) Email: [email protected]

SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.


Related Manuals
