Foscam R3 Wireless Ip Camera User Manual

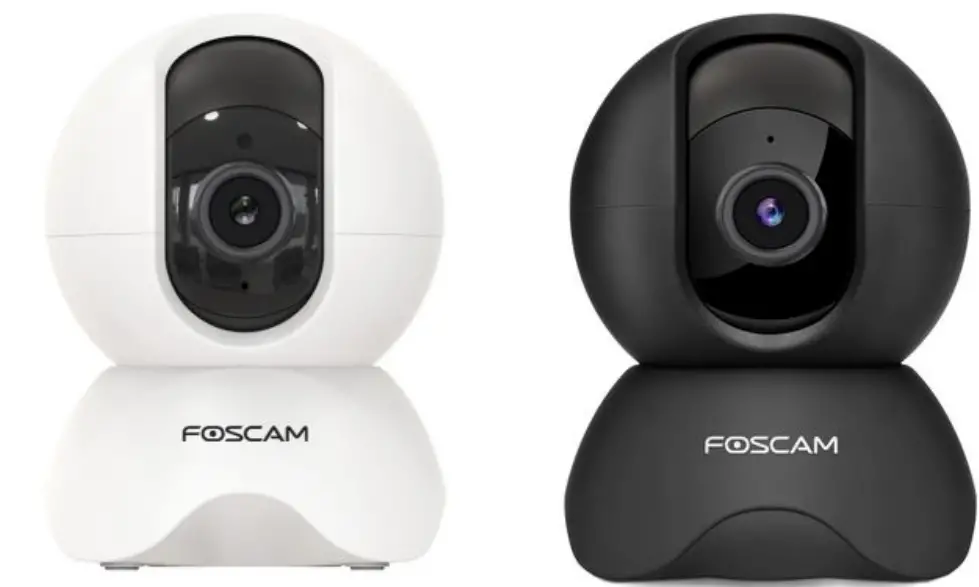

foscam R3 Wireless IP Camera Overview

Welcome to use our product, Foscam Camera. Foscam Camera is an integrated IP Camera with a color CMOS sensor enabling viewing in High Definition resolution.It combines a high quality digital video camera, with a powerful free Foscam Video Management Software to bring clear video to your desktop from anywhere on your network or over the APP.
It supports the P2P functions. Thanks to the P2P easy access technology, you don’t need to do complicated Port Forwarding and DDNS settings, you just need to scan the QR code on the side of the camera to connect it on smart phone, or input the UID on CMS software to realize remote access.
The Doorbell supports the industry-standard H.265 compression technology, drastically reducing file sizes and conserving valuable network bandwidth.
The camera is designed for indoor surveillance with wide applications such as at home, in retail store and in office. Controlling the camera and managing images are simplified by using the provided web interface across the network in either wired or wireless way.

Key Features

• 3.0Megapixels Pan/Tilt Wireless IP Camera(R3 X3), 5.0Megapixels Pan/Tilt Wireless IP Camera(R5 X5 X3E)
• Supports WPA and WPA2 Encryption
• Support full duplex real-time 2-way Audio
• Supports AI algorithm (Humanoid detection)
• 2P Feature for Easy Remote Access
• H.265/H.264 video Compression
• Motion/Sound/Human Detection
• Support 2.4GHz WiFi
• Supports image snapshot
• Supports dual-stream
• Built-in High efficiency IR LED, has excellent night vision image
• Supports remote viewing & record from anywhere anytime
• Multi-level users management with password protection
• Supports multiple network protocols: IP、TCP、UDP、DHCP,RTSP,Onvif
• Providing Video Management Software to manage or monitor multi-cameras
• Supports Alexa
• Supports Google Assistant
• Supports 128G Micro SD Card Storage(External)

Read before Use
Please first verify that all contents received are complete according to the Package Contents listed below. Before the Network Camera is installed, please carefully read and follow the instructions in the Quick Setup Guide to avoid damage due to faulty assembly and installation. This also ensures the product is used properly as intended.
Packing Contents

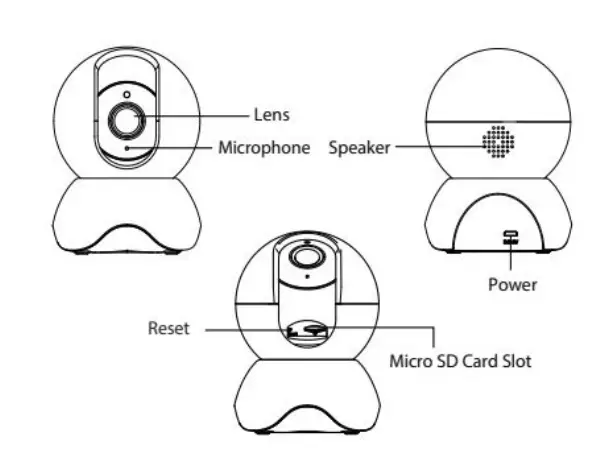

Physical Description
X3 X5:R3 R5:

Lens: Fixed focus lens
Microphone: Built-in Microphone.
Speaker: Built-in speaker
LAN: 10/100 Mbps RJ-45 port for wired connection(Only support X3 X5 )
Power: DC 5V/1.5A or DC 5V/2A Power supply.

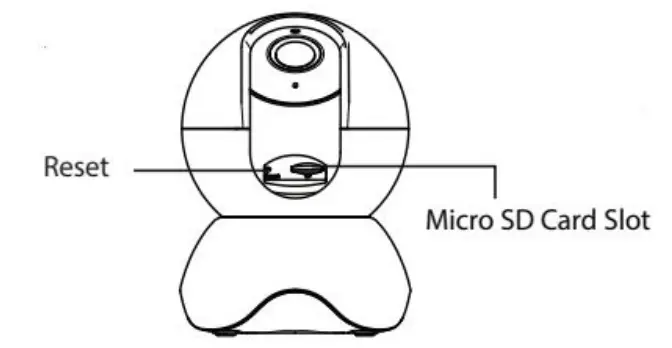

Reset: Press and hold on the reset button for 3 seconds. Releasing the reset button, the password will back to the factory default administrator password.
Micro SD Card slot: Supports up to 128GB SD card for storing the video.

SD Card Management

The record files of the IP camera can be stored in the Micro SD Card.
This camera supports Micro SD Card and the max size of Micro SD card must be under 128G.
You need to find the Micro SD card slot on the camera body and insert the Micro SD card, then plug the Micro SD card into the Micro SD card slot inside the IP camera.
When you plug in the Micro SD card during the camera work process, please reboot the camera again, or else the Micro SD Card maybe cannot work well. When you re-install the cover, please ensure the tightness of the camera.

Add Device: Connection via the Foscam App

Scan the QR code below to download and install the Foscam APP.

Please refer to the Quick Setup Guide.

Installation

Please refer to the Quick Setup Guide.

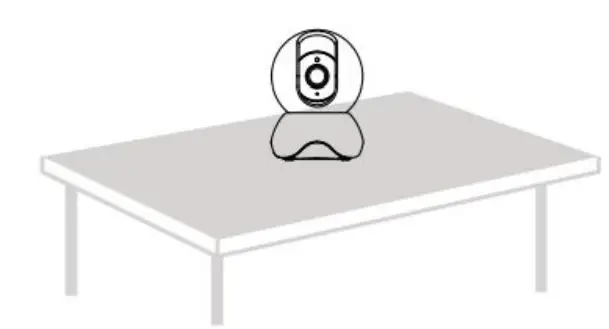

1. Place the camera directly on a desk.

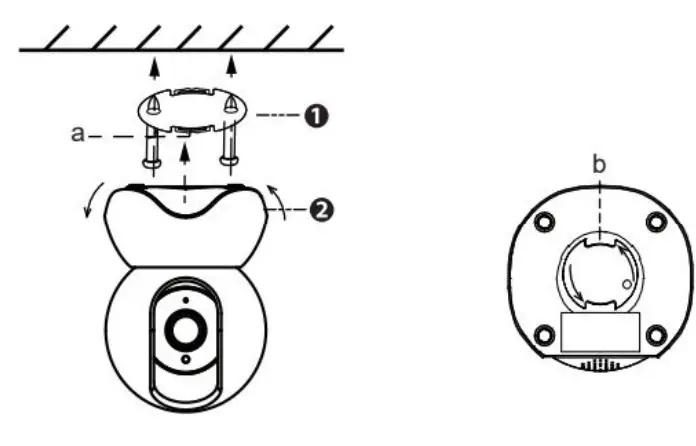

2. Install the mounting plate on a wall or ceiling with the supplied fixing screws.
   Note: Align points a and b to insert the camera base to the mounting plate. Rotate so that points a and b are aligned, which attaches the camera securely to the base.

Default Parameters

Default network parameters
IP address: obtain dynamically
Subnet mask: obtain dynamically
Gateway: obtain dynamically

Specification

For other parts, please refer to the “FOSCAM Camera User Manual”
