Operating manual
Firmware update TorqLink throttle 1976-00
mit Farbdisplay
NOTE!
Valid for firmware updates from version 1.0.9
1. Safety instructions
– Check your product regularly for available firmware updates and install them.
– Firmware updates can contain important security functions. Make sure you always have the latest version installed and do not install any previous versions.
– CAUTION! Danger due to unmaneuverable boat. Medium or severe physical injuries can result. Only perform the firmware update when the boat is securely fastened or on land.
– Observe the safety instructions in the operating instructions for the TorqLink throttle.

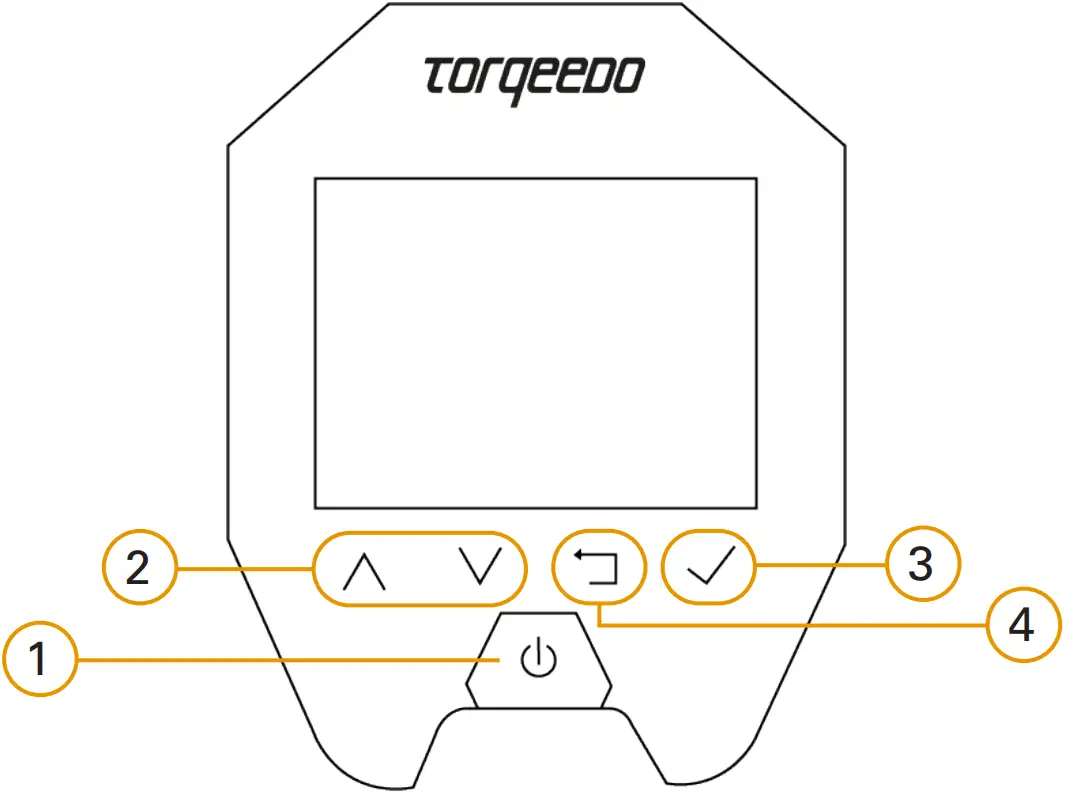

2. Controls
1 Turn on / Turn off 2 Scroll in menu
3 Select / Confirm 4 Return / Up in menu

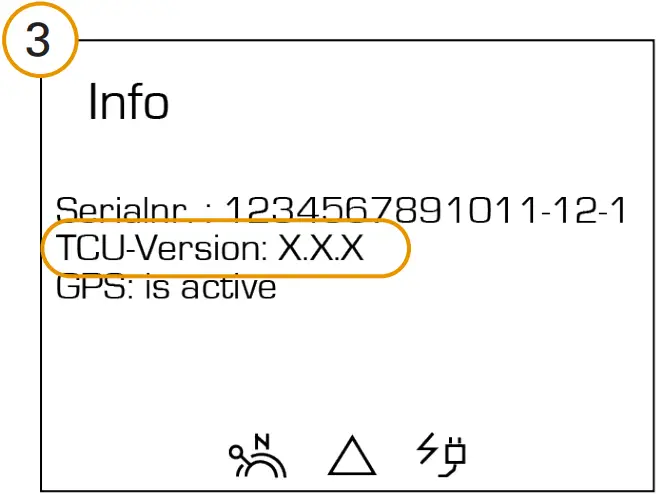

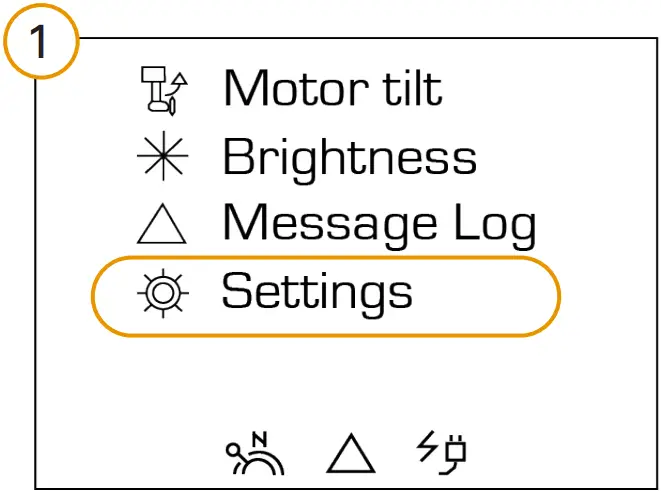

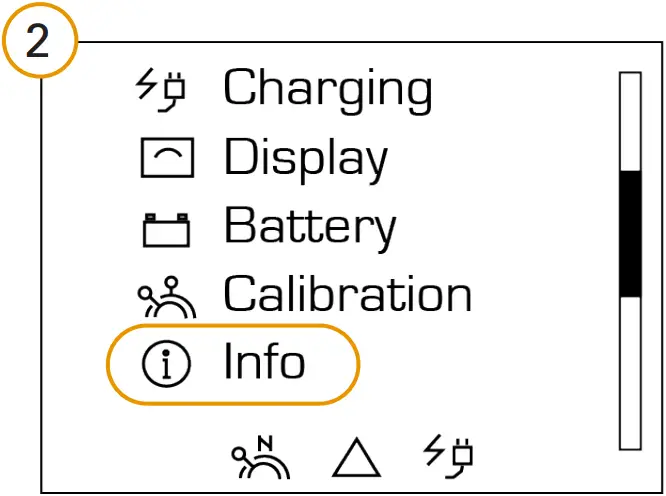

5. Check firmware version

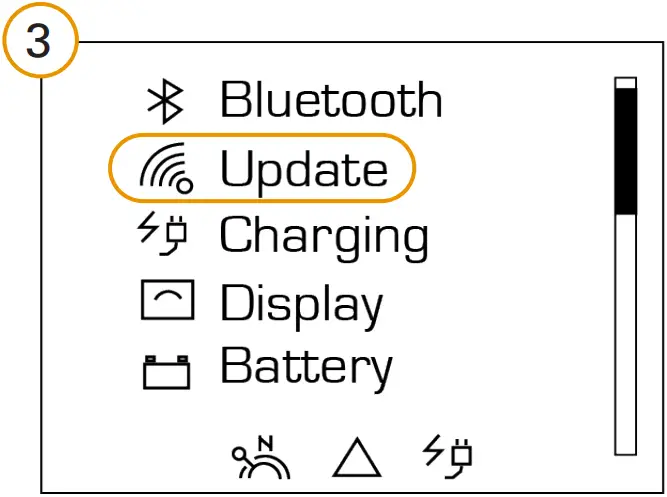

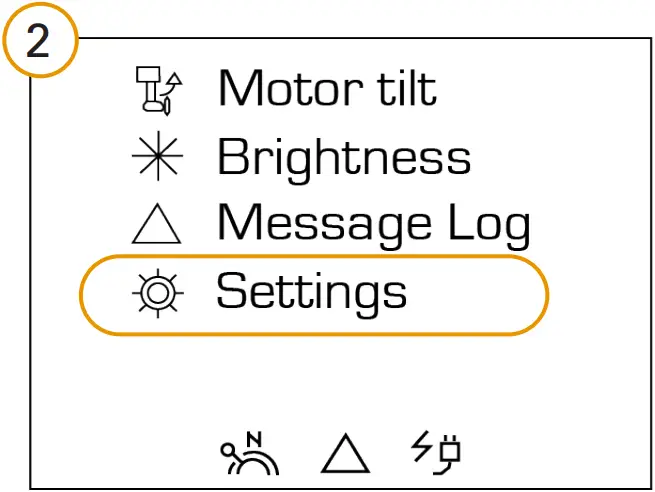

6. Install firmware

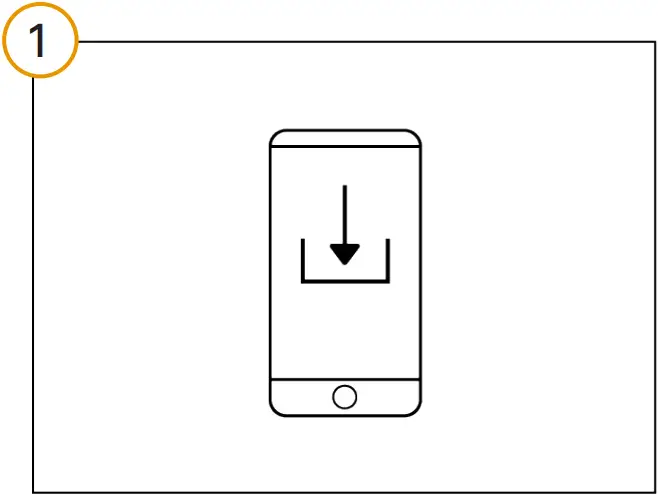

Download firmware update
oder: TorqLink Throttle 1976
You can find the firmware file in the download area of the throttle

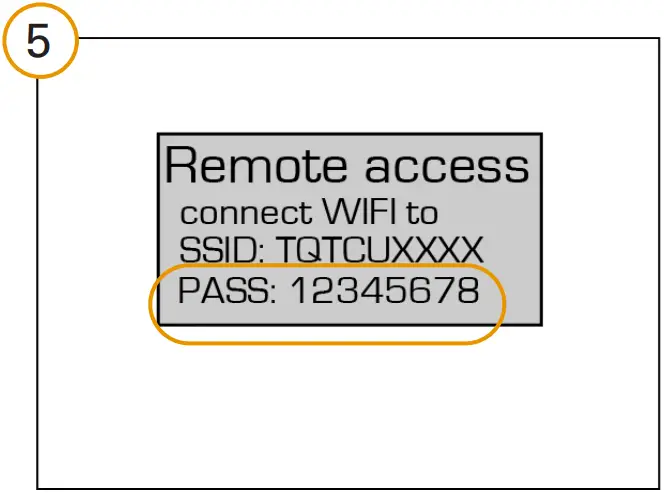

WIFI password

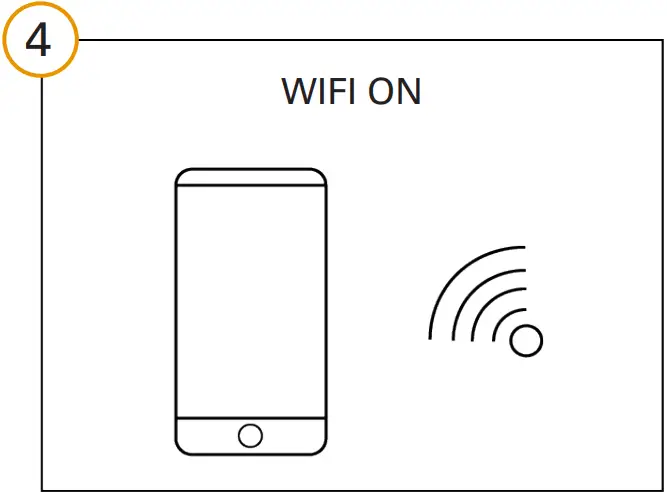

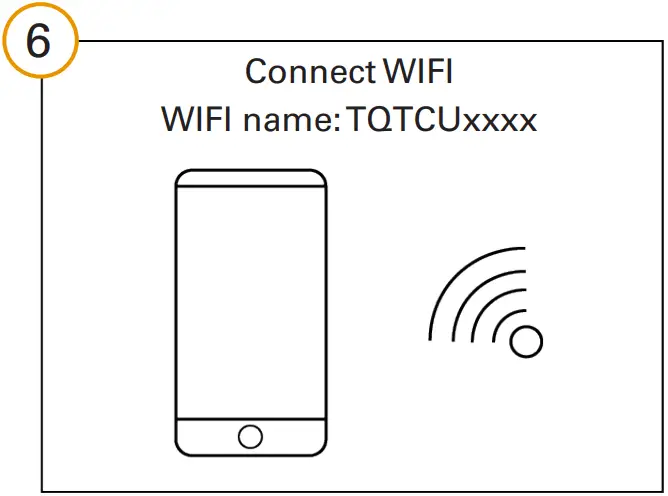

Connect your device to the throttle via WIFI

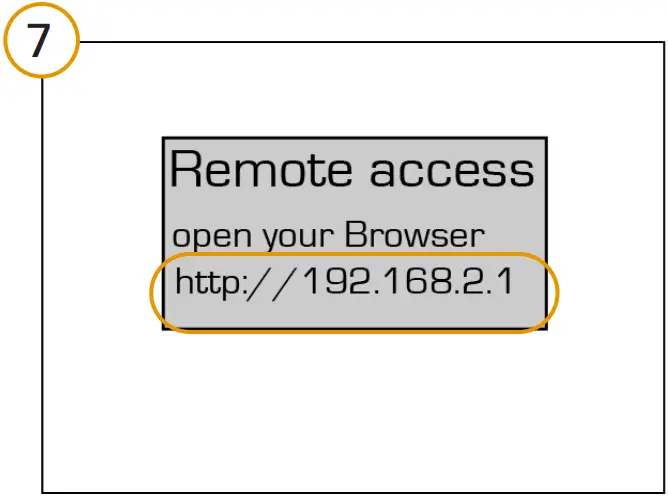

Open URL in browser

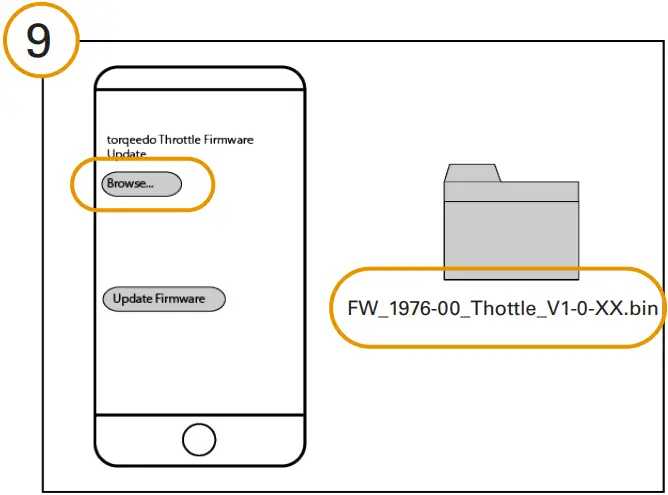

Open firmware update file

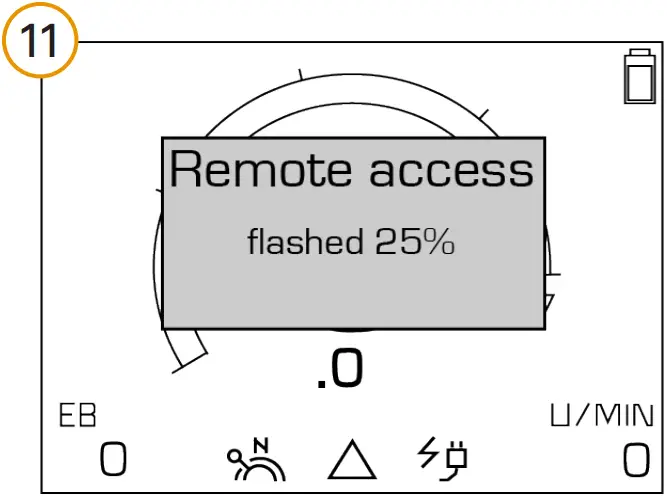

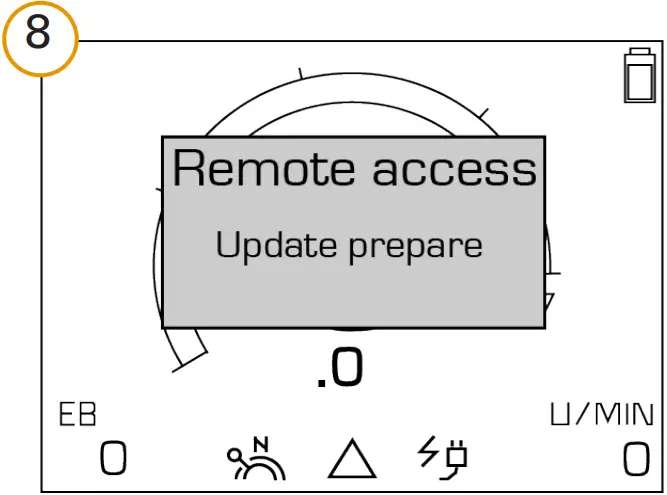

Install firmware update

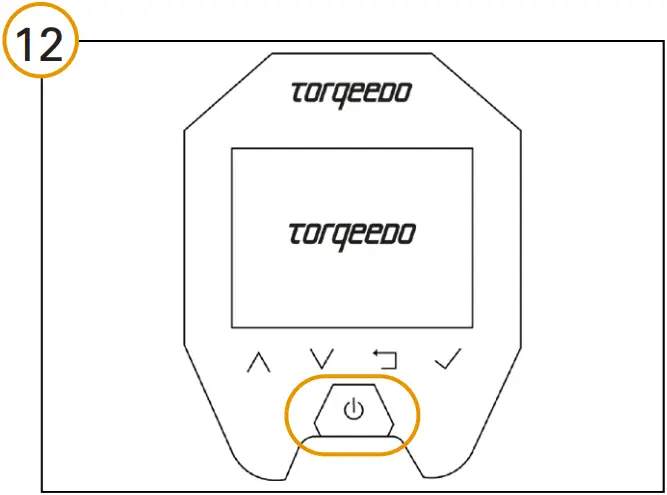

System switches off after installation
Restart system

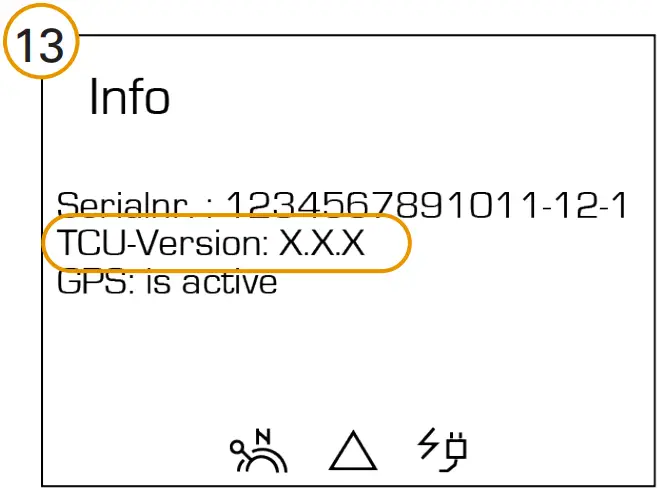

Check firmware update
7. Disposal
7. DisposalDisposal according to EU Directive 2012 / 19 / EU (WEEE), as well as national laws. Do not dispose of with household waste.
8. Warranty conditions
Warranty conditions and warranty certificate available at www.torqeedo.com
Torqeedo branches
Torqeedo GmbH
Friedrichshafener Straße 4a
82205 Gilching, Germany
[email protected]
Phone: +49 8153 9215-100
Torqeedo Inc.
171 Erick Street, Unit D-2
Crystal Lake, IL 60014, USA
[email protected]
Phone: +1 815 444 8806
Torqeedo Service Centre
Torqeedo GmbH
– Service Center –
Friedrichshafener Straße 4a
82205 Gilching, Germany
[email protected]
Phone: +49 8153 9215-126
Torqeedo Inc.
171 Erick Street, Unit D-2
Crystal Lake, IL 60014, USA
[email protected]
Phone: +1 815 444 8806
All other countries
Contact details of service centres are available under www.torqeedo.com in the “Service Center” section.
Version 2.1
039-00479
