WIRELESS DIMMING
SOCKET
(LUXURY VERSION)
Content
Glass touch controller – 4 buttons, SHARP RFGB-40/W, RFGB-40/B
Glass touch controller – 4 buttons, ROUND RFGB-240/W, RFGB-240/B
Dimming socket-plug RFDSC-71N
Design

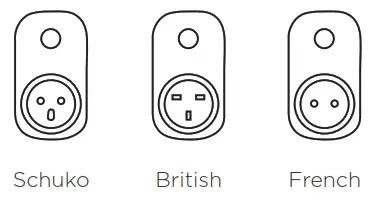

EAN 8595788183277 (Glass touch controller – 4 buttons, SHARP, black + Dimming socket-plug “French“)
EAN 8595788183284 (Glass touch controller – 4 buttons, SHARP white + Dimming socket-plug “French““)
EAN 8595788183291 (Glass touch controller – 4 buttons, ROUND, black + Dimming socket-plug “French““)
EAN 8595788183307 (Glass touch controller – 4 buttons, ROUND, white + Dimming socket-plug “French““)
EAN 8595788183376 (Glass touch controller – 4 buttons, SHARP, black + Dimming socket-plug “British“)
EAN 8595788183383 (Glass touch controller – 4 buttons, SHARP, white + Dimming socket-plug “British“)
EAN 8595788183390 (Glass touch controller – 4 buttons, ROUND, black + Dimming socket-plug “British“)
EAN 8595788183406 (Glass touch controller – 4 buttons, ROUND, white + Dimming socket-plug “British“)
EAN 8595788183475 (Glass touch controller – 4 buttons, SHARP, black + Dimming socket-plug “Schuko“)
EAN 8595788183482 (Glass touch controller – 4 buttons, SHARP, white + Dimming socket-plug “Schuko“)
EAN 8595788183499 (Glass touch controller – 4 buttons, ROUND, black + Dimming socket-plug “Schuko“)
EAN 8595788183505 (Glass touch controller – 4 buttons, ROUND, white + Dimming socket-plug “Schuko“)

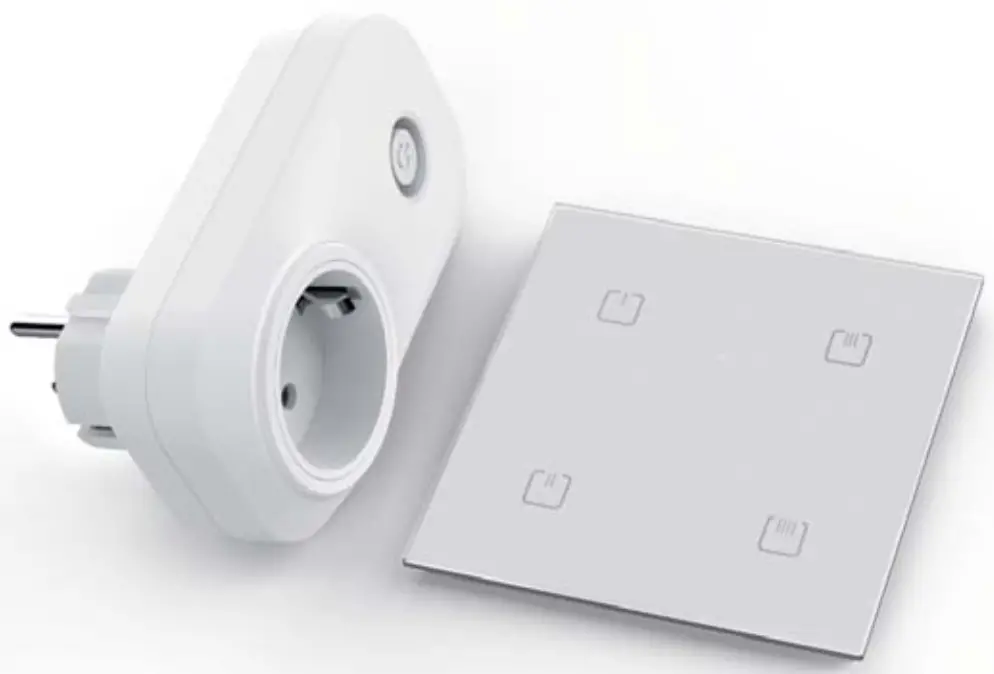

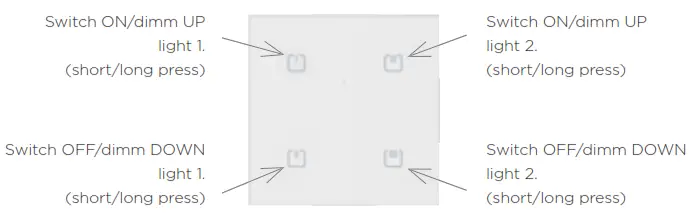

The individual elements in the iNELS set are paired and their functions are preset.
iNELS wireless dimming socket enables dimming of different types of lights or controlling electrical appliances
The settings of the wall controllers can be changed – detailed manual on the next pages.
Glass touch controller – 4 buttons,
SHARP/ROUND, RFGB-40/RFGB-240
RFGB-40/B – glass touch controller, SHARP – black, 4-buttons
RFGB-40/W – glass touch controller, SHARP – white, 4-buttons
RFGB-240/B – glass touch controller, ROUND – black, 4-buttons
RFGB-240/W – glass touch controller, ROUND – white, 4-buttons
 |  |
| https://elko.li/rfgb-40 | https://elko.li/rfgb-240 |
Characteristics
- The wireless control – is used to control, lights, gates, garage doors, shutters, etc.
- The thickness is only 8 mm.
- 4 capacitive buttons allow you to control 4 components.
- Fast installation on any surface – the rear base allows screwing to the walls, gluing with double-sided tape, or just laying on the table.

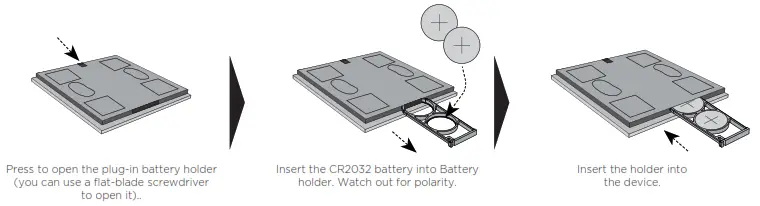

Replacement of a battery in 3 steps
Assembly
Adhesive
 |  |  |

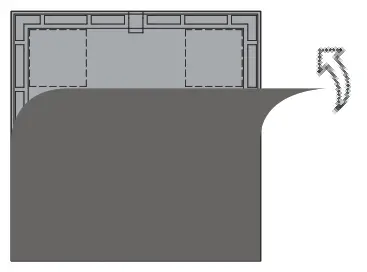

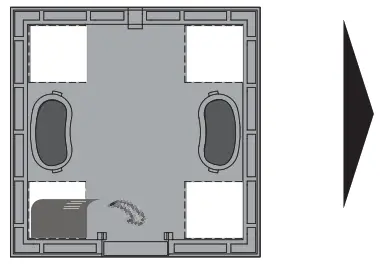

| Peel off one protective layer on the double-sided adhesive sheets and stick them to the marked places on the controller. | Peel off the second protective layer on the double-sided adhesive sheets and place the control in the prepared place. | If the device is installed on glass, cover it with a cover foil |
In the installation box or on the wall
 |  |  |

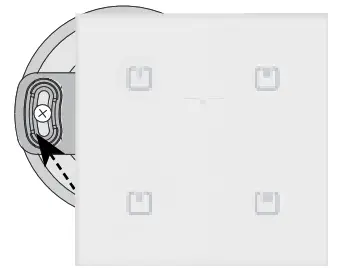

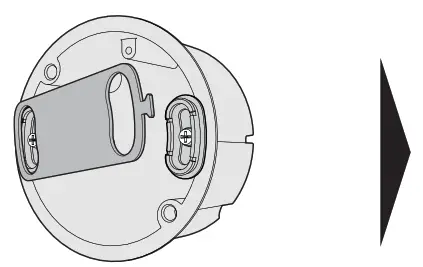

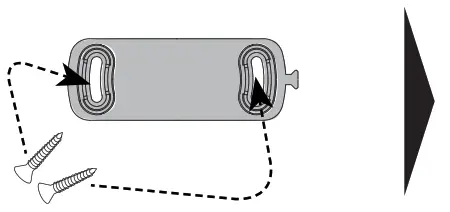

| Mount the snap bar on the controller into the installation box or on the wall | Place the mounting jig on the KU box and screw it on | Snap on the controller. |
| Technical parameters | RFGB-40/RFGB-240 |
| Power voltage: | 2x 3 V battery CR 2032 |
| Battery life: | about 2 years depending on the frequency of use |
| Transmission indication | Red LED |
| A number of capacitive buttons: | 4 |
| Communication Protocol: | RFIO2 |
| Frequency: | 868.5 MHz |
| Signal transmission method: | one-way addressed message |
| Range: | in the open up to 200 m |
| Material: | Glass |
| Other data | |
| Operating Temperature: | -10 … +50 °C (14 … 122 °F) |
| Working Position | any |
| Mounting: | adhesive, screw |
| Protection | IP20 |
| Pollution degree: | 2 |
| Dimension: | SHARP 94 x 94 x 8 mm (3.7“ x 3.7“x 0.3“) / ROUND 100 x 100 x 8 mm (3.9“ x 3.9“ x 0.3“) |
| Weight: | SHARP 107 g/ ROUND 108 g |
| Related standards: | EN 60669, EN 300 220, EN 301 489 |
Dimming socket plug RFDSC-71N
hCharacteristics
- used to control light sources that are connected by power cord – especially lamps: R, L, C, ESL, LED – LED light sources (230V).
- Be combined with detectors, controllers, iNELS RF Control, or system components.
- Installation is simple by direct insertion into the existing socket.
- Output load 200 W.
- 7 light functions – smooth increase or decrease with time setting 2s-30 min. + Additional function SWITCH OFF
- When switched off, the set level is stored in the memory, and when switched back on, it returns to the most recently set value.
- The universal dimmer may be controlled by up to 32 channels (1 channel represents 1 button on the controller).
- The programming button on the socket is also used for manual control of the output.
- Memory status can be pre-set in the event of a power failure.

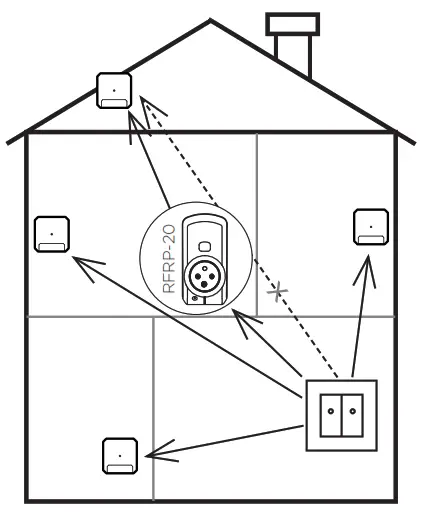

- Range up to 160 m (in open space), if the signal is insufficient between the controller and unit, use the signal repeater RFRP-20 or protocol component RFIO2 that supports this feature.
Assembly
| Technical parameters | RFDSC-71N |
| Supply voltage: | 230 V / 50-60Hz |
| Apparent power: | 1.1 VA |
| Dissipated power: | 0.8 W |
| Supply voltage tolerance: | +10 %; -15 % |
| Output: | |
| Contactless: | 2 x MOSFET |
| Load capacity: | 200 W * |
| Control: | |
| RF command from the transmitter: | 868.5 MHz |
| Range in open space: | up to 160 m |
| Manual control: | button PROG (ON/OFF) |
| Other data: | |
| Operating temperature: | -20 … + 35 °C (-4 … + 95 °F) |
| Storage temperature: | -30 … +70°C (-22 … + 158 °F) |
| Working position: | any |
| Mounting: | plug into a socket |
| Protection: | IP30 |
| Overvoltage category: | III. |
| Contamination degree: | 2 |
| Dimensions: | 63 x 110 x 74 mm |
| Weight: | 118 g |
| Related standards: | EN 60730, EN63044, EN 300 220, EN 301 489 |
* capacity for power factor cos φ=1
The power factor of dimmable LEDs and ESL bulbs ranges from: cos φ = 0.95 up to 0.4.
Compatibility
The device can be combined with all system components, controls, and devices of iNELS RF Control and iNELS RF Control 2. The detector can be assigned an iNELS RF Control2 (RFIO 2 ) communication protocol.

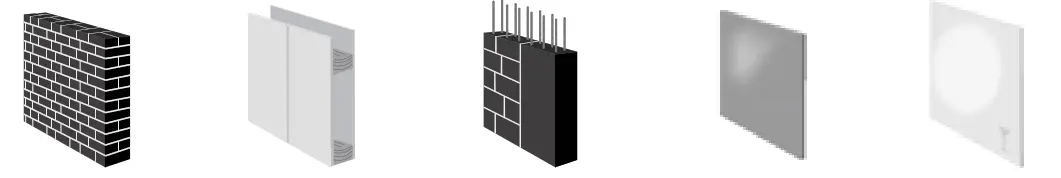

Radiofrequency signal penetration through various construction materials
Range up to 160 m in open space,
 | ||||
| 60 – 90 % | 80 – 95 % | 20 – 60 % | 0 – 10 % | 80- 90 % |
| brick walls | wooden structures with plasterboards | reinforced concrete | metal partitions | common glass |
Warning
The instruction manual is designated for mounting and also for the usage of the device. It is always a part of its packing. In-installation and connection can be carried out only by a person with adequate professional qualification with an understanding of this instruction manual and functions of the device, and while observing all valid regulations. The trouble-free function of the device also depends on transportation, storing, and handling. In case you notice any sign of damage, deformation, malfunction, or missing part, do not install this device and return it to its seller. It is necessary to treat this product and its parts as electronic waste after its lifetime is terminated. Before starting the installation, make sure that all wires, connected parts, or terminals are de-energized. While mounting and servicing observe safety regulations, norms, directives, and professional, and export regulations for working with electrical devices. Do not touch parts of the device that are energized – a life threat. Due to the transmissivity of RF signal, observe the correct location of RF components in a building where the installation is taking place. RF Control is designated only for mounting in interiors. Devices are not designated for installation in exteriors and humid spaces. The must not be installed into metal switchboards and into plastic switchboards with metal door – transmissivity of RF signal is then impossible. F Control is not recommended for pulleys etc. – the radiofrequency signal can be shielded by an obstruction, interfered, battery of the transceiver can get fl at etc. and thus disable remote control.
Designed & Manufactured by:
ELKO EP, s.r.o. Palackého 493, 769 01 Holešov, Všetuly,
Czech republic, www.elkoep.com, Hotline: +420 800 100 671
