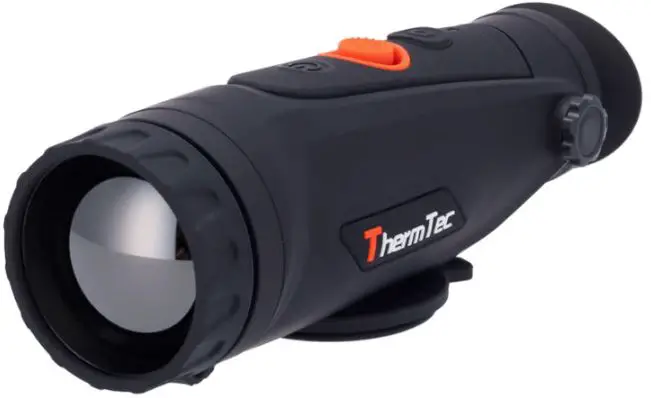

ThermTec Cyclops Thermal Monocular

Introduction

Product Introduction & Features
The Cyclops Series telescope, a new-generation intelligent thermal monocular developed by our company, has a 12μm uncooled infrared detector and can be equipped with a 15mm/25mm/35mm lens and a 1024×768 OLED high-definition display. With the intelligent AI image recognition algorithm, it enables users to see things at a glance even in complete darkness, providing reliable and high-quality visual images for night activities. In particular, the function of connecting with mobile phones brings infinite fun to users’ outdoor activities.

Product Features

1. Mechanical rocker design: excellent control performance.
2. 12μm VOx detector: provide the image with better quality.
3. OLED display: The product adopts a 1024×768 high-resolution OLED display which has high contrast and is comfortable for human eyes to watch. Moreover, it is adaptable to the environment and can work properly in a harsh environment of minus 20℃.
4. AI intelligent ranging: Based on the deep learning algorithm, the monocular can automatically measure the object distance.
5. Two-way Wi-Fi design: This not only enables the user to control or view an app. by connecting monocular with smart devices like mobile phone, meanwhile, also maintain smart devices’ existing internet connection via 4G/5G, which allow the user to share video or image with friends in real-time.
6. Photo and video playback.
7. 12-hour endurance.
8. GPS: Enables user to know their own coordinates in real-time, which makes field activities safer.
9. Smooth zooming: The product can realize continuous 1.0-6.0 HD zooming. Through the fingertip rocker operation, the eyepiece observation picture can be smoothly zoomed in or out, and the target can be flexibly searched and rapidly locked.
10. IP67 protection design.

Detection Range
The illustration below shows the comparative range performance of the camera with different lens configurations. The data is based on detecting a man 1.8 meters tall*0.5 meters wide.

Human (1.8×0.5)

Application Scenarios

• Animal Observation
• Security Law Enforcement
• Outdoor Adventure
• Emergency Search and Rescue

Cautions

1. Prevent hard objects from colliding with the lens and eyepiece of the thermal imager to avoid damage to the optical lens.
2. Do not aim the lens at high-temperature light sources, such as the sun, to avoid damage to the lens or thermal imaging detector.
3. Do not use the product in extremely cold or hot environments. Refer to the product parameter table for specific temperature requirements.
4. If the thermal imager is not used for a long time, it should be charged once every 3 months during the storage period.
5. To use the product in a water environment, first, make sure that the USB cover at the bottom of the thermal imager is tightly closed.
6. Do not irradiate the laser indicator of the thermal imager to human eyes.
7. If the thermal imager doesn’t work properly, please contact the store or the nearest service center where the thermal imager is purchased. Do not disassemble or modify the thermal imager by yourself in any way.

Packing Instruction

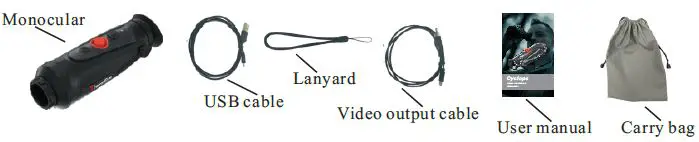

Package Content

• 1*monocular
• 1*user manual
• 1*USB cable
• 1*lanyard
• 1*carry bag
• 1* Video output cable

Operating Camera

Charging the Camera
The camera’s battery should be fully charged prior to use.

Note: The battery is not user replaceable.

To charge the camera’s battery:

1. Lift the cover from the USB port.
2. Plug the cable provided into the camera’s USB port.
3. Plug the opposite end of the cable into a USB power source.

Note:
When the power sign on the interface is red, it means you need to charge it immediately. The indicator is red when it is charging and turns green when it finishes charging. After it turns green, stop charging.

Power on/off

• Power On

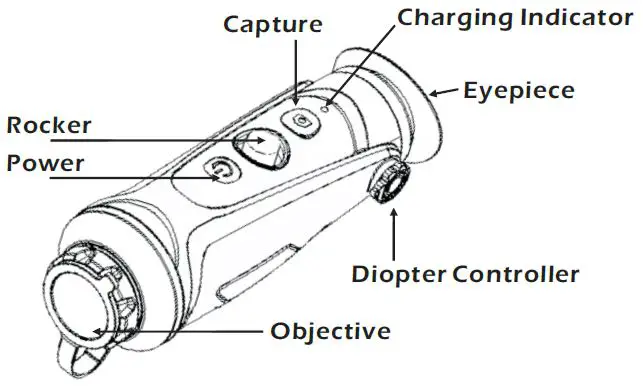

  Hold the POWER button for four seconds and the startup picture will be shown. Refer to the figure below for the main view of the monocular.
• Power Off
  When the monocular is turned on, hold the POWER button for four seconds to power off the device.

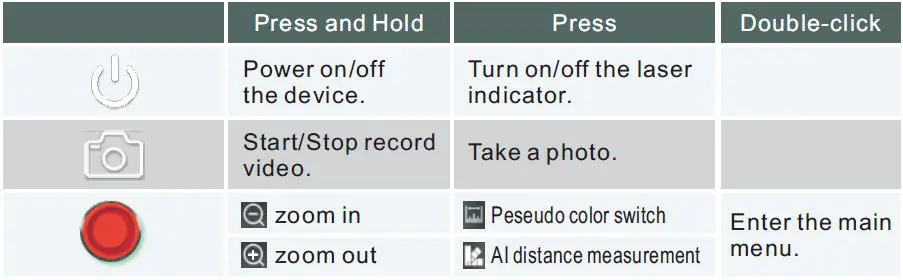

Buttons and Controls

Buttons features and introduction

Buttons features

Lens Adjustment

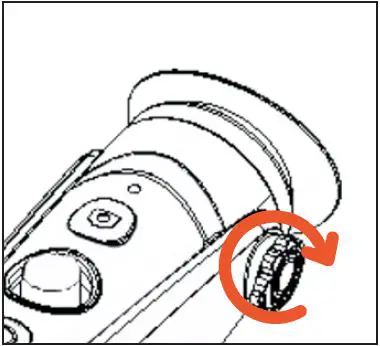

Diopter adjustment
Looking through the eyepiece, adjust the position of the diopter level to optimize the image sharpness on the OLED display.

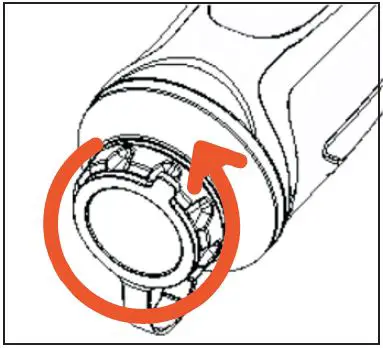

Objective lens focusing
Manually adjust the objective lens focus when necessary.

Rocker operating

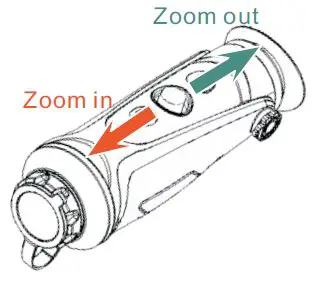

Zoom

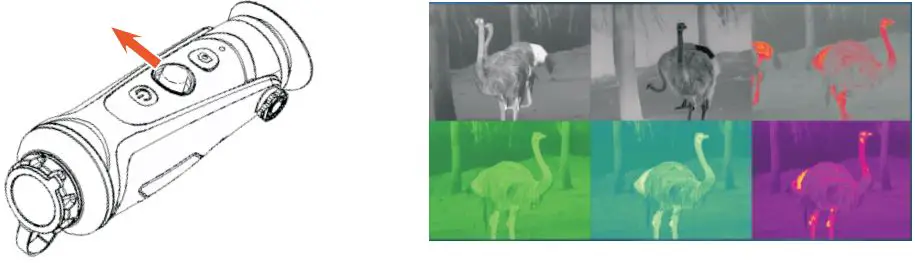

Pseudo color switch
Use the rocker key towards the right to switch pseudo color.

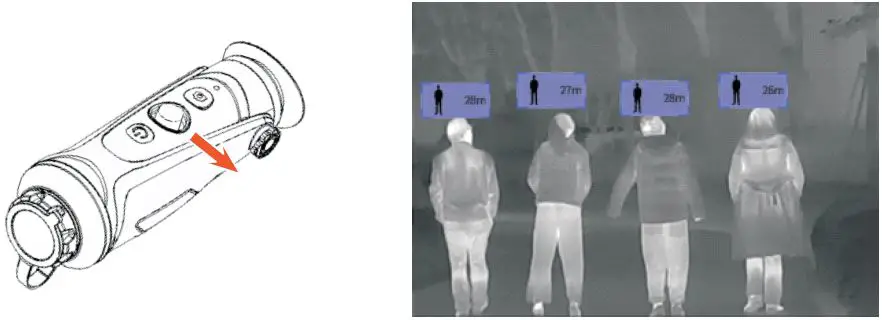

AI distance measurement
Use the rocker key towards the left to enable or disenable the AI distance measurement function (before enabling this function, you should make sure if the monocular was in AI distance measuring mode, otherwise, refer to 3.4 for the setting).

Photo/Record

• Press to take a photo. Then the photo icon in the upper left corner will flash once.
• Press and hold to record. Then the recording icon in the upper left corner starts flashing, and the recording starts timing. Press and hold again to stop recording.

Settings
Double-click the rocker button to enter the Setting menu. Note: select by moving the rocker button, and confirm the selection by short-press the rocker button.

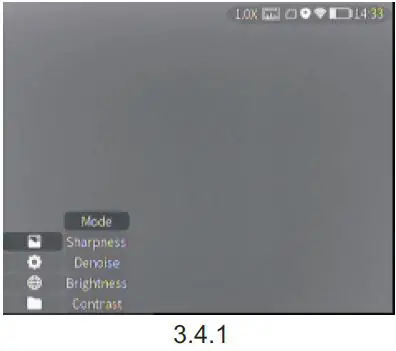

Image Setting

Mode/Sharpness/Denoise/ Brightness/Contrast/Image settings

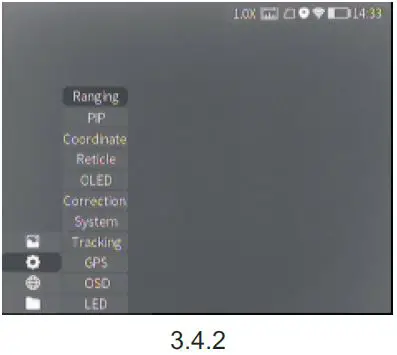

System Setting

System settings

Network Connections

Download App

Search “Smart Thermal” on the app. Store or scan the QR code to download it.

Connect with Wi-Fi

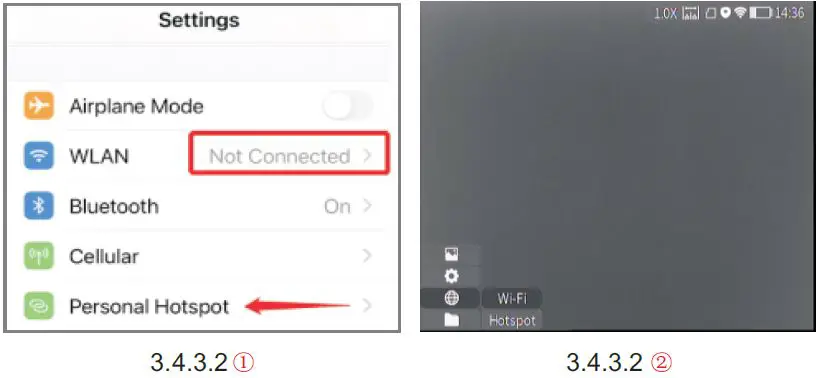

1. Open the smart device’s personal hotspot.
2. Enterby short-press on the rocker button, and selecting Wi-Fi to configure.

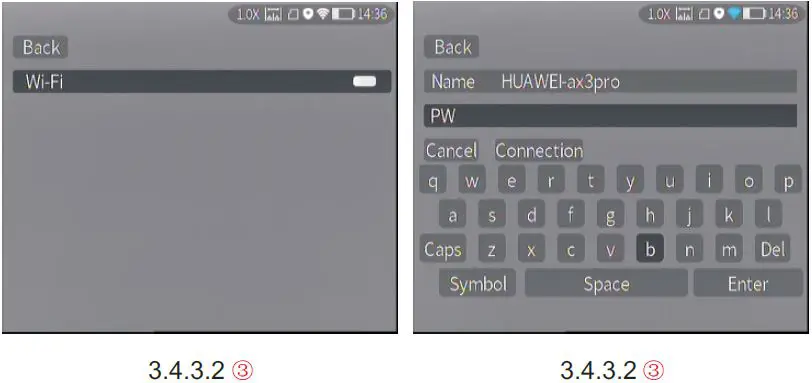

3. Access the Wi-Fi submenu on the monocular and select the Wi-Fi released by smart devices, then enter the password through the rocker button to connect the Wi-Fi.
4. After the monocular connects to the Wi-Fi, open the mobile APP to connect the monocular.

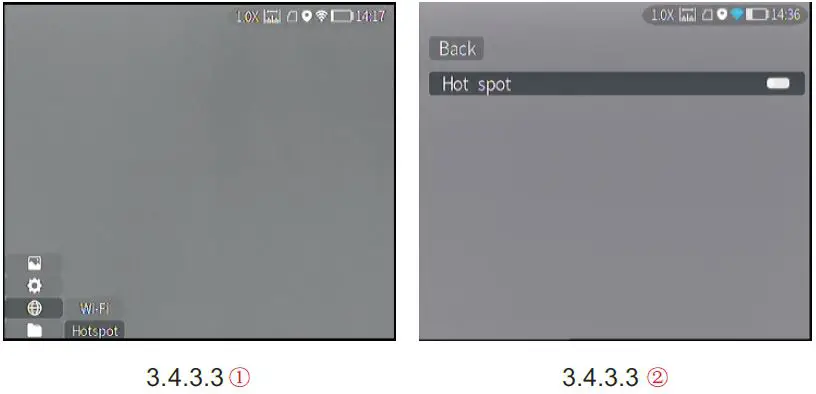

Connect with Hotspot

1. Enterby short-press the rocker button, and selecting Wi-Fi to configure.

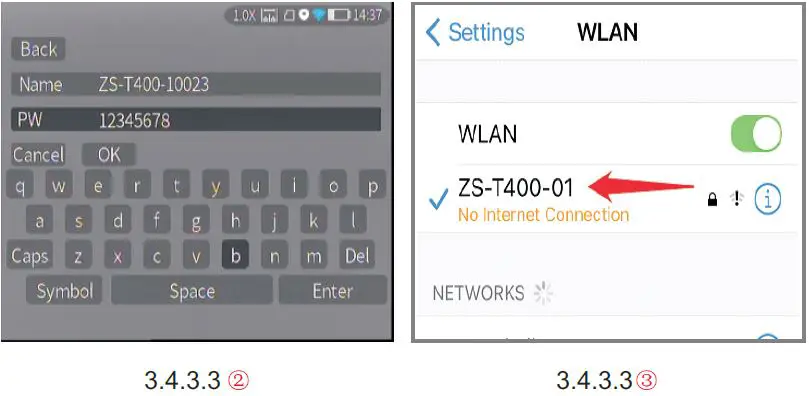

2. Access the hotspot submenu, monocular will release a hotspot network. Set the hotspot name and password and confirm them through the rocker button.
3. Enable the mobile device to connect with the monocular Hotspot by setting the WLAN on a mobile device.
4. After the mobile device is connected to the monocular Hotspot, open the mobile APP to connect the monocular.

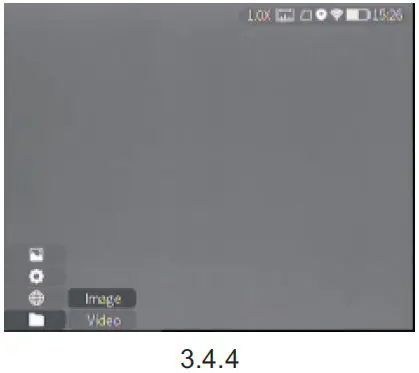

File Management

Enter by short-press on the rocker button, selecting the image and video submenus to view the images and videos, and play the videos.

File settings

External video& Read data
Power on the device before using a type-C to AV video cable to output analog video. When the external display is connected, the OLED of the device automatically turns off the display. Power on the device, and use a type-C to USB cable to connect with the computer to read the video and image data in the memory.

Note:
video and images taken in analog format (usually taken by an external display with analog output) will be saved in a folder named “720”, video and images directly taken by monocular will be saved in a folder named “1024”.

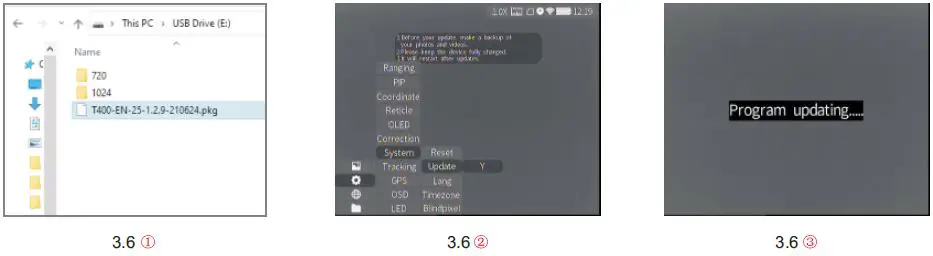

System Software Upgrade

1. Connect the device to your computer and drag the upgrade file to the folder.
2. Access the Setup menu and select Upgrade.
3. The system will prompt that upgrading is in progress. When the upgrade succeeds, the device will restart automatically.

Technical Data

Datasheet

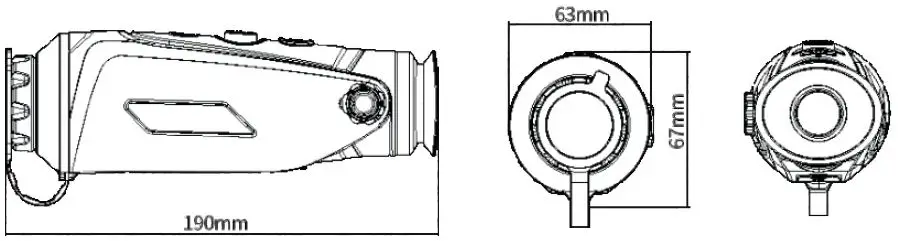

Dimensions
