ZZiPP ZZJET3500 Fast Jet Machine

Product Information: ZZJET3500 Fast Jet Machine

The ZZJET3500 Fast Jet Machine is a powerful and versatile fog machine designed for theatrical and event productions. It features an onboard digital control interface with several buttons for easy operation. The machine also provides a 3-pin XLR connector for DMX connection, making it compatible with most lighting consoles.

Technical Specifications

Input: 220-240 V, 50/60 Hz
Max. power consumption: 3,500W (when re-heating and LED ON)
Heat-up time: 7 mins
Re-heating time: 0-8 seconds
LED: LED circle 1: 8 x 8W, RGBA 4 in 1; LED circle 2: 27 x 8W
RGBA 4 in 1. Total 35pcs LED
Fluid consumption: 75ml/10 seconds
Fluid capacity: 3.6L (fluid tank’s capacity is 5L, don’t fill more than 3.6L)
Fluid type: Professional fog jet fluid
Max.output height: 15m
DMX channel: 7/10 channels (2 modes), with 3pin XLR
Wireless remote: 8 buttons
Net Weight: 21.3 kg
Gross Weight: 23.5 kg

Product Usage Instructions

Check the contents of the package and make sure all parts are included.
Set up the machine in a safe and stable location. Ensure that there is enough space around the machine for proper ventilation.
Fill the fluid tank with professional fog jet fluid. Do not fill more than 3.6L of fluid.
Connect the machine to power using the provided power cord.
Turn the machine on by setting the switch to the ON position.
Use the onboard digital control interface or a DMX console to operate the machine. Refer to the instruction manual for information on the different functions available.
When finished, turn the machine off by setting the switch to the OFF position.
Unplug the machine from power and allow it to cool down before storing.
Store the instruction manual in a safe place for future reference.

Please note that to reduce the risk of electric shock and fire, do not remove the cover or side of the machine. Always contact qualified personnel for repairs. Do not expose the machine to moisture or direct contact with liquids.

ZZJET3500
FAST JET MACHINE

Thanks for purchasing this ZZIPP product, please read this instruction carefully to understand how to operate the product correctly. Please store this instruction in a safe place after reading as a reference in the future.

SAFETY INSTRUCTIONS

To reduce the risk of electric shock, do not remove the cover or the side. Always contact qualified personnel for repairs.

To reduce the risk of fire and electric shock, do not expose the appliance to moisture and direct contact with liquids.

Transport the product only using the handles. Don’t shake it.
To avoid the risk of fire or shock do not expose the product to rain or direct and excessive humidity. If the environment is much colder than the temperature of this product, wait for it to adjust to room temperature before turning it on. Do not use the product for permanent installations. Only connect the product to circuits grounded and protected.
Always disconnect it from the power supply before cleaning it or replacing the fuse. Replace the fuse with another of the same type and the same rated voltage.
Do not clean the product with solvents or aggressive detergents. Use a soft, clean cloth. Before connecting the product to a power supply, make sure the cable of power supply is not damaged.
Make sure that the voltage of the electrical outlet is within the range indicated on the product (on the housing or on a sticker).
Never disconnect the product from the socket by pulling the cord.
Always make sure that the product is used in a location with adequate ventilation with at least 50 cm of space from adjacent surfaces. Make sure that none of the ventilation openings are obstructed.
Do not use the product at temperatures above 104 ° F / 40 ° C.
Keep flammable materials away from the product during use.
Do not touch the product when it is switched on or immediately after switching off. The product and its housing can reach high temperatures.
If you experience serious problems while using the product, stop using it immediately. Do not open the product housing. Contains parts that cannot be repaired by the user and such opening would void the warranty.

CHECK THE CONTENTS

ZZJET3500
Operating instructions
Power cable

SETTING UP

Place the machine on a flat surface and in a suitably large area with at least 50 cm open space around the machine.
Fill the fluid tank with ZZIPP approved fluid.
Connect the machine to a suitably rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.
Always connect the machine to a protected circuit and ensure it is properly grounded.
Turn on the machine, press the [VOLUME]/[DOWN] button on the control panel to start making smoke.
To turn off the machine, press the [STOP] button and put the power switch to the OFF position.

OPERATION

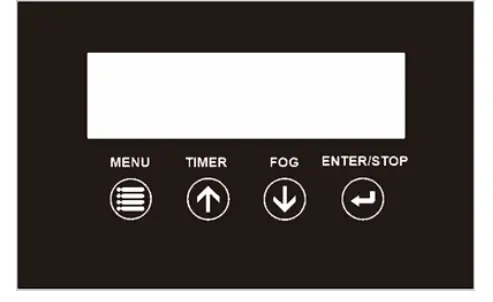

The machine can be operated with onboard digital control interface

Button	Function
[MENU]	Scroll through setting menu
[UP][TIMER]	Up/Activate Timer function
[DOWN][SNOW]	Down/Activate Volume function
[ENTER][STOP]	Deactivate Timer/smoke function, Escape from menu

DMX OPERATION

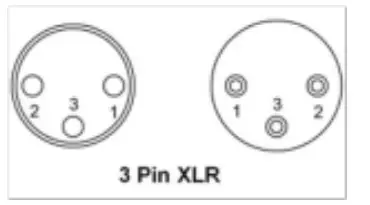

The machine provides a 3- pin XLR connector for DMX connection. The diagram below indicates pin assignment information.DMX Connection – Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses a 3-pin XLR connector for DMX con-nection, the connector is located on the rear of the machine.
Address Setup – Use control menu to set DMX address. The machine uses 7 or 10 chan-nels. The starting address is defined as the first channel from which the machine will respond to the controller. Always double check to make sure there are no overlapping channels in order to control the machine correctly.

DMX Channel Function
This machine has 2 dmx channels modes: 7channels / 10 channels

7 CHANNEL MODE

CHANNEL	VALUE	FUNCTION	LED TYPE
CH01	010-255	SMOKE OUTPUT
CH02	010-255	RED	LED AROUND NOZZLE
CH03	010-255	GREEN
CH04	010-255	BLUE
CH05	010-255	AMBER
CH06	010-039	RED	SECOND GROUP LED
	040-069	GREEN
	070-099	BLUE
	100-129	AMBER
	130-159	YELLOW
	160-189	SKY BLUE
	190-219	PURPLE
	220-255	WHITE
CH07	010-255	COL. SCROLL

10 CHANNEL MODE

CHANNEL	VALUE	FUNCTION	LED TYPE
CH01	010-255	SMOKE OUTPUT
CH02	010-255	MASTER DIMMER	LED AROUND NOZZLE
CH03	010-255	RED COLOR (WITH DIMMER FUNCTION)
CH04	010-255	GREEN COLOR (WITH DIMMER FUNCTION)
CH05	010-255	BLUE COLOR (WITH DIMMER FUNCTION)
CH06	010-255	AMBER COLOR (WITH DIMMER FUNCTION)
CH07	010-255	STROBE EFFECT (SLOW TO FAST)
CH08	010-036	RED
	037-056	GREEN
	057-076	BLUE
	077-096	AMBER
	097-116	YELLOW
	117-136	SKY BLUE
	137-156	PURPLE
	157-176	WHITE
	177-196	R/G/B/A COLORS FADE (SMOOTH CHANGE)
	197-216	ALL COLORS FADE (SMOOTH CHANGE)
	217-236	R/G/B/A COLORS SCROLL (FAST CHANGE)
	237-255	ALL COLORS SCROLL (FAST CHANGE)
CH09	010-039	RED	SECOND GROUP LED
	040-069	GREEN
	070-099	BLUE
	100-129	AMBER
	130-159	YELLOW
	160-189	SKY BLUE
	190-219	PURPLE
	220-255	WHITE
CH10	010-255	COLORS SCROLL (SLOW TO FAST)

TECHNICAL SPECIFICATIONS

Input 220-240 V, 50/60 Hz
Max. power consumption 3,500W(when re-heating and LED ON)
Heat-up time 7 mins
Re-heating time 0-8 seconds
LED
LED circle 1: 8 x 8W, RGBA 4 in 1
LED circle 2: 27 x 8W RGBA 4 in 1. Total 35pcs LED
Fluid consumption 75ml/10 seconds
Fluid capacity 3.6L(fluid tank’s capacity is 5L, don’t fill more than 3.6L)
Fluid type Professional fog jet fluid
Max.output height 15m
DMX channel 7/10 channels (2 modes), with 3pin XLR
Wireless remote 8 buttons
Net Weight 21.3 kg
Gross Weight 23.5 kg
Machine Dimension 480 × 390 × 310 mm
Packing Dimension 580 × 470 × 390 mm
