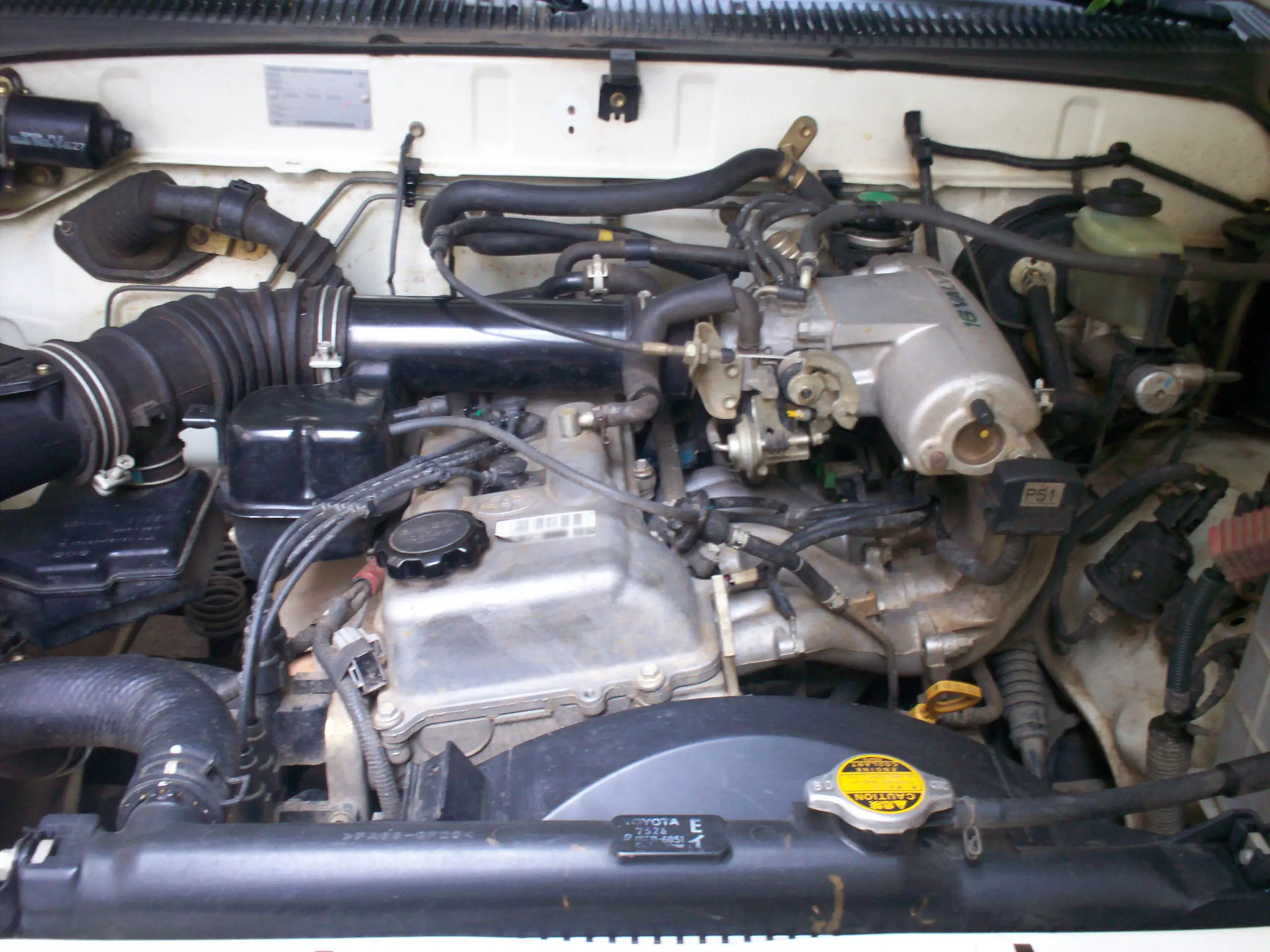

TOYOTA 2RZ-FE RZ Engine User Manual

IGNITION TIMING INSPECTION

1. WARM UP ENGINE
   Allow the engine to warm up to normal operating temperature.

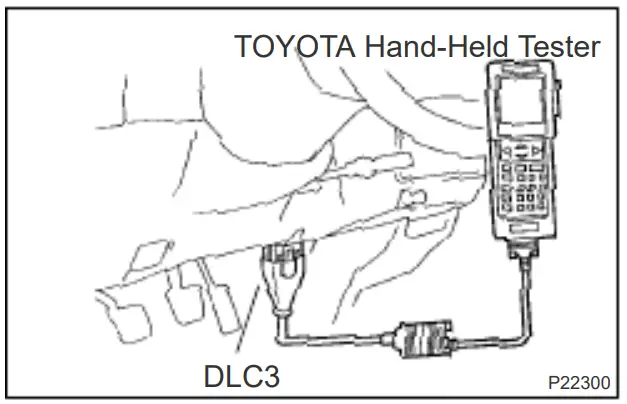

2. CONNECT TOYOTA HAND-HELD TESTER OR OBDII SCAN TOOL
   (a) Connect the TOYOTA hand-held tester or OBDII scan tool to the DLC3.
   (b) Please refer to the TOYOTA hand-held tester or OBDII scan tool operators manual for further details.

3. CHECK IGNITION TIMING

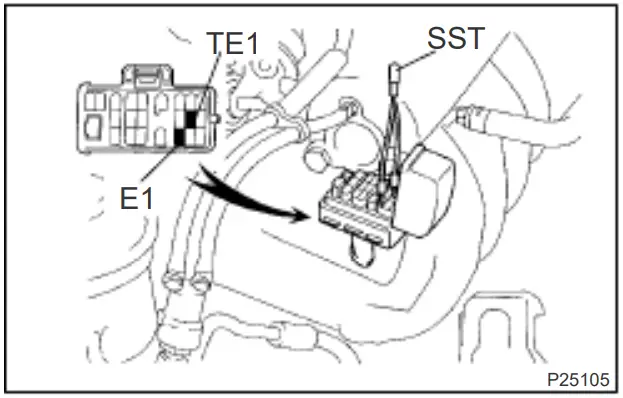

   (a) Using SST, connect terminals TE1 and E1 of theDLC1. SST 09843-18020
   HINT:
   After engine speed is kept at about 1,000 rpm for 5 seconds, check that it returns to idle speed.

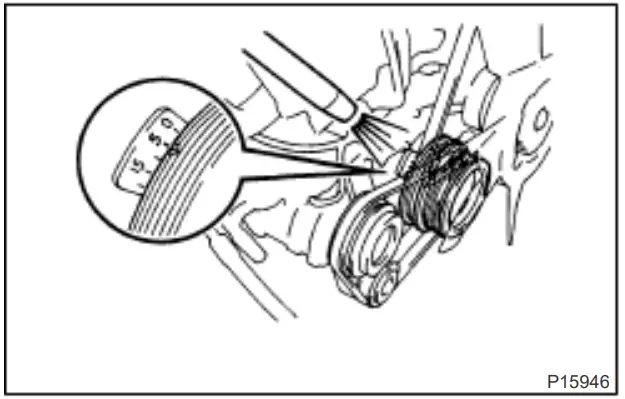

   b) Using a timing light, connect the test probe to the No.1 high-tension cord.
   (c) Check ignition timing. Ignition timing: 3 – 7° BTDC @ idle
   (d) Remove the SST from the DLC1. SST 09843-18020

4. FURTHER CHECK IGNITION TIMING Ignition timing: 4 – 17° BTDC @ idle
   HINT:
   The timing mark moves in a range between 4° and 17°.

5. DISCONNECT TOYOTA HAND-HELD TESTER OR OBDII SCAN TOOL AND TIMING LIGHT

Portions of materials contained herein have been reprinted under license from Toyota Motor Sales, U.S.A., Inc., License Agreement TMS1004
