CTBRCB02JM02 600W Lighting Controller
Product Information
- Output Wattage: 600W Max
- Universal Voltage: 120-277VAC
- Dimming Controller Type: 0-10Vdc Type / Channels
- Communication Type: RF
- Transmission Range: Not specified
- Ambient Operating Temperature Range: Not specified
- Maximum Driver Case Temperature (Tc) (Per UL): Not specified
- Input Surge Protection: Yes
- Mounting Type: 1/2 Knockout Mount IP66
- Overall Size: Not specified
- Protections:
- FCC ID : 2AJ9LCTRCB0XJM0XXXX, RoHS COMPLIANT, IP66
- Weight: 15 pounds
- Sound Rating: Not specified
- Service Life: Not specified
- Warranty: Not specified
Product Usage Instructions
To use this lighting controller, follow these instructions:
- Ensure that the input voltage and frequency match the specifications of the product, which are 120 – 277VAC (+/- 10%), 50-60Hz.
- Connect the input wires to the appropriate power source.
- Connect the output wires to the luminaire you wish to control.
- If necessary, connect the dimming controller using the 0-10Vdc Type / Channels connection.
- If desired, set up RF communication by following the instructions provided with the product.
- Install the lighting controller using the 1/2 Knockout Mount IP66 mounting type.
- Ensure that the product is protected from input surges.
- Test the product to ensure it is functioning properly.
SPECIFICATION INSTRUCTIONS
Lighting Controller
- Output Wattage: 600W Max.
- Universal Voltage (120-277VAC)
- 0-10V Luminaire
- 1/2” Knockout Mount
- IP66
- FCC ID : 2AJ9LCTRCB0XJM0XXXX

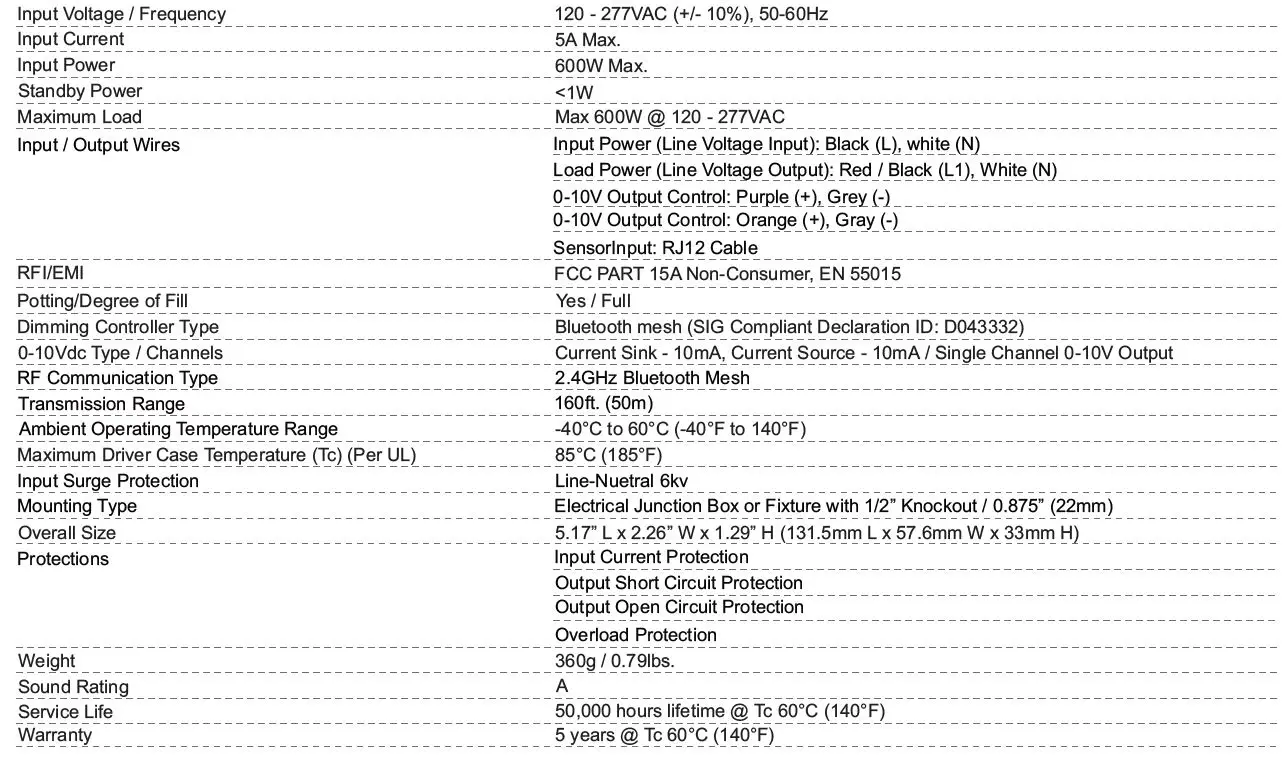

General Specifications
Fulham EliteBlue
Fulham’s EliteBlue commissioning app can be found on the Apple app store by searching “EliteBlue”. For web app, please visit https://eliteblue.fulham.com
Complete commissioning manual can be found at:
https://www.fulham.com/PDFs/eliteBlue-commissioning-manual.pdf

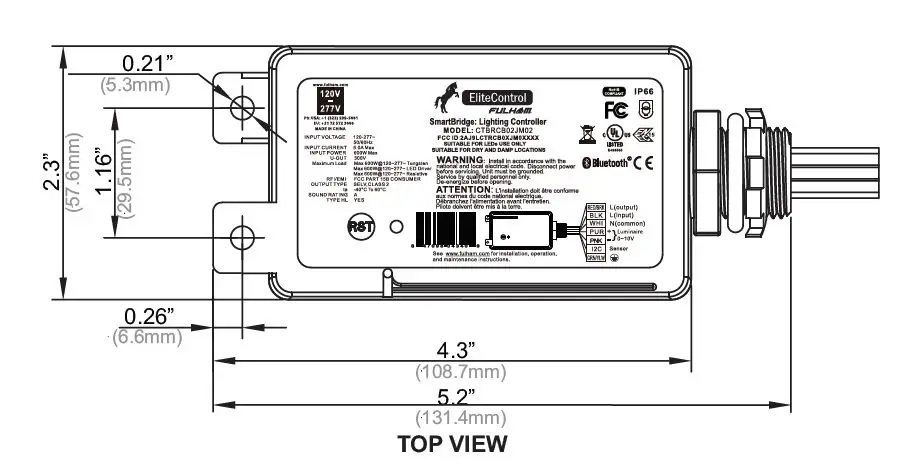

Mechanical Data
WIRING DIAGRAMS#10-24*1 inch
Mounting hole for threaded pipe: 7/8” (22mm)
Notes:
- Driver has two (2) mounting tabs with a round hole in each.
- Fasten a screw through the mounting tab if mounted on a flat surface.

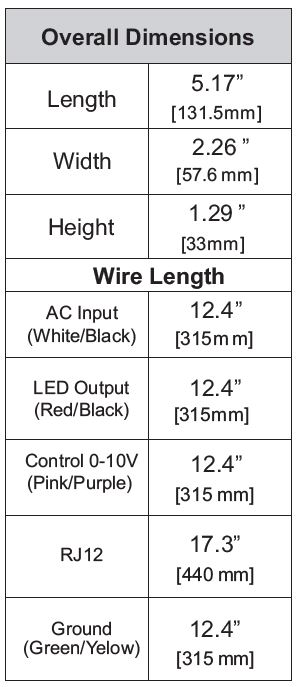

Overall Dimensions

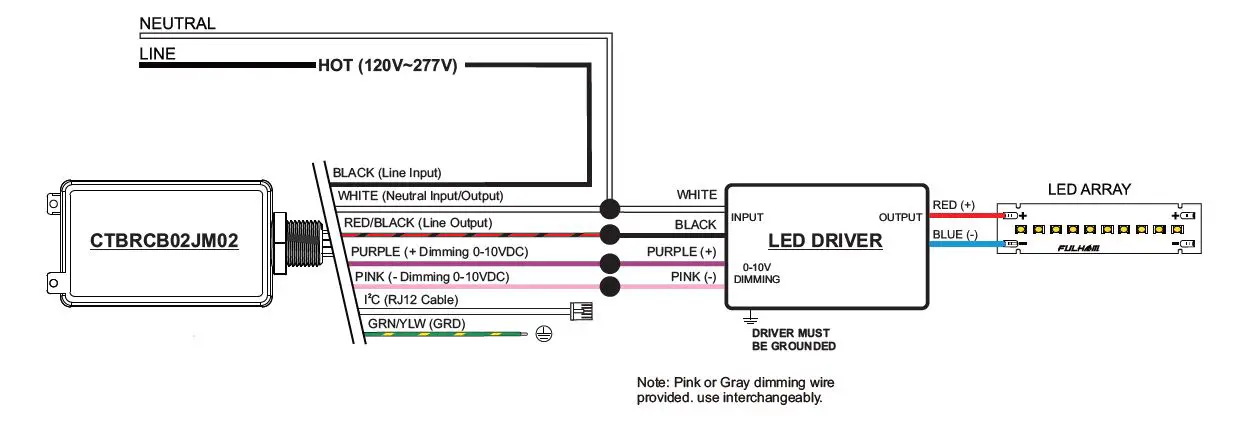

WIRING DIAGRAMS
Notes:
Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-rated construction.
FCC Caution.
This device complies with part 15 of the FCC Rules. Operation Is subject to the followlng two conditions:
- Th is device may not cause harmful interference, and
- this device must accept any interference received, including interference that may cause undesired operation.
Any Changes or modifications not expressly approved by the party responsible for compliance could void the user”s authority to operate the equipment.
Restoring Factory Settings

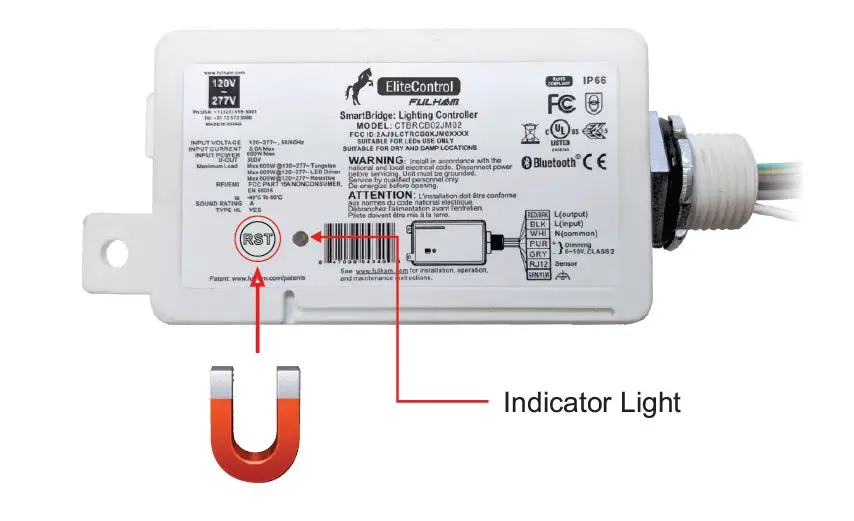

- To reset the unit you will need to place and hold a magnet for 10 seconds on the reset icon on the location of the unit shown in the image below.
- Once the magnet has been placed the Indicator Light will stay lit and begin to flash until it shuts off indicating that the unit has been successfully reset.
- Remove the magnet from the unit, the Indicator Light will light up and flash repeatedly
- The unit is now ready to be provisioned.

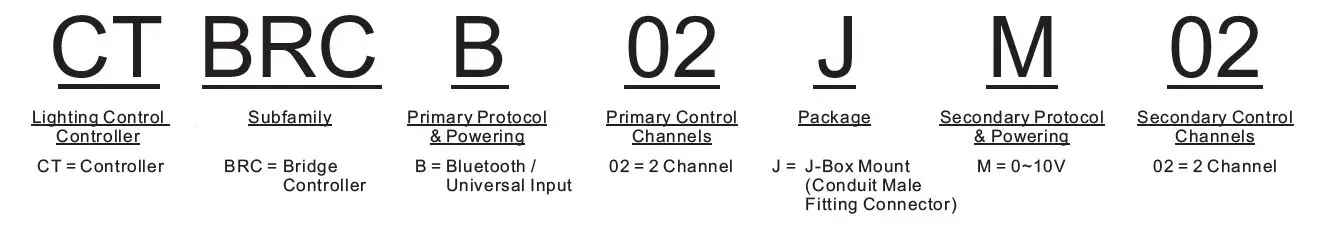

Part Number Matrix

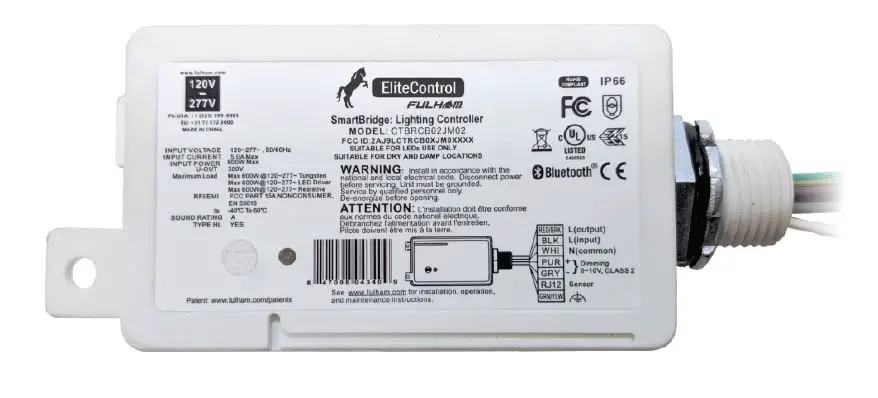

Product Image: LED Driver
CTBRCB02JM02

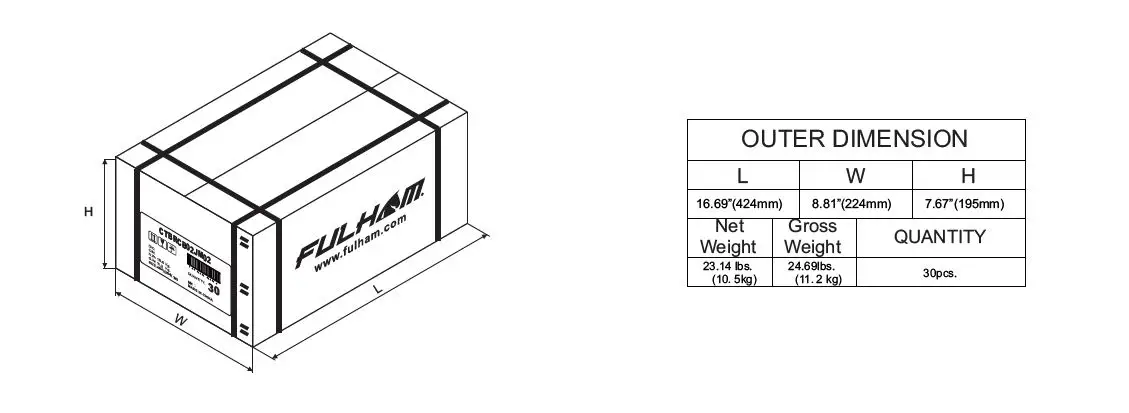

Packaging
Master Carton
Fulham Co. Inc.: 12705 South Van Ness Ave.,
Hawthorne,
CA 90250
Tel.: 1-323-779-2980
Fax.: 1-323-754-9060.
[email protected]
www.fulham.com
Specifications subject to change without notice.
