FULHAM CTBRCB02JM02 Bluetooth Bridge Lighting Control Kit User Guide
The Fulham Lighting Control Kit provides all of the necessary components to integrate Bluetooth mesh control in luminaires. Out of the box it is ready to be commissioned via the Fulham iOS Bluetooth mesh mobile commissioning application.
CTBRCB02JM02
- Bluetooth Bridge Lighting Control

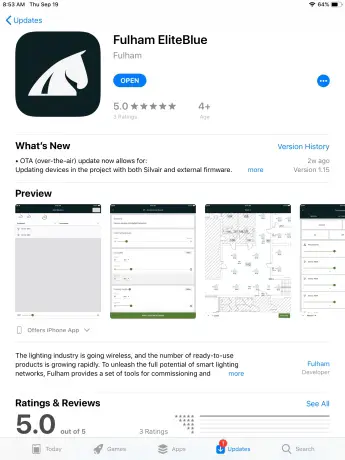

Note: The Fulham EliteBlue application is only available on iOS and can be downloaded via the app store.
ELIOPJX00SR

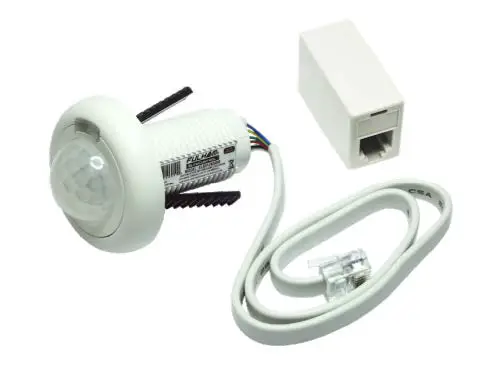

- Fulham Link External PIR Sensor

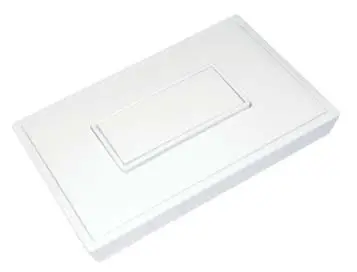

ESRPB-W-EO
- EnOcean Single Rocker Pad

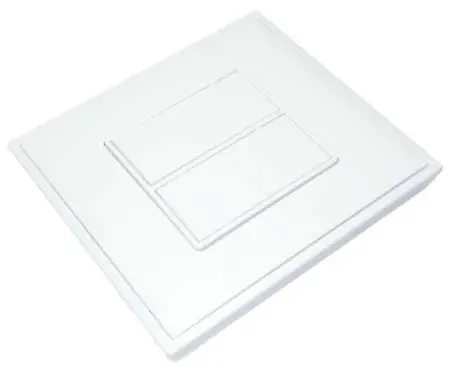

EDRPB-W-EO
- EnOcean Double Rocker Pad

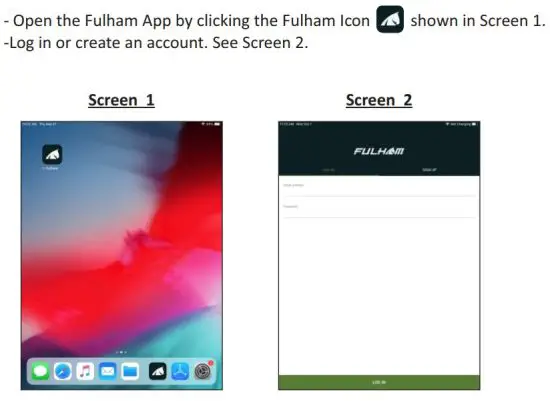

Getting Started

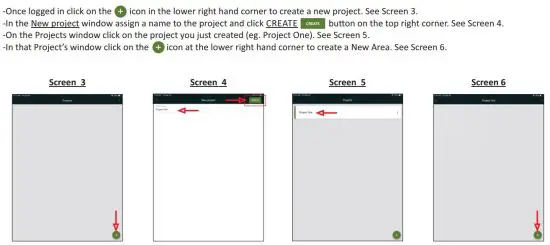

Creating a Project

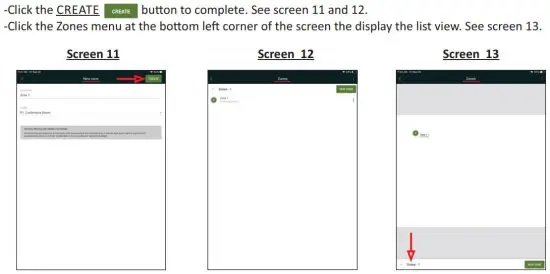

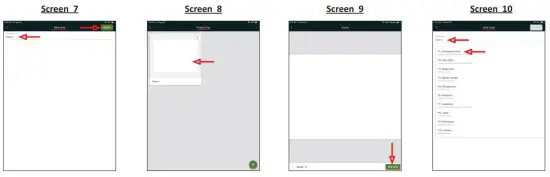

Creating an Area / Adding a Zone
The scenarios assigned to the profiles are:
- Manual Control: Luminaires are switched on/off manually and dimmed manually with a wall switch.
- Vacancy Sensing: Luminaires are switched on manually with a wall switch and switched off automatically when no motion is detected.
- Vacancy Sensing with Daylight harvesting: Luminaires are switched on manually and switched off automatically when no motion is detected or there is sufficient
daylight available to maintain the defined light level. - Occupancy Sensing: Luminaires are switched on automatically when motion is detected and switched off automatically when no motion is detected.
- Occupancy Sensing with Daylight harvesting: Luminaires are switched on automatically when motion is detected and switched off automatically when no motion
is detected or there is sufficient daylight available to maintain the defined light level.
-For more information on each Profile visit the link below:
https://www.fulham.com/PDFs/eliteBlue-commissioning-manual.pdf

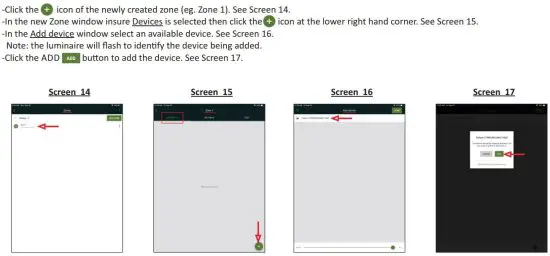

Adding Devices

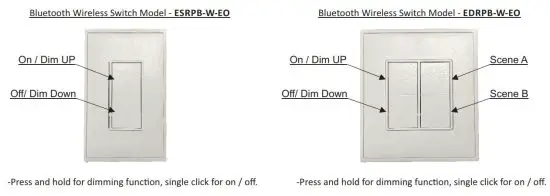

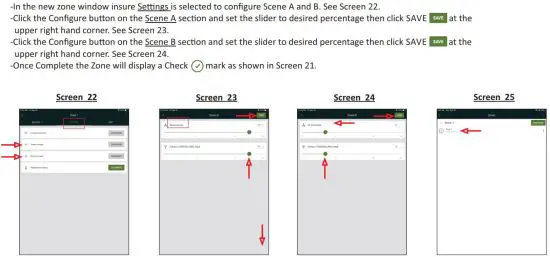

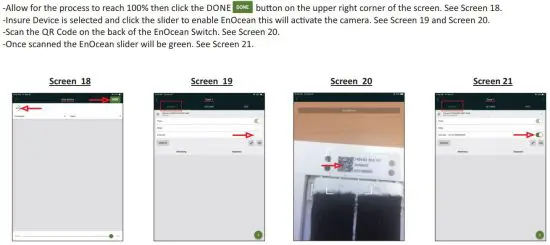

Setting Up EnOcean Switch Function
Testing The Settings

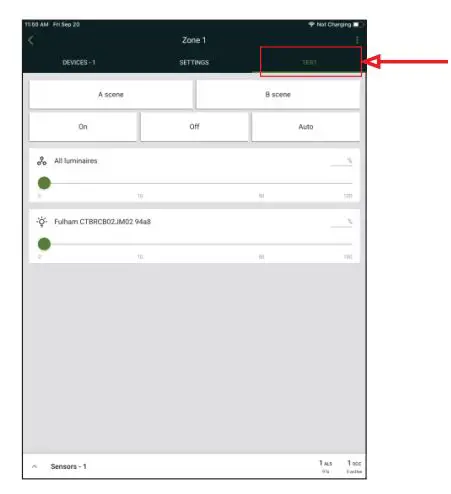

- Insure TEST Section is selected on the upper right hand corner of the screen.
- This screen allows you to conveniently test the configurations of the zone and provides you the ability to dim the group and individual luminaires.
-For detailed instructions visit the link below:
https://www.fulham.com/PDFs/eliteBlue-commissioning-manual.pdf

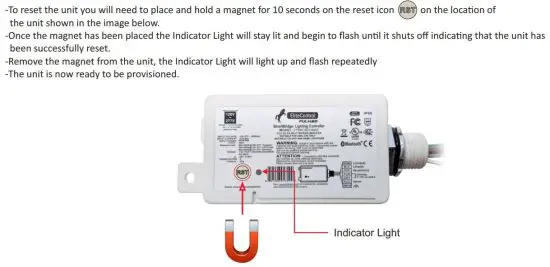

Restoring Factory Settings
