Web Camera Full HD 1080p
Model AWC05
Quick Start Guide
Getting Started
Web camera with built-in 4.5 ft. USB cable
Flexible mounting bracket
Quick Start Guide
Easy Installation

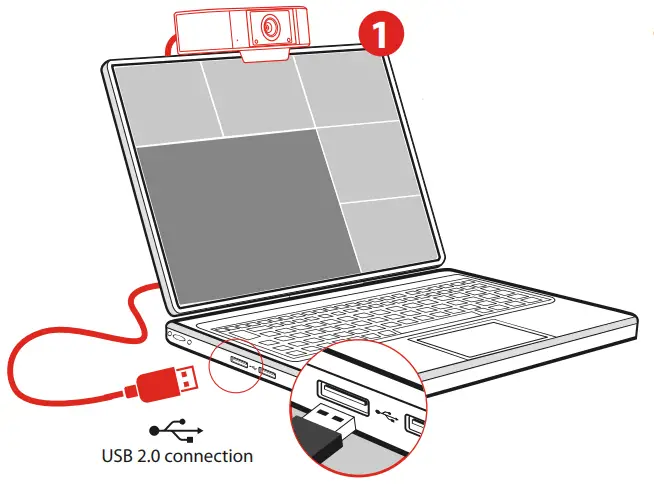

- Plug the cable from the back of the camera into the USB port of your laptop or monitor.

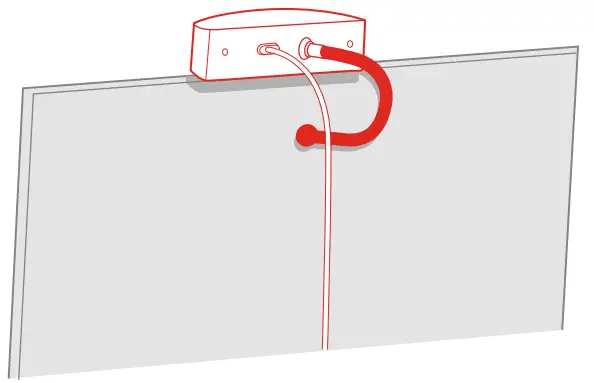

- Screw in the flexible mounting rod into the camera back and bend as needed to rest the camera securely.
- Plug & Play Installation
No need for software drivers or additional software installation, your web camera supports all UVC standards, it will run by itself automatically. (Compatible with Mac OS 10.10 and higher, Windows 7, 8, 10)
NOTE: On certain applications, you might have to select the camera. If asked, choose the following: “UVC Camera“. Then, your webcam should work automatically.
SPECIFICATIONS
| Web Camera | |
| Sensor | 2.0 MP, 1/2.9″CMOS |
| Supports | Windows 7, 8, 10; Mac OS 10.10 and higher |
| Video | |
| Video Compression | H.264 |
| Max Resolution | 1920 x 1080px (Full HD) |
| Frame Rate | 30fps |
| Viewing Angle | 80° |
| Lens | 3.6mm |
| White Balance | Auto |
| Light Correction | Auto |
| Audio | |
| Audio | Built-in microphone, voice pick up within 16 ft |
| Signal-Noise Ratio | > 50dB |
| Operating Conditions | |
| Working Temperature | -4°F to + 131°F |
| Working Humidity | 10% – 90% non-condensing |
| Environmental Conditions | Indoor |
| Power Supply/Camera Specs | |
| Length of USB cable | 4.5 ft (1.5m) |
| Power | DC5V/160mA (±6mA) from USB |
| Camera Size (Weight) | 3.9” x 1.18” x 0.91” (0.18 lbs.) |
Wireless Made Simple.
ALC Cares About You!
If you need assistance, please contact
CUSTOMER SUPPORT at 1-844-767-8544
or visit ALCwireless.com for assistance.
One-Year
Limited Warranty
https://www.alcwireless.com/warranty/
MADE IN CHINA. Distributed by Atoms Labs LLC
©2020 Atoms Labs LLC, Flower Mound, TX. All rights reserved. Mac OS is a registered trademark of Apple, Inc. Windows is a registered trademark of Microsoft, Inc. Certain other product names, brand names, and company names may be trademarks or designations of their respective owners.
