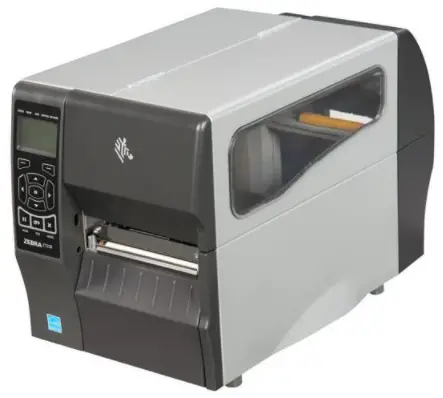

ULINE H-8906, H-8907, H-8908, H-8909, H-8910, H-8911, H-8912 ZT411/ZT421 Zebra Industrial Barcode Printer

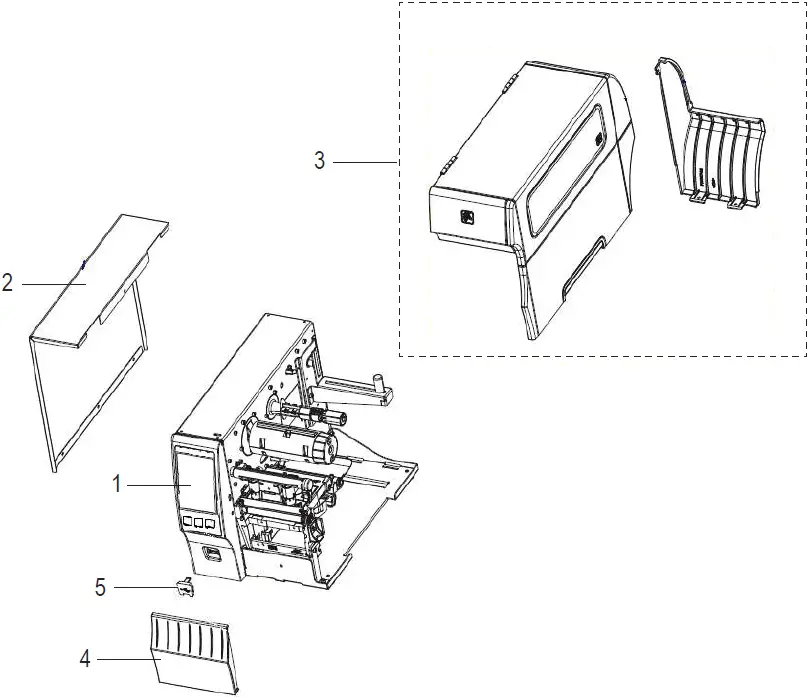

OUTER CASING
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Standard Control Panel ZT411 (Includes USB Ports) | 1 | ———– | P1105147-001 |
1 | Standard Control Panel ZT421 (Includes USB Ports) | 1 | ———– | P1105147-002 |
1 | Economy Control Panel ZT411 (Does Not Include USB Ports) | 1 | ———– | P1105147-003 |
1 | Economy Control Panel ZT421 (Does Not Include USB Ports) | 1 | ———– | P1105147-004 |
1 | China Standard Control Panel ZT411CN (Includes USB Ports) | 1 | ———– | P1105147-030 |
1 | China Standard Control Panel ZT421CN (Includes USB Ports) | 1 | ———– | P1105147-031 |
1 | China Economy Control Panel ZT411CN (Does Not Include USB Ports) | 1 | ———– | P1105147-032 |
1 | China Economy Control Panel ZT421CN (Does Not Include USB Ports) | 1 | ———– | P1105147-033 |
| Covers for Control Panel, ZT411, ZT421 | 3 | ———– | P1105147-029 | |
2 | Electronics Cover ZT400 Series | 1 | ———– | P1058930-003 |
3 | Media Cover (Includes Window) ZT411 | 1 | ———– | P1058930-004 |
3 | Media Cover (Includes Window) ZT421 | 1 | ———– | P1058930-005 |
| Window for Media Cover ZT400 Series | 1 | ———– | P1058930-008 | |
4 | Front Lower Panels ZT411 (Includes Tear and Peel Panels) | 1 | ———– | P1058930-006 |
4 | Front Lower Panels ZT421 (Includes Tear and Peel Panels) | 1 | ———– | P1058930-007 |
5 | Cover for USB Ports, ZT411, ZT421 | 3 | ———– | P1058930-404 |

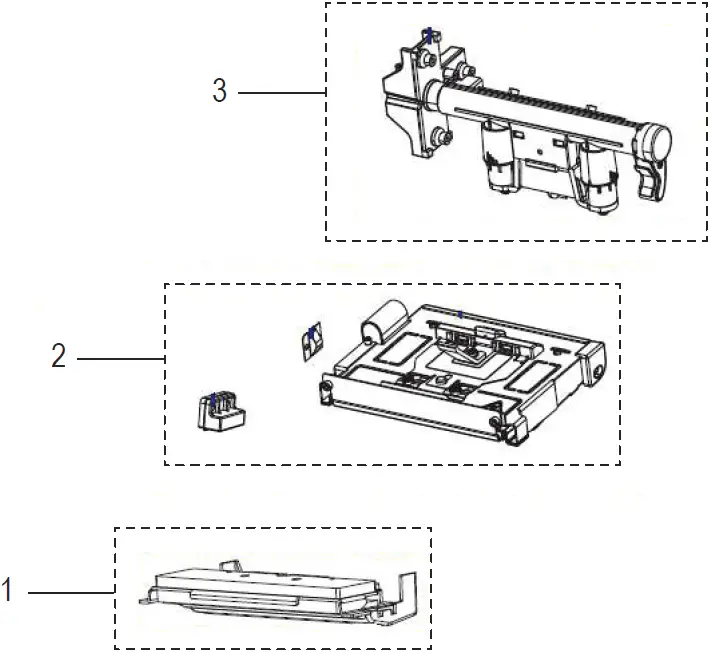

PRINT MECHANISM
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Printhead 203 dpi ZT411 & ZT411 RFID that is NOT printing On-Metal RFID labels | 1 | H-5207 | P1058930-009 |
1 | Printhead 300 dpi ZT411 & ZT411 RFID that is NOT printing On-Metal RFID labels | 1 | H-5208 | P1058930-010 |
1 | Printhead 600 dpi ZT411 & ZT411 RFID that is NOT printing On-Metal RFID labels | 1 | H-5208-600 | P1058930-011 |
1 | Printhead only for On-Metal RFID label printing applications 203 dpi ZT411 | 1 | ———– | P1105147-300 |
1 | Printhead only for On-Metal RFID label printing applications 300 dpi ZT411 | 1 | ———– | P1105147-301 |
1 | Printhead 203 dpi ZT421 & ZT421 RFID | 1 | H-7383-PH | P1058930-012 |
1 | Printhead 300 dpi ZT421 & ZT421 RFID | 1 | ———– | P1058930-013 |
2 | Thermal Transfer Print Mechanism ZT411 (Includes Ribbon Sensor with Cable, Printhead Cables, Ground Contact and Magnets) | 1 | ———– | P1105147-005 |
2 | Thermal Transfer Print Mechanism ZT421 (Includes Ribbon Sensor with Cable, Printhead Cables, Ground Contact and Magnets) | 1 | ———– | P1105147-006 |
3 | Toggle Bar (Includes Lift Strap) ZT411 | 1 | ———– | P1058930-018 |
3 | Toggle Bar (Includes Lift Strap) ZT421 | 1 | ———– | P1058930-019 |
| Ribbon Strip Plate and Ribbon Static Brush ZT411 | 1 | ———– | P1058930-094 | |
| Ribbon Strip Plate and Ribbon Static Brush ZT421 | 1 | ———– | P1058930-095 | |
| Magnets for holding open Print Mechanism | 1 | ———– | P1058930-082 | |
| Ground Contact ZT400 Series | 1 | ———– | P1058930-083 |
PRINTHEAD DPI CONVERSION KITS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| Convert to 300 dpi ZT411 | 1 | H-5149-300 | P1058930-022 | |
| Convert to 300 dpi ZT411 | 1 | H-5120-203PH | P1058930-023 | |
| Convert to 300 dpi ZT411 | 1 | ———– | P1058930-024 | |
| Convert to 300 dpi ZT421 | 1 | ———– | P1058930-025 | |
| Convert to 300 dpi ZT421 | 1 | ———– | P1058930-026 |

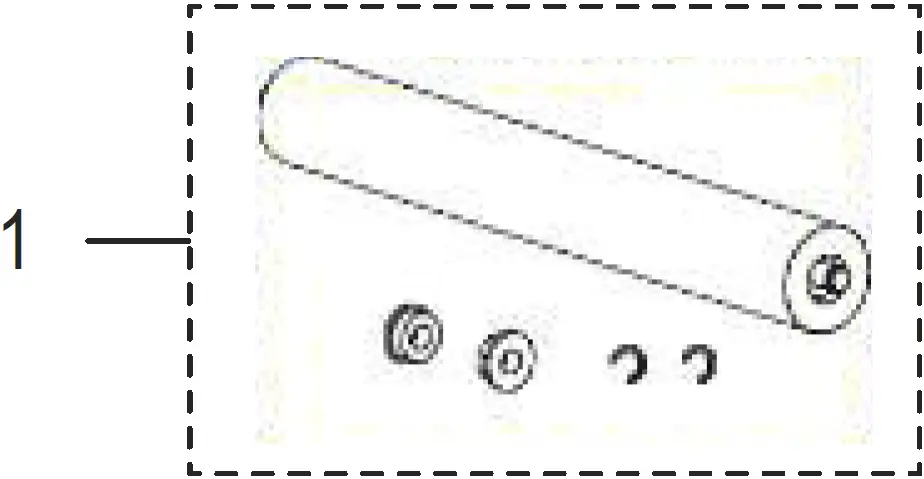

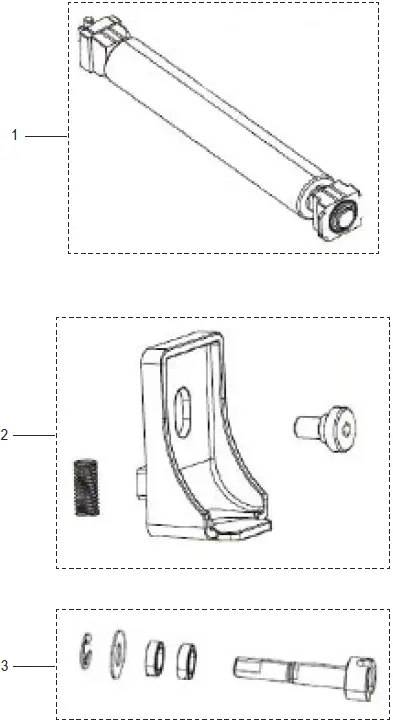

PLATEN ROLLER
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Platen Roller ZT411 | 1 | H-5149-PLTRL | P1058930-080 |
1 | Platen Roller ZT421 | 1 | H-7383-PLTRL | P1058930-081 |
2 | Lock/Retainer for Platen Roller ZT400 Series | 1 | ———– | P1058930-027 |
3 | Coupler for Platen Roller ZT400 Series | 1 | ———– | 79862M |

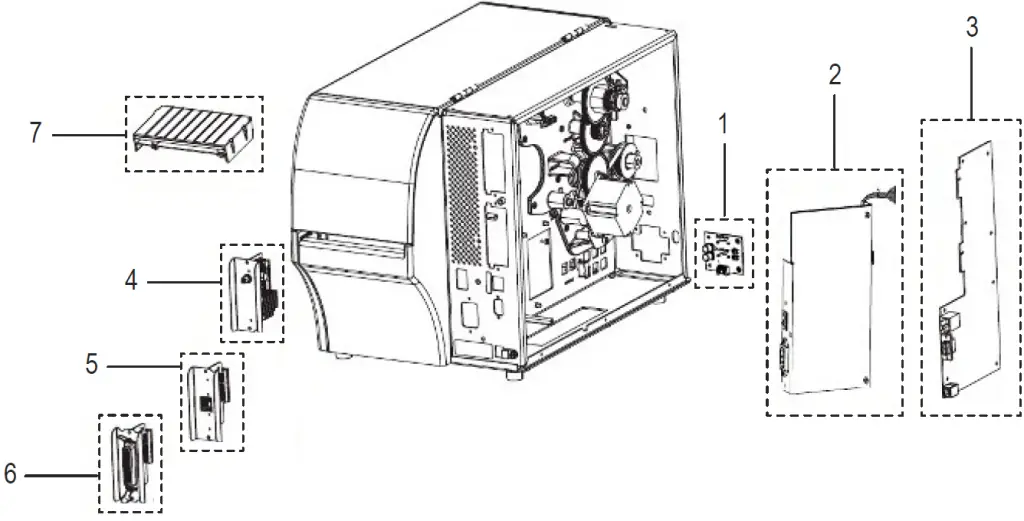

ELECTRONICS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Dual Port USB PCBA ZT411 ZT421 | 1 | ———– | P1058930-403 |
2 | Power Supply ZT411 | 1 | ———– | P1105147-012 |
2 | Power Supply ZT421 | 1 | ———– | P1105147-024 |
3 | Standard Main Logic Board ZT411 ZT421 (Includes USB Ports) | 1 | ———– | P1105147-007 |
3 | Economy Main Logic Board ZT411 ZT421 (Does Not Include USB Ports) | 1 | ———– | P1105147-008 |
| Mounting Bracket for Main Logic Board ZT411 ZT421 | 1 | ———– | P1105147-009 | |
4 | ZebraNet Internal Wireless 802.11 AC Radio, BT4.0, ZT411 ZT421 USA & Canada | 1 | H-5120WLESSQ | P1083320-037A |
4 | ZebraNet Internal Wireless 802.11 AC Radio, BT4.0, ZT411 ZT421 Japan | 1 | ———– | P1083320-037B |
4 | ZebraNet Internal Wireless 802.11 AC Radio, BT4.0, ZT411 ZT421 for all countries except USA, Canada or Japan | 1 | ———– | P1083320-037C |
5 | Internal Printserver (Ethernet port) ZT400 Series | 1 | ———– | P1058930-074 |
6 | Parallel Port ZT400 Series | 1 | ———– | P1058930-075 |
7 | RFID Module USA & Canada ZT400 Series | 1 | ———– | P1058930-500A |
7 | RFID Module Japan ZT400 Series | 1 | ———– | P1058930-500B |
| 7 | RFID Module Global (All countries except USA, Canada, Japan) ZT400 Series | 1 | ———– | P1058930-500C |
| Applicator Interface Card | 1 | ———– | P1083320-038 | |
| Replacement RFID Cables and Hardware ZT400 Series | 1 | ———– | P1058930-503 | |
| Light Assemblies (Includes 1 Print Mechanism Light & 1 Media Light) | 2 | ———– | P1058930-079 | |
| Replacement Antenna for 802.11n & ac Radios | 1 | ———– | P1037974-053 | |
| Electronics Cables ZT411, ZT421 | 1 | ———– | P1105147-013 | |
| USA Power Cord | 1 | ———– | 46693 | |
| Europe Power Cord | 1 | H-5149-EUROP | 46629 | |
| UK Power Cord | 1 | ———– | 46637 | |
| Japan Power Cord | 1 | ———– | 37609 | |
| China Power Cord | 1 | ———– | 47612 |
SENSORS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Media Sensor ZT411 | 1 | ———– | P1105147-014 |
1 | Media Sensor ZT421 | 1 | ———– | P1105147-015 |
2 | Head Open Sensor ZT411, ZT421 | 1 | ———– | P1058930-084 |
3 | Ribbon Sensor ZT411 | 1 | ———– | P1105147-016 |
3 | Ribbon Sensor ZT421 | 1 | ———– | P1105147-017 |
4 | Take Label Sensor ZT411, ZT421 | 1 | ———– | P1105147-018 |

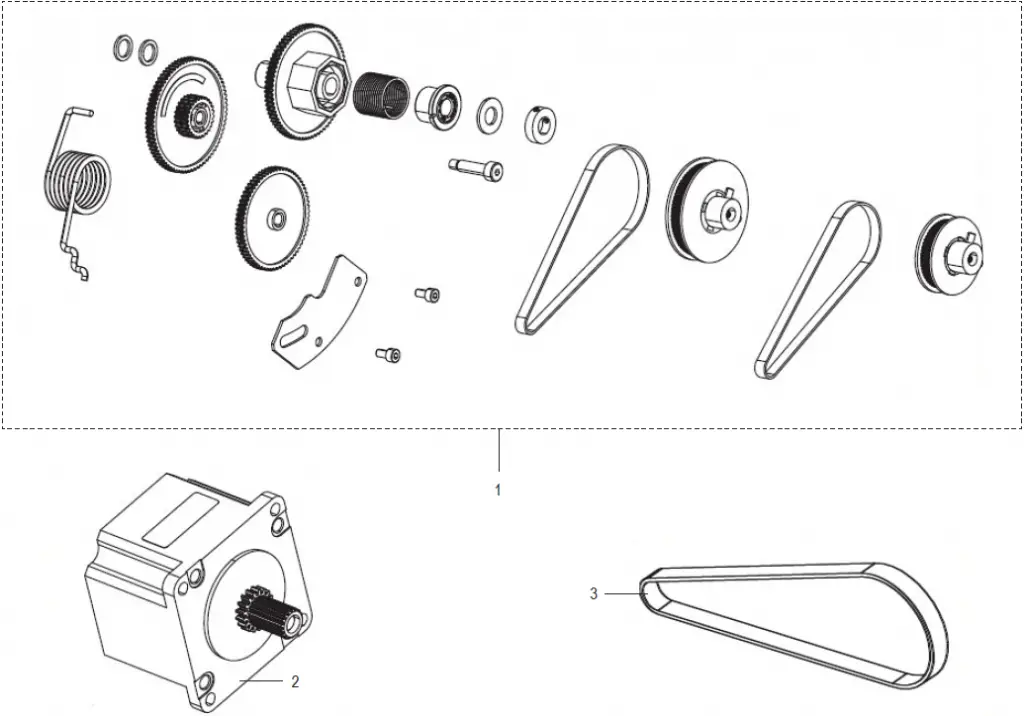

DRIVE SYSTEM
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Drive System ZT400 Series (Includes Gears, Belts and Pulleys for 203 dpi and 300/600 dpi) | 1 | ———– | P1058930-039 |
2 | Drive Motor ZT400 Series | 1 | ———– | P1058930-040 |
3 | Drive Belt 203 dpi ZT400 Series | 1 | H-8911DRIVEQ | 79866M |
3 | Drive Belt 300 dpi and 600 dpi ZT400 Series | 1 | H-5149-BELT | 79867M |

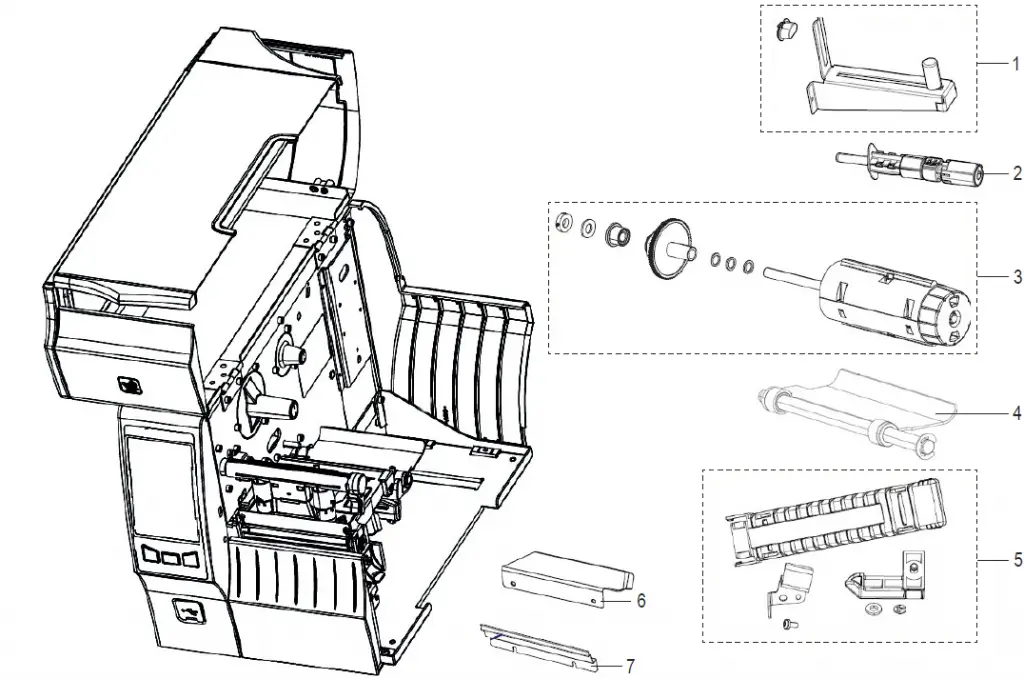

MEDIA PATH
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Standard Media Hanger for 3″ (76 mm) diameter media cores ZT411 | 1 | ———– | P1058930-042 |
| Media Hanger for 1″ (25 mm) diameter media cores ZT411 only | 1 | ———– | P1058930-086 | |
1 | Standard Media Hanger ZT421 | 1 | ———– | P1058930-043 |
2 | Ribbon Supply Spindle ZT411 | 1 | ———– | P1058930-085 |
2 | Ribbon Supply Spindle for Ribbons Coated Inside Only ZT411 | 1 | ———– | 79830M |
2 | Ribbon Supply Spindle ZT421 | 1 | ———– | 79829M |
3 | Ribbon Take Up Spindle ZT411 | 1 | ———– | P1058930-045 |
3 | Ribbon Take Up Spindle ZT421 | 1 | ———– | P1058930-046 |
4 | Media Dancer ZT411 | 1 | ———– | P1105147-025 |
4 | Media Dancer ZT421 | 1 | ———– | P1105147-026 |
5 | Standard Media Guides and Media Carrier ZT411 | 1 | ———– | P1105147-027 |
5 | On-Metal RFID Media Guides and Media Carrier ZT411 | 1 | ———– | P1105147-302 |
5 | Media Guides and Media Carrier ZT421 | 1 | ———– | P1105147-028 |
6 | Media Shelf ZT411 | 1 | ———– | P1058930-047 |
6 | Media Shelf ZT421 | 1 | ———– | P1058930-048 |
7 | Tear Bar ZT411 | 1 | ———– | 79837M |
7 | Tear Bar ZT421 | 1 | ———– | 79838M |
| Covers for Media Light Holes on Economy Models without Media Lights | 4 | ———– | P1105147-010 |
MEDIA HANDLING OPTIONS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Cutter Option ZT411 | 1 | ———– | P1058930-189 |
1 | Cutter Option ZT421 | 1 | ———– | P1058930-190 |
2 | Peel Assembly ZT411 | 1 | ———– | P1105147-019 |
2 | Peel Assembly ZT421 | 1 | ———– | P1105147-020 |
3 | Liner Take Up Spindle & Motor ZT411 (To enable liner take up functionality, also purchase the P1105147-019 peel assembly) | 1 | H-5149-SPNDL | P1058930-052 |

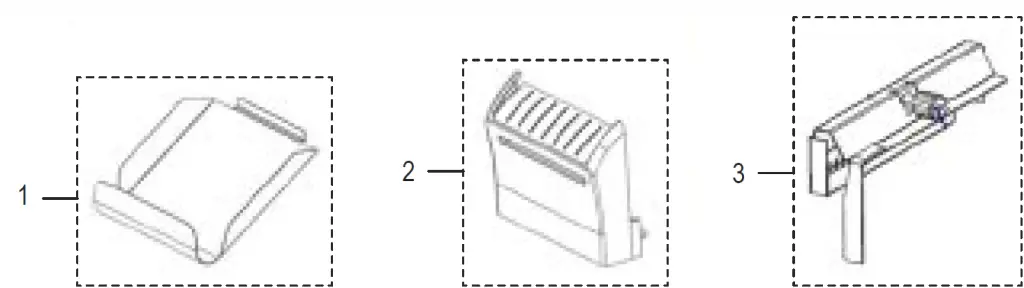

CUTTER REPLACEMENT PARTS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Catch Tray for Cutter ZT411 | 1 | ———– | 77041 |
1 | Catch Tray for Cutter ZT421 | 1 | ———– | 77997 |
2 | Cover for Cutter Includes PCBA and Cutter Cable ZT411 | 1 | ———– | P1058930-102 |
2 | Cover for Cutter Includes PCBA and Cutter Cable ZT421 | 1 | ———– | P1058930-103 |
3 | Replacement Static Brush & Cutter Guard ZT411 | 1 | ———– | P1066612 |
3 | Replacement Static Brush & Cutter Guard ZT421 | 1 | ———– | P1066613 |
PEEL AND LINER TAKE-UP REPLACEMENT PARTS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Roller for the Peel Assembly ZT411 | 1 | ———– | 77197M |
1 | Roller for the Peel Assembly ZT421 | 1 | ———– | 77727M |
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |

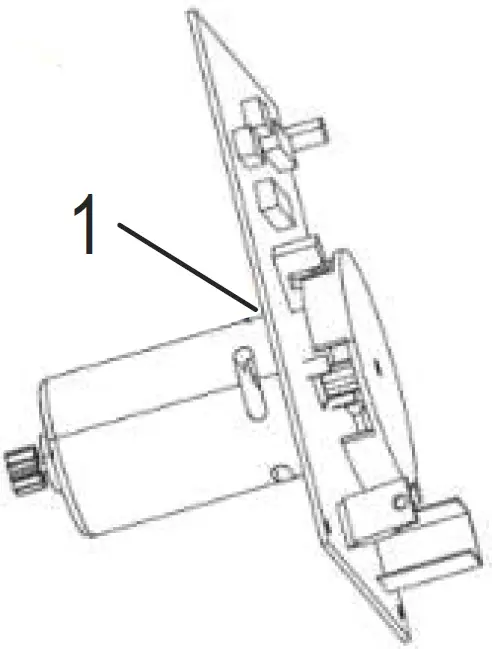

1 | Motor and PCBA for Liner Take Up Spindle ZT411 | 1 | ———– | G34112M |
MEDIA REWIND REPLACEMENT PARTS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |

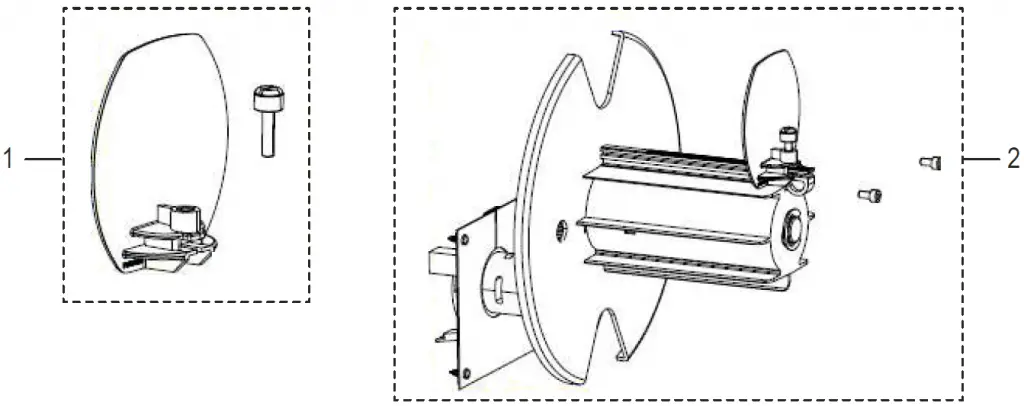

1 | Media Guard for Media Rewind Spindle ZT400 Series | 1 | ———– | P1058930-057 |
2 | Media Rewind Spindle (Includes Motor and PCBA) ZT411 (This item is only for replacing an existing media rewind spindle on a printer that shipped from the factory with the media rewind option installed. Media rewind is not a field installable option) | 1 | ———– | P1058930-058 |
2 | Media Rewind Spindle (Includes Motor and PCBA) ZT421 (This item is only for replacing an existing media rewind spindle on a printer that shipped from the factory with the media rewind option installed. Media rewind is not a field installable option) | 1 | ———– | P1058930-059 |
| Motor and PCBA for Media Rewind Spindle ZT411 (Not Shown) | 1 | ———– | G34110M | |
| Motor and PCBA for Media Rewind Spindle ZT421 (Not Shown) | 1 | ———– | G34111M | |
| Steer Roller for Media Rewind ZT411 (Not Shown) | 1 | ———– | P1058930-055 | |
| Steer Roller for Media Rewind ZT421 (Not Shown) | 1 | ———– | P1058930-056 | |
| Door and Trim for Media Rewind ZT411 (Not Shown) | 1 | ———– | P1058930-060 | |
| Door and Trim for Media Rewind ZT421 (Not Shown) | 1 | ———– | P1058930-061 |
CUTTER REPLACEMENT PARTS
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
1 | Covers/Mounts for Options ZT400 Series | 1 | ———– | P1058930-062 |
| Assorted Hardware ZT411 ZT421 (Not Shown) | 1 | ———– | P1105147-023 | |
| Feet on bottom of printer ZT400 Series (Not Shown) | 20 | ———– | P1058930-078 |
PACKAGING MATERIALS FOR PRINTER SHIPPING
# | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| Packaging for ZT411 | 1 | H-8906-BOXQ | P1058930-166 | |
| Packaging for ZT411 | 8 | ———– | P1058930-167 | |
| Packaging for Media Rewind Versions of ZT411 | 1 | ———– | P1058930-070 | |
| Packaging for ZT421 | 1 | ———– | P1058930-068 | |
| Packaging for ZT421 | 8 | ———– | P1058930-069 | |
| Packaging for Media Rewind Versions of ZT421 | 1 | ———– | P1058930-071 |
