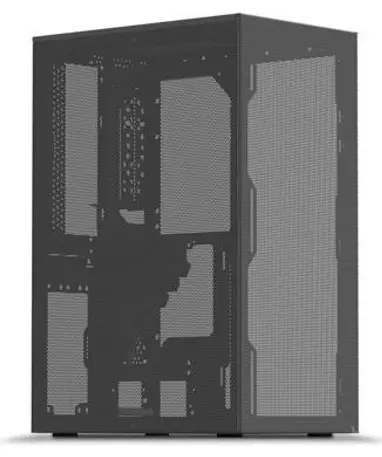

Meshroom S Mini-ITX Small
Form Factor (SFF) Case
User Manual
Introduction

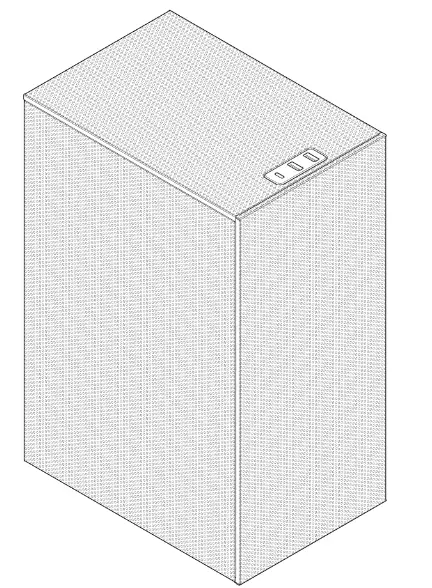

Case Overview
| Form Factor | Mini ITX / Mini DTX / Micro-ATX / ATX |
| Case Volume | 14.9 Liters |
| Dimensions | 247 mm x 167 mm x 362 mm (L x W x H) |
| Graphics Card | Full Length GPU : Up to 336 mm Length (on 4 slots) with 157 mm Tall Up to 332 mm Length (on 3 slots) with 157 mm Tall Small Form Factor GPU : Up to 211 mm Length (without Radiator) |
| CPU Cooler | Up to 74mm Height with 3 Slots GPU; 54mm Height with 4 Slots GPU |
| Power Supply | ATX (Up to 1 70mm Length) / SFX-L/ SFX |
| Storage | Up to 3 x 2.5″ SSD (with Full Length GPU) Up to 2x 3.5″ HDD and 4x 2.5″ SSD or 8 x2.5″ SSD (with Small Form Factor GPU) |
| Expansion Slots | Full Length GPU : Up to 4 Slots Small Form Factor GPU : Up to 3 Slots |
| FrontI /O | USB USB Type A 3.2 Gen 1 x 2; Type-C 3.2 Gen 2 |
| Fan Options | 2 x 120mm / 2 x 140mm Fans |
| Water Cooling | 1 x 240mm / 1 x 280 mm (Up to 335 mm Length ) / 2 x 120mm Radiator |
| PCI-E Riser Cable | 140 mm Length; 90 Degree Angel Connector |

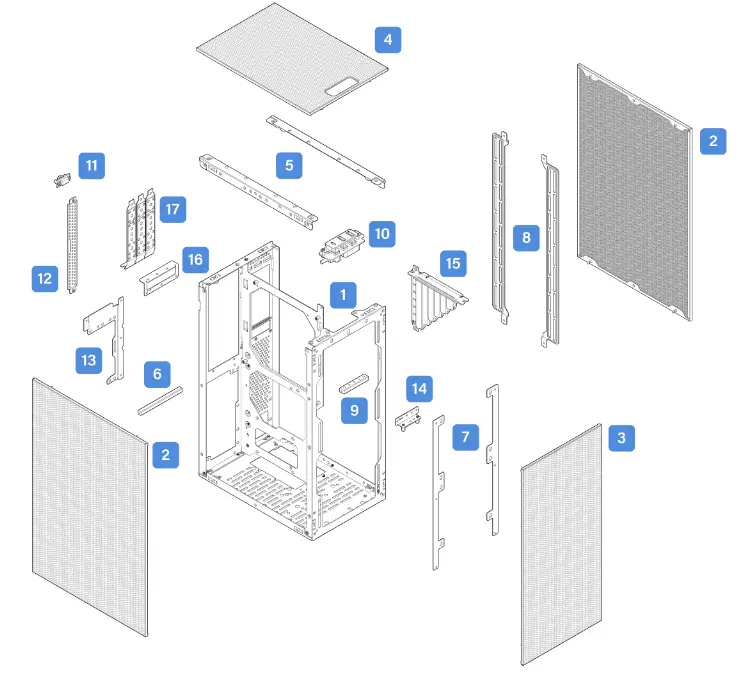

| 1.Chassis 2.Side Panel 3.Front Panel 4.Top Panel 5.Top Frame x2 6.Spacer 7.120mm Fan Bracket 8.Side Fan Bracket | 9.GPU Mounting Strut 10.Front I/O 11.Power Button 12.Motherboard I/O 13.SFX PSU Bracket 14.GPU Bracket 15.PCIe Riser Card 16.PCI Bracket 17.PCI Slot Cover x3 |
Accessory Box Contents
 | PSU / GPU Screw (#6-32) |  | PCI Slot Cover |
 | 2.5″Drive Screw (#M3) |  | Multi Function Bracket |
 | Bracket Screw/ Chassis Screw (#6-32) |  | 2.5″ Drive Screw (#M3) |
 | Motherboard Screw (#6-32) |  | Fan Screw |
 | GPU Mount Strut Screw (#6-32) |  | Cable Ties |
 | PCle Standoffs (Silver) (#6-32, 5mm) |  | Spacer |
 | Motherboard Standoffs (Black) (#6-32, 6.5mm) |  | Rubber |
 | PCle Extent Standoffs (Black) (#6-32, 10mm) |  | 90 degree HDMI Cable |
Case Build Examples

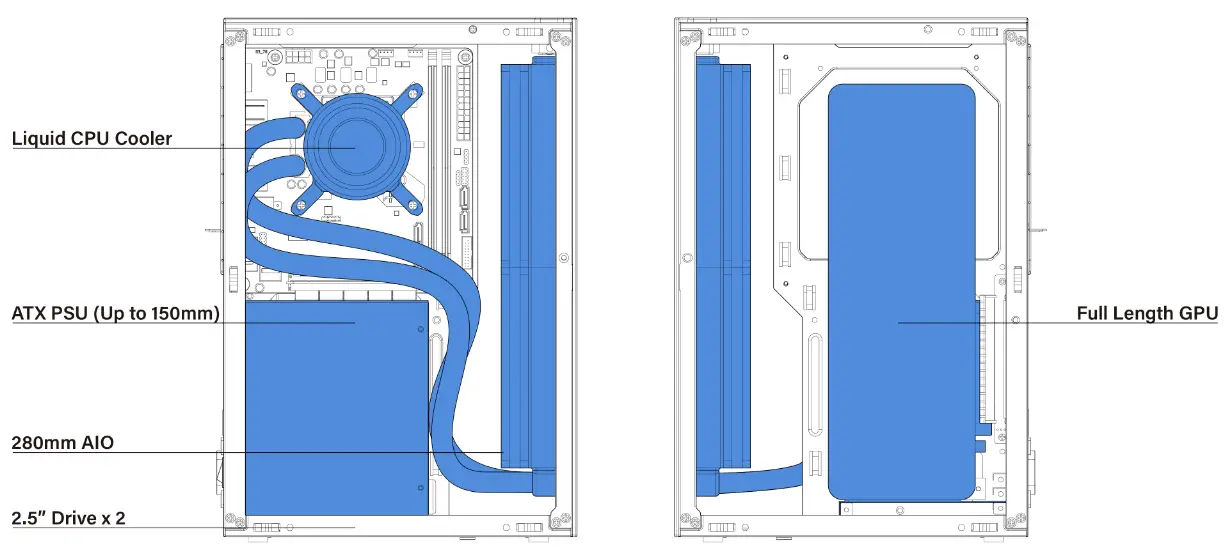

AID Cooling with Full Length GPU
280mm AIO
Full Length GPU (Up to 332mm on 3 slots)
ATX PSU (Up to 150mm)
2.5″ Drive x 2
Case Build Examples
Air Cooling with 3.5″ Drives
Small Form Factor GPU
ATX PSU (Up to 170mm)
2.5″ Drive x 2 + 3.5″ Drive x 2
Front 140mm Fan x 2
Builder’s Guide

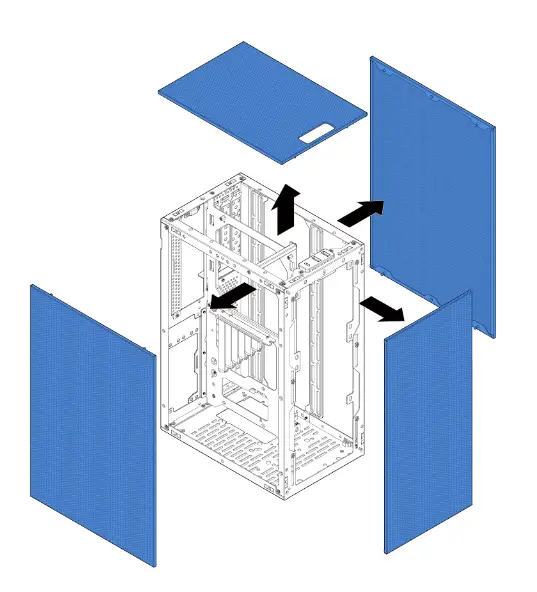

Remove the Panels

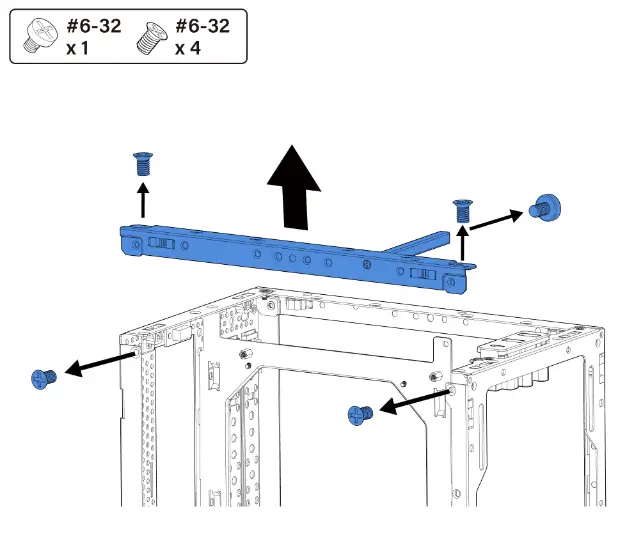

Remove the Top Frame

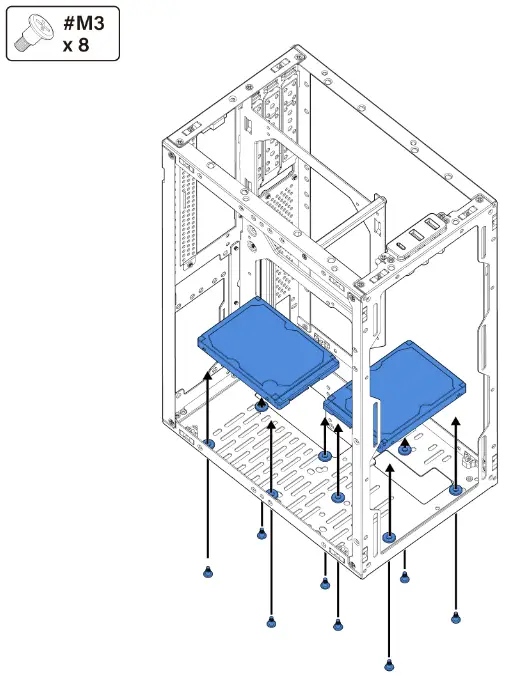

Install 2.5″ Drives

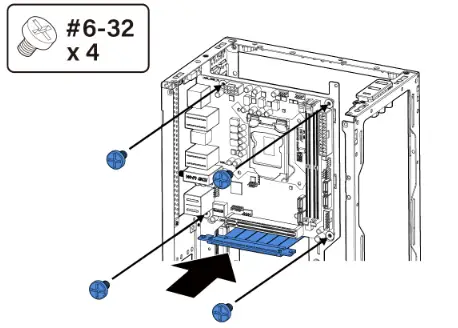

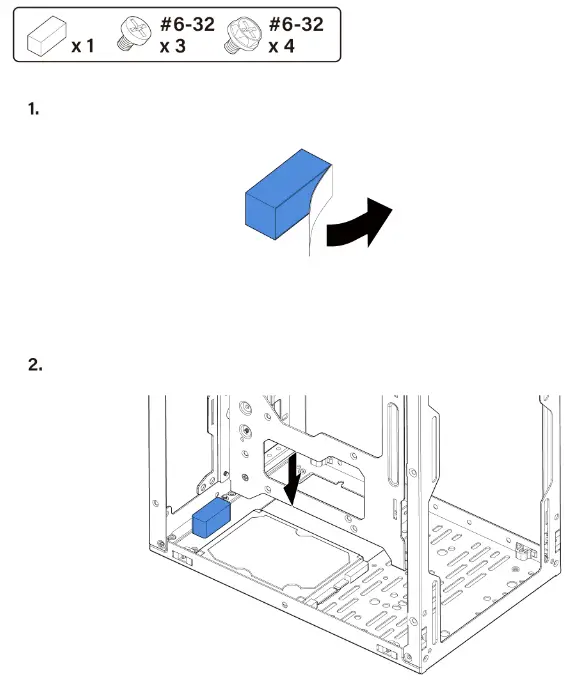

Install the Motherboard
- Keep PCle card under the motherboard
* Make sure PC le card plug into the bottom of PCI slot compeletly, - Install the Motherboard and PCle card
Install the Power Supply
 |  |

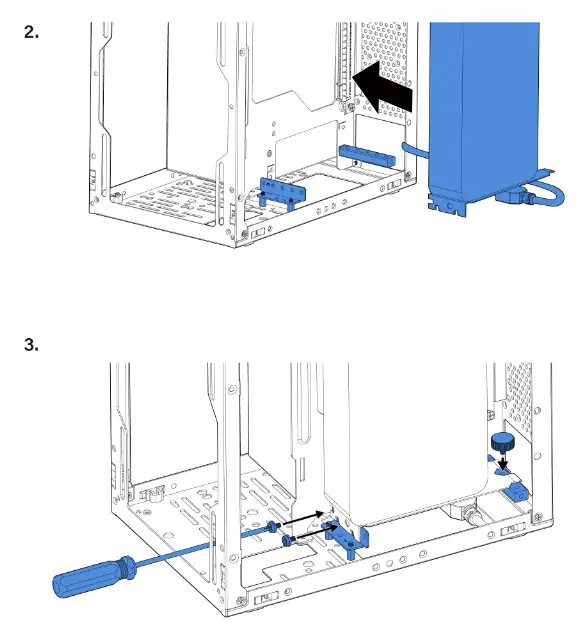

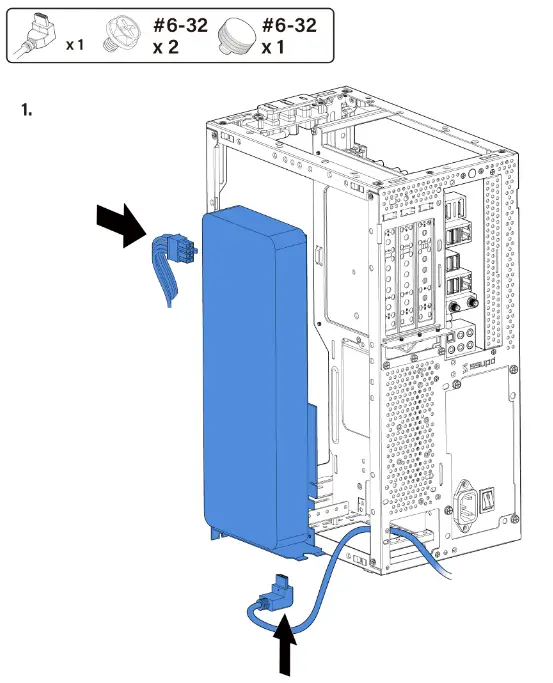

Install the Graphics Card
 |  |
Install Front 240mm Radiator
*Screw dependent on various

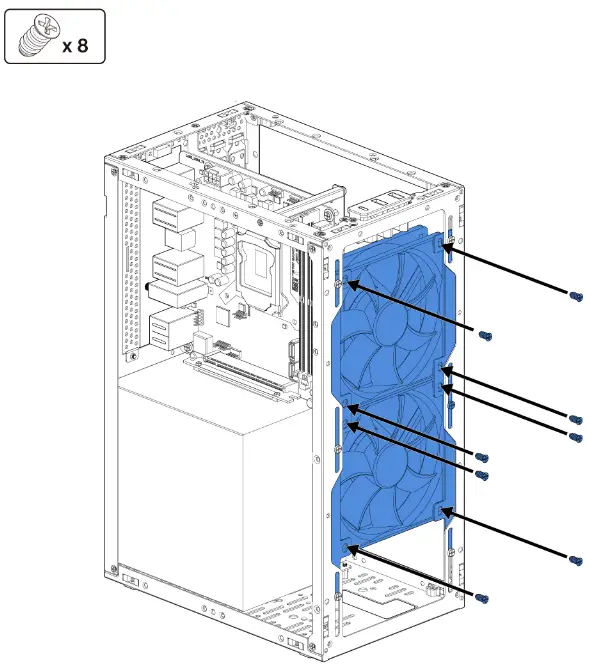

Install Front 120mm Fans

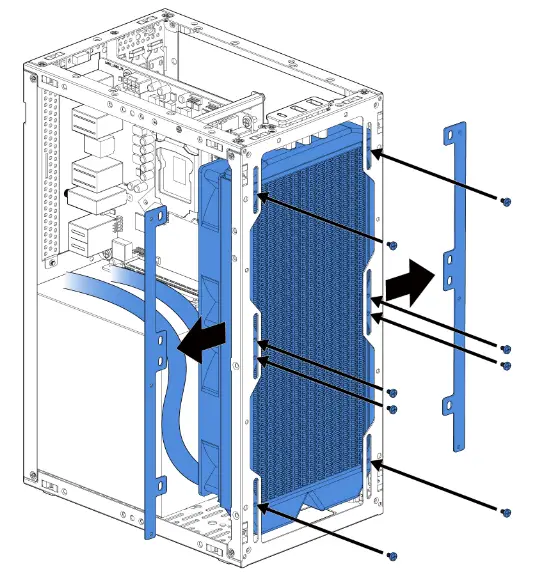

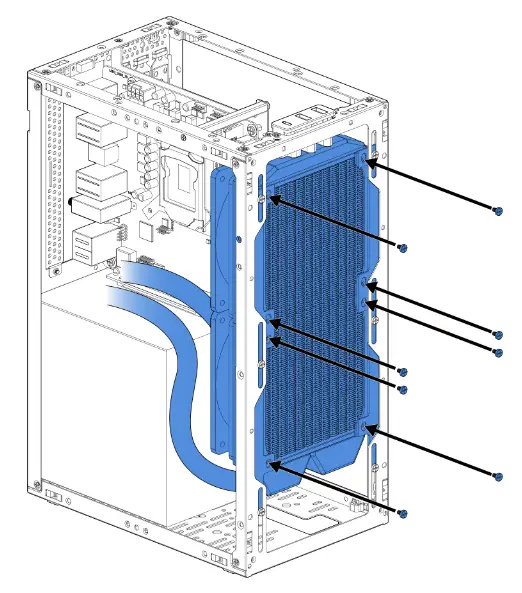

Install Front 280mm Radiator
*Screw dependent on various

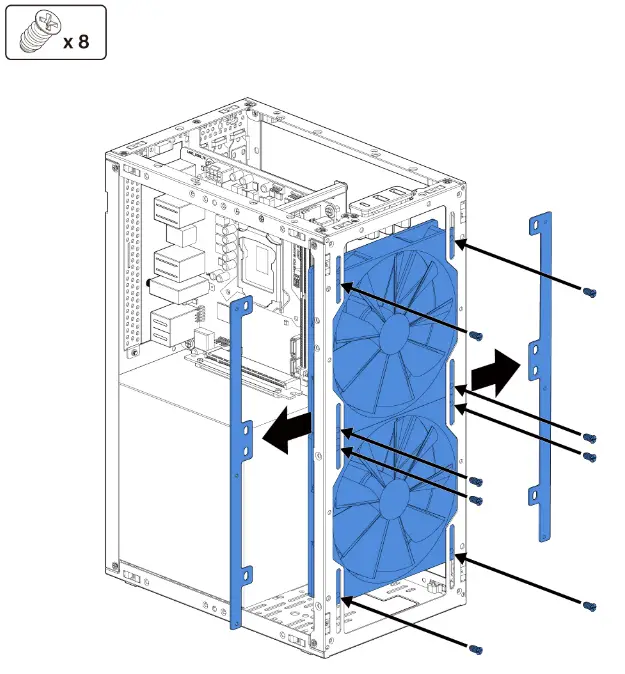

Install Front 140mm Fans

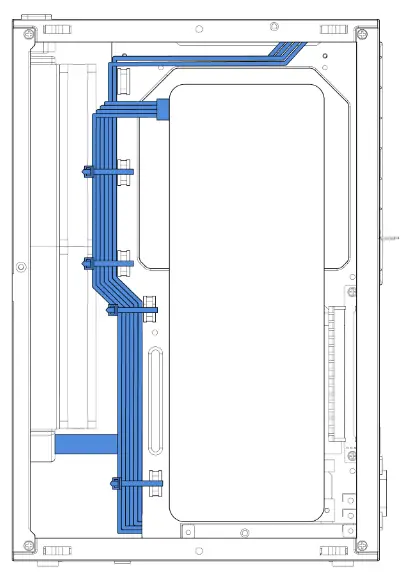

Cable Management Tips

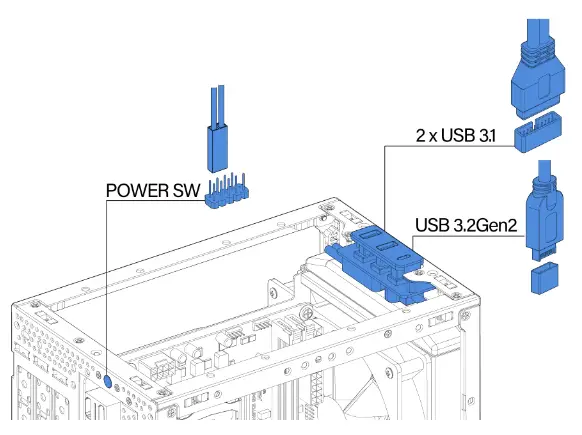

Connect 1/0 Cables
Optional Steps

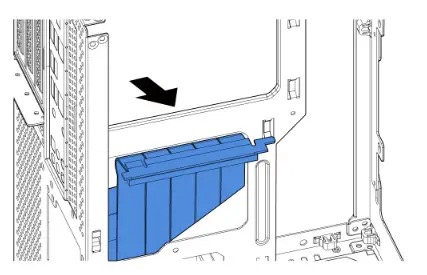

Prepare 4 Expansion Slots

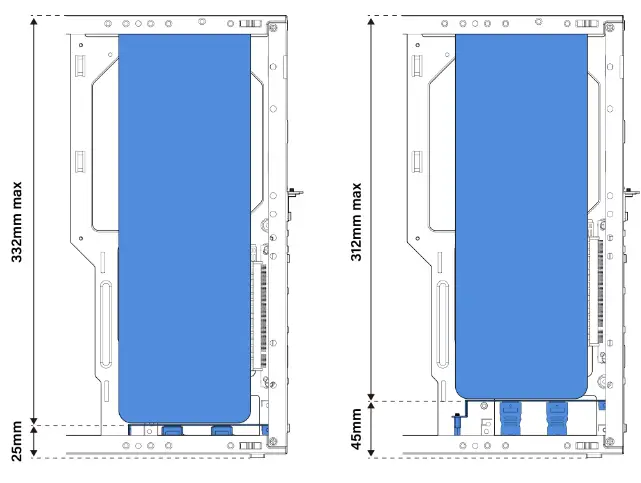

Adjustable Graphics Card Length
Adjust GPU mounting strut to fit GPU length and connector space

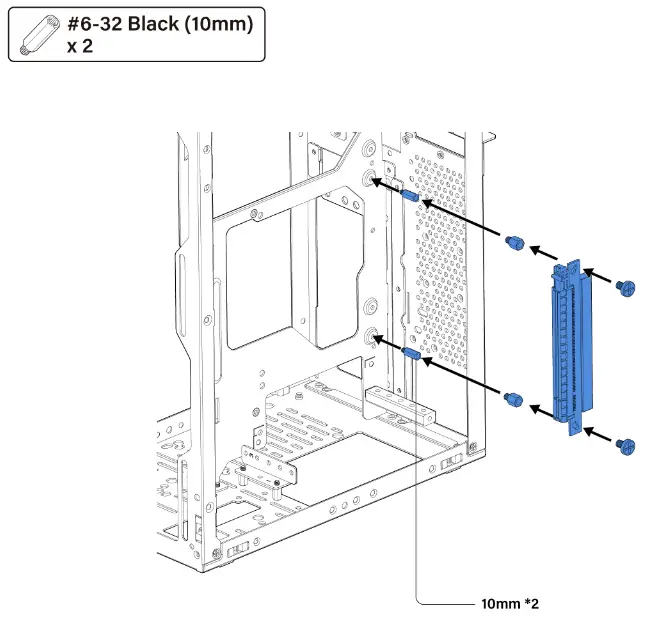

Graphic Card Half Slot Away From Mobo
* GPU move half away from mobo for supporting cable management

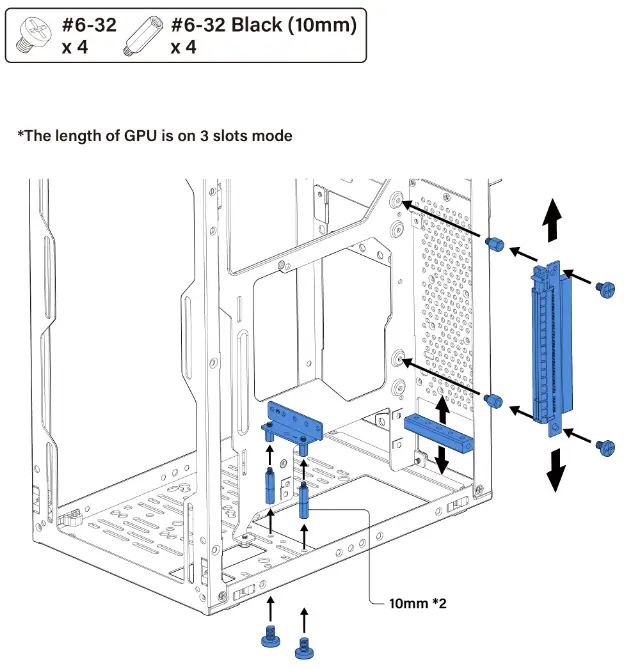

2.75 slot GPU in 3 slot mode
3.75 slot GPU in 4 slot mode

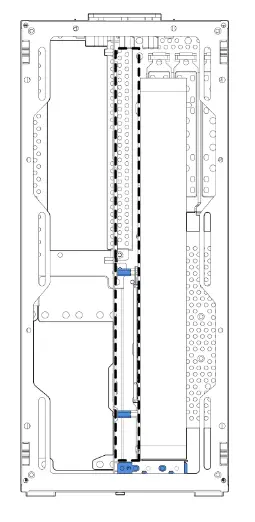

Folding PCle Riser Cable
Install 2.5″ Drives

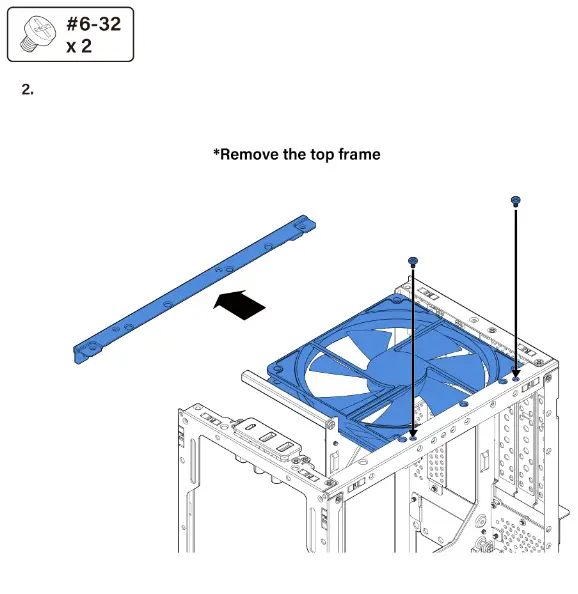

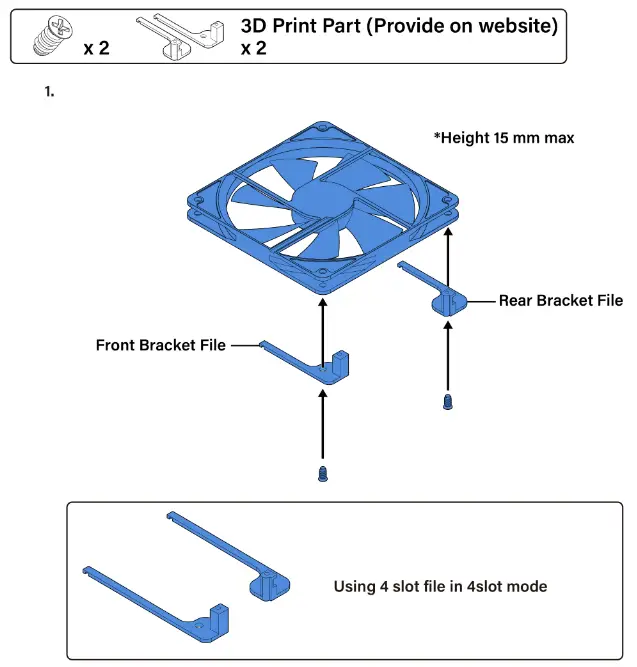

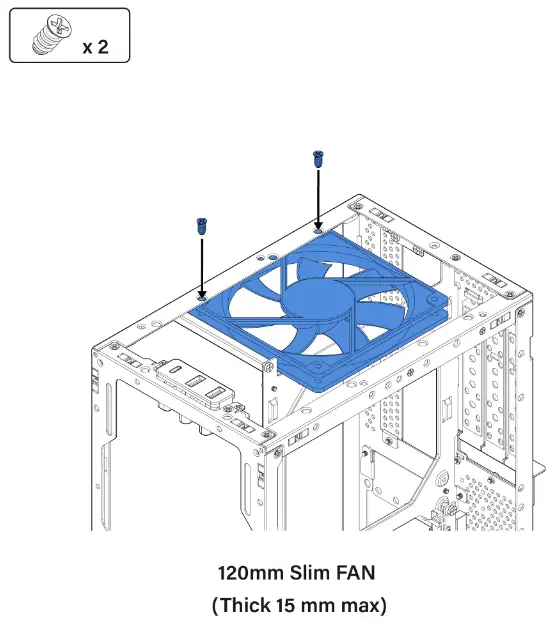

Install Top Slim 140 Fan

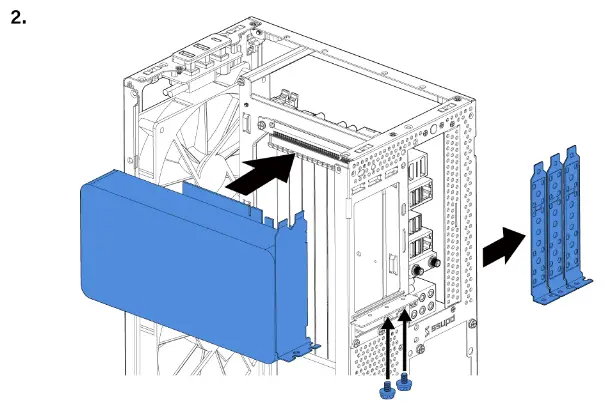

Install the Small Form Factor GPU

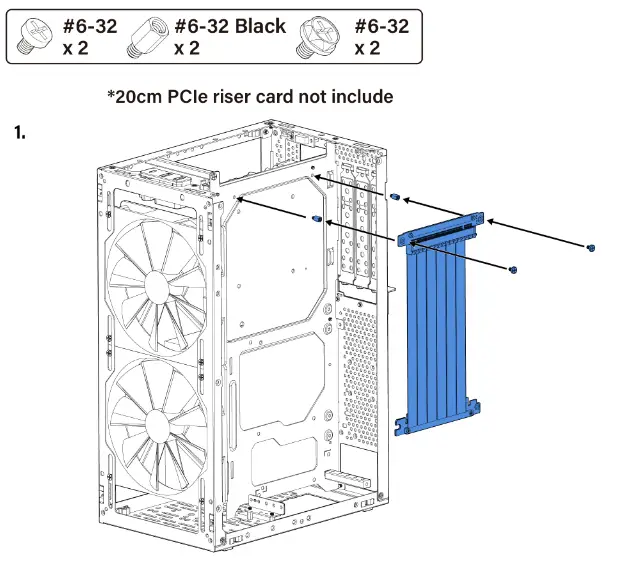

Install GPU with 20cm PCle card (additional purchase from our retailers)
 |  |

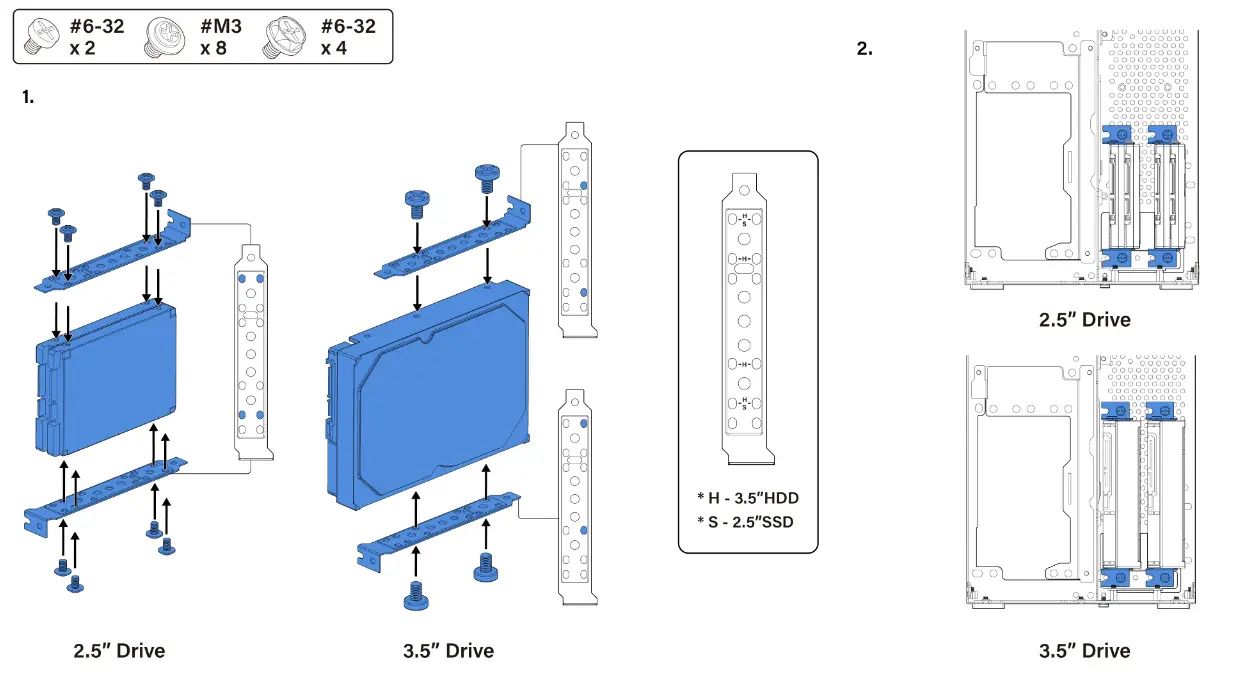

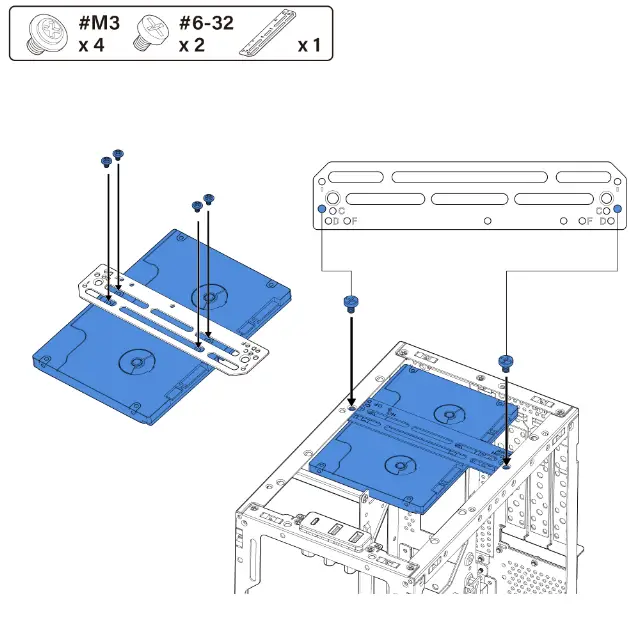

Install Drive Bracket and 2.5″ / 3.5″ Drive

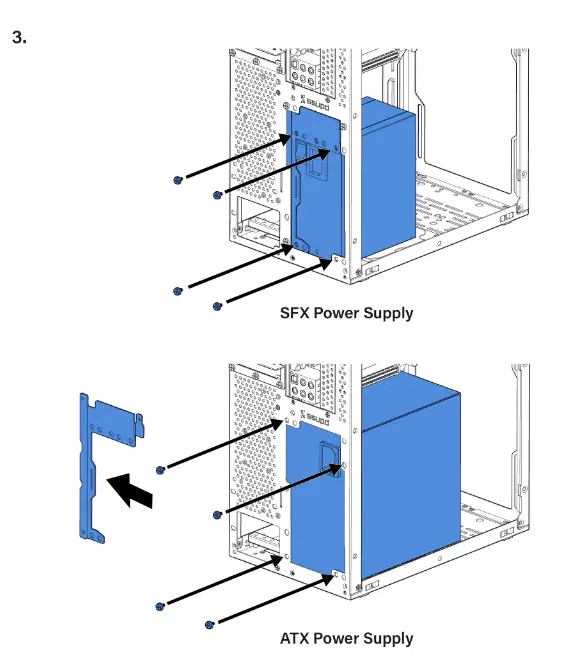

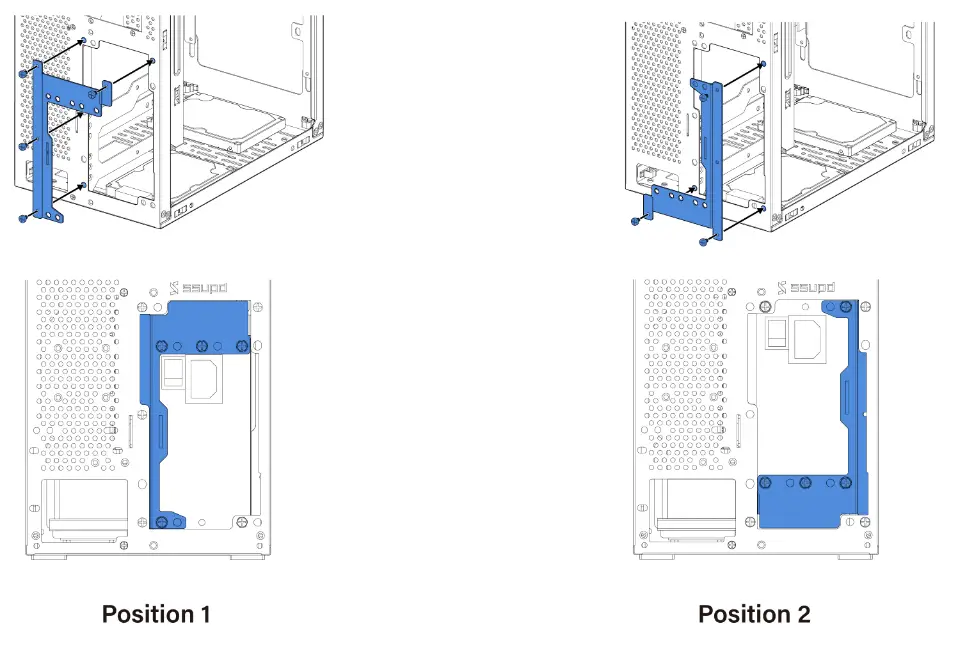

Adjustable SFX Power Supply Position
Warranty and Service
Limited Warranty and Limitations of Liability
SSUPD provides a non-transferable warranty to the purchaser of SSUPD products purchased from our website, unless otherwise indicated on our website, listing, or other related materials. SSUPD warrants that the produc t will be free from defects in material and workmanship for a specified period commencing on the date of purchase. Except where prohibi ted by applicable local law, this warranty is limited to the original purchaser and is non-transferable. This warranty provides you with specific legal nights, and you may have additional rights that vary under local laws.
Warrenty periods:
- All computer enclosures and parts have a 1-year warranty
- All refurbished or factory reconditioned enclosu res and parts have a 1year, replacemen t-only warranty
This warranty does not cover problems or damage resulting from, but not limited to, any of the following:
- Wear and tear associa ted with normal use
- Any modification, abuse, accident, disassembly, misapplica tion, or unauthorized repair
- Removal of any manufacturer label(s) or sticker(s)
- Any improper ope ration, including any use not in accordance with any supplied product instructions
- Any other cause which does not relate to a product defect in materials or workmanship
SSUPD shall not be liable for any special, incidental, indirect, or consequent ial damages whatsoever, including but not limited to loss of profits, revenue, or data (whether direc t or indirect) or commercial loss for breach of any express or implied warranty on your product even if SSUPD has been advised previously of the possibility of such damages. some local laws do not allow the exclusion or limitation of special, indirect, incidental or consequent ial damages, so this limitation or exclusion may not apply in your jurisdiction
Support and Service
For more informat ion about warranty coverage and service, please visit us online: ssupd.com/pages/limited-warranty
To learn more about this case the product page at ssupd.com
If you have any questions with the SSUPD product you purchased, please don’t hesitate to contact us using our contact system : ssupd.com/pages/support
Please include a detailed explanation of your problem and your proof of purchase. Lastly we would like to thank you for your support by purchasing this product
