Midea MGS30S2AST Gas Range Instructions

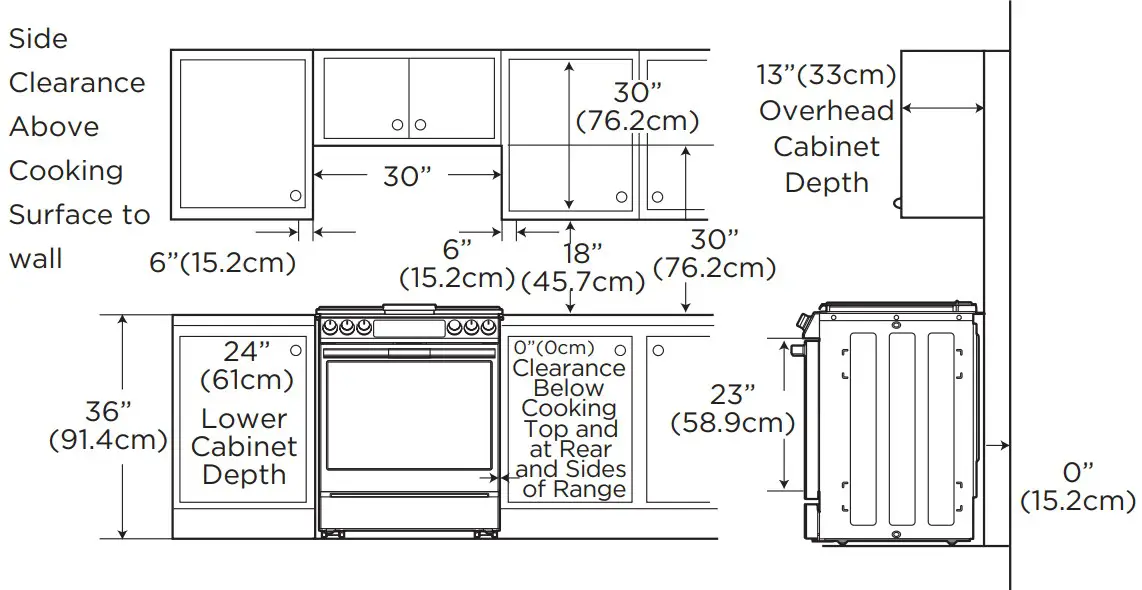

Countertop surfaces immediately around installation space must be flat and level for proper installation.
This appliance must not be installed with a ventilation system that blows air downward toward the range. This type of ventilation system may cause ignition and combustion problems with the gas cooking appliance resulting in personal injury or unintended operation.
When the floor covering (hardwood flooring, tile, carpet, etc.) ends at the front of the range, the area that the range will be installed on must be built up with plywood to the same level or higher than the floor covering. This will allow the range to be moved for cleaning and servicing, as well as provide proper air flow to the range.
Ensure floor covering material can resist temperatures of at least 167 °F (75 °C). Ensure the wall coverings, countertops, cabinets, and any other materials in contact with the range can resist the heat generated up to 194 °F (90 °C) by the range.

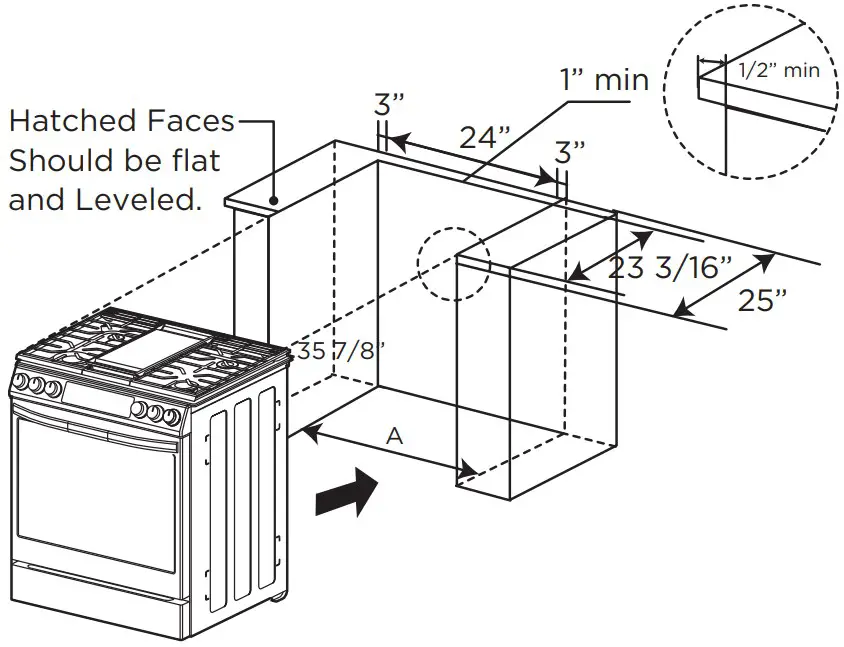

SLIDE-IN CUTOUT

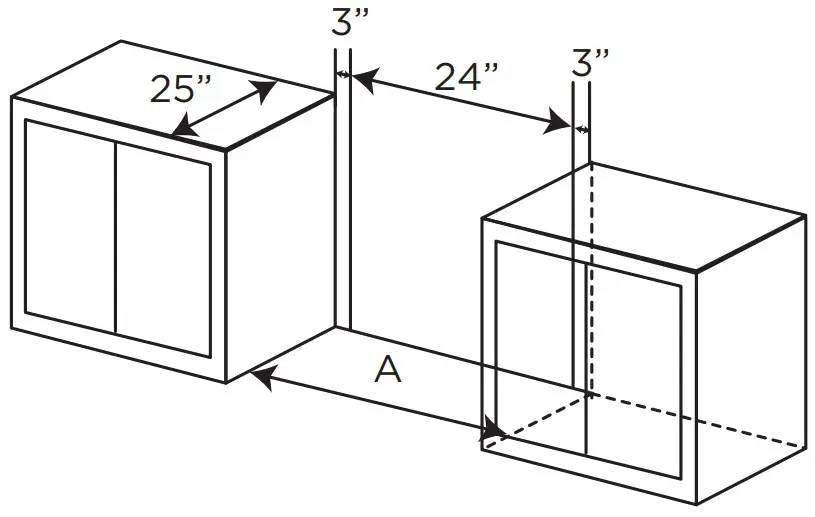

FREESTANDING CUTOUT
Product Specifications
| Oven Range. MiodelS | MGS30S2ASTMGS30S4AST |
| Description | Gas Slide-In Oven |
| Electrical Requirements | 120V/60Hz |
| Exterior Dimensions | 351/2H x 297/8W x 2694D |
| Height to Cooking Surface | 36″ (91.4cm) |
| Net Weight | 242-264 lb |
| Oven Capacity | 6.1 cu. ft. |
| Power Ratings | Refer to rating plate label |

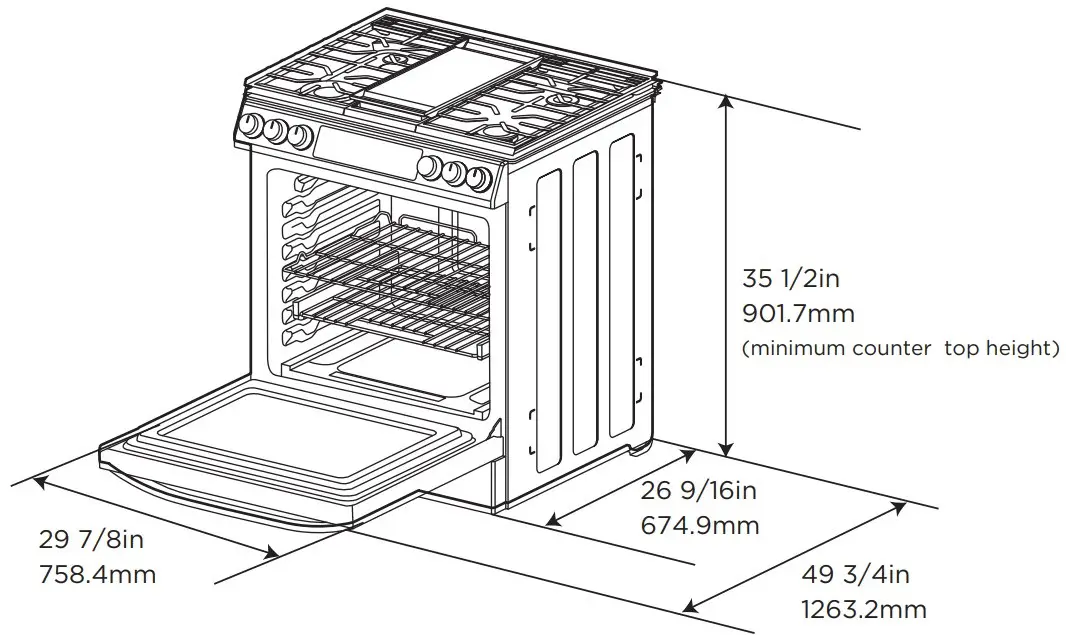

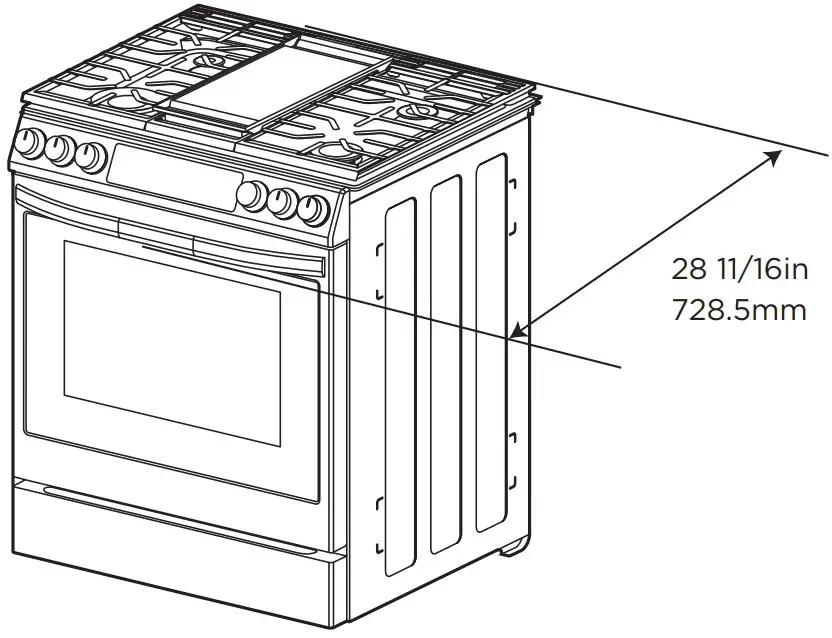

Product Dimensions
