PRG364WLG-1 Gas Professional
Range Instructions
PRG364WLG-1 Gas Professional Range

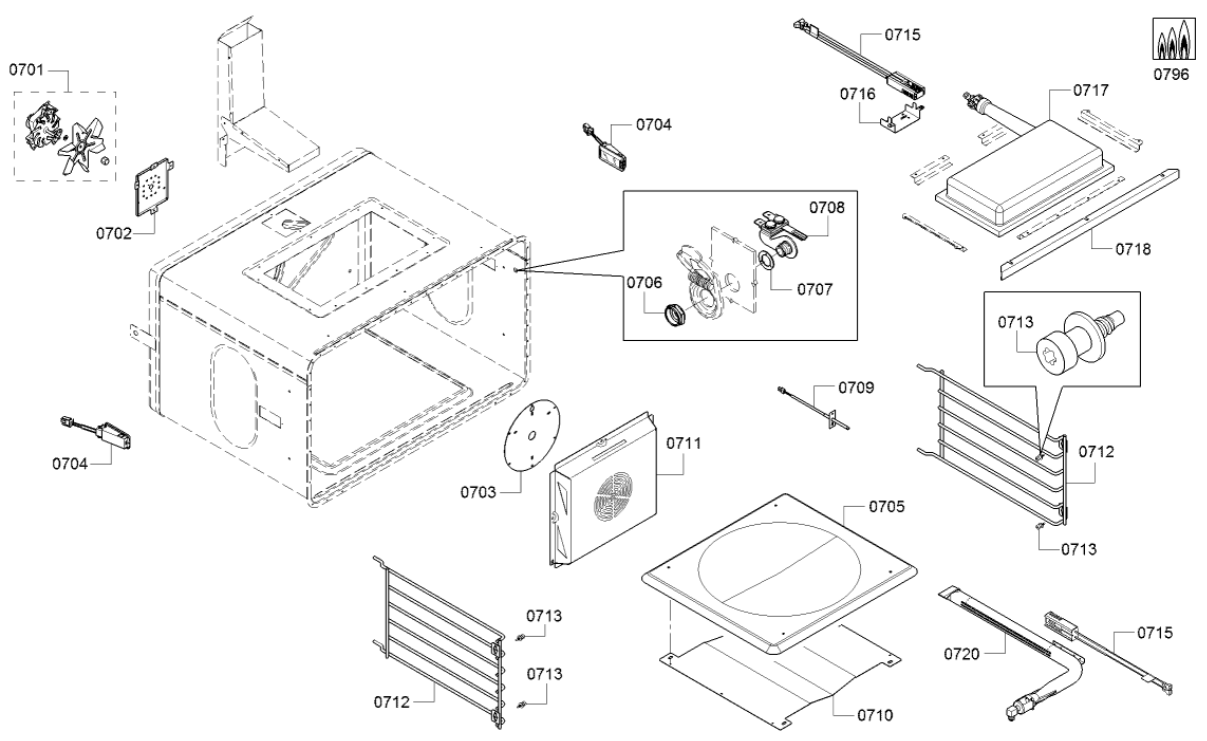

| Position ID | Part number. | Replaces: | Description |
| 701 | 00497756 | Motor | |
| 702 | 00489178 | Bracket | |
| 703 | 00479238 | Cover | |
| 704 | 10007424 | Lamp | |
| 705 | 23000287 | Cover | |
| 706 | 10010225 | Nut | |
| 707 | 10010208 | Washer | |
| 708 | 10008183 | Socket | |
| 709 | 00627375 | Temperature sensor | |
| 710 | 11030966 | Plate | |
| 711 | 20000143 | Cover | |
| 712 | 11032546 | Support | |
| 713 | 10011396 | Bolt | |
| 714 | 12028136 | Adapter | |
| 716 | 00600909 | Bracket | |
| 717 | 11032929 | Burner | |
| 720 | 11032930 | Burner | |
| 721 | 00656309 | 00752650 | Power cord |
| 718 | 00445814 | Guide | |
| 715 | 00492431 | Igniter |

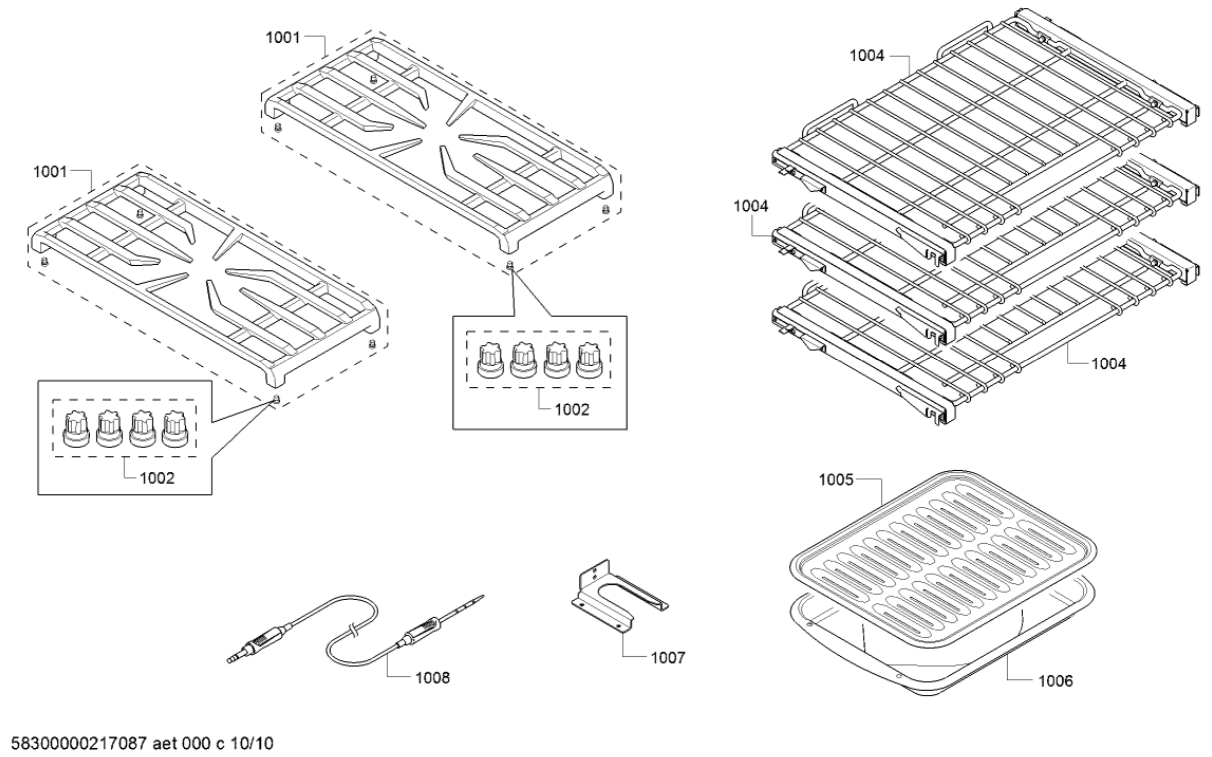

| Position ID | Part number. | Replaces: | Description |
| 1001 | 00145306 | Grill grid | |
| 1004 | 00774617 | 36” Telescopic Rack | |
| 1005 | 11013689 | Grill tray | |
| 1006 | 00484628 | 00449757 | Tray for Broiler Pan |
| 1007 | 10010207 | Bracket | |
| 1008 | 12022200 | Sensor | |
| 1002 | 00637940 | Grate Foot Replacement Kit |

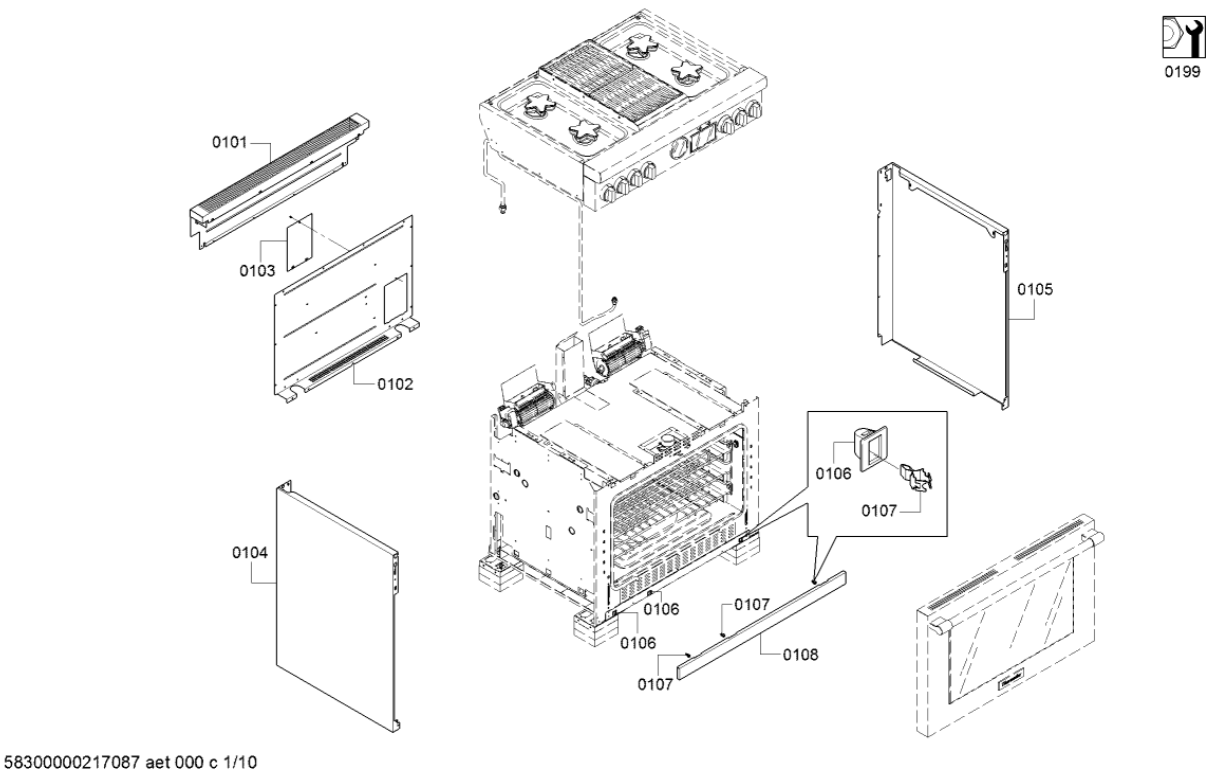

| Position ID | Part number. | Replaces: | Description |
| 101 | 146136 | Back wall panel | |
| 102 | 23000092 | Back panel | |
| 103 | 00649417 | 00752161 | Cover |
| 104 | 23000263 | Panel side | |
| 105 | 23000264 | Panel side | |
| 107 | 00619081 | Connection piece | |
| 108 | 20000278 | Panel | |
| 106 | 10013545 | Latch |

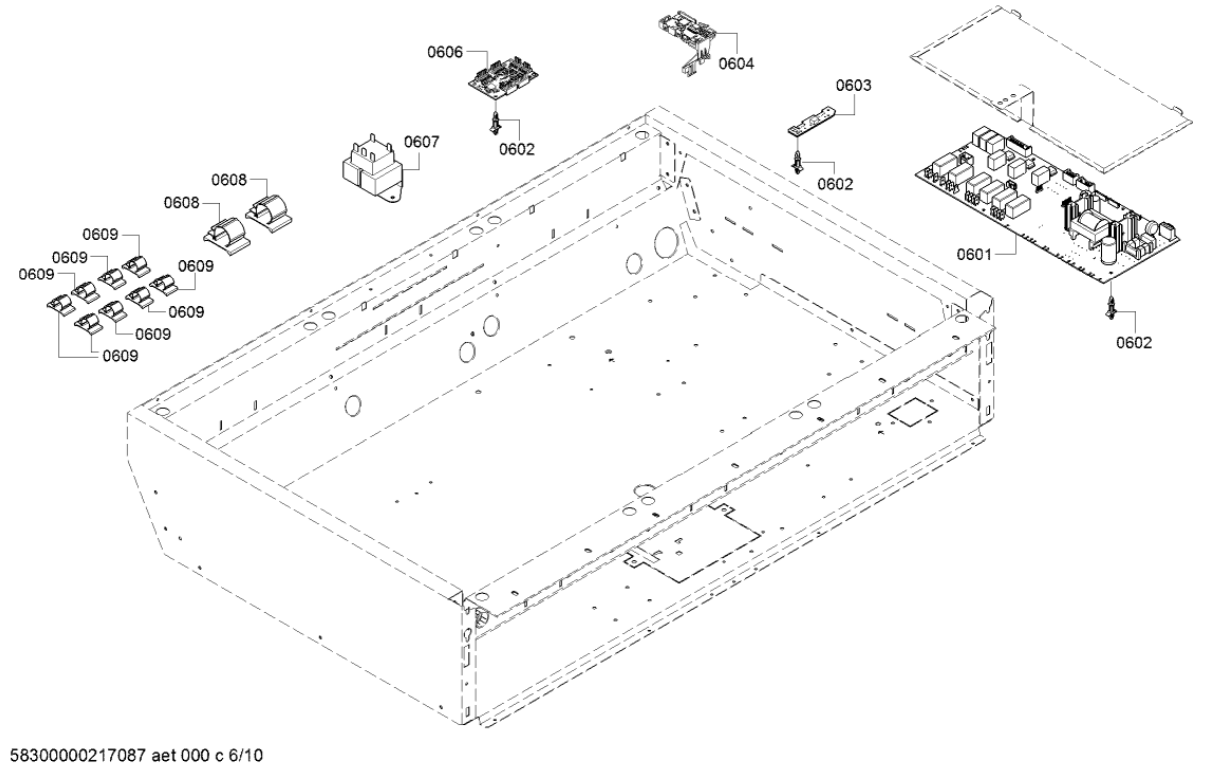

| Position ID | Part number. | Replaces: | Description |
| 601 | 11032521 | Control module programmed | |
| 601 | 12025831 | Control module not programmed | |
| 602 | 418283 | Support | |
| 603 | 12028138 | Limiter-temperature | |
| 607 | 489194 | Transformer | |
| 608 | 10008933 | Clip | |
| 609 | 10010202 | Clip | |
| 610 | 10008207 | Ignition cable | |
| 611 | 12024415 | Ignition cable | |
| 612 | 12026846 | Cable harness | |
| 613 | 12028596 | Cable harness | |
| 614 | 12024414 | Cable harness | |
| 615 | 12028039 | Cable harness | |
| 616 | 12028077 | Cable harness set | |
| 617 | 12026925 | Cable harness | |
| 620 | 11032800 | Cable harness | |
| 621 | 12028509 | Cable harness | |
| 622 | 11032801 | Cable harness | |
| 623 | 12028082 | Cable harness | |
| 624 | 12028086 | Adapter | |
| 625 | 12028597 | Cable harness | |
| 606 | 10005470 | Control module | |
| 604 | 12031987 | Connectivity module | |
| 605 | 00423966 | Cable strap |

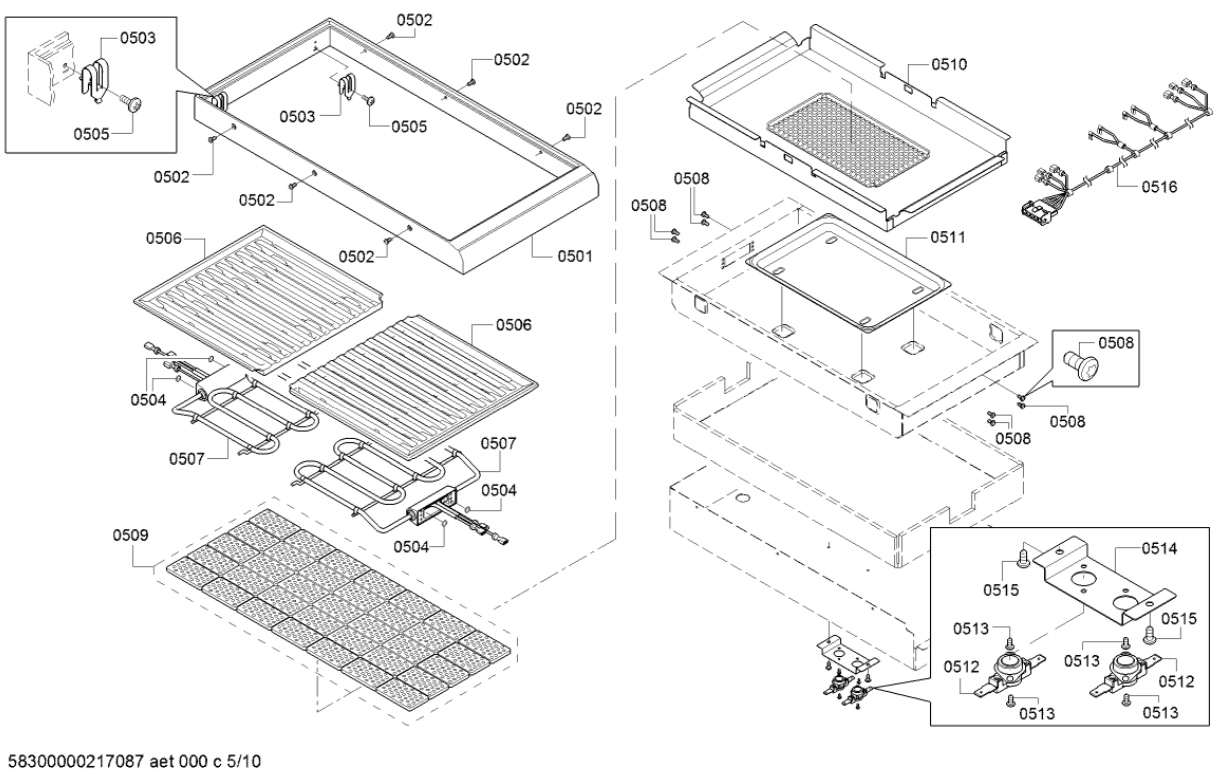

| Position ID | Part number. | Replaces: | Description |
| 501 | 12024441 | Frame | |
| 502 | 10008226 | Bracket | |
| 503 | 634163 | Clip | |
| 504 | 10010298 | Washer | |
| 505 | 10008224 | Screw | |
| 506 | 145749 | Grill grid | |
| 507 | 11030956 | Heating element | |
| 508 | 10008210 | Screw | |
| 509 | 11030067 | Grill accessories | |
| 510 | 11030015 | Tray for Ceramic Briquettes (for PABRICKBKW) | |
| 511 | 98049 | Salver | |
| 512 | 12004405 | Temperature sensor | |
| 513 | 10008210 | Screw | |
| 514 | 634165 | Bracket | |
| 515 | 10008210 | Screw | |
| 516 | 12024442 | Cable harness |

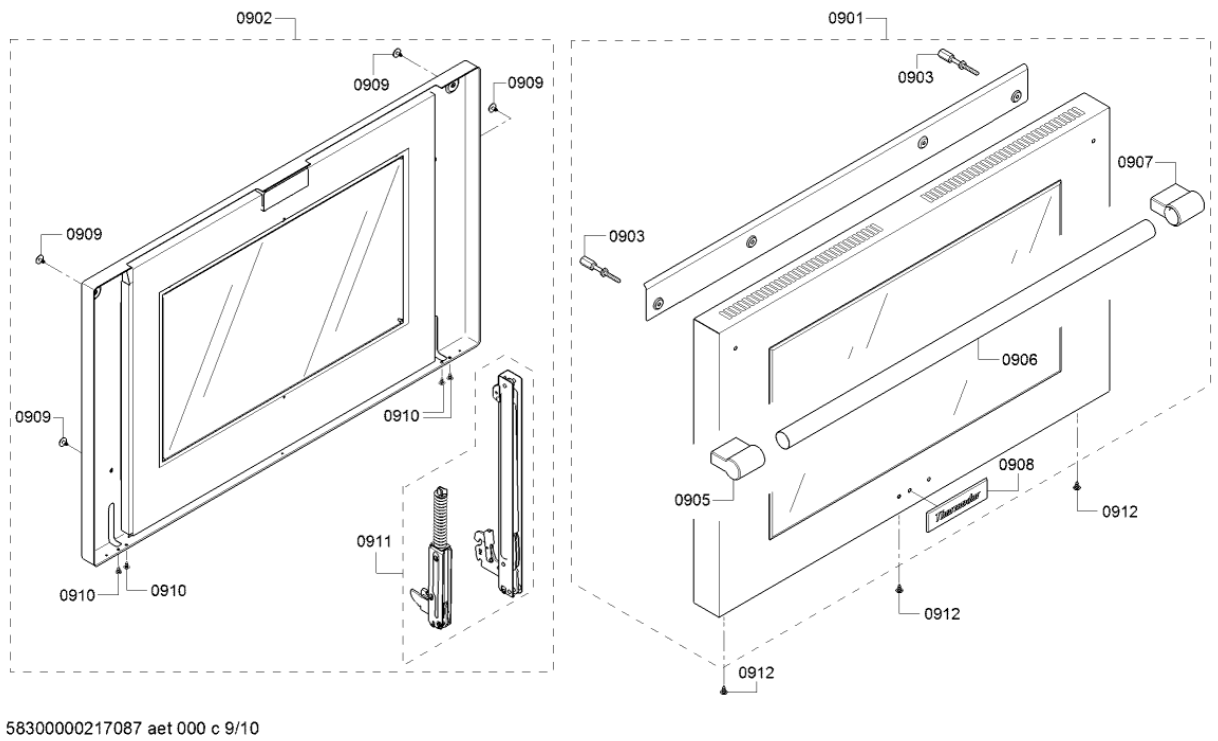

| Position ID | Part number. | Replaces: | Description |
| 901 | 20000155 | 20000155 | |
| 902 | 20000156 | 20000156 | |
| 903 | 10010275 | 10010275 | |
| 905 | 10011397 | 10011397 | |
| 906 | 11032802 | 11032802 | |
| 907 | 10011397 | 10011397 | |
| 908 | 10010271 | 10010271 | |
| 909 | 10010274 | 10010274 | |
| 910 | 10008228 | 10008228 | |
| 911 | 11032545 | 11032545 | |
| 912 | 618862 | 618862 |

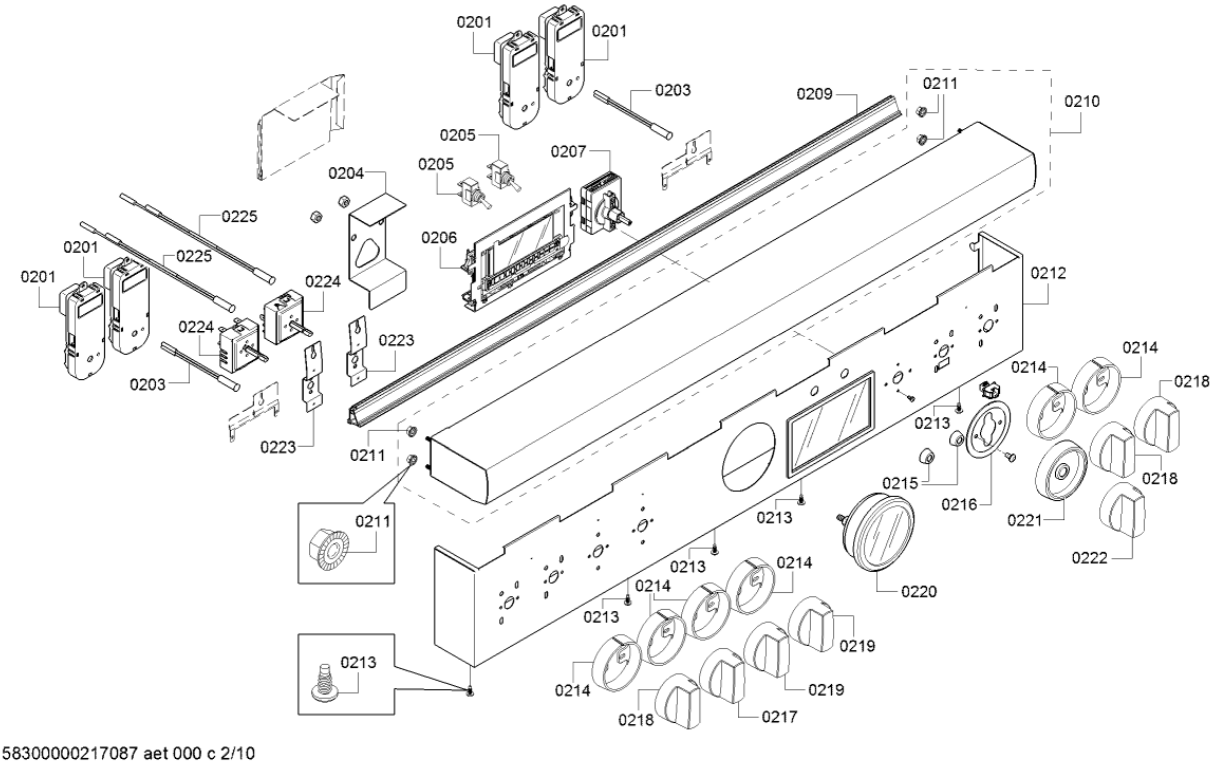

| Position ID | Part number. | Replaces: | Description |
| 203 | 00617931 | Display | |
| 204 | 11032519 | Bracket | |
| 205 | 00609115 | Switch | |
| 206 | 11032495 | Display module not programmed | |
| 207 | 10011872 | Switch-selector | |
| 209 | 00687127 | Light bar | |
| 210 | 20000042 | 23000467 | Support |
| 212 | 20000026 | Panel-facia | |
| 213 | 10008212 | Screw | |
| 214 | 10008201 | Ring | |
| 215 | 418122 | Ring | |
| 216 | 10010231 | Encoder | |
| 217 | 10011598 | Knob | |
| 218 | 10008199 | Knob | |
| 219 | 10008225 | Knob | |
| 221 | 10011873 | Ring | |
| 222 | 10010230 | Knob | |
| 223 | 10008226 | Bracket | |
| 224 | 00629049 | Energy regulator | |
| 225 | 00617886 | Display | |
| 201 | 12024418 | Module-relay | |
| 206 | 12028843 | Display module programmed | |
| 211 | 00623615 | Nut | |
| 220 | 0012034239 | Display-temperature |

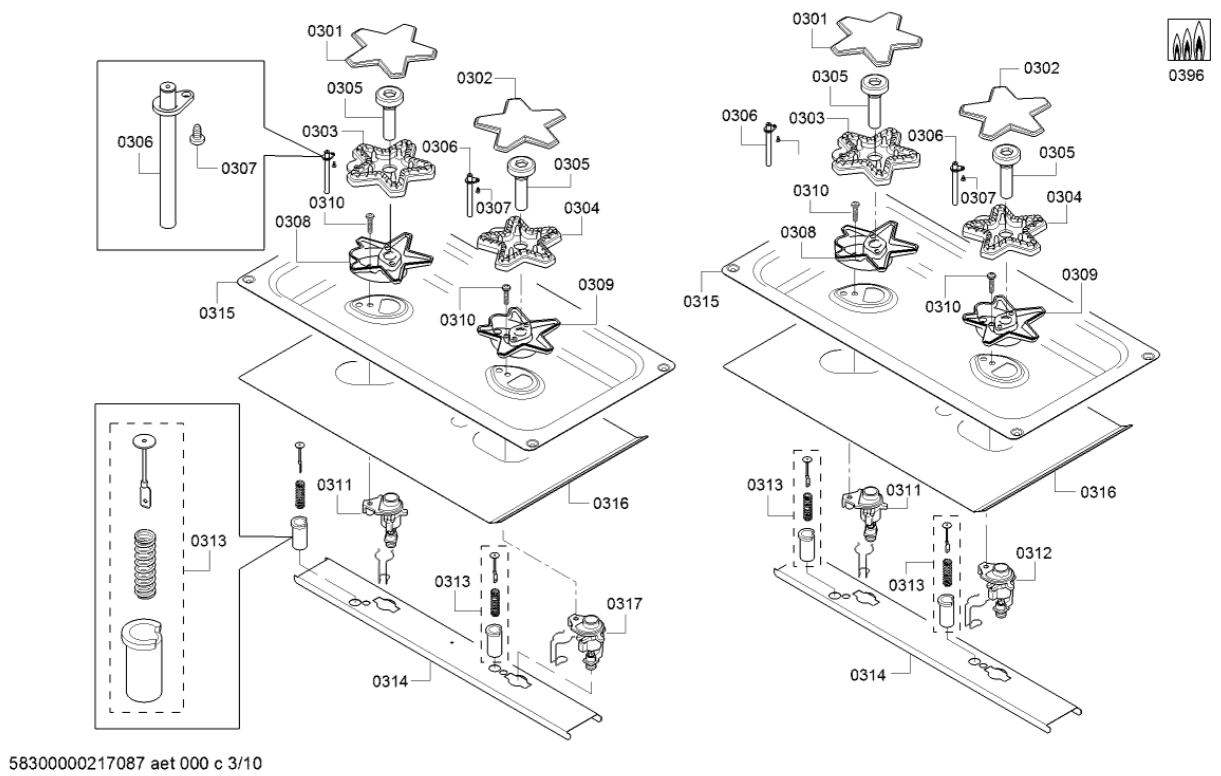

| Position ID | Part number. | Replaces: | Description |
| 301 | 10004490 | Burner cap | |
| 302 | 10004489 | Burner cap | |
| 303 | 10004493 | Burner | |
| 304 | 10004492 | Burner | |
| 305 | 10004495 | Venturi nozzle | |
| 306 | 10006471 | Electrode | |
| 308 | 10004498 | Burner housing | |
| 309 | 10004497 | Burner housing | |
| 311 | 10006793 | Jet | |
| 312 | 10006797 | Jet | |
| 313 | 12007259 | Ignition device | |
| 315 | 11013687 | Hob top | |
| 316 | 10008221 | Heat shield | |
| 317 | 10006795 | Jet | |
| 307 | 10008211 | Screw | |
| 310 | 10004531 | Screw | |
| 314 | 00701902 | Rail |

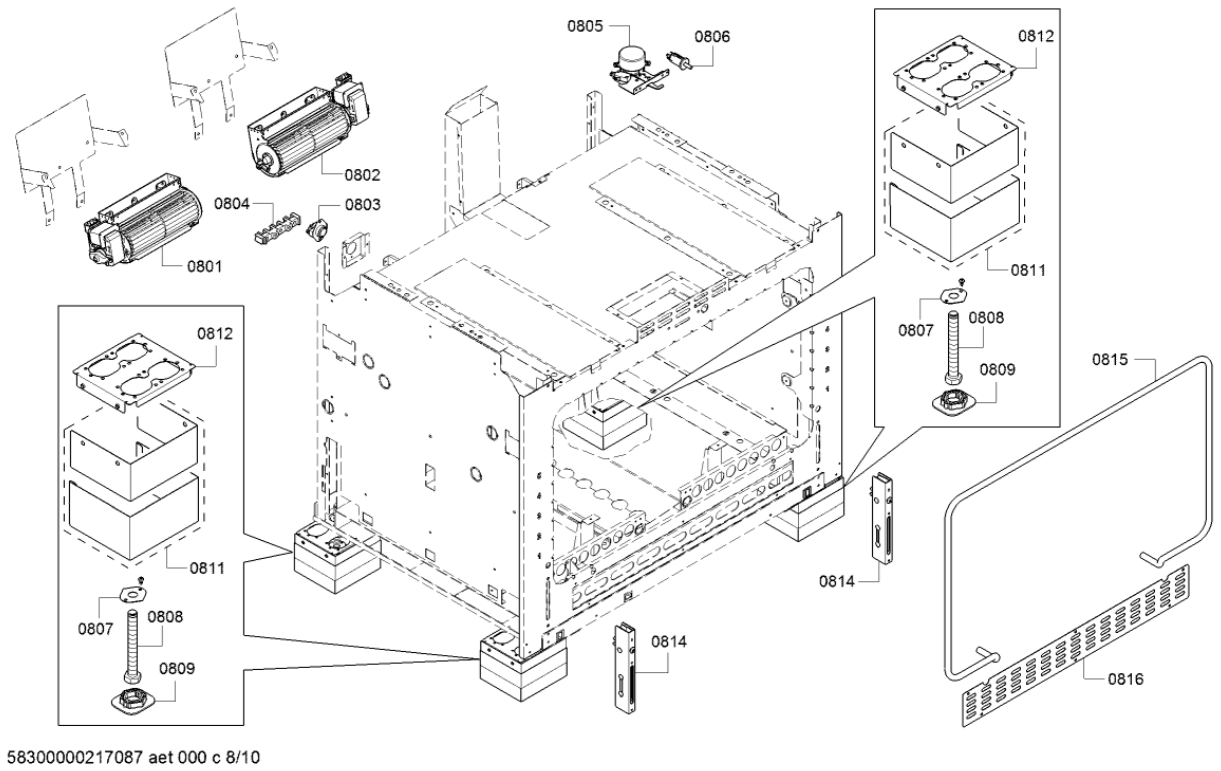

| Position ID | Part number. | Replaces: | Description |
| 802 | 643600 | Cooling Fan | |
| 803 | 10011167 | Limiter-temperature | |
| 804 | 628372 | Terminal | |
| 805 | 651285 | Latch | |
| 806 | 618400 | Switch-door | |
| 807 | 10001186 | Plate | |
| 812 | 12028141 | Cover | |
| 815 | 20000145 | Seal-door | |
| 816 | 12028598 | Cover | |
| 814 | 649416 | Hinge-plate | |
| 809 | 10001351 | Foot | |
| 808 | 10011170 | Bolt | |
| 811 | 10014059 | Cover | |
| 801 | 10020211 | Fan motor |

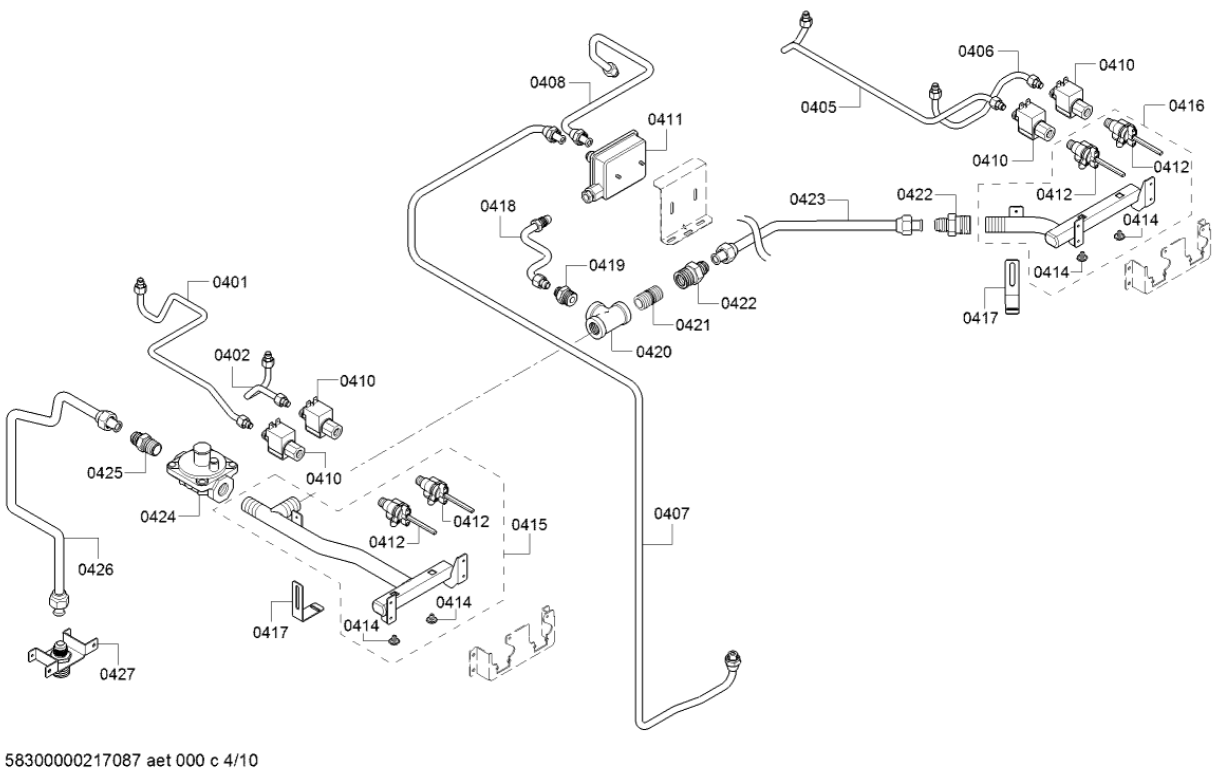

| Position ID | Part number. | Replaces: | Description |
| 401 | 11032438 | Gas tap | |
| 402 | 11032439 | Gas tap | |
| 405 | 11032440 | Gas tap | |
| 406 | 11032441 | Gas tap | |
| 407 | 11032877 | Gas tap | |
| 408 | 11032878 | Gas tap | |
| 410 | 00423093 | Valve | |
| 411 | 00605061 | Valve-two way | |
| 412 | 10003806 | Valve | |
| 414 | 00420807 | Screw | |
| 416 | 20000140 | Manifold | |
| 417 | 10009569 | Bracket | |
| 418 | 11032879 | Gas tap | |
| 419 | 00427661 | Connection piece | |
| 420 | 00601543 | Connection | |
| 421 | 10011560 | Connection piece | |
| 422 | 10010270 | Pipe connection piece | |
| 423 | 11032880 | Gas tap | |
| 424 | 754658 | Regulator-pressure | |
| 425 | 10010200 | Adapter | |
| 426 | 11032865 | Gas tap | |
| 427 | 10011592 | Extension for inlet | |
| 415 | 00779007 | Manifold |
