Schneider Electric Ecostruxure Datalogger 4G LTE
End of Life Instructions

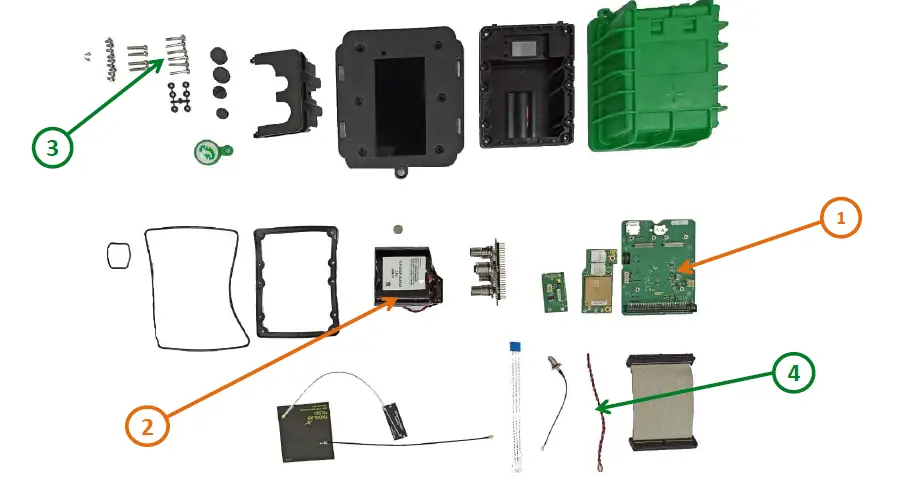

| Recommendation | Number on drawing | Component / Material | Weight (in g) | Comment |
| To be depolluted | 1 | Electronic Board (Communication) > 10cm² | 136.2 | |
| To be depolluted | 2 | Battery (Lead-acid) | 220.7 | |
| To be dismantled | 3 | Metals and semimetals | 28.02 | |
| To be dismantled | 4 | Cables | 27.11 | |
| Other | Plastics and Other parts | 494.97 |
Product Description
| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |
| Product function | The Ecostruxure Data Logger is an ultra-low-power, fully autonomous, wireless telemetry device that collects data from sensors and transmits it securely to a cloud /on-premise server |
| Product reference | DLLTE4-PR |
| The total representative product mass | 907 g |
| Representative product dimensions | 165 mm (H) x 132 mm (W) x 73 mm (D) |
| Accessories | No accessories needed |
| Date of information release | 08/2021 |
Additional information
|
Legal information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). The product family must be disposed of according to the legislation of the country. This document is intended for use by end-of-life recyclers or treatment facilities. It provides the basic information to assure an appropriate end-of-life treatment for the components and materials of the product. | |
| In case of special transportation: transportation method | No special transportation is required. | |
| Recyclability potential | 30% | Based on the “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
