QUICK REFERENCE GUIDE > OB24SCD7PX1
Oven, 24″, 7 Function, Selfcleaning
Series 5 | Contemporary
Stainless Steel
With a generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- Three cubic feet total capacity, with seven oven functions including Aero™ Pastry
- The self-cleaning function breaks down food residue for an easy clean
- Moisture control and even heat distribution thanks to ActiveVent™ and AeroTech technology
- Optional non-tip, full-extension sliding shelves for safe removal of hot dishes

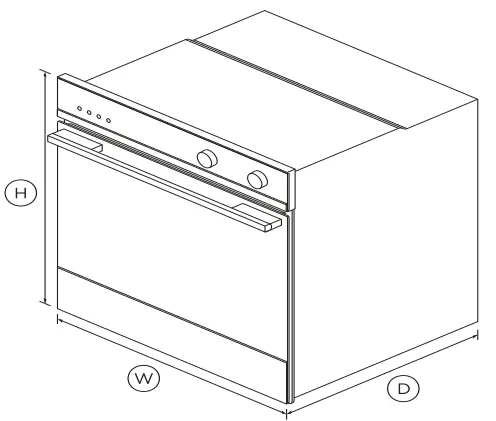

DIMENSIONS
| Height |  |
| Width | |
| Depth |
FEATURES & BENEFITS
Generous capacity
With a generous-sized internal cavity, you can create several dishes at once using multiple shelves.
Perfect Results
Our built-in ovens feature ActiveVent technology for optimized moisture levels and AeroTech™ for even heat distribution. Get perfect results even when you’re using multiple shelves.
Multi-function flexibility
Seven functions including Aero™ Pastry, Aero™Bake, and True Aero™ mean no matter what you’re cooking, you’ve got the right heat to match.
Seamless fit
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimize gaps and add to a cohesive aesthetic.
Cleaning is simple
<>
Refined styling
With sophisticated handle styling and stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Safe and sound
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Broil pan | • |
| Flat wire shelf | • |
| Food probe | • |
| Meat probe | • |
| Pyrolytic proof shelf runners | 1 set |
| Step down wire shelf | • |
Capacity
| Shelf positions | 6 |
| Total capacity | 3 cu ft |
| Usable capacity | 2.5 cu ft |
Cleaning
| Acid-resistant graphite enamel | • |
| Pyrolytic proof shelf runners | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Self-clean | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Behind glass capacitive touch | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Electronic oven control | • |
| Interior light | 2 x 25W (halogen) |
| Precise electronic temperature | • |
| Sabbath mode | • |
Functions
| Aero Bake | • |
| Aero Broil | • |
| Bake | • |
| Broil | • |
| Maxi Broil | • |
| Number of functions | 7 |
| Rapid proof | • |
| Roast | • |
| Self-clean function | • |
| True Aero | • |
| Vent bake | • |
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 3200W |
| Whisper quiet cooking | • |
Power requirements
| Amperage | 19A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth |  |
| Height | |
| Width |
Safety
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| Non-tip shelves | • |
Warranty
| Parts and labor | 2 years |
| SKU | 81887 |
TEST The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
With a generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- Three cubic feet total capacity, with seven oven functions including Aero™ Pastry
- The self-cleaning function breaks down food residue for an easy clean
