QUICK REFERENCE GUIDE > OB24SCD7PX1
Oven, 24″, 7 Function, Self-cleaning
Series 5 | Contemporary
Stainless Steel
OB24SCD7PX1 24 Inch Self Cleaning Oven
With a generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- Three cubic feet total capacity, with seven oven functions including Aero™ Pastry
- The self-cleaning function breaks down food residue for an easy clean
- Moisture control and even heat distribution thanks to ActiveVent™ and AeroTech technology
- Optional non-tip, full-extension sliding shelves for safe removal of hot dishes

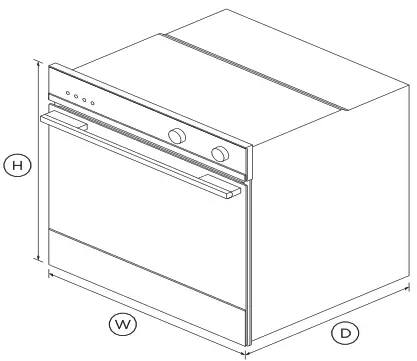

DIMENSIONS
| Height | 23 9/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
Generous capacity
With a generous-sized internal cavity, you can create several dishes at once using multiple shelves.
Perfect Results
Our built-in ovens feature ActiveVent technology for optimized moisture levels and AeroTech™ for even heat distribution. Get perfect results even when you’re using multiple shelves.
Multi-function flexibility
Seven functions including Aero™ Pastry, Aero™Bake, and True Aero™ mean no matter what you’re cooking, you’ve got the right heat to match.
Seamless fit
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimize gaps and add to a cohesive aesthetic.
Cleaning is simple
<>
Refined styling
With sophisticated handle styling and stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Safe and sound
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Food probe | 1 |
| Full extension telescopic | • |
| Grill pan | 1 |
| Meat probe | 1 |
| Optional Accessory round | Part 81671 |
| Optional round handle | Part 81645 |
| Step down wire shelf | 1 |
Capacity
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
Cleaning
| Acid-resistant graphite enamel | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
| Self-clean | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft close doors | • |
| Turned stainless dials with | • |
Functions
| Aero Bake | • |
| Aero Broil | • |
| Aero Pastry | • |
| Bake | • |
| Broil | • |
| Maxi Broil | • |
| Number of functions | 7 |
| Rapid proof | • |
| Roast | • |
| Self-clean function | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 3200W |
| Whisper quiet cooking | • |
Power requirements
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 1/2″ |
Safety
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| Non-tip shelves | • |
| SKU | 82258 |
