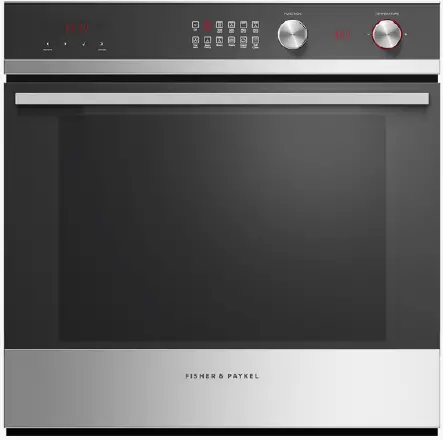

FISHER PAYKEL OB24SCDEPX1 24 Inch 11 Function Self Cleaning Oven
With a subtle black glass finish, this contemporary-style oven has multiple functions to ensure every dish is cooked to perfection.
- Three cubic feet total capacity with eleven oven functions including Aero™ Pastry, Roast and Rapid Proof
- Self-cleaning function breaks down food residue for an easy clean
- Moisture control and even heat distribution thanks to ActiveVent™ and AeroTech technology
- Non-tip, full-extension sliding shelves for safe removal of hot dishes

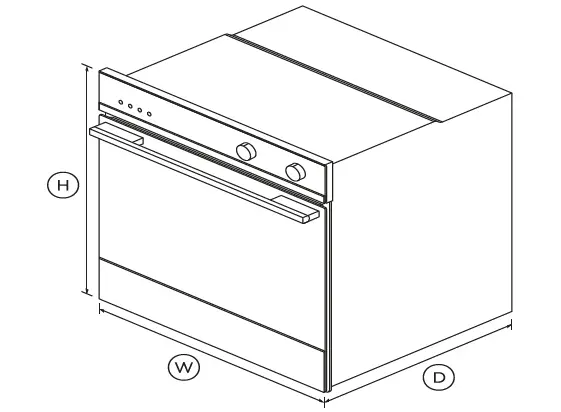

DIMENSIONS
| Height | 23 9/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
Generous capacity
With a generous-sized internal cavity, you can create several dishes at once using multiple shelves.
Perfect Results
Our built-in ovens feature ActiveVent technology for optimized moisture levels, and AeroTech™ for even heat distribution. Get perfect results even when you’re using multiple shelves.
Multi-function flexibility
11 functions including Aero™ Pastry, Roast and Rapid Proof mean no matter what you’re cooking, you’ve got the right heat to match.
Seamless fit
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimize gaps and add to a cohesive aesthetic.
Cleaning is simple
The self-clean function breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth.
Refined styling
With sophisticated handle styling and elegant black or stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Safe and sound
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
SPECIFICATIONS
Accessories
| Food probe | 1 |
| Full extension telescopic | • |
| Meat probe | 1 |
| Optional Accessory round | Part 81671 |
| Optional round handle | Part 81645 |
| Step down wire shelf | 1 |
Capacity
| Shelf positions | 6 |
| Total capacity | 3cu ft |
| Usable capacity | 2.5cu ft |
Cleaning
| Acid resistant graphite enamel | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable oven door inner | • |
| Removable shelf runners | • |
Controls
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic capacitive touch | • |
| Electronic clock | • |
| Electronic oven control | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Soft close doors | • |
| Soft open and close door | • |
| Turned stainless capacitive | • |
| Turned stainless dials with | • |
Functions
- Aero Bake: •
- Aero Broil: •
- Aero Pastry:•
- Bake: •
- Broil: •
- Maxi Broil: •
- Number of functions: 11
- Rapid proof: •
- Roast: •
- Self-clean: •
- True Aero: •
- Vent bake: •
- Warm: •
- Warm:•
Performance
| ActiveVent™ system | • |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 3000W |
| Whisper quiet cooking | • |
Power requirements
| Amperage | 19A |
| Supply frequency | 60Hz |
| Supply voltage | 208 – 240V |
Product dimensions
| Depth | 22 1/4″ |
| Height | 23 9/16″ |
| Width | 23 1/2″ |
Safety
- ADA compliant: •
- Advanced cooling system: •
- Balanced oven door: •
- Catalytic venting system: •
- Control panel key lock: •
- Non-tip shelves: •
| SKU | 82255 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
