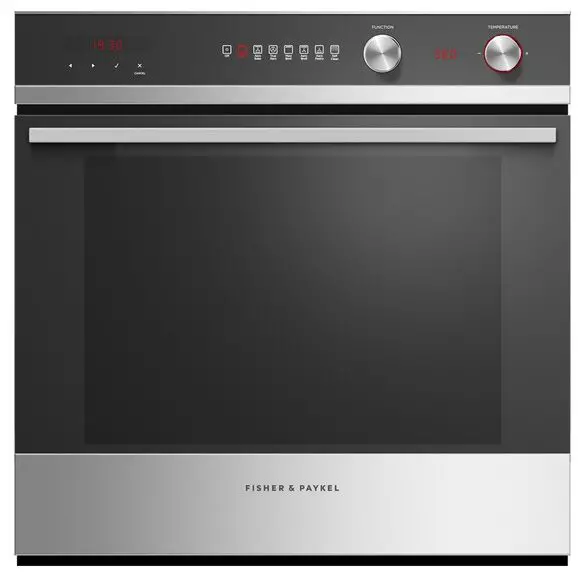

OB24SCD7PX1 24-Inch Oven with Self-Cleaning Function
User Guide
With a generous capacity and beautiful contemporary styling, this built-in oven will complement your kitchen design perfectly.
- Three cubic feet total capacity, with seven oven functions including Aero™ Pastry
- The self-cleaning function breaks down food residue for an easy clean
- Moisture control and even heat distribution thanks to
- ActiveVent™ and AeroTech technology
- Optional non-tip, full-extension sliding shelves for safe removal of hot dishes

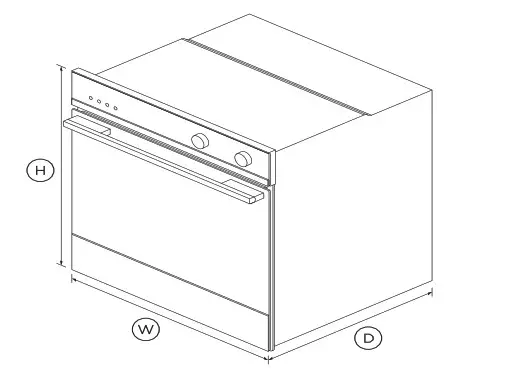

DIMENSIONS
| Height | 23 9/16″ |
| Width | 23 1/2″ |
| Depth | 22 1/4″ |
FEATURES & BENEFITS
Generous capacity
With a generous-sized internal cavity, you can create several dishes at once using multiple shelves.
Perfect Results
Our built-in ovens feature ActiveVent technology for optimized moisture levels and AeroTech™ for even heat distribution. Get perfect results even when you’re using multiple shelves.
Multi-function flexibility
Seven functions including Aero™ Pastry, Aero™Bake and True Aero™ mean no matter what you’re cooking, you’ve got the right heat to match.
Seamless fit
Designed to fit seamlessly in your kitchen, this built-in oven fits flush with cabinetry to minimize gaps and add to a cohesive aesthetic.
Cleaning is simple
<>
Refined styling
With sophisticated handle styling and stainless steel finish, our built-in ovens are designed to match the rest of Fisher & Paykel’s kitchen appliance family.
Safe and sound
The CoolTouch door features triple glazing and a cooling system that ensures it’s safe to touch from the outside – protecting both your hands and the surrounding cabinetry.
| Accessories | |
| 2-pc grill system (Broil pan and | • |
| Broil pan | • |
| Full Extension Telescopic | 2 sets (part 578776) |
| Kick strip, stainless steel | Part 81660 |
| Small pot support | 1 (part 533981 cast) |
| Capacity | |
| Total capacity | 3.5cu ft |
| Cleaning | |
| Acid-resistant graphite enamel | • |
| Drop down broil element | • |
| Drop-down grill element | • |
| The flat easy clean glass surface | • |
| Pyrolytic-proof shelf runners | • |
| Pyrolytic self-clean | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Controls | |
| Audio feedback | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| High-resolution display | • |
| Laser etched graphics | • |
| Precise electronic temperature | • |
| Sabbath mode | • |
| Turned stainless steel clock | • |
| Gas Requirements | |
| Supply Pressure (LPG) | 11″ W.C.P |
| Supply Pressure (natural gas) | 4″ W.C.P |
| Oven Features | |
| AeroTech™ technology | • |
| Auto re-ignition system | • |
| Automatic rapid pre-heat | • |
| Concealed element | • |
| Electronic oven control | • |
| Full extension telescopic | • |
| Internal light | 2 x 25W halogen (rear) |
| Soft open/close door | • |
| True convection | • |
| Turned stainless steel clock | • |
| Oven functions | |
| Aero Bake | • |
| Aero™ Pastry with Pizza mode | • |
| Number of functions | 9 |
| Rapid proof | • |
| Roast | • |
| True convection | • |
| Oven performance | |
| Broil | 4050 BTU |
| Combined warming/Storage | 220W |
| CoolTouch door | Triple glazed |
| Warming drawer power | 220W |
| Power requirements | |
| Amperage | 30A |
| Supply frequency | 60Hz |
| Product dimensions | |
| Depth | 25 1/4″ |
| Height | 35 3/4 – 37 5/8″ |
| Width | 29 7/8″ |
| Rangetop features | |
| Brass burner spreader (power | • |
| Embossed brass burner cap | • |
| Hob rail | • |
| LPG/Natural gas compatible | • |
| Sealed range top | • |
| Rangetop Performance | |
| Number of burner elements | 4 |
| Semi-rapid burner (LPG) | 8000 BTU |
| Semi-rapid burner (natural | 8000 BTU |
| Safety | |
| Advanced cooling system | • |
| Anti-tilt bracket | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Full extension telescopic | • |
| Non-tip shelves | • |
| Spill containment | 12 BTU |
| SKU | 81720 |
TEST The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
