Electrolux EFV716K 900 SilenceTech 60cm Range Hood
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it decades of professional experience and innovation. Ingenious and stylish, it has been designed with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
- Get usage advice, brochures, trouble shooter, service and repair information: www.electrolux.com/support
- Register your product for better service: www.registerelectrolux.com
- Buy Accessories, Consumables and Original spare parts for your appliance: www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number. The information can be found on the rating plate. Warning / Caution-Safety information General information and tips Environmental information Subject to change without notice.
SAFETY INFORMATION AND INSTALLATION
WARNING
Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.
PRODUCT DESCRIPTION

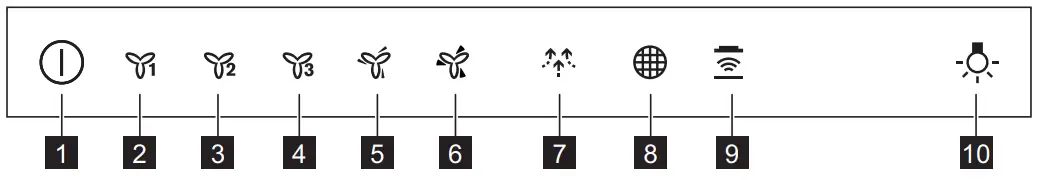

PRODUCT DESCRIPTION
| Function | Description | |
| 1 | On / Off | Turns the hood on and off. |
| 2 | First speed | The motor switches to first speed level. |
| 3 | Second speed | The motor switches to second speed level. |
| 4 | Third speed | The motor switches to third speed level. |
| 5 | Maximum speed | The motor switches to maximum speed level. |
| 6 | Speed boost | The motor switches to maximum speed level. After 5 minutes the appliance returns to previous setting. |
| 7 | Breeze | The hood operates on the lowest speed. After 60 minutes the appliance turns off. |
| 8 | Filter notification | Reminds to change or clean the charcoal filter and clean the grease filter. |
| 9 | Hob²Hood | Indicator of the function to control hood from hob. |
| 10 | Lamp | Turns the lights on and off. |
DAILY USE
Using the hood
Check the recommended speed according to the table below.
| While heating up food, cooking with covered pots. |
| While cooking with covered pots on multiple cooking zones or burners, gentle frying. |
| While boiling and frying big quantities of food without a lid, cooking on multiple cooking zones or burners. |
| and While boiling and frying big quantities of food without a lid, big humidity. |
| Refreshes the air in kitchen after cooking at a very low noise level. It can be activated and de-activated by touching the symbol. The function turns off automatically after 60 minutes. Use after cooking only. |
It is recommended to leave the hood operating for approximately 15 minutes after cooking.
The control Panel is a sensor field. Touch the symbols for 1 second to activate the functions.
To operate the hood:
- Turn on the appliance by pressing You can now activate the functions.
- To activate the function touch the symbol.
The hoods light worksindependently to other hoodfunctions. To illuminate thecooking surface touch To turn off the appliance press the symbol again.
Hob²Hood function
It is an automatic function whichconnects the hob with a hood. Both thehob and the hood have an infrared signalcommunicator. Speed of the fan isdefined automatically on basis of modesetting and temperature of the hottestcookware on the hob. You can alsooperate the fan using the hob manually.The function can be activated from panelof the hob.
For more information how touse the function refer to thehob user manual.
Activating Maximum MotorSpeed
After that time, the appliancereturns to its previous speed settings.When the function is turnedon, additional touch on does not have any effects.
Filter notification
- Filter alarm reminds to change or clean the charcoal filter and clean the grease
- filter. The filter indicator
is turned on for 30 seconds if the grease filter must be cleaned. - The filter indicator flashes for 30 seconds if the charcoal filter must be replaced or cleaned.
- Refer to cleaning the grease filter in care and cleaning chapter.
- Refer to cleaning the charcoal filter or replacing the charcoal filter in care and cleaning chapter.
- To reset the function touch for 3 seconds.
To activate or deactivate function:
- Switch on the control panel.
- Make sure that the icons are turned white.
- To activate function touch for 3 seconds.
If the function is activated, the filter icon flashes five times. - To deactivate function touch for 3 seconds.
If the function is deactivated, the filter icon
turns on for 4 seconds.
CARE AND CLEANING

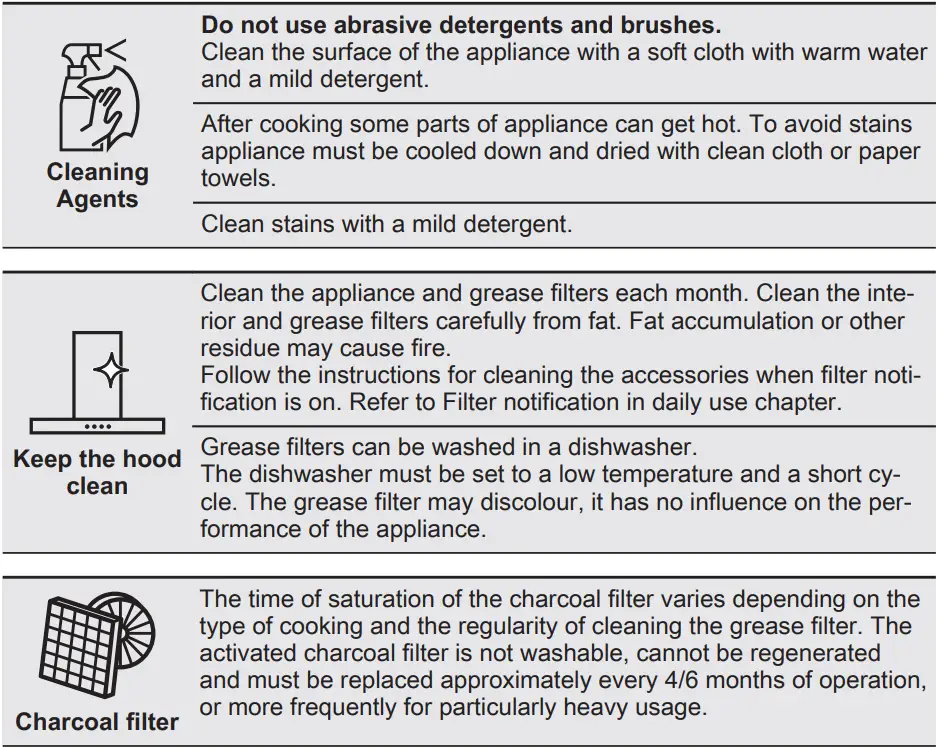

Notes on cleaning
Cleaning the grease filter
Filters are mounted with the use of clips and pins on the opposite side.
To clean the filter:

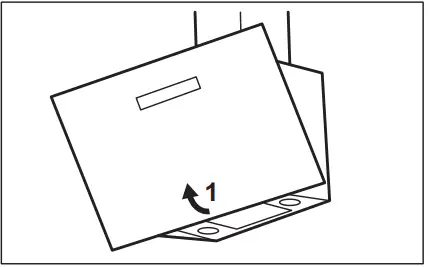

- Pull the cover to open it.

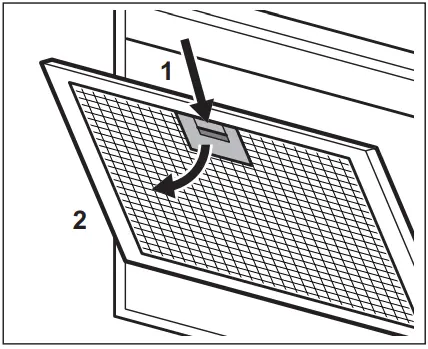

- Press the handle of the mounting clip on the filter panel underneath the hood (1).
- Slightly tilt the front of the filter downwards (2), then pull.
Repeat the first two steps for all filters. - Clean the filters using a sponge with non abrasive detergents or in a dishwasher.
The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolour, it has no influence on the performance of the appliance. - To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.
Replacing the charcoal filter
The charcoal filter must be replaced if the filter alarm is on.
Refer to the filter notification in daily use chapter for more information about function.
WARNING!
The charcoal filter is NON-washable! The filter cannot be regenerated!
To replace the charcoal filter:
- Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.
- Turn the filter counterclockwise (1) and then pull (2).
To mount the filters back follow the steps in reverse order.
In any case, it is necessary to replace the filters at least every four months.
Replacing the lamp
This appliance is supplied with a LED lamp and separate control gear (LED driver). These parts can be replaced by a technician only. In case of any malfunction refer to “Service” in the
“Safety Instructions” chapter.
ENVIRONMENTAL CONCERNS
Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
