DVK6981HR/DVK6981HB – 9000 SilenceTech 90cm Wall Mounted Hoods
User Manual

FOR PERFECT RESULTS
Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.
Visit our website for:
Get usage advice, brochures, trouble shooter, and service information: www.aeg.com/webselfservice
Register your product for better service: www.registeraeg.com
Buy Accessories, Consumables, and Original spare parts for your appliance: www.aeg.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.

SAFETY INFORMATION AND INSTALLATION

WARNING!
Refer to the separate Installation Instructions booklet for Safety Information and Installation. Read carefully the Safety chapters before any use or maintenance of the appliance.

PRODUCT DESCRIPTION

2.1 Control panel overview

DAILY USE

3.1 Using the hood
Check the recommended speed according to the table below.

	While heating up food, cook with covered pots.
	While cooking with covered pots on multiple cooking zones or burners, gentle frying.
	While boiling, frying big quantities of food without a lid, cooking on multiple cooking zones or burners.
	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maximum speed. After 8 minutes the appliance returns to previous setting.
	While boiling, frying big quantities of food without a lid, big humidity. The hood operates on maximum speed. After 5 minutes the appliance returns to previous setting.
	While delicate cooking, to vent the kitchen. The hood operates on the lowest speed. After 60 minutes the appliance turns off.

It is recommended to leave the hood operating for approximately 15 minutes after cooking.
The control panel is a sensor field. Touch the symbols to activate the functions.
To operate the hood:

1. Turn on the appliance by pressing the symbol .
   You can now activate the functions.
2. To activate the function touch the symbol.
3. If needed, touch the light symbol to illuminate the cooking surface. To change the light intensity touch and hold the symbol again.

To turn off the appliance press the symbol again.

3.2 Hob to Hood function
It is an automatic function that connects the hob with a hood. Both the hob and the hood have an infrared signal communicator. The speed of the fan is defined automatically on basis of the mode setting and the temperature of the hottest cookware on the hob. You can also operate the fan using the hob manually. The function can be activated from a panel of the hob.
For more information on how to use the function refer to the hob user manual.
3.3 Activating Maximum
Motor Speed When you press the button , the Maximum Motor Speed starts to operate for 6 minutes. After that time, the appliance returns to its previous speed settings. When the function is turned on, additional touch on the button does not have any effects.
3.4 Activating and deactivating the filter notification
The filter alarm reminds us to change or clean the charcoal filter and clean the grease filter. The filter indicator is turned on (white) for 30 seconds if the grease filter must be cleaned. The filter indicator flashes (white) for 30 seconds if the charcoal filter must be replaced or cleaned.
Refer to filter alarm in the care and cleaning chapter.

1. Switch on the control panel.
2. Make sure that the icons are turned off.
3. To activate or deactivate the charcoal filter notification touch for 3 seconds.

If the charcoal filter notification is activated, the filter icon flashes (white) five times.
If the charcoal filter notification is deactivated, the filter icon flashes (white) three times. 1

CARE AND CLEANING

4.1 Cleaning the grease filter
Each filter must be cleaned at least once a month. Filters are mounted with the use of clips and pins on the opposite side.
To clean the filter:

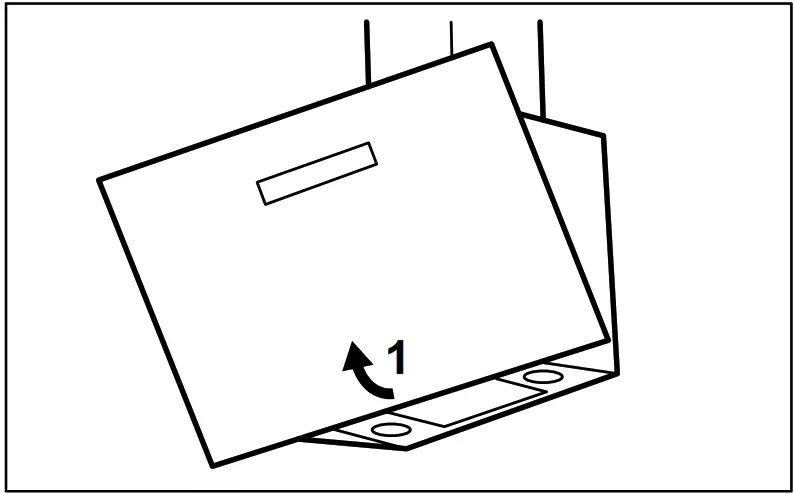

1. Pull the cover to open it.

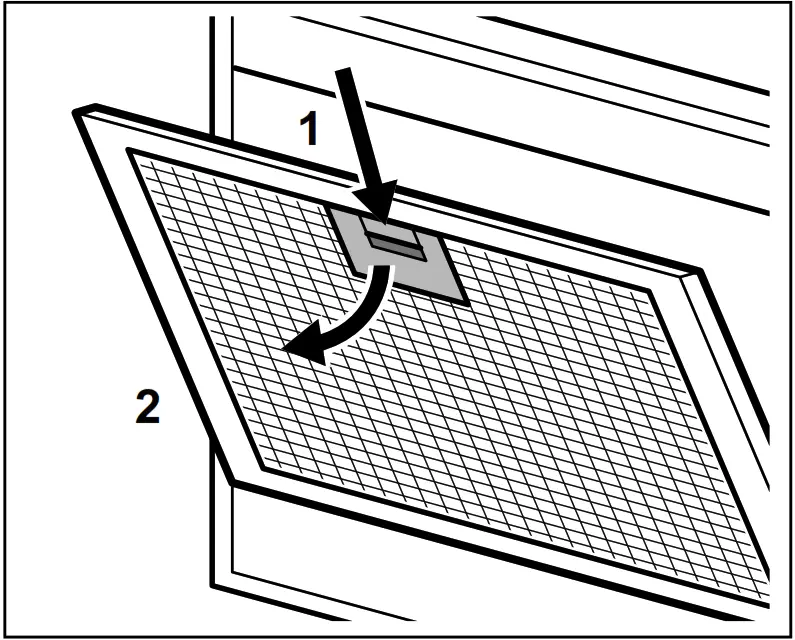

2. Press the handle of the mounting clip on the filter panel underneath the hood (1).
3. Slightly tilt the front of the filter downwards (2), then pull. Repeat the first two steps for all filters.
4. Clean the filters using a sponge with nonabrasive detergents or in a dishwasher.
   The dishwasher must be set to a low temperature and a short cycle. The grease filter may discolor, but it has no influence on the performance of the appliance.
5. To mount the filters back follow the first two steps in reverse order. Repeat the steps for all filters if applicable.

4.2 Replacing the charcoal filter
WARNING!
The charcoal filter is nonwashable!
The time of saturation of the charcoal filter varies depending on the type of cooking and the regularity of cleaning the grease filter. To replace the filter:

1. Remove the grease filters from the appliance. Refer to “Cleaning the grease filter” in this chapter.

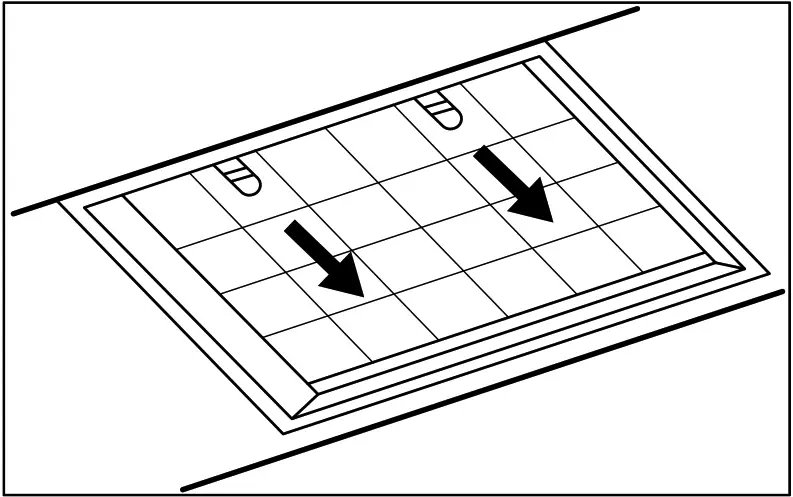

2. Pull the tabs towards the bottom part of the filter. There are two charcoal filters. One is situated underneath and the other at the front side of the appliance.
3. Slightly tilt the front of the filter downwards, then pull.
4. To install a new filter, perform the same steps in reverse order. In any case, it is necessary to replace the filters at least every four months.

4.3 Filter alarm
Refer to activating and deactivating the filter alarm in the daily use chapter.
Refer to cleaning the grease filter in this chapter.
Refer to cleaning the charcoal filter or replacing the charcoal filter (depends on filter type).
To reset the alarm:
Touch the for 3 seconds.
4.4 Replacing the lamp
This appliance is supplied with a LED lamp. This part can be replaced by a technician only. In case of any malfunction refer to “Service” in the “Safety Instructions” chapter.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol .
Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose of appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal office.
