Keuco Ixmo Installation Guide

Mounting instruction
IXMO

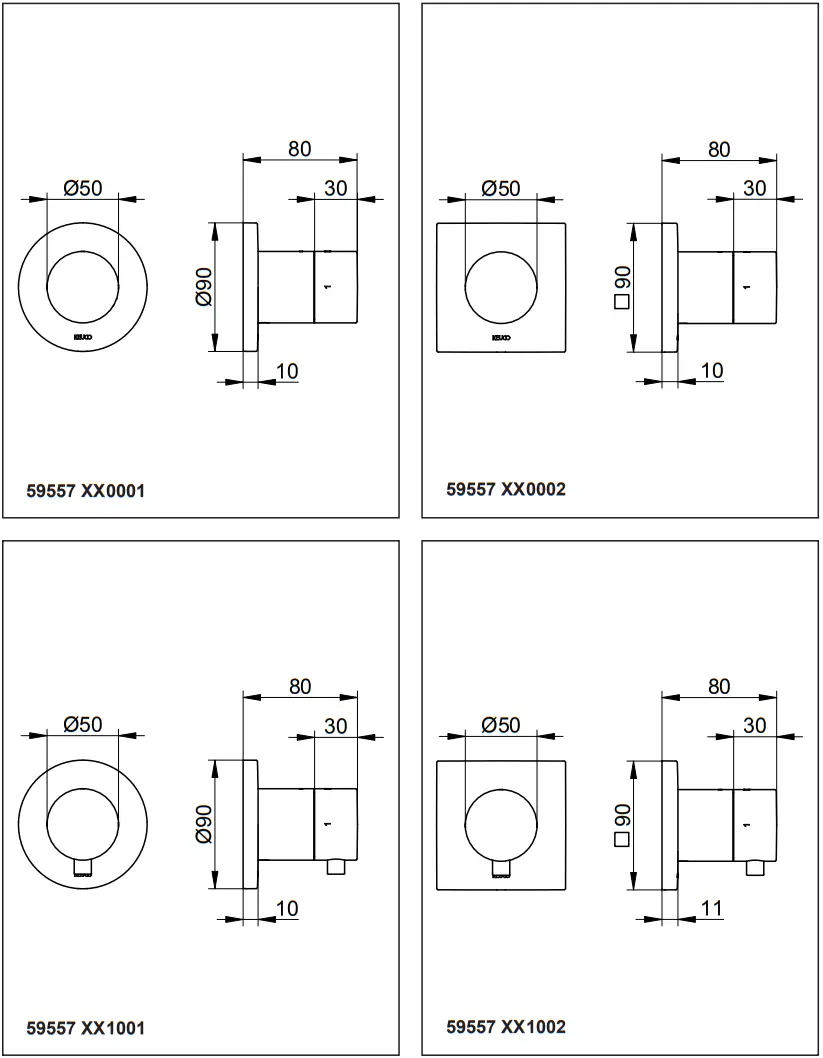

Mounting dimensions

These instructions are for both the installer for installation and the user for the operation and maintenance of the product. After installation, please hand them over to the user to keep.

Symbols and explanations

	Attention! Warning against bodily injury or damage to property.
	Note, tip or reference
	Correct installation/test of functionality
	Incorrect installation
	Observe installation details
	Cold water
	Water fl ow
	Optional/accessories
	Hot water
	No water fl ow

Technical specifi cations

Flow at 3 bar pressure

For installation dimensions, refer to page 2

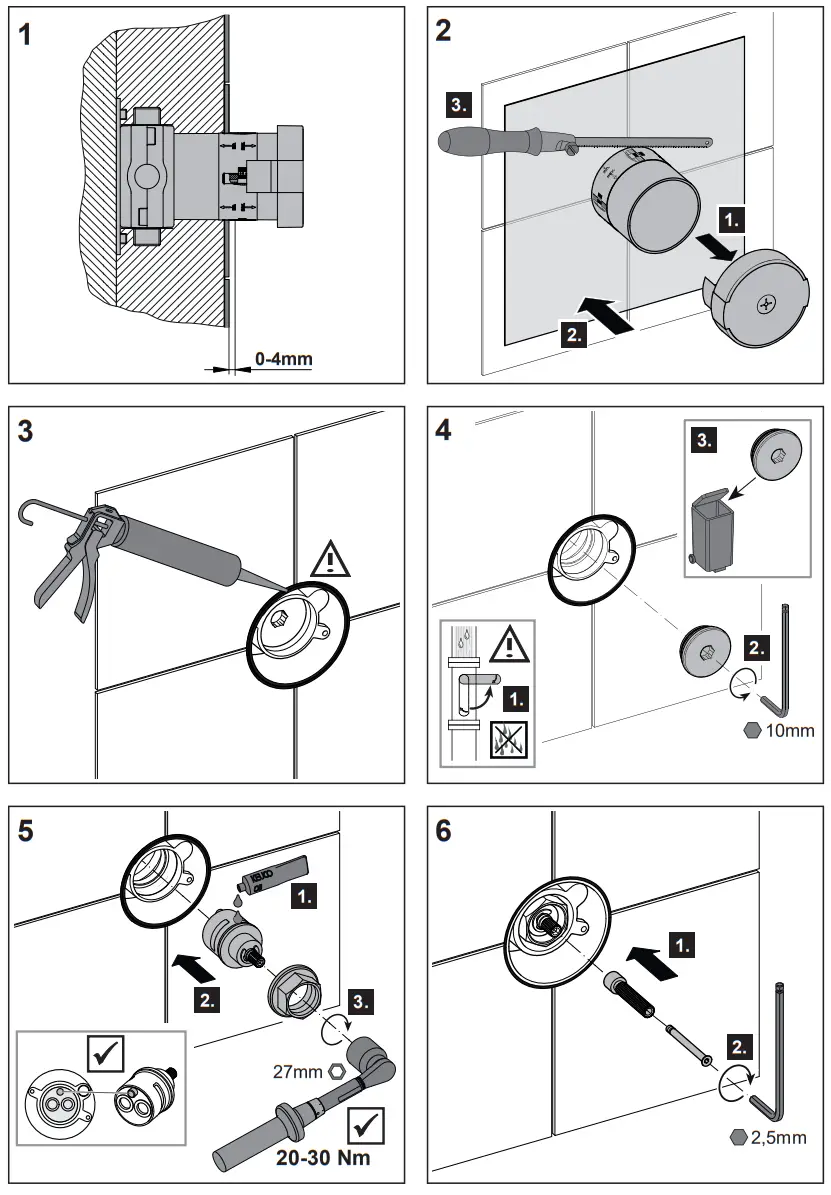

For installation, refer to picture 1 on page 8
Use only neutrally netting silicone.

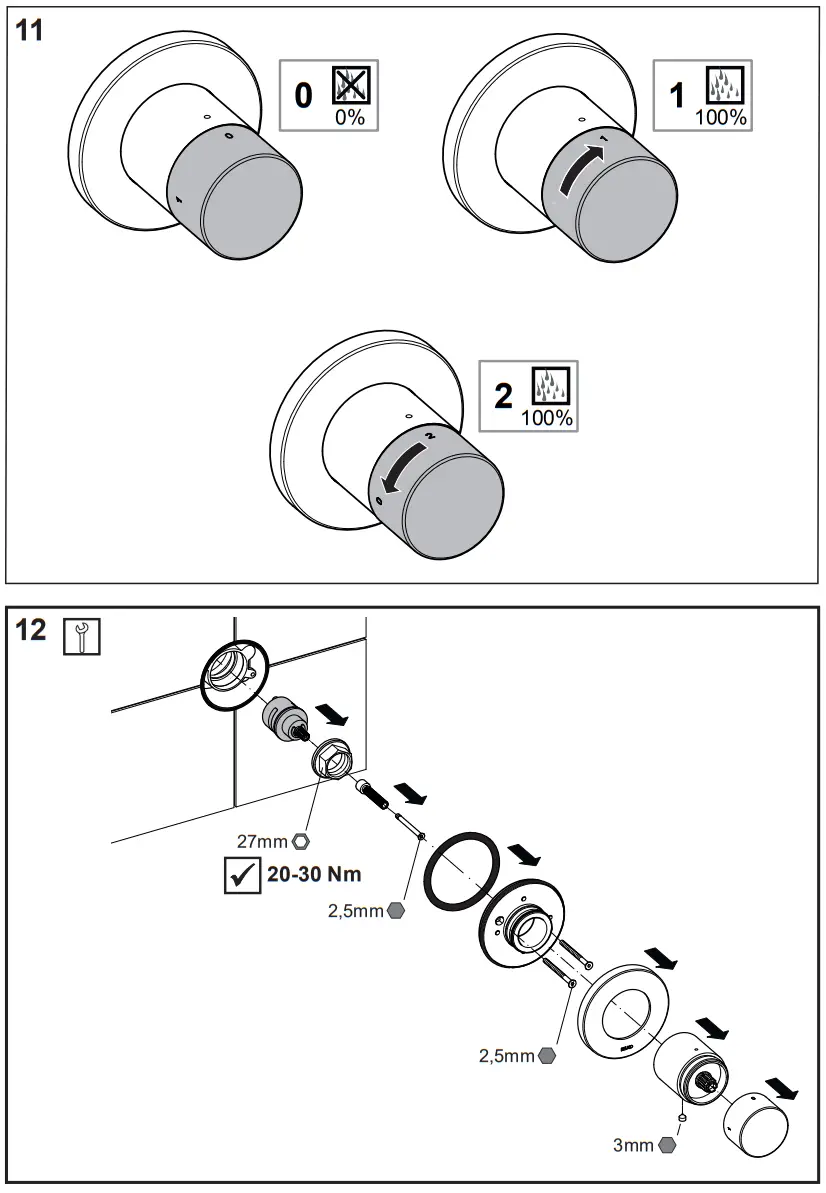

The operation, refer to picture 11 on page 10
For servicing, refer to picture 12 on page 10
Assemble in reverse order.
– Cartridge nut torque:
For spare parts with order numbers, refer to page 11
For warranty and care information please refer to the attached warranty and care instructions.

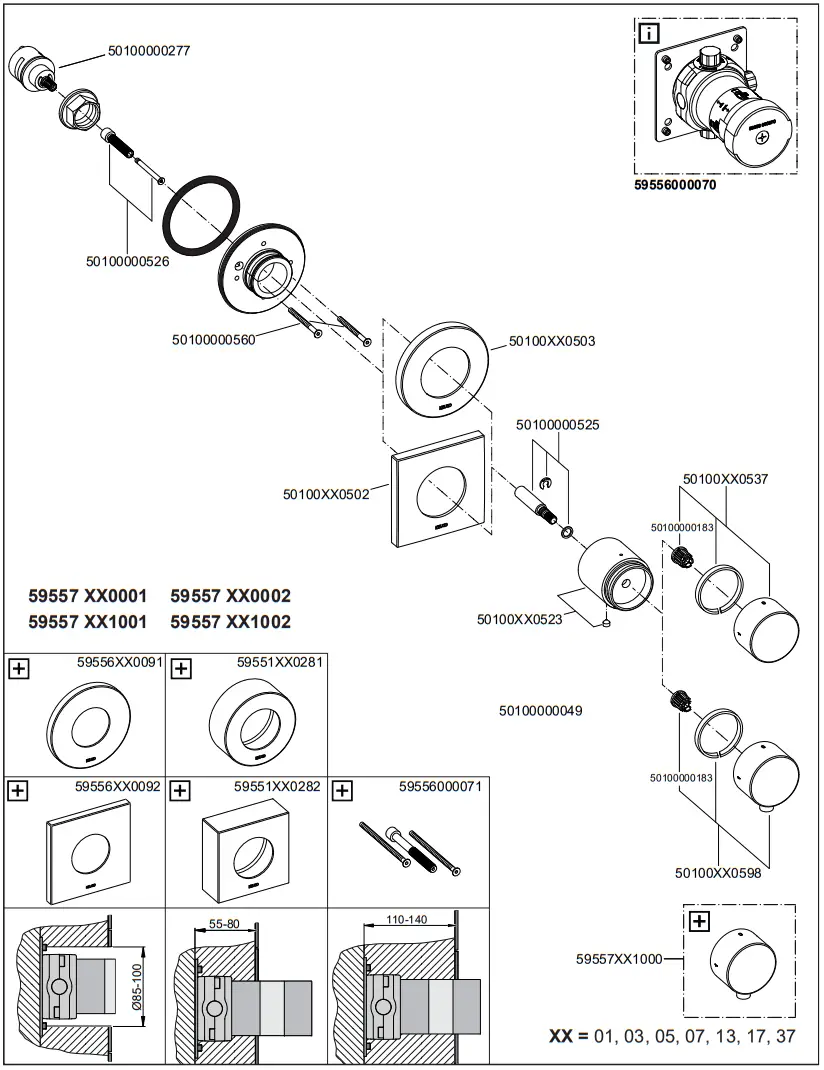

Spare parts

KEUCO UK Ltd
Amersham House
Mill Street
GB-Berkhamsted HP4 2DT
Phone: +44 10442865220
E-Mail: [email protected]
