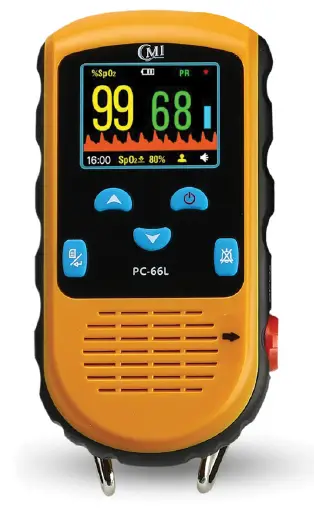

CMI HEALTH PC-66L Handheld Pulse Oximeter

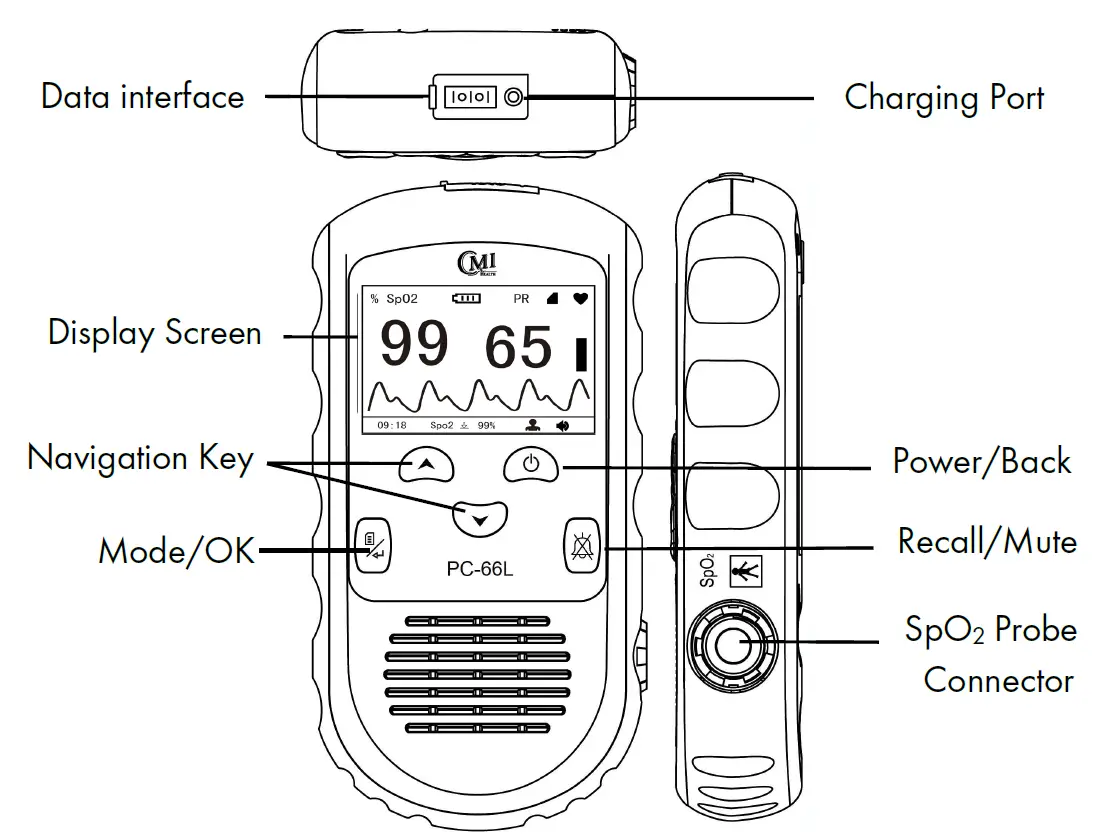

Product Overview

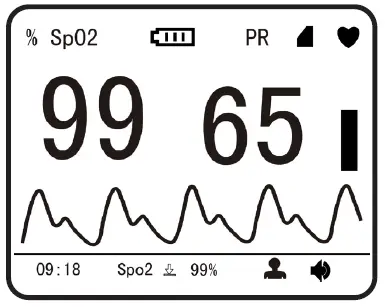

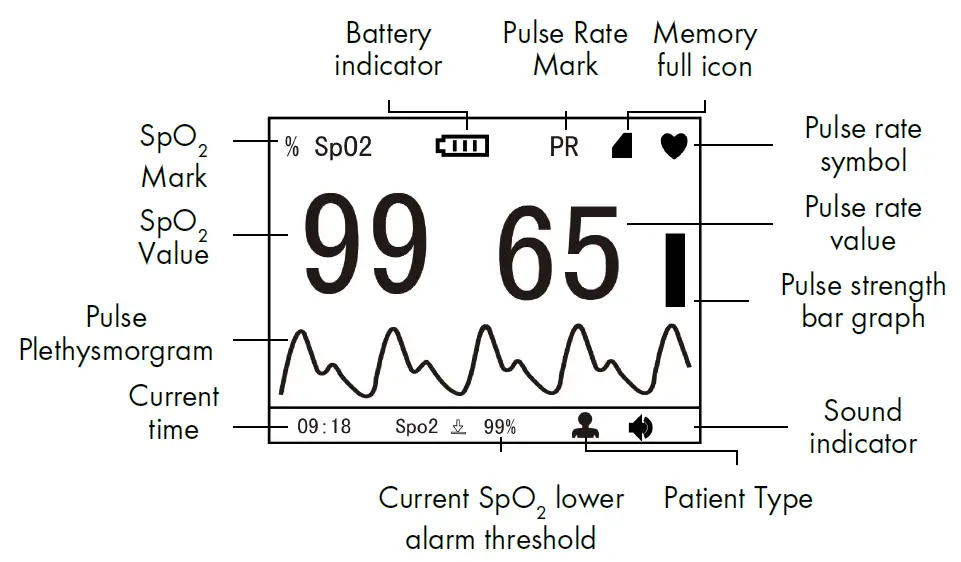

Screen Display

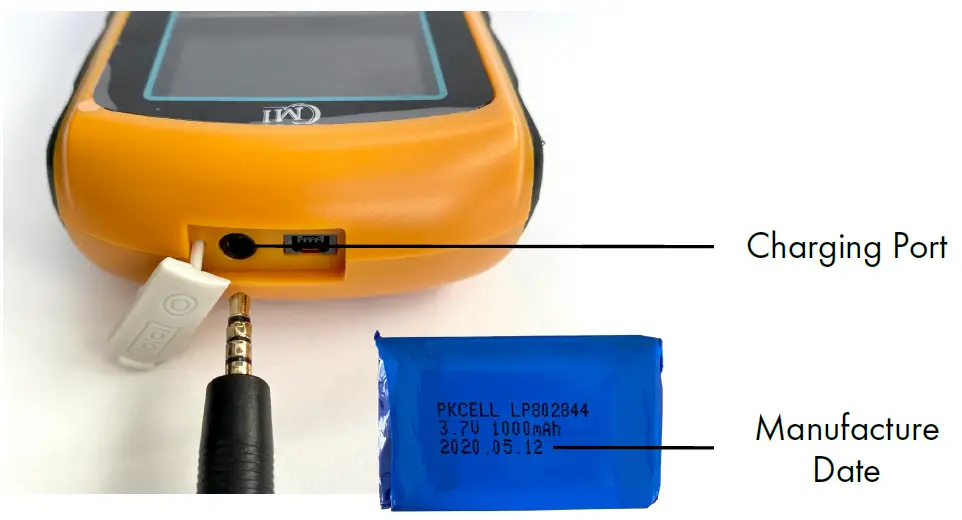

Charging
How to Use and Take a Measurement

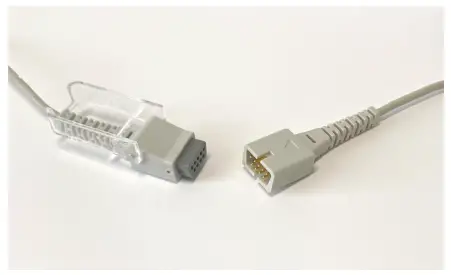

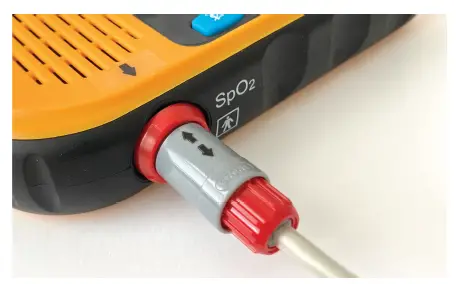

- Line up arrow signs, then insert cord.
- Open cap and connect converter cable with the other end of SpO2 sensor.

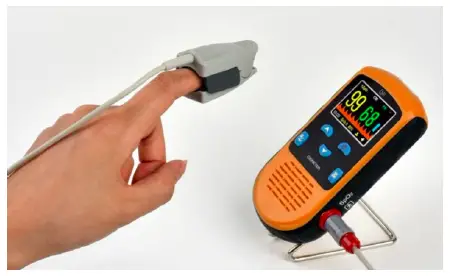

- Insert one finger into the sensor and start your measurements.
Alarm Set-up

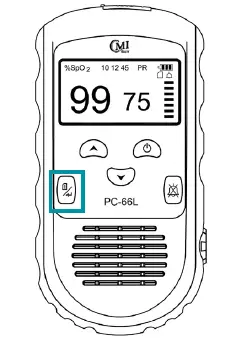

- Press and hold ”Mode/OK” for 2 sec-onds to go to the menu .

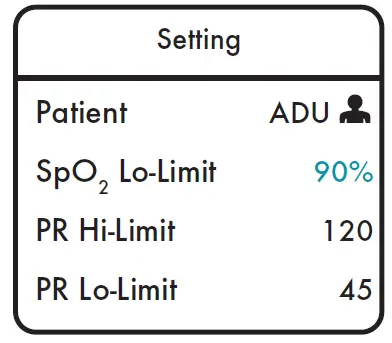

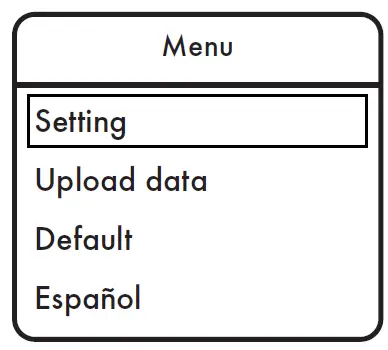

- On the menu screen, select “Setting” and then press “Mode/OK.”
- Use / to move cursor and select type of threshold for alarm. Example shows SpO2 Lo-limit.

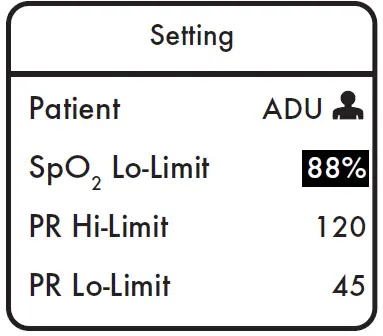

- Press ‘Mode/OK” to change default value. A highlight will shows on the screen, and use / to adjust to desired threshold value. (see pg.13 in user manual for more details).
- Once confirmed, press “Mode/OK” to save change and (power/back) to exit from alarm setting.

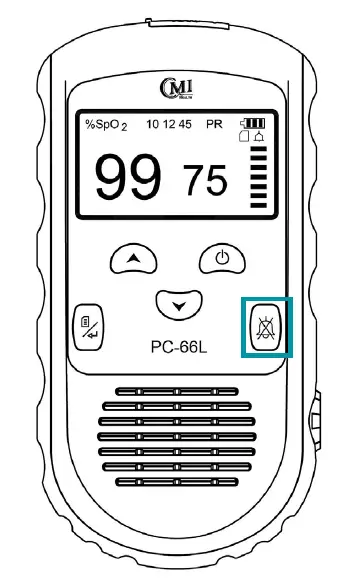

Mute Beeping Sound
- Short press the mute button to mute the beeping sound.
- Alarm sound will go off if measurement is out of limit or sensor fell off. You can adjust the alarm thresholds based on your need.
- Please be aware that the mute function would be over-written by alarm onset or power off. Short press the mute button again if either situation occurs.
