KT-6021L SMARTfl ex Dual in Copper
Installation GuideKT-6021L CPU/LOCAL
KT-6021R CON/REMOTE

Delivery Content

LOCAL/CPU Unit

• 1 x SV2 local (CPU)
• 1 x power supply until 12V 1A (EU-plug)
• 2 x DVI – DVI cable 1,8m/5.9ft
• 1 x USB cable 1,8m/5.9ft
• 4 x rubber feet

REMOTE/CON Unit

• 1 x SV2 remote (CON)
• 1 x power supply unit 12V 1A (EU-plug)
• 4 x Gerätefüße

open the OSD main meu
The OSD main menu is opened with the default shortcut: 5 x ALT Gr
(Attention: the first 20 seconds 5 x Scroll always works, in case the shortcut was forgotten.
Switching list: CTRL+ALT+PRINT
Changing the shortcuts in the OSD menu
Go to the Remote Settings and then navigate to Keyboard Shortcut.

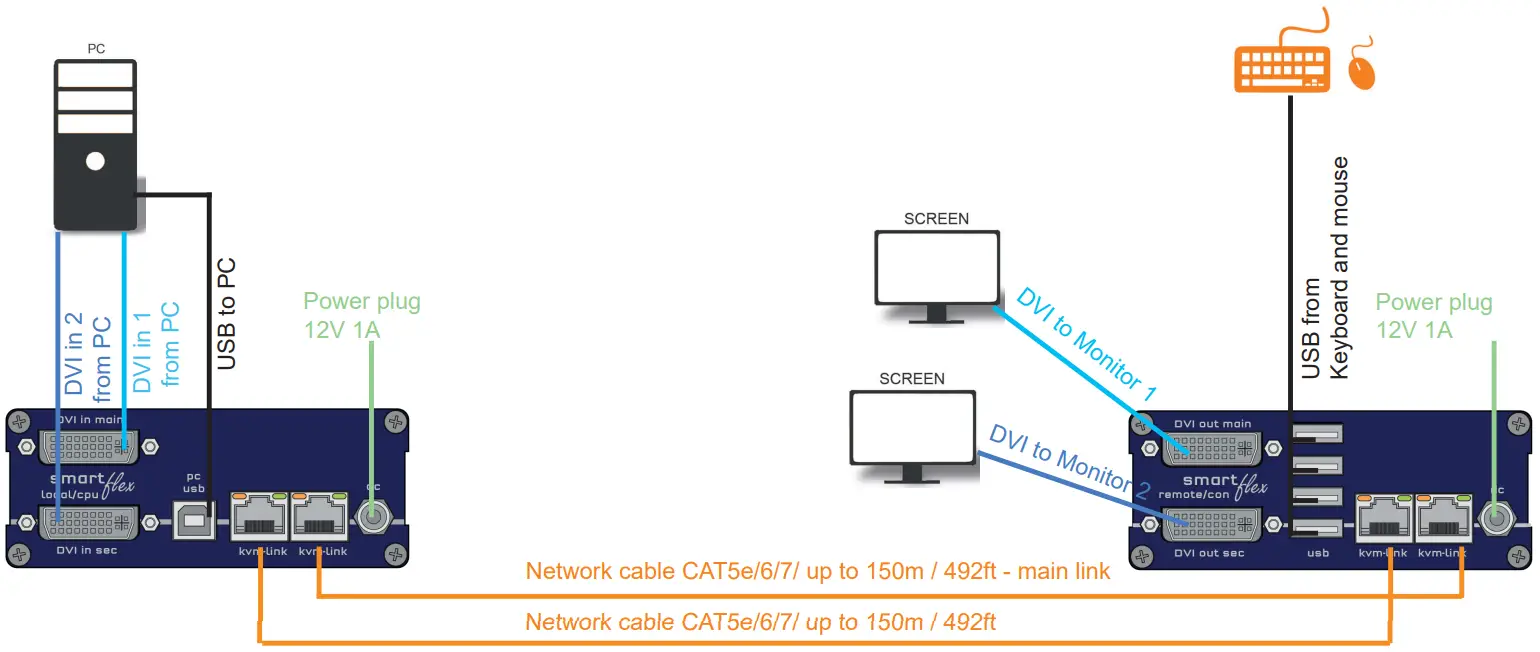

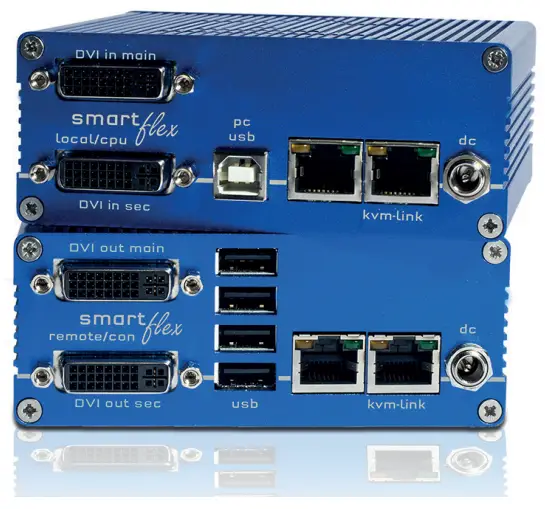

Quick Installation Smartflex Dual local/CPU – remote/CON

1. Connect the CON/Remote and the CPU/Local Unit to the included 12V 1A power supply.
2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU/Local Unit. Connect keyboard and mouse to the CON/Remote Unit.
3. Connect the CPU/Local and the CON/Remote Unit with the network cable.
4. Now connect the DVI cable to the DVI socket of the PC and the other end to the DVI socket of the CPU/Local Unit (PC-in 1).
5. Now connect the cable to the DVI socket of the PC and the other end to the DVI socket of the CPU/Local Unit (PC-in 2). Then connect the monitor with the DVI cable to the CON/Remote Unit.
6. Using a switch: Connect all endpoints to the switch. Ensure that all connections have a bandwidth of 1Gbit/sec. For video sharing the network has to support IGMP snooping.

HAVE FUN – your kvm-tec Extender is now in use for many years (MTBF approx. 10 years)

ACCESS TO THE MAIN MENU

Use the monitor and keyboard to access the main menu

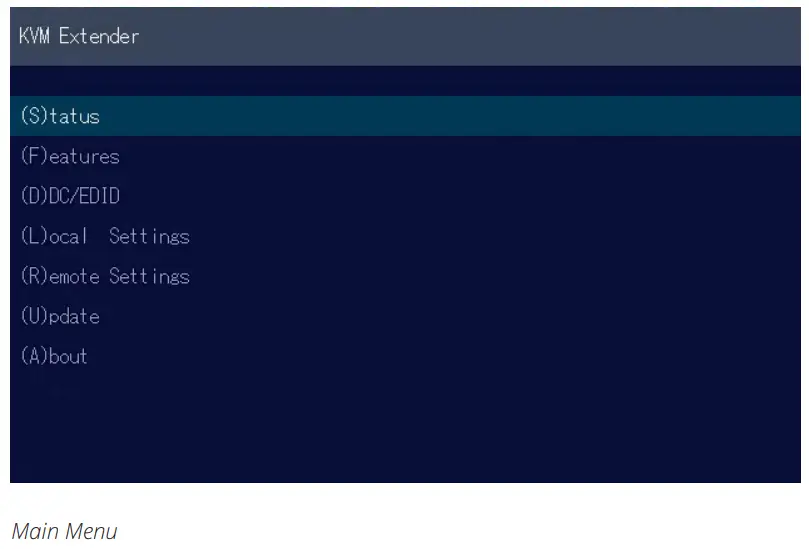

Access to the main menu (main menu):

1. Make sure the extenders, monitors and computers are turned on.
2. Press the Alt Gr key five times quickly. The main menu and an overview of the an overview of the submenus is displayed.
3. To enter a submenu, press the corresponding key.

Main menu Short Cuts :

SYSTEM STATUS

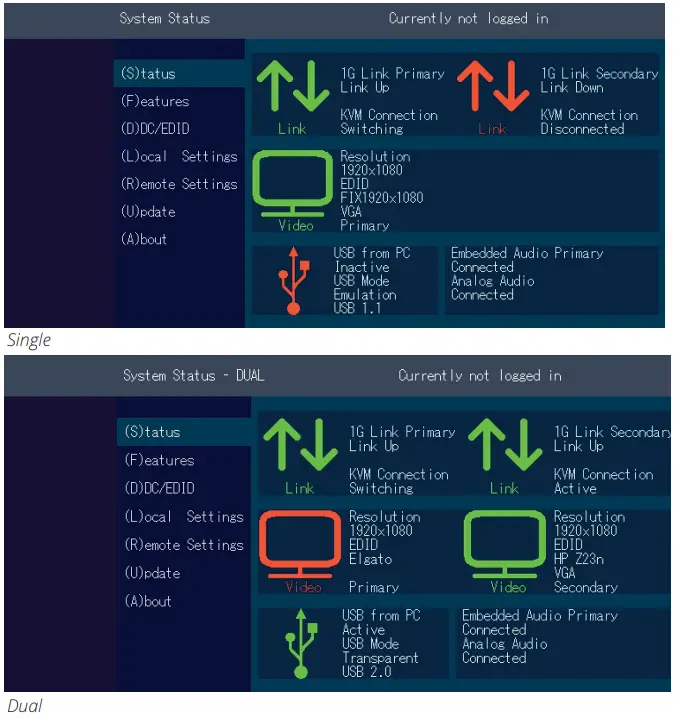

The „Status Menu“ displays the current status of the extender connection. The menu shows the information about the connection, the resolution of the video channel and the USB status. The activated upgrades and the current FW version are displayed in the upper left corner. Link status shows if a connection is possible. Connected shows if the kvm files can currently be transferred.
Video and USB show if files are currently transferred.
FIRMWARE VERSION DISPLAY
Make sure that the main menu is open. Under „A“ – About the currently installed firmware version of the remote (CON) and local (CPU) extender is displayed.

FEATURES MENU

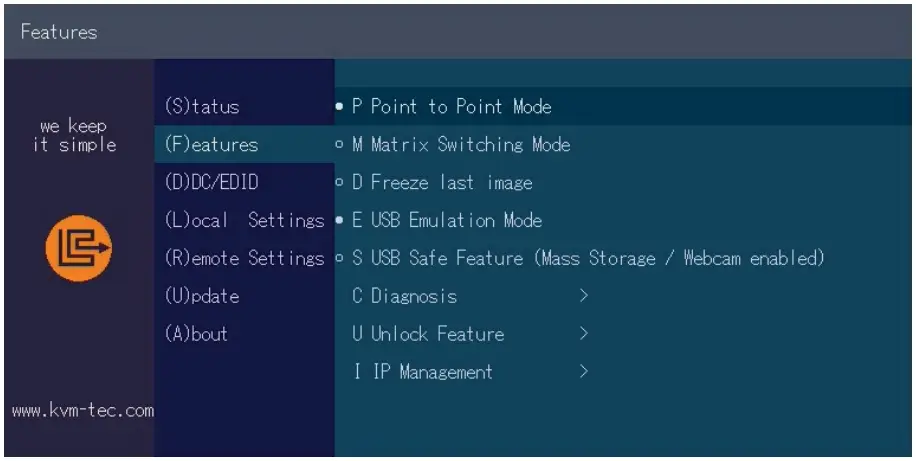

Press the F key to enter the Features menu.

Features Menu

POINT TO POINT

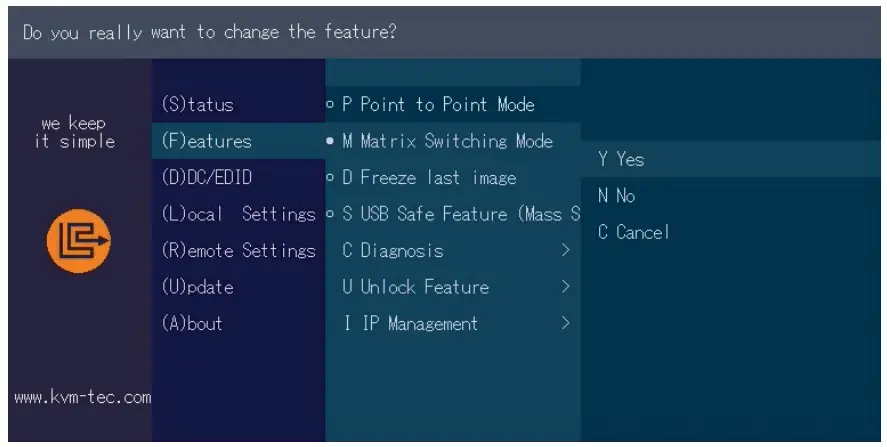

By pressing the “P” key you can switch the Point to Point mode off and on
ATTENTION – if the Point to Point mode is activated, the Switching Mode cannot be activated.

MATRIX SWITCHING MODE
By pressing the “M” key, you can switch the Matrix Switching Mode off and on.

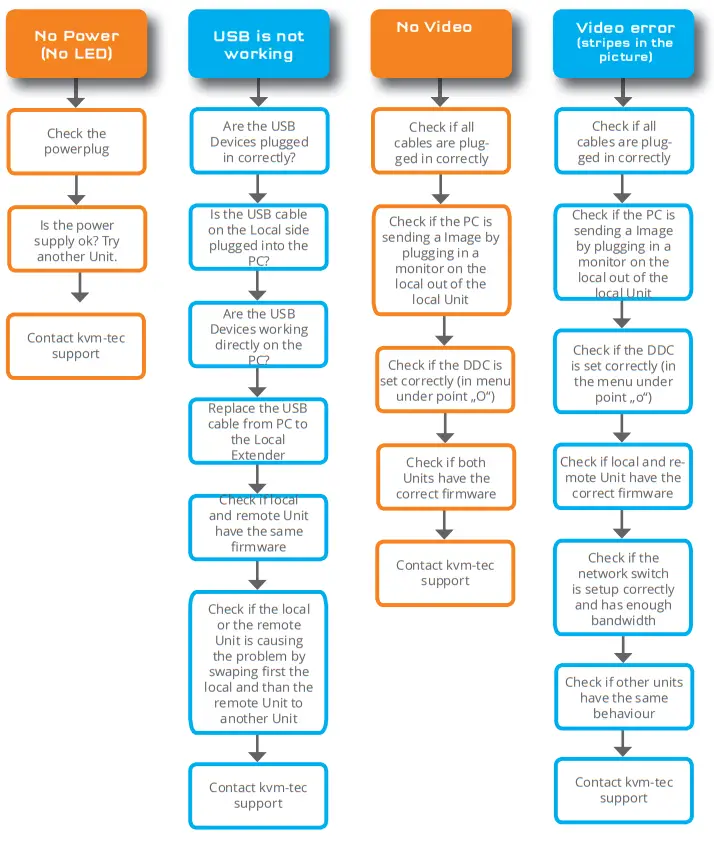

kvm-tec Support
[email protected]
Phone: +43 2253 81912 – 30
We are here for you to answer your questions about installation?
Manual download www.kvm-tec.com or kvm-tec Installation channel on our homepage personally +43 2253 81912

www.kvm-tec.com
Misprints, errors and technical changes reserved
