Tackform Tf-hl-97 Wireless Charging Mount User Guide

Wireless Charging Mount
User Guide

Model:TF-HL-97

Thank you for purchasing and using this product!

Please read this Operation Instruction carefully and keep it properly before using this product.

Product Specification

Fast Wireless Charger

• Input: 5V2A/9V2A
• Output: 5V1 .0A/ 9V1 .2A
• Charging Efficiency: 70%

Applicable Devices

Compatible with all devices with Qi Standard

For all other mobiles without Qi Standard, those will be working with wireless receivers.

MADE IN CHINA

The LED light turns red during wireless charging to indicate a charging failure.

The following situation can cause failures, like charging slowly, stop charging, over-temperature for charging position

1. The adapter is not run up to standard (No PC USB output power supply).
2. The charging cable is not up to standard.
3. The phone case is too thick ( within 2mm thickness phone case recommended ).
4. The built-in wireless charging receiver position is not coincided with wireless charger coil position.
5. There is metal/magnet on the back of cell phone or phone case.
6. Smartphone does not support wireless charging function.

Attention

1. Please keep the charger away from water or other liquid.
2. If you need to clean the charger, please make sure it is not connected to power supply.
3. Using Environment temperature remains -20 ~45°C.

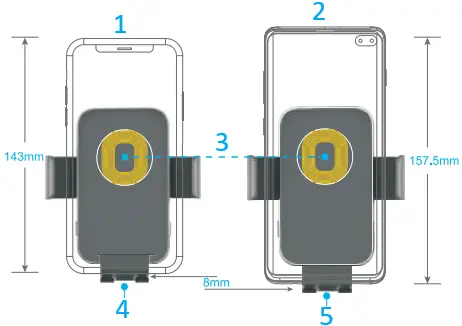

1. iPhone X
2. Galaxy S10+

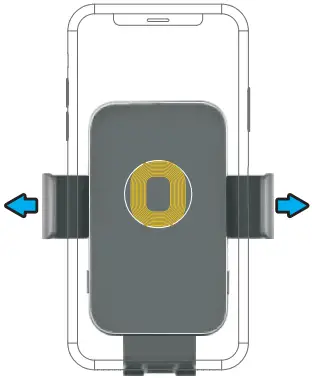

3. Coil Position
4. 1-class gear position
5. 2-class gear position

compatible for different size of smartphone

1-class gear position

2-class gear position

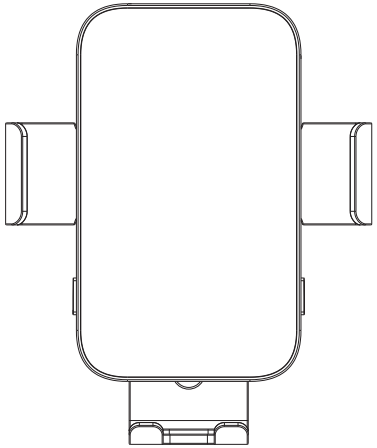

Drop-down Holder Structure Description

Wireless charging is made up of wireless charging transmitter and wireless charging receiver (working principle). Wireless charger you bought is transmitter, receiver was built into smartphone. Wireless charging works well when the transmitter coil position is coincided with receiver coil position.

The receiver coil position is fixed for this product. According to different size of smartphone, making receiver coil position to coincide with transmitter’s, we design drop-down holder to adjust the appropriate charging position to make wireless charge well.

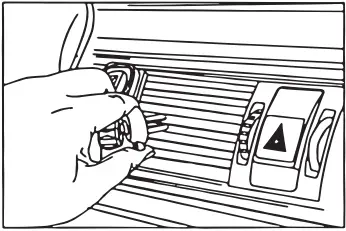

Step to install air vent

1. Follow the arrows to install 3 parts.

2. Adjust the screw cap to the best active status.

3. Press the button of clip to fix, then adjust the angle and tighten the fixed nut.

4. Installation completed

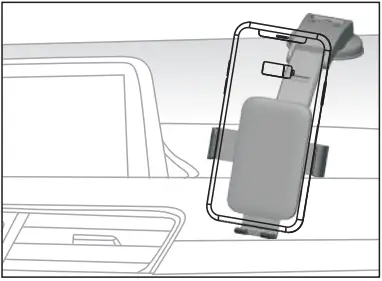

Step to Install Suction Cup

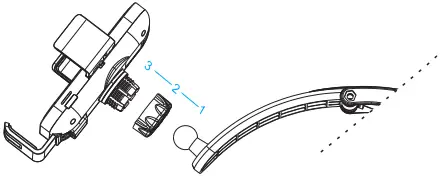

1. Follow the arrows to install 3 parts.

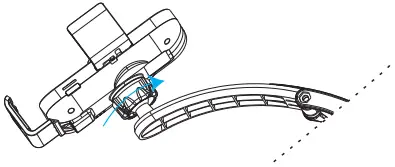

2. Adjust the screw cap to the best active status.

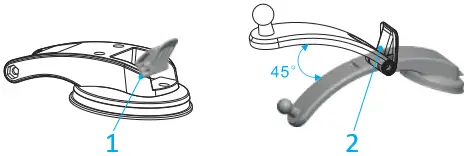

3. Adjust the angle of suction cup and empty air.

1. Press down the lord card buckle
2. Adjust the appropriate angle

4. Installation completed.

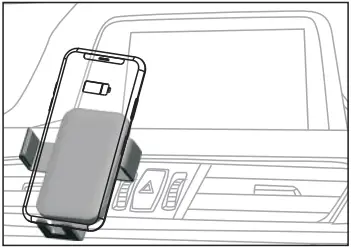

Step to Use wireless charger

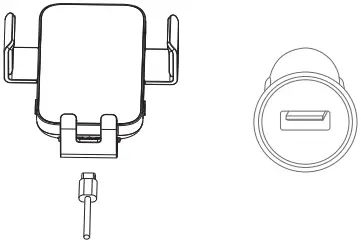

1. Input: Connect the wireless charger and car adapter with the charging cord.

Must use Qualcomm quick charging adaptor for fast wireless charging.

2. Place smartphone.

Tesla coil Sensor-wireless charger

Working Principle- After Coil sensor detect smartphone, it generates current signal, and then transmit signal to the motor to drive the clip to close to tighten smartphone.

The both sides of clip open automatically after being powering, putting on smartphone, clip close automatically to tighten smartphone.

3. Take off smartphone.

Press the key, the clip open automatically, take your phone out.

1. Press-key

4. LED indicator light shows the working status:

1. White LED Light: Standby.
2. Blue LED Light: Charging normally.
3. Red LED Light: Charging abnormally.

1. LED indicator light
