Fast wireless
car charger & motorized mount
TLL151301
User manual

Thank you for choosing us!
Please read this user manual carefully before using the product.
Product specifications:
Input current: 9V / 1.67A, 5V / 2A
Input port: USB Type-C
Cable length: 1m
Output power: Adaptive, 5W / 7.5W /10W (max 1.2A)
Output current: 9V / 1.2A, 5V / 1.5A
Protections: FOD( Foreign Object Detection), Over Voltage,
Over Current, Over Temperature (80 )
Material: ABS
Mounting: Air vent, Dashboard, Windshield
Available colors: Black
Product compatibilities: Fast charging supported by:
iPhone 8/8 Plus/X/XS/XS Max/XR
Samsung S9/S9+/S8/S8+/S7/S7 edge/Note8/Note9/Note5
Standard wireless charging for all Qi-enabled devices

Note: Min. QC2.0 fast charger adapter required for fast wireless charging (not included)
Package includes: 1 x Wireless car charger & automatic mount
1 x 1m Type-C Cable
1 x Air Vent Mount
1 x Suction holder
Product dimensions: 126 x 70 x 21mm
Product weight: 100gr
Compatible devices:
All mobile phones without Qi standard will require an additional receiver (not included)

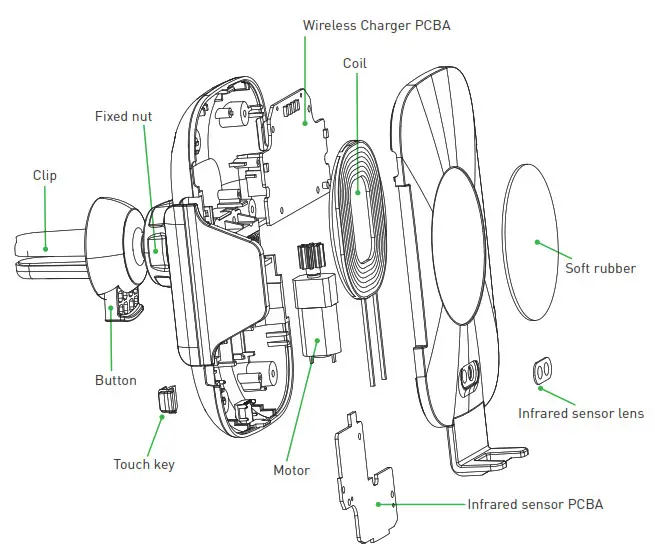

Product overview

Installation steps

1. Air vent installation

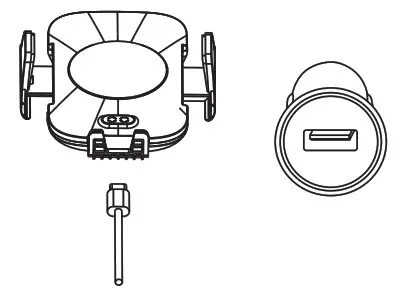

2. Connect the wireless charger to the car adapter using the cable included

   Min. QC2.0 fast charger adapter required for fast wireless charging (not included)

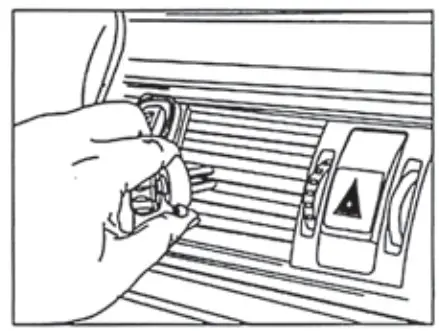

3. Press the button of the clip to fix it in the air vent, adjust the angle and tighten the fixed nut.

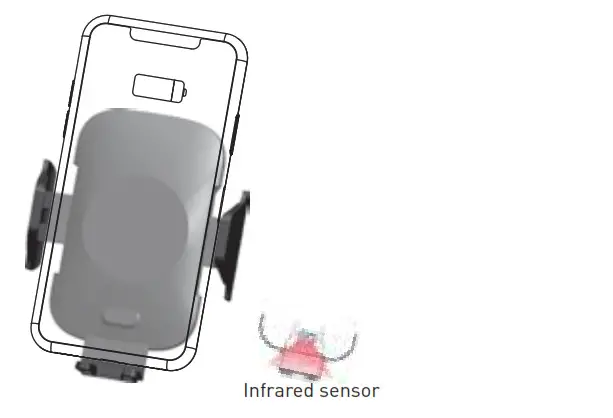

4. Place smartphone The clamps will automatically open and secure lock your phone.
5. Take off smartphone

Touch the on/off button on the left side, the clips will automatically open and you can take your phone out.

Notes

1. Do not disassemble or throw into fire or water, to avoid causing a short circuit.
2. Do not use wireless chargers in severely hot, humid or corrosive environments.
3. Do not place too close to objects with magnetic stripes or chips (ID card, bank cards, etc.) to avoid demagnetization.
4. Please keep a distance at least of 20 cm between implantable medical devices (pacemakers, implantable devices, etc.) and the wireless charger, to avoid potential interference.
5. This product is not a toy, please keep it away from children to avoid unnecessary accidents.

The images from this manual are sketch maps, used for illustrating the instructions. The packet includes a wireless charger, power cable, user’s manual.
