Acefast D1 15w Fast Wireless Charger Car Mount Holder User Manual

D1 15W Fast Wireless Charger Car Mount Holder
User Manual

D1 15W Fast Wireless Charger Car Mount Holder

Dear customer,
Thank you for purchasing our product. Please read the following instructions carefully before first use and keep this user manual for future reference. Pay particular attention to the safety instructions. If you have any questions or comments about the device, please contact the customer line.
✉ www.alza.co.uk/kontakt
✆ +44 (0)203 514 4411
Importer
Alza.cz a.s., Jankovcova 1522/53, Holešovice, 170 00 Praha 7, www.alza.cz

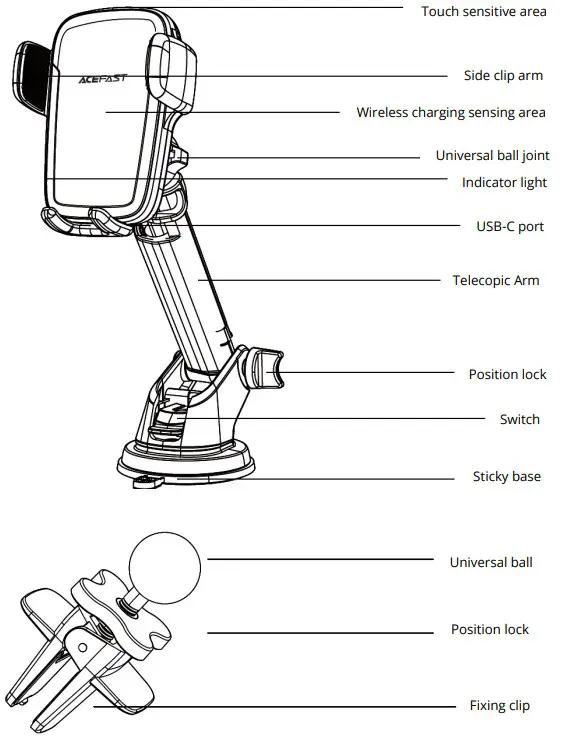

Product description

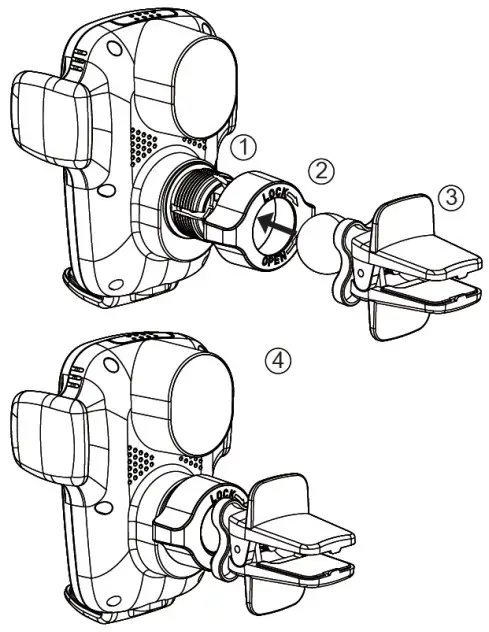

Component assembly

1. Unscrew the knob behind the back clamp, put the bottom universal ball into the bolt, and then tighten the knob.
2. Choose a suitable location and place the holder on the center console or the air outlet.

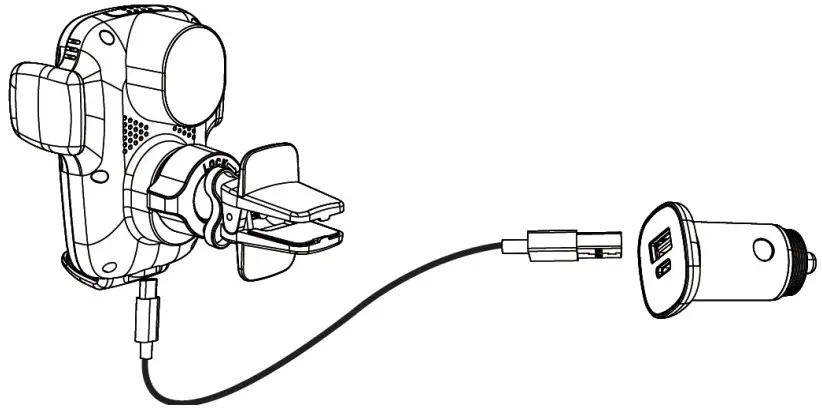

3. Please use the USB-C charging cable provided in the package to connect to the car charger.
   Note: In order to achieve the maximum charging efficiency, please use car charger products that support QC3.0 fast charging technology.
4. Assembly complete, please clip the product into the air outlet inside the car.

1. Use the USB-C charging cable in the package to connect the holder with the car charger.
   Note: In order to achieve the maximum charging efficiency, please use car charger products that support QC3.0 fast charging technology.

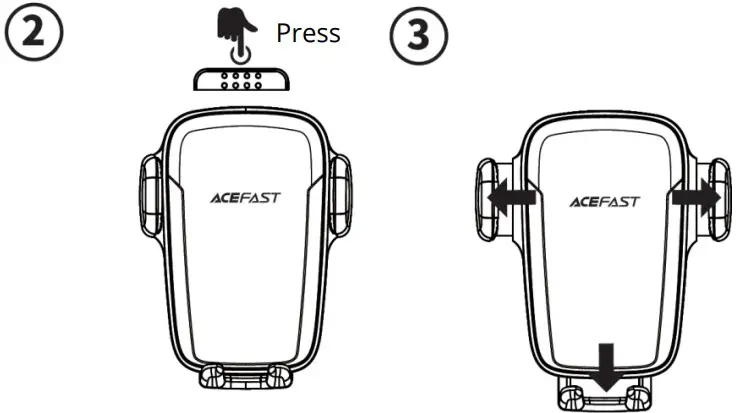

2. Touch the sensing area, the clip arm will open automatically.

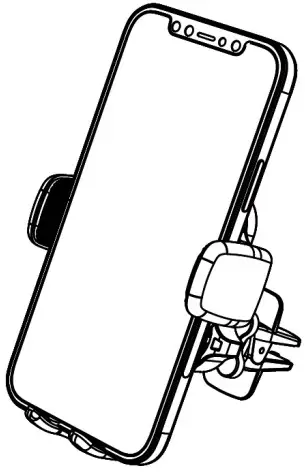

3. Put the mobile phone into the wireless charger.

4. After putting mobile phone, the base will automatically align it to charge coil, and the clip arms will tighten for charging.


LED Indicator

Parameters

Model	JR-ZS248
Input	DC5V 2A 9V 2A 12V  1.5A
Wireless Output	5W/7.5W/10W/15W
Applicable mobile phone size	4.5 – 6.7 inches (width 5884mm)
Size	95x72x62 mm /3.7×2.8×2.4in
Weight	About 252g/8.88oz
Material	ABS+PC, silicone, aluminum alloy.

Precautions

1. Do not disassemble or modify this product by yourself.
2. Do not place this product in a humid environment.
3. Please do not charge near the heat source.
4. Do not let water or other liquids flow into the product, otherwise it will cause damage to the product.
5. Do not install this product in the area where the airbag is located.
6. Please take out the metal and magnetic protective cover or card (such as bank card) from the device when charging.
7. It is normal to generate heat during charging and will not affect product performance.
   If you feel that your phone or product is overheating, please disconnect the charging cable.
8. Avoid collision, do not scratch the surface of this product with sharp objects to avoid surface damage.
9. If sticky base is mounted for a long time, please do not tear it vigorously, please tear it gently along the edge.
10. The sticky base can be washed with water and can be reused after drying.

Warranty Conditions

A new product purchased in the Alza.cz sales network is guaranteed for 2 years. If you need repair or other services during the warranty period, contact the product seller directly, you must provide the original proof of purchase with the date of purchase. The following are considered to be a conflict with the warranty conditions, for which the claimed claim may not be recognized:

• Using the product for any purpose other than that for which the product is intended or failing to follow the instructions for maintenance, operation, and service of the product.
• Damage to the product by a natural disaster, the intervention of an unauthorized person or mechanically through the fault of the buyer (e.g., during transport, cleaning by inappropriate means, etc.).
• Natural wear and aging of consumables or components during use (such as batteries, etc.).
• Exposure to adverse external influences, such as sunlight and other radiation or electromagnetic fields, fluid intrusion, object intrusion, mains overvoltage, electrostatic discharge voltage (including lightning), faulty supply or input voltage and inappropriate polarity of this voltage, chemical processes such as used power supplies, etc.
• If anyone has made modifications, modifications, alterations to the design or adaptation to change or extend the functions of the product compared to the purchased design or use of non-original components.

EU Declaration of Conformity

Identification data of the manufacturer’s / importer’s authorized representative:
Importer: Alza.cz a.s.
Registered office: Jankovcova 1522/53, Holešovice, 170 00 Prague 7
CIN: 27082440
Subject of the declaration:
Title: Mobile phone holder
Model / Type: Acefast-D1
The above product has been tested in accordance with the standard(s) used to demonstrate compliance with the essential requirements laid down in the Directive(s):
Directive No. 2014/53/EU
Directive No. 2011/65/EU as amended 2015/863/EU
Prague, 7.3. 2022

WEEE
This product must not be disposed of as normal household waste in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE – 2012/19 / EU). Instead, it shall be returned to the place of purchase or handed over to a public collection point for the recyclable waste. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. Contact your local authority or the nearest collection point for further details. Improper disposal of this type of waste may result in fines in accordance with national regulations.
