ZENY FBA_D1-1090A@#JA0681 Rotary Vane Economy Vacuum Pump
PRODUCT INTRODUCTION
Buyers will receive excellent service and high-quality goods from ZENY Direct. Since 2013, we have offered a variety of product lines to meet the needs of all customers, including ordinary household things, products for business & industry, pet supplies, sports & outdoor gear, and much more. We will continue to devote ourselves to maintaining high standards for goods and services in order to gain more customers’ trust because of our dedicated team and quality-assured products.
- What Distinguishes Our Products?
Rich and developed product lines and a strong after-sales support team are strengths of ZENY. Most importantly, we respect customer feedback and continue to improve and advance product quality and design.
- What makes us enjoy what we do?
A team of love and accountability makes up the ZENY family. Offering customers top-notch goods and services makes us pleased. These all give us a sense of contentment and satisfaction.
- What issue are we trying to solve?
With the help of pet supplies, household goods, apparel for the outdoors and indoors, cosmetics and personal care, and other items, we’re attempting to build a harmonious home environment.
SPECIFICATIONS
- Brand: ZENY

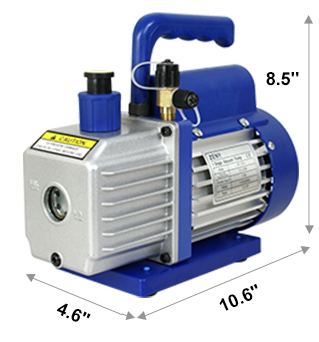

- Product Dimensions: 12.6 x 10.63 x 6.3 inches;
- Weight7 Pounds
- Item model number: FBA_D1-1090A@#JA0681
- Pressure Scale: 0400psi, 0140psi,
- Inlet Port: 1/4″ Flare 2)
- Hose length: 1.2m
WHAT’S IN THE BOX
- Rotary Vane Economy Vacuum Pump
- User Manual
DESCRIPTION

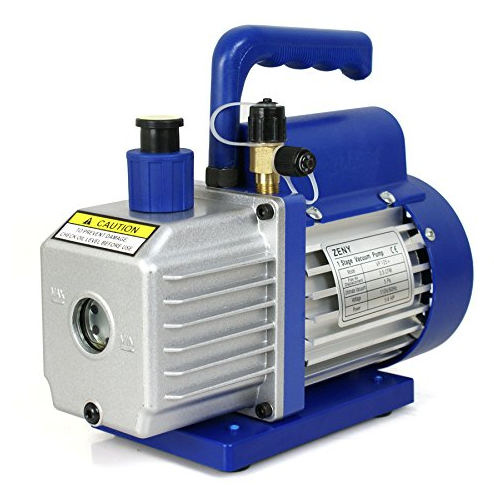

All-copper Rotary Vane Vacuum Pump from ZENY
Warm Remark:
Please get in touch with the seller right away if the pump overheats or the fitting isn’t right; a remedy is waiting. Please confirm that your manifold gauge matches this size. Thanks.
- To prevent an oil shortage and motor burnout, use a visual fuel tank.
- High-performance capacitor, quick start, anti-wave, ensures output stability
- A clever radiator: Something stuck has the ability to defend itself and keep from burning out.
- One-way valve: automated power failure cutoff, efficiently stop gas reflux
- Oil Reservoir Bottom Positioned Oil Drain Plug
- Direct drive motor allowing for simple starting and maintenance-free operation

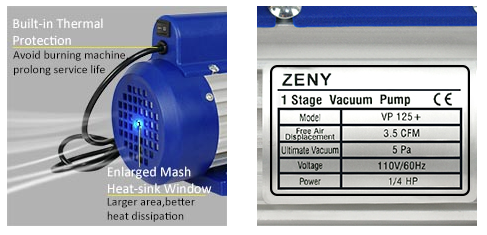

Thermal Protection Built-In
- Internal heat protection prevents machine burning and lengthens machine life.
- Increase the radiation window and quickly dissipate heat. Fast heat dissipation, efficient machine performance protection, format heat dissipation window design.
Vacuum Pump, Single Stage
- Port of Inlet: 1/4″ Flare
- 110V/60Hz is the voltage and frequency.
- 100 L/MIN at 3.5 CFM for VP 125
- Ultimate Vacuum: 0.05 m bar or 5 Pa
- Strength: 1/4 HP
- 320 ml Oil Capacity
- Pressure Scale: 0 to 400 and 0 to 140 psi
- Hose length: 1.2 m
- Red: 1/4″-1/4″, Yellow: 1/4″-1/4″, etc.
- Blue:1/4”-1/4”

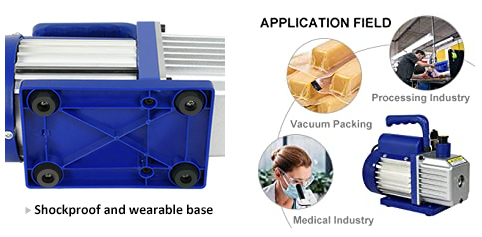

The base that is Wear-Resistant and Shock-Proof
The ZENY vacuum pump base is comprised of composite rubber, which provides seismic resistance and stress absorption while extending machine life.
Four rubber bottoms improve the stability of the product.
Numerous Applications
Numerous uses: suited for vacuum packaging, refrigerator vacuum, industry, home air conditioning, car maintenance, etc.

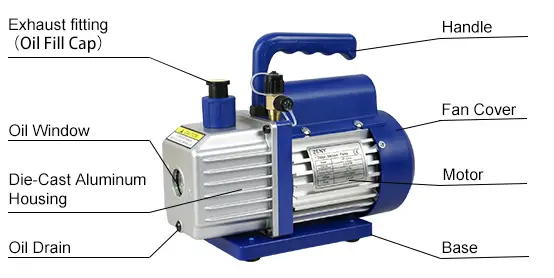

FEATURES
- Oil Drain Plug Positioned at Bottom of Oil Reservoir, Heavy-Duty Aluminium Alloy Casing, Internal High Volume Cooling Fan for Extended U
- Exhaust Port with Exhaust Cap and Direct Drive Motor for Simple and Maintenance-Free Starting
- Oil Sight Glass With ON/OFF Switch To Check Oil Levels
- Non-Slip Cushion Handle, Vacuum Oil Bottle Included
- Casing Made of a Heavy Aluminium Alloy
- For prolonged use, an internal high-volume cooling fan
- Port for Exhaust and Exhaust Cap
- Monitoring Oil Levels With An Oil Sight Glass
- Switch (ON/OFF)
- Handle for Non-Slip Cushion
- Has a Bottle of Vacuum Oil Included
FREQUENTLY ASKED QUESTIONS
The voltage and frequency of the pump are 110V/60Hz.
The ultimate vacuum of the pump is 0.05 m bar or 5 Pa.
The oil capacity of the pump is 320 ml.
The pressure scale of the pump is 0 to 400 and 0 to 140 psi.
The hose length of the pump is 1.2m.
The oil sight glass is used to monitor oil levels.
The pump is suited for vacuum packaging, refrigerator vacuum, industry, home air conditioning, car maintenance, and more.
The strength of the pump is 1/4 HP.
Yes, the pump comes with a user manual.
Please get in touch with the seller right away if the pump overheats or the fitting isn’t right; a remedy is waiting.
A rotary vane vacuum pump in its simplest definition is a type of pump technology that enables the compression of air inside the pump chamber to create suction for the removal of air molecules from a vessel or area. The rotary vane vacuum pump works on a positive-displacement pumping principle.
Pfeiffer Vacuum rotary vane pumps cover an extremely wide range of pumping speeds from 1.25 to 1,600 m3/h (60 Hz to 1,920 m3/h). Two different types of pumps are available to choose from: single-stage and two-stage rotary vane pumps.
If the pump cannot move at all, possible reasons may include too low a starting temperature, an oil level that is too high, or foreign matter in the pump such as oxide or welding slag.
During the initial part of the evacuation process, the gas ballast should be opened, allowing relatively dry atmospheric air to enter the vacuum pump. Once the system’s micron level approaches about 3,000 microns, it should be closed for the remainder of the evacuation process.
The pump needs to run the entire time to keep the vacuum at the fullest level. My chambers do not even have a valve between the pump and chamber for this very reason. As soon as you shut off the vacuum, the level of vacuum inside the chamber begins to slowly go down.
