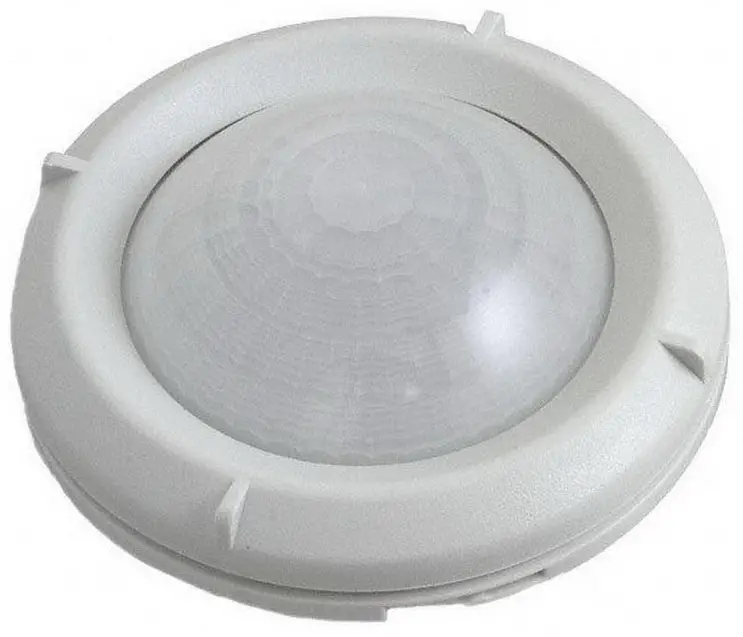

Current WSP-L360-WH Occupancy Sensors Lens
LENS SPECIFICATIONS

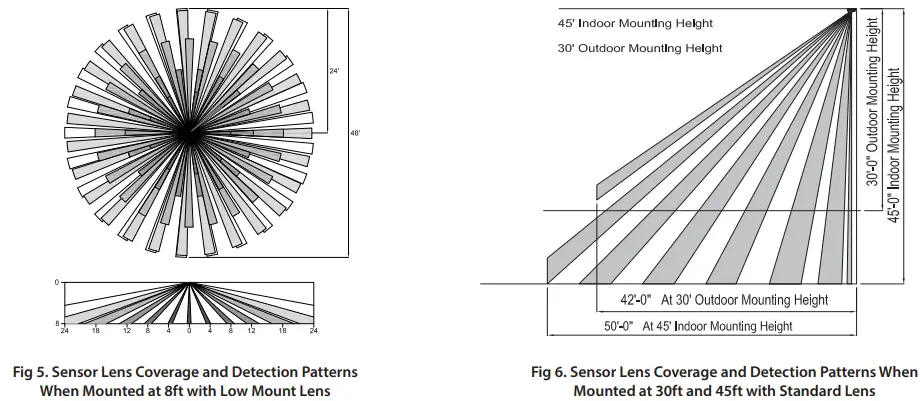

- Coverage: lens: 3:1 coverage up to 8-16 ft.. Example: 8 ft. mounting x 3 = 24 ft. radius.
- Low Temp/ Water Tight/ Indoor-Outdoor (LWO) lenses must be used with LWO sensors in order to insure proper operation.
INSTRUCTIONS
NOTE: prior to installing the lens onto the sensor body, apply a generous amount of the supplied O-ring lubricant to the entire length of the lens O-ring. Failure to
do so may allow water to enter the housing and will void the warranty.

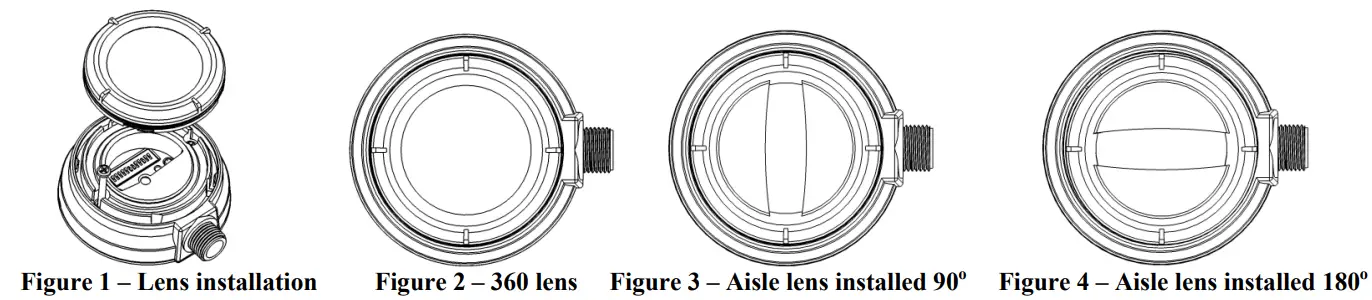

- To attach lens: Place lens assembly flush onto sensor module and rotate clockwise approximately five degrees to lock into place (see Figure 1.) Lens may be
installed on sensor module rotated ninety degrees (See Figures 3 and 4.) - To remove lens: Rotate lens assembly counter clockwise approximately five degrees and lift off.
