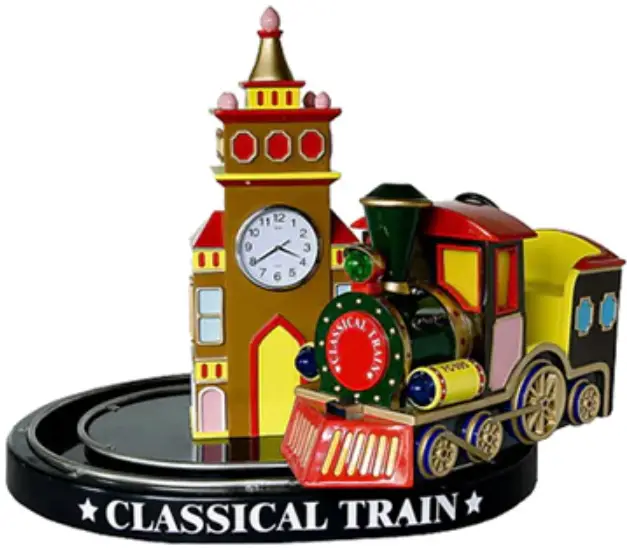

Barron Games Fc-095 Classic Train Owner's Manual

BARRON GAMES FC-095 Classic Train Owner’s Manual

Specification

Dimension L190 x W150 x H150 cm
Weight 120 kgs
Voltage 110V AC, 60Hz, 3A Max 6A 220VAC, 50Hz, 3A, Max 6A

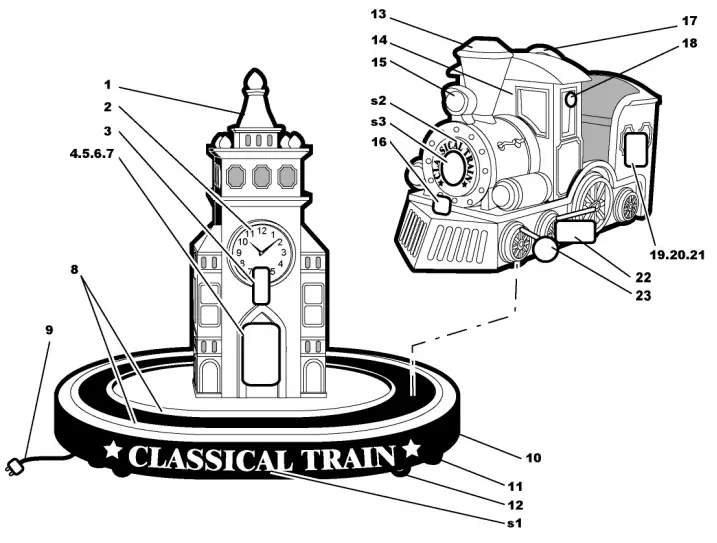

Classical train detail manual

1. Train station FRP
2. Clock
3. Electronic coin machine(key01)
4. Control door(key#1)
5. Coin box(key#2)
6. Single frame for controller
7. Controller
8. Track with AC 12V
9. Power-plug locates at rear of base
10.  FRP base
11. Fixer
12. VVheel
13. Train FRP
14. Light#11
15. Light#2
16. Sensor
17. Steering Wheel/$2
18. Sound button
19. Maintenance door-big
20. Single frame for music box
21. Music Box – Train Sounds
22. Motor
23. Stainless steel wheel s1-53. Sticker

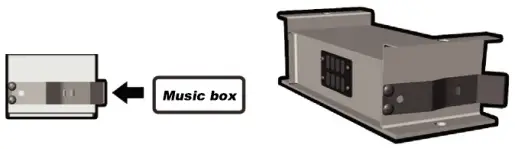

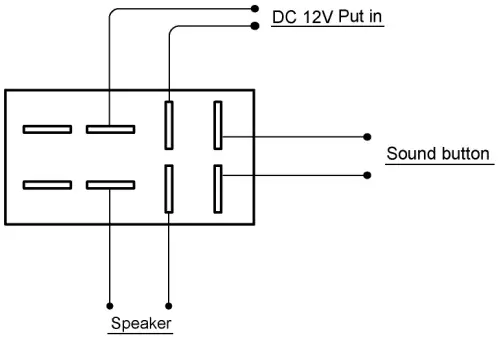

Single Frame For Music Box Wire Manual

size: W188mm x L78mm x H57mm

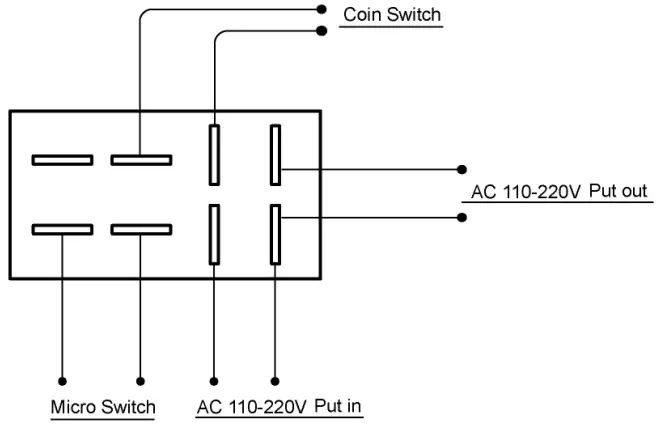

Single Frame For Controller Wire Manual

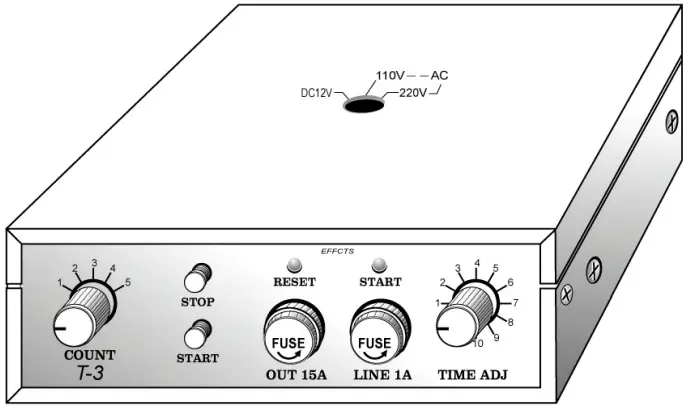

Controller Operating Manual

Count: Adjust the coin from 1 coin to 5 coins
Stop Button: For Checking machine without insert coin to ‘STOP” the machine
Start Button: For Checking machine without insert coin to ‘START’ the machine
Reset: Red lighting when power connect
Start: Green lighting when machine start to working 1-12 play  Time adjust:

1. 1 Minute and 30 Seconds
2. 1 Minute and 40 Seconds
3. 1 Minute and 50 Seconds
4. 2 Minutes
5. 2 Minutes and 30 Seconds
6. 3 Minutes
7. 3 Minutes and 30 Seconds
8. 4 Minutes
9. 4 Minutes and 30 Seconds
10. 5 Minutes
11. 10 Seconds for testing
12.  0

• Front view

• Side view

• Back view

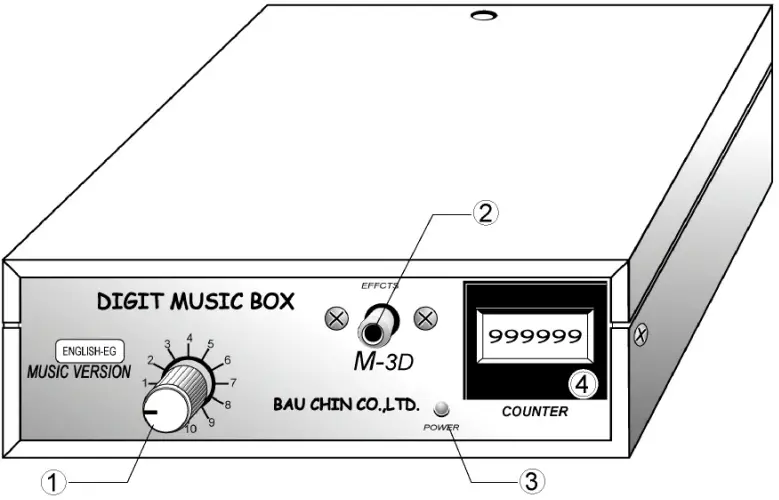

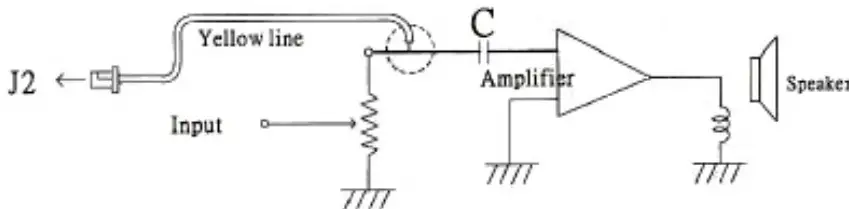

Music Box Operating Manual

1. 1-12: Sound volumes adjust
2. Sound buttom connection
3. Power light: When power connect
4. Counter: Coin Counter
5. Music: 12 English kiddy songs to repeat
   1. Front view

   2. Side view

   3. Back view

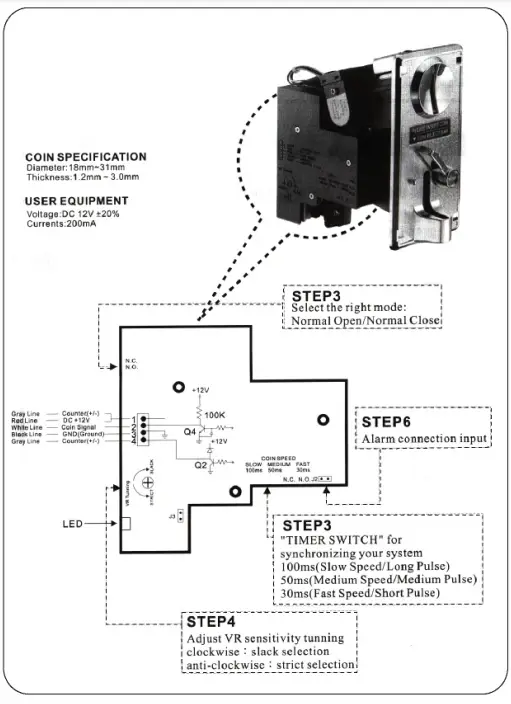

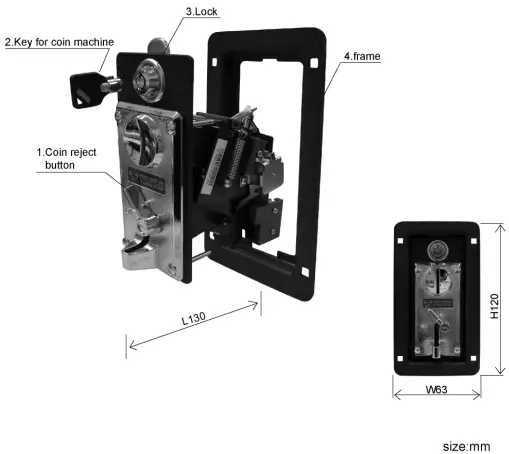

Electronic Coin Machine Operating Manual

Electronic Coin Machine Operating Manual

DIDGITAL COMPARABLE ELECTRONIC

INSTALLATION HI-07CS.LED

STEP1
Cheng the right coin for use from the damp.

STEP2
Adjust the right insert we for use from the front panel back side.

STEP3
Select the right mode: Normal Open/ Normal Close’ TIMER SNATCH’ for synchronizing your system.
100ms (Slow Speed/ Long Pulse)
50ms (Medium Speed/ Medium Pulse)
30ms (Fast Speed/ Shod Pulse)

STEP4
Adjust VR sensitivity tunning
Clockwise: slack selection (LED dark->light)
Anti-clockwise: strict selection (LED light->dark)

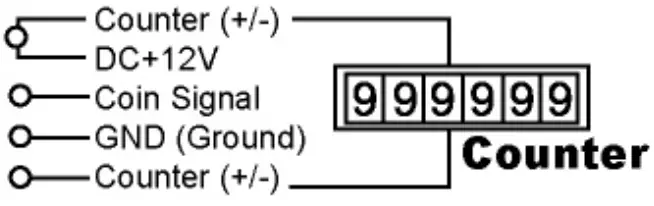

STEP5

STEP6

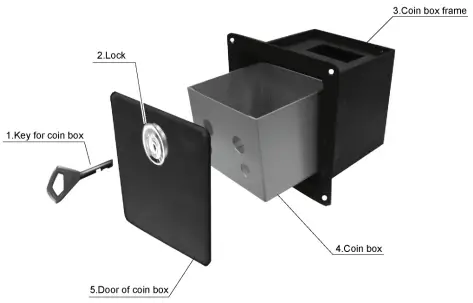

Coin Box Manual

size: 1A/175mm x L145mm x H175mm

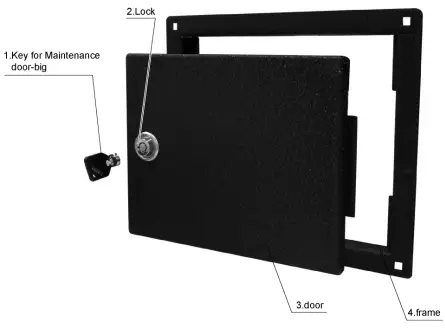

Maintenance Door-Big Manual

size:IA/267mm x L2Omm x H232mm

Part list -Classical Train FRP Model Assembly

item not illustrated
