Nissan My21.5 Np300 Face Lift Dual Cab Instruction Manual

 4×4 Accessories
www.Hsputelids.com
1300 441 498
Part No: NN12-1
Fitting Time: 30 mins
Nissan NP300 Navara Face Lift Dual Cab
MY21.5

MY21.5 NP300 Face Lift Dual Cab

HSP TAIL ASSIST
Fitting instructions

General Notes

– Read through the fitting instructions before installation of the accessory.
– Ensure all recyclable components and packaging are discarded and recycled following local recycling regulations.
– Safely store and protect any removed vehicle components.
– Read through the fitting instructions prior to installation of the accessory.
– Ensure all recyclable components and packaging are discarded and recycled following local recycling regulations.
– Safely store and protect any removed vehicle components.

Safety Notes

– Check that all work practices comply with safety standards.
– Please wear appropriate clothing and use safety equipment.
– Check that all work practices comply with safety standards.
– Please wear appropriate clothing and use safety equipment.

Fitting time

30 mins

Parts Supplied

Step 1
Open tailgate.

Step 2

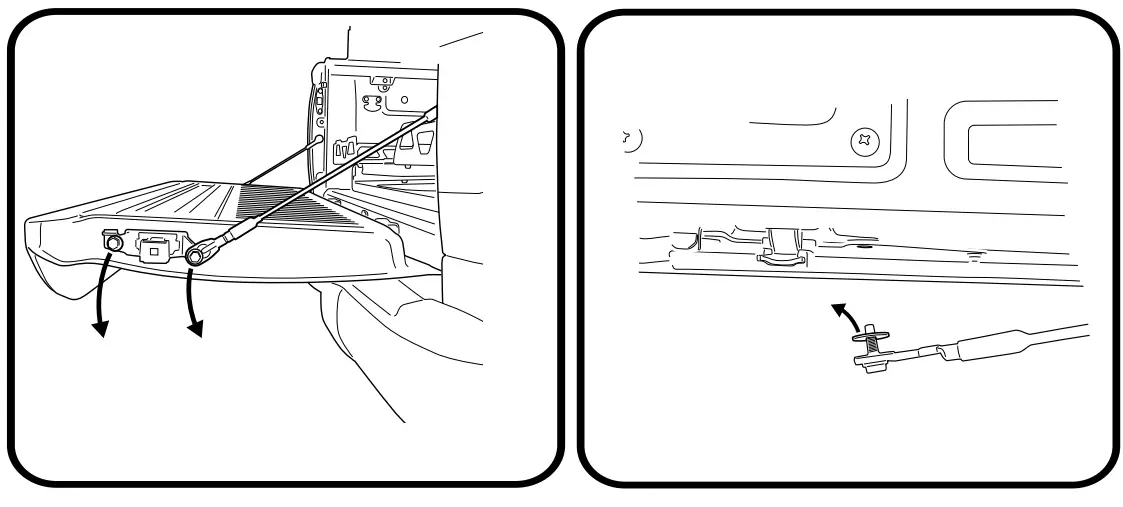

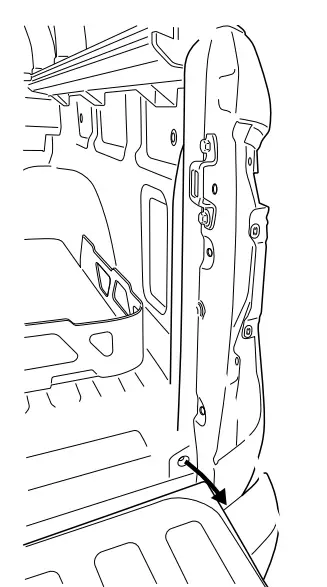

Remove the indicated bolt.

Step 3

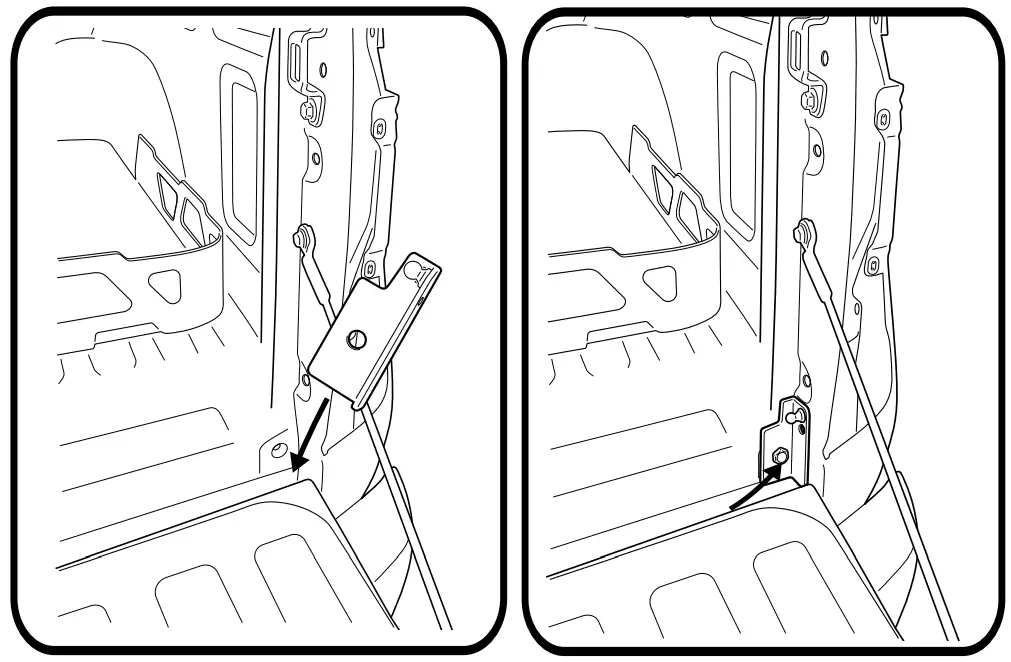

Place part number TA-22 ( Tub mount right hand) as indicated. Using the factory bolt retained, now secure in place.

Step 4

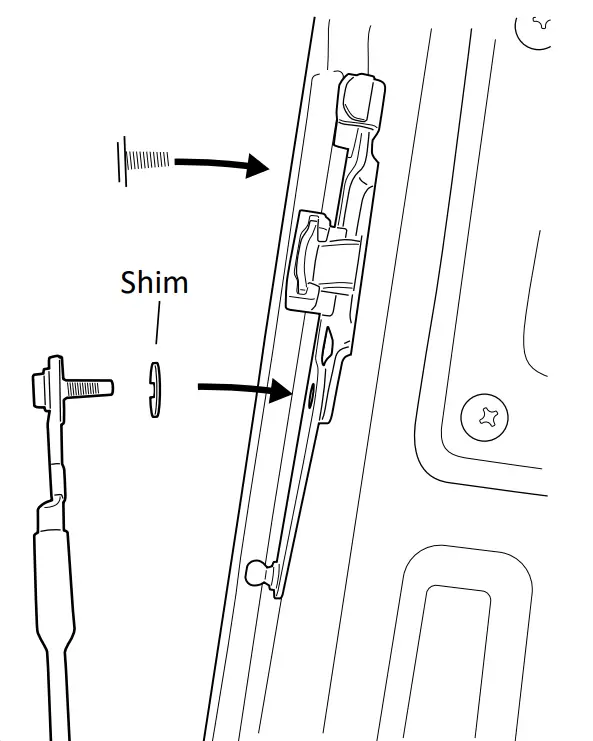

1. Remove indicated bolts and retain them.
2. Remove and discard the steel washer, please retain the shim washer.


Step 5

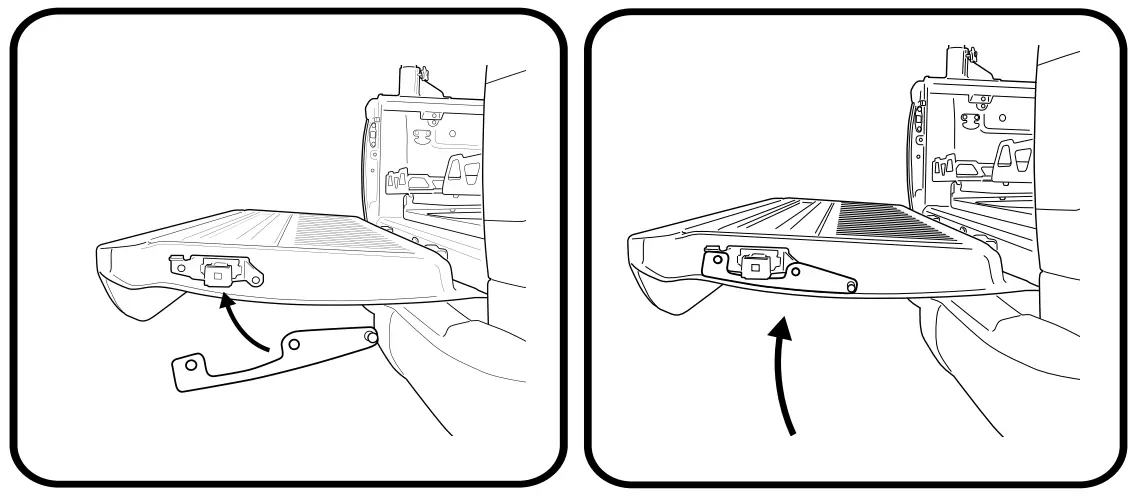

Place TA-21 as indicated.

Step 6

1. Fasten the bracket into place using the retained bolts.
2. Inspect the factory strap making sure it can move freely.

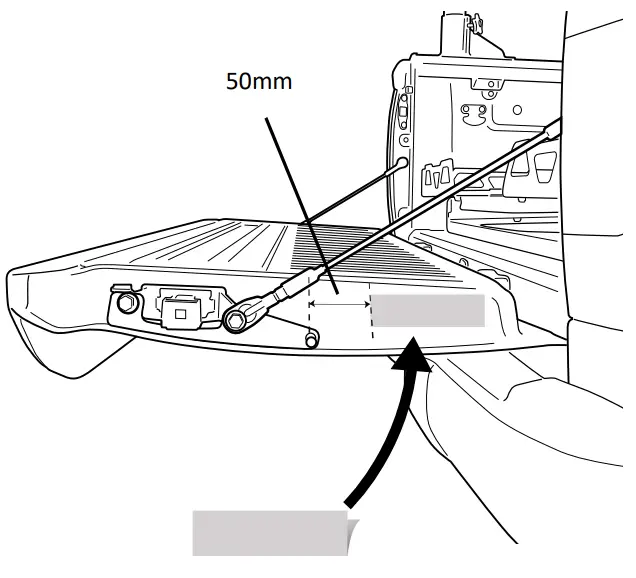

Peel the backing of the TR-320 clear tape & apply it to the indicated area.

Step 7

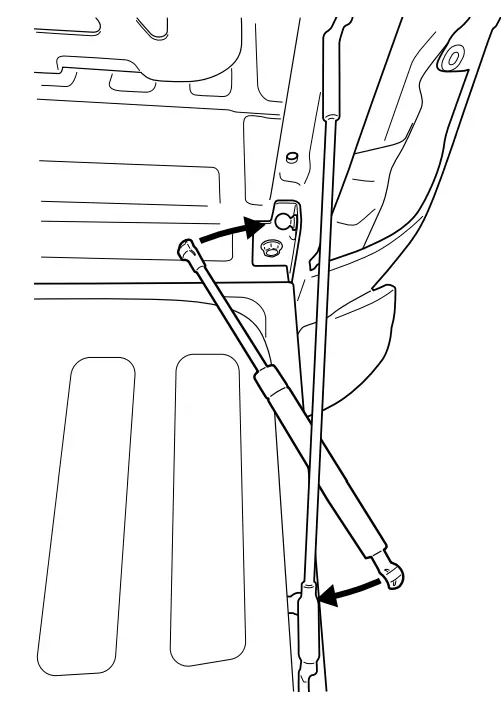

1. Connect part number KSD SPEC 1( Dampener strut) as indicated. You will need to pull on the shaft to extend and click in to position.

Fitting complete
