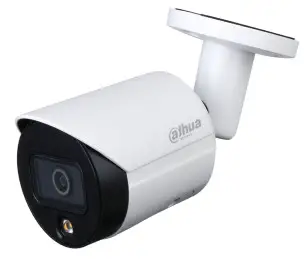

DH-IPC-HFW2439S-SA-LED-S2
4MP Lite Full-color Fixed-focal Bullet Network Camera
Series Overview
With upgraded H.265 encoding technology, the Dahua Lite series network camera has efficient video encoding capacity, which saves bandwidth and storage space. his camera adopts the latest full-color technology and displays better color images in the condition of low illumination. It supports SD card storage, dust-proof unction, waterproof function, and vandal-proof function, complying to the standards of IP67.
Functions
Smart H.265+ & Smart H.264+
With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes the higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Full-color
With a high-performance sensor and large aperture lens, Dahua Full-color technology can display clear colorful images in the environment of ultralow illuminance. With this photosensitivity technology, the camera can capture more available light, and display more colorful image details. 4MP, 1/3″ CMOS image sensor, low illuminance, high image definition
- Outputs 4MP (2560 × 1440) @ 25/30 fps, Max. supports 4MP (2688 × 1520) @ 20 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in warm lights, max. illumination distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, scene changing, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Built-in Mic
- Supports max. 256 GB Micro SD card
- 12V DC/PoE power supply
- IP67 protection
WDR
With advanced Wide Dynamic Range (WDR) technology, Dahua network the camera provides clear details in the environment of strong brightness contrast. The bright and dark areas can get clear video even in a high brightness environment or with backlight shadow.
IVS
With an advanced video algorithm, Dahua IVS technology supports
intelligent functions, such as tripwire and intrusion.
Protection (IP67, wide voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can works normally after soaking in 1 m deep water for 30 minutes.
Wide voltage: The camera allows ±30% input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
Technical Specification
Camera
| Camera | 1/3”4Megapixel progressive CMOS |
| Image Sensor | 2688 (H) × 1520 (V) |
| Max. Resolution | 128 MB |
| ROM | 128 MB |
| RAM | Progressive |
| Scanning System | Auto/Manual 1/3 s–1/100,000 s |
| Electronic Shutter Speed | 0.004 [email protected] |
| Minimum Illumination | > 56 dB |
| S/N Ratio | 30 m (98.4 ft) |
| Illumination Distance | l Auto/Manual |
| Illuminator On/Off Control | 1 (Warm light) |
| Illuminator Number | Pan: 0°–360° Tilt: 0°–90° |
Lens
| Lens Type | Fixed-focal | ||||
| Mount Type | φ14 | ||||
| Focal Length | 2.8 mm 3.6 mm | ||||
| Max. Aperture | 2.8 mm: F1.0 3.6 mm: F1.0 | ||||
| Field of View | 2.8 mm: 96° (Horizontal) × 51° (Vertical) × 115°(Diagonal) 3.6 mm: 81° (Horizontal) × 44° (Vertical) × 97° (Diagonal) | ||||
| Iris Type | Fixed | ||||
| Close Focus Distance | 2.8 mm: 1.3 m (4.3 ft) 3.6 mm: 1.8 m (5.9 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 56.0 m (183.7 ft) | 22.4 m (73.5 ft) | 11.2 m (36.7 ft) | 5.6 m (17.1 ft) | |
| 3.6mm | 72.0 m (236.2 ft) | 28.8 m (94.5 ft) | 14.4 m (47.2 ft) | 7.2 m (23.6 ft) | |
Smart event
| General IVS Analytics | Tripwire; intrusion |
Video
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps)Sub stream: 704 × 576 (1 fps–20/25 fps) |
| Stream Capability | 2 streams |
| Resolution | 2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6144 kbps |
| Day/Night | Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; motion detection; video tampering; tripwire; intrusion; illegal access; voltage detection; audio detection; safety exception |
Network
| Network | RJ-45 (10/100 Base-T) |
| SDK and API | Yes |
| Protocol | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4/v6; QoS; UPnP; NTP; RTMP; Multicast; HTTPS; SFTP; 802.1x; ICMP; IGMP; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 72 M.) |
| Storage | Dahua Cloud; FTP; Micro SD card (support max. 256 G); NAS; SFTP |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
Certification
| Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B |
Power
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 6.2W |
Environment
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% RH |
| Storage Temperature | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
Structure
| Casing | metal |
| Dimensions | 100.9 mm × Φ109.9 mm (4.0″ × Φ4.3″) |
| Net Weight | 0.365 kg (0.8 lb) |
| Net Weight | 0.527 kg (1.2 lb) |
Ordering Information
| Type | Part Number | Description |
| 4MP Camera | DH-IPC-HFW2439SP-SALED-S2 | 4MP Lite Full-color Fixed-focal Bullet Network Camera,PAL |
| DH-IPC-HFW2439SN-SALED-S2 | 4MP Lite Full-color Fixed-focal Bullet Network Camera,NTSC | |
| Accessories(optional) | PFA134 | Junction Box |
| PFA152-E | Pole Mount | |
| PFM321D | DC12V1A Power Adapter | |
| LR1002-1ET/1EC | Single-port Long Reach Ethernet over Coax Extender | |
| PFM900-E | Integrated Mount Tester | |
| PFM114 | TLC SD Card |
Accessories
Optional:
 | PFA134 Junction Box |
 | PFA152-E Pole Mount |
 | PFM321D DC12V1A Power Adapter |
 | LR1002-1ET/1EC Single-port Long Reach Ethernet over Coax Extender |
 | PFM900-E Integrated Mount Tester |
 | PFM114 TLC SD Card |
| Pole mount | junction Mount |
| PFA134+PFA152-E | PFA134 |
 |  |

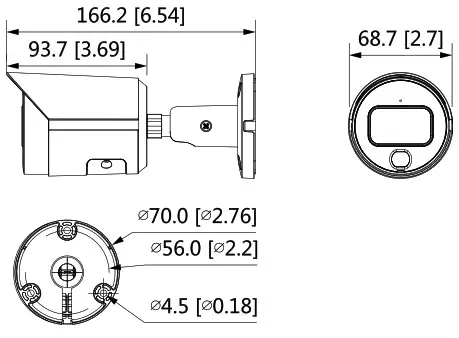

Dimensions (mm[inch])
Rev 001.001
© 2020 Dahua. All rights reserved. Design and specifications are subject to change without notice.
Pictures in the document are for reference only, and the actual product shall prevail.
