DH-IPC-HFW1430DS-SAW 4MP IR Fixed Focal WiFi Bullet Network Camera
User Guide
DH-IPC-HFW1430DS-SAW 4MP IR Fixed Focal WiFi Bullet Network Camera
Wi-Fi Series | DH-IPC-HFW1430DS-SAW

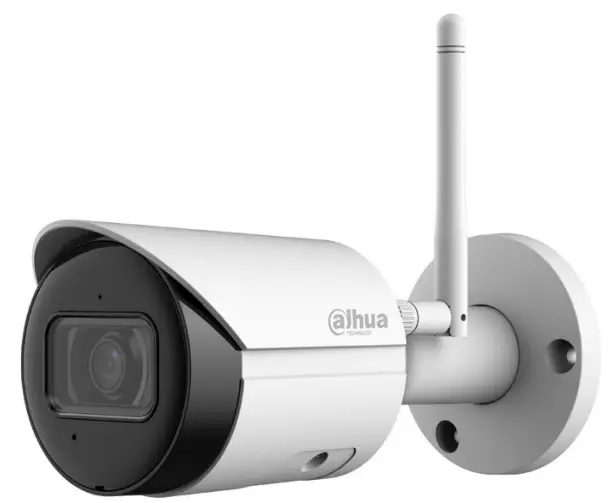

DH-IPC-HFW1430DS-SAW
4MP IR Fixed-focal Wi-Fi Bullet Network Camera
Series Overview
With features of simple installation, easy operation, and high performance-cost ratio, the Dahua Entry series network camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.
- 4-MP 1/3″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in IR LED. · SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- DWDR, 3D NR, BLC, and digital watermarking, are applicable to various monitoring scenes.
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
- Supports antenna 2.4G Wi-Fi, up to 80m range in an open area
- Supports max. 256 G Micro SD card.Built-in MIC.
- 12 VDC power supply. · IP67 protection.
Functions
Smart H.265+ & Smart H.264+ With an advanced scene-adaptive rate control algorithm, Dahua smart encoding technology realizes a higher encoding efficiency than H.265 and H.264, provides high-quality video, and reduces the cost of storage and transmission.
Cyber Security Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device.
Motion Detection
When moving objects appear in the monitoring image, Dahua Motion Detection technology triggers alarms or records.
Day/Night
Dahua Day/Night function provides color images when illumination is adequate; when illuminance is inadequate, it switches to night mode and provides the white and black image. It can guarantee that the network camera can work normally when illuminance changes.
Protection (IP67, Wide Voltage)
IP67: The camera passes a series of strict tests on dust and soak. It has a dust-proof function, and the enclosure can work normally after soaking in 1 m deep water for 30 minutes. Wide voltage: The camera allows ±30% (for some power supplies) input voltage tolerance (wide voltage range), and it is widely applied to outdoor environments with unstable voltage.
- 4-MP 1/3″ CMOS image sensor, low luminance, and high definition
- Outputs 4 MP (2560 × 1440)@20 fps, and max. supports 3 MP (2304 × 1296)@25/30 fps.
- 265 codec, high compression rate, ultra-low bit rate.
- Built-in IR
- SMART 264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- DWDR, 3D NR, BLC, and digital watermarking, are applicable to various monitoring sensors.
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
- Supports antenna 4G Wi-Fi, up to 80m range in an open area
- Supports 256 G Micro SD card. Built-in MIC.
- 12 VDC power
- IP67
Cyber Security
Dahua network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from compromising the device
Technical Specification
Camera
| Image Sensor | 1/3″ CMOS |
| Max. Resolution | 2560 (H) × 1440 (V) |
| ROM | 16 MB |
| RAM | 64 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.03 [email protected] (Color, 30 IRE) 0.003 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.43 ft) (IR LED) |
| Illuminator On/Off Control | Auto; Manual |
| Illuminator Number | 1 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–90° Rotation: 0°–360° |
Lens
| Lens Type | Fixed-focal | ||||
| Lens Mount | M12 | ||||
| Focal Length | 2.8 mm; 3.6 mm | ||||
| Max. Aperture | F2.0 | ||||
| Field of View | 2.8 mm: Horizontal: 90°; Vertical: 50°; Diagonal: 107° 3.6 mm: Horizontal: 76°; Vertical: 40°; Diagonal: 92° | ||||
| Iris Control | Fixed | ||||
| Close Focus Distance | 2.8 mm: 1.0 m (3.28 ft) 3.6 mm: 1.4 m (4.59 ft) | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8 mm | 68 m (223.10 ft) | 27.2 m (89.24 ft) | 13.6 m (44.62 ft) | 6.8 m (22.31 ft) | |
| 3.6 mm | 85.2 m (279.53 ft) | 34.1 m (111.88 ft) | 17.0 m (55.77 ft) | 8.5 m (27.89 ft) | |
Video
| Video Compression | H.264B; H.264; H.264H; H.265 |
| Smart Codec | Smart H.265+; Smart H.264+ |
| Video Frame Rate | Main stream: 2560 × 1440 (1–20 fps) Sub stream: 640 × 480@(1–25 fps) 640 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
| Stream Capability | 2 streams |
| Resolution | 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M(1280 × 960); 720p (1280 × 720) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 24 kbps–4096 kbps H265: 9 kbps–4096 kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| WDR | DWDR |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Image Rotation | 0°/180° |
| Mirror | Yes |
Audio
| Built-in MIC | Yes |
Alarm
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering;audio detection; intensity change; SMD (human) |
Network
| Network Port | RJ-45 (10/100 Base-T) |
| Wi-Fi | IEEE802.11b/g/n 2.4~2.4835GHz |
| Wireless Range | Up to 80 m (The performance varies based on the actual environment) |
| SDK and API | Yes |
| Cyber Security | Video encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; Generation and importing of X.509 certification; HTTPS; Trusted boot; Trusted execution; Trusted upgrade |
| Network Protocol | IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; |
| Interoperability | ONVIF (Profile S/Profile G); CGI; P2P |
| User/Host | 6 (Total bandwidth: 36 M) |
| Storage | Micro SD card (support max. 256 GB, sold separately) |
| Browser | IE Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | iOS; Android |
Certification
|
Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C |
Power
| Power Supply | 12 VDC |
| Power Consumption | Basic: 2 W (12 VDC) Max. (H.265+IR intensity): 4.1 W (12 VDC) |
Environment
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Storage Temperature | –30 °C to +70 °C (–22 °F to +158 °F) |
| Protection | IP67 |
Structure
Casing | Metal |
| Product Dimensions | 166.2 mm × 70.0 mm × 128.6 mm (6.53″ × 2.76″ × 5.06″) |
| Net Weight | 477.9 g (1.05 lb) |
| Gross Weight | 696.5 g (1.50 lb) |
Ordering Information
Type | Model | Description |
| 4MP Camera | DH-IPC- HFW1430DSP-SAW- 0280B | 4MP IR Fixed-focal Wi-Fi Bullet Network Camera |
| DH-IPC- HFW1430DSP-SAW- 0360B | 4MP IR Fixed-focal Wi-Fi Bullet Network Camera | |
| DH-IPC- HFW1430DSN-SAW- 0280B | 4MP IR Fixed-focal Wi-Fi Bullet Network Camera | |
| DH-IPC- HFW1430DSN-SAW- 0360B | 4MP IR Fixed-focal Wi-Fi Bullet Network Camera | |

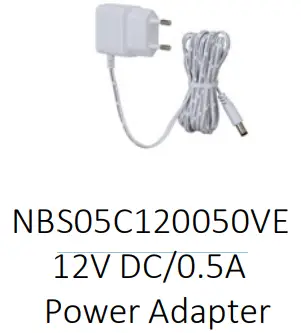

| Accessories | NBS05C120050VE | 12V DC/0.5A Power Adapter |
| PFA134 | Junction Box | |
| PFA152-E | Pole Mount | |
| PFM900-E | Integrated Mount Tester | |
| TF-P100 | MicroSD Memory Card |

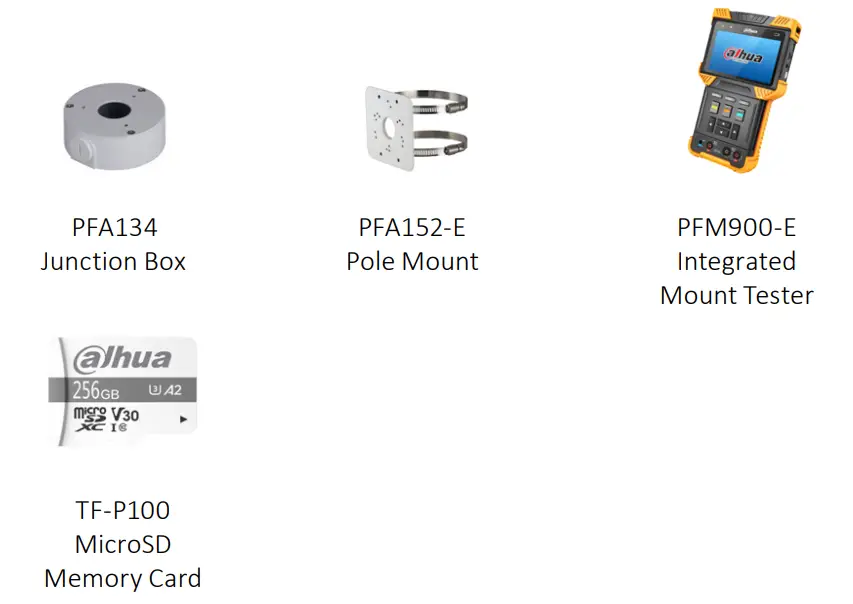

Accessories
Included:
Optional:

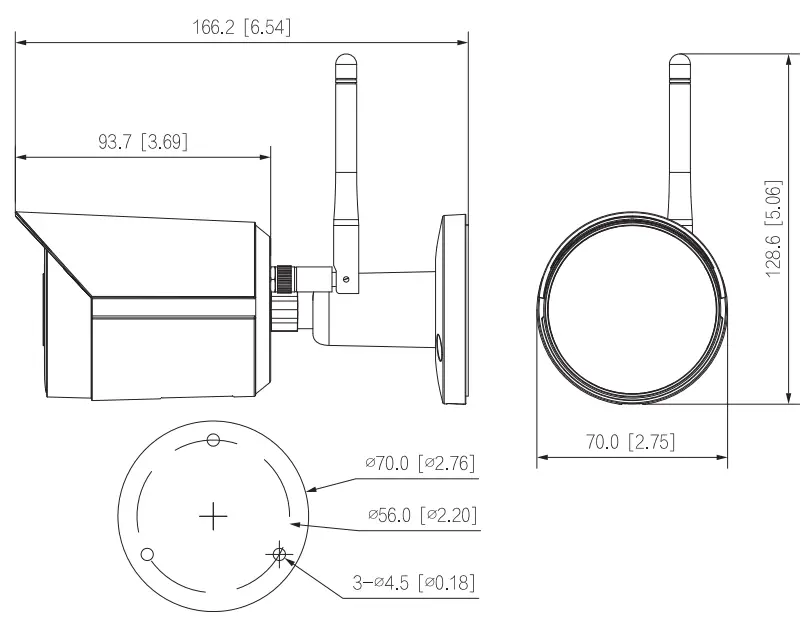

Dimensions (mm[inch])
