Fisher Paykel Hc60dcxb1 Wall Rangehood 60cm Box Chimney User Guide

FISHER PAYKEL HC60DCXB1 Wall Rangehood 60cm Box Chimney

Product Information

• Product Name: HC60DCXB1
• Product Type: Wall Rangehood with Box Chimney
• Series: 7
• Color: Contemporary Stainless Steel and Glass
• Dimensions:
  • Height: 595-1035mm
  • Width: 598mm
  • Depth: 500mm
• Control Type: Capacitive touch
• Ventilation Features:
  • Extraction Type: Top Extraction
  • Fan Speeds: 3
  • Filter Type: Mesh
  • Number of Filters: 2
  • Dimmable Lights: Yes
  • Filter Cleaning Alert: Yes
  • Light Type: LED
  • Timer Function: Yes, up to 15 minutes before automatically
    turning off.
• Power Requirements:
  • Lighting Power: 100W
  • Motor Power: 270W
  • Supply Frequency: 50Hz
  • Total Power: 370W

Product Usage Instructions

1. Install the wall range hood according to the instructions provided in the installation guide.
2. Turn on the rangehood by using the touch-control panel.
3. Select the desired fan speed to extract steam, grease, and cooking odors from your kitchen. You can choose from three different fan speeds.
4. The range hood features low-energy, dimmable LED lights that provide superb illumination over the entire cooking surface. Turn on the lights by using the touch-control panel.
5. The timer function allows you to keep the rangehood working for up to 15 minutes before automatically turning off. You can activate the timer function by using the touch-control panel.
6. The mesh filters are designed for easy removal and cleaning. They are dishwasher safe. An alert reminds you when to clean the filter to ensure you get the best performance out of your range.
7. The stainless steel mesh cover just needs a quick wipe to keep it clean.

For further assistance, please refer to the user guide or contact Fisher & Paykel’s Customer Care Centre.

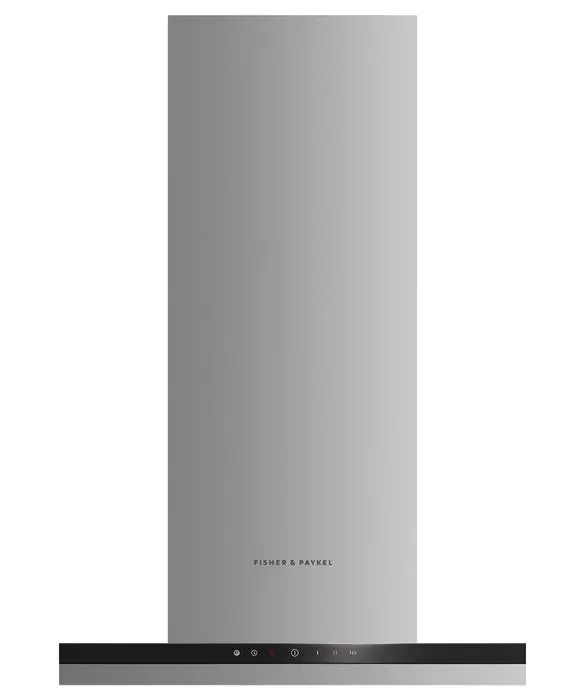

The wall chimney rangehood has contemporary styling, extracting steam, grease, and cooking odors quietly and efficiently.

• With three fan speeds, select the perfect extraction rate for your cooking
• Powerful maximum air movement of 800m³/hr
• Energy-efficient LED lighting to illuminate your cooking surface

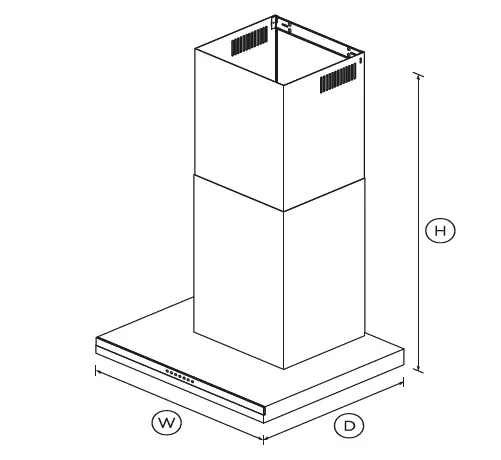

DIMENSIONS

• Height 595 – 1035mm
• Width 598mm
• Depth 500mm

FEATURES & BENEFITS

• EFFECTIVE AND QUIET
  This range hood features three fan speeds, providing powerful extraction to quickly remove odors and steam. The timer keeps the rangehood working for up to 15 minutes before automatically turning off.
• SIMPLE TO USE
  This Fisher & Paykel rangehood features a sleek and easy-to-use touch-control panel. Low-energy, dimmable LED lights provide superb illumination over the entire cooking surface.
• EASY CLEANING
  Designed for simple removal, the filters are easy to clean and dishwasher safe. The stainless steel mesh cover just needs a quick wipe to keep it clean. An alert reminds you when to clean the filter to ensure you get the best performance out of your range.
• SEAMLESS INTEGRATION
  This wall chimney rangehood features sleek black glass and stainless steel styling that will complement any contemporary kitchen and is designed to match the rest of Fisher & Paykel’s kitchen appliance family.

SPECIFICATIONS

Accessories

Fan ratings

Installation and cleaning

Performance

Power requirements

Product dimensions

Product information

Ventilation features

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com

• User Guide
• User Guide
• Service & Warranty
• Installation Guide
• Installation Guide
• Data Sheet Wall Rangehood

A PEACE OF MIND SALE 24 Hours 7 Days a Week Customer Support T 400 640 8777 www.fisherpaykel.com
