QUICK REFERENCE GUIDE > HC90DCEXB4
Wall Rangehood, 90cm, Box Chimney with External Motor
Series 7 | Contemporary
Stainless Steel and Glass

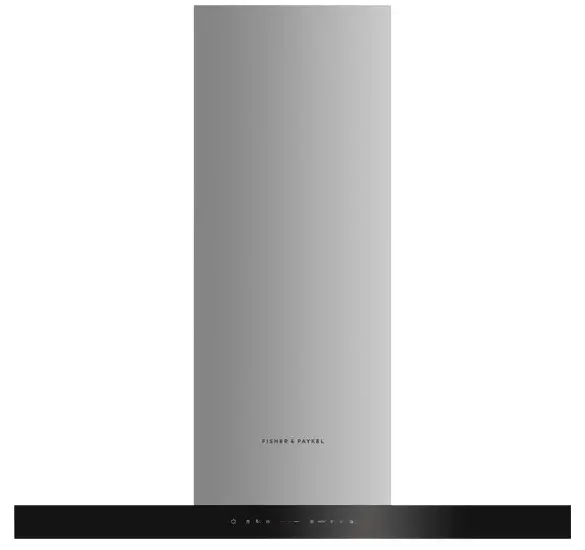

HC90DCEXB4 Wall Rangehood, 90cm, Box Chimney
This wall chimney rangehood has an externally installed inline motor to deliver near silent yet powerful extraction of steam, grease and cooking odours.
- With three fan speeds plus a boost function, select the perfect extraction rate for your cooking
- Perimeter extraction for efficient removal of steam and odours
- Powerful maximum air movement of 1200m³/hr
- Wi-Fi enabled for notifications through the SmartHQTM app

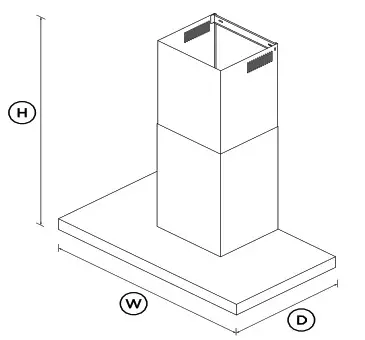

DIMENSIONS
| Height | 595-1035mm |
| Width | 898mm |
| Depth | 500mm |
FEATURES & BENEFITS
NEAR SILENT EXTRACTION
The powerful external motor is installed outside the home to deliver near silent extraction of cooking odours and steam from the kitchen.
SEAMLESS INTEGRATION
Designed to match our Contemporary style appliances, this wall chimney rangehood features sleek black glass and stainless steel styling to complement any kitchen design.
EFFECTIVE EXTRACTION
Featuring perimeter extraction, three fan speeds and a boost function, this rangehood provides powerful extraction to quickly remove odours and steam. Odours can linger in the kitchen well after cooking is finished so the timer keeps the hood working for up to 15 minutes before automatically turning off.
FULL SURFACE LIGHTING
Energy-efficient, dimmable LED lights provide superb illumination of the entire cooking surface.
SEAMLESS CONTROL
Connect this rangehood with an enabled Fisher & Paykel cooktop* via bluetooth. This smart functionality lets your cooktop take control of this hood and automatically activates the hood fan and lights when the cooktop is turned on. Fan speed can also be adjusted based on cooktop power. *This functionality is only available on selected Fisher & Paykel cooktops.
EASY CLEANING
Designed for simple removal, the filters are easy to clean and dishwasher safe, while the glass and stainless steel finish is easily wiped clean. The SmartHQTM app will notify you when to clean the filters to ensure you get the best performance out of your rangehood.
CONSIDERED EFFICIENCY
The right amount of air is extracted to effectively remove cooking odours with reduced effect on your heating or air conditioning.
SPECIFICATIONS
Fan ratings
| Maximum air movement | 1200m³/hr |
Installation and cleaning
| Dishwasher safe filters | 3 |
| Ducted | Top extraction |
| Stainless steel filter cover | • |
| Two piece height adjustable | • |
Performance
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Mesh |
| Number of filters | 3 |
Power requirements
| Supply frequency | 50Hz |
| Supply voltage | 220-240V |
Product dimensions
| Depth | 500mm |
| Height | 595-1035mm |
| Width | 898mm |
Product information
| Control type | Capacitive touch |
Ventilation features
| Auto-off/Run-on timer | • |
| Bluetooth connectivity | • |
| Dimmable lights | • |
| Filter cleaning alert | • |
| Light type | LED strip |
| Timer function | • |
| Wi-Fi connectivity | • |
Warranty
| Parts and labour | 2 years |
| SKU | 50198 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
