QUICK REFERENCE GUIDE > HC90BCX1
Wall Rangehood, 90cm, Box
Chimney
Series 7 | Contemporary
Stainless Steel and Glass
User Guide

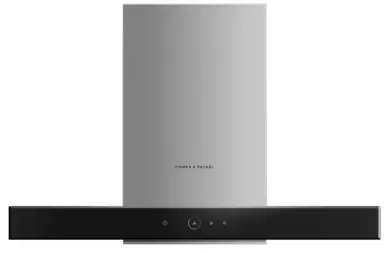

HC90BCX1 Wall Rangehood 90cm Box Chimney
This wall chimney rangehood has smart technology, extracting steam, grease and cooking odours quickly and efficiently.
- Stable air extraction, perfect for high-rise apartments
- With three fan speeds plus boost, select the perfect extraction rate for your cooking
- Intuitive on and off gesture control
- Air purification function for cleaner air
DIMENSIONS
| Height | 658 – 935mm |
| Width | 895mm |
| Depth | 531mm |
FEATURES & BENEFITS
ADAPTS TO YOUR ENVIRONMENT
Smart technology ensures stable extraction of smoke and fumes by constantly adjusting the extraction rate. This makes it perfect for any home, especially high-rise apartments and large apartment buildings.
SIMPLE TO USE
Intuitive gesture control makes it easy to turn the rangehood on and off with a wave of your hand. A sleek, touch-control panel controls your fan speed as well as the low energy LED lights.
CLEANER AIR
An intensive air purification function clears cooking vapours quickly and efficiently, leaving the kitchen air cleaner.
EASY INSTALLATION
This wall chimney rangehood is the perfect partner to your Fisher & Paykel cooktop. It is externally ducted, making it perfect for apartments.
EFFECTIVE EXTRACTION
Three airflow settings ensure that odours, vapour and steam are removed quickly, while a grease filtration system effectively captures grease and oil from the air stream.
EASY CLEANING
An easy-to-remove drip tray captures any excess cooking oils that accumulate during extraction. Simply remove and empty the tray when full, to ensure you get the best performance out of your rangehood.
SEAMLESS INTEGRATION
When not in use, the motorised central panel automatically closes, for a beautifully streamlined look. This rangehood features sleek black glass and stainless steel styling that will complement any contemporary kitchen.
SPECIFICATIONS
| Fan ratings | |
| Maximum air movement | 840m³/hr |
| Maximum pressured air | 636m³/hr |
| Maximum sound rating | 62dBA |
| Installation and cleaning | |
| Dishwasher safe filters | 1 |
| Performance | |
| Extraction type | Surface |
| Fan speeds | 3 |
| Filter type | Stainless Steel Baffle |
| Number of filters | 1 |
| Power requirements | |
| Lighting power | 3W |
| Rated current | 3A |
| Supply frequency | 50Hz |
| Product dimensions | |
| Depth | 531mm |
| Height | 658 – 935mm |
| Width | 895mm |
| Product information | |
| Control type | Capacitive touch |
| Ventilation features | |
| Air quality sensor and | • |
| Gesture control | • |
| Intelligent Air | • |
| Light type | LED |
| SKU | 50176 |
The product dimensions and specifications in this page apply to the specific productand model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
