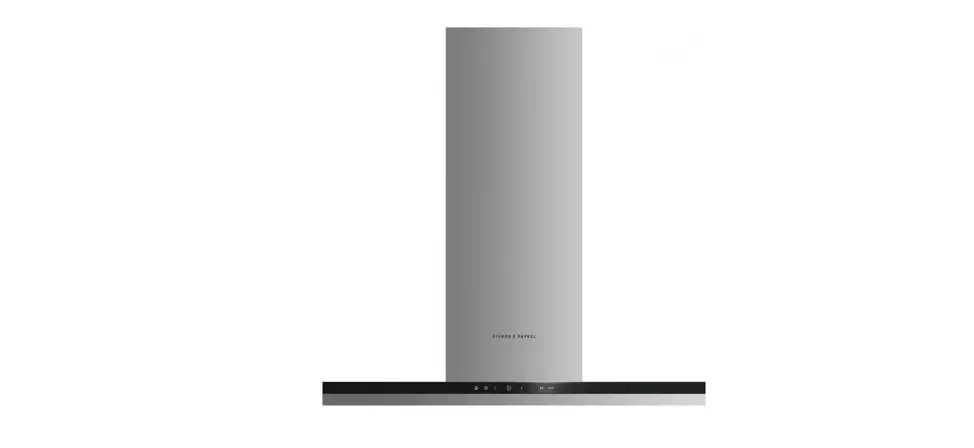

HC90DCEXB3 Wall Rangehood 90cm Box Chimney
Product Information
- Product Name: HC90DCEXB3 Wall Rangehood
- Product Type: Box Chimney Rangehood with
External Motor - Series: 7
- Material: Stainless Steel and Glass
- Maximum Airflow: 1200m3/h
- Control Type: Capacitive Touch
- Lighting Power: 8 Watts
- Supply Frequency: 50Hz
- Supply Voltage: 220-240V
- Warranty: 2 years (Parts and Labour)
Product Usage Instructions
- Install the wall chimney rangehood in your kitchen. Ensure that
the external motor is installed outside the home. - Connect the rangehood to the power supply (220-240V).
- To turn on the rangehood, use the sleek and easy-to-use
touch-control panel. - Select the desired fan speed from the three available options
or use the boost function for maximum extraction power. - To illuminate the cooking surface, use the dimmable LED lights.
Adjust the lighting intensity according to your preference. - The rangehood can be set to automatically turn off after a
certain period of time using the timer function. - Clean the filters regularly to maintain optimal performance.
The aluminium filters are dishwasher safe, and the stainless steel
mesh cover can be wiped clean. - When the filter cleaning alert is triggered, it is time to
clean the filters. - For effective removal of cooking odours, consider adjusting the
fan speed and airflow settings to minimize energy consumption.
Please note that the dimensions and specifications mentioned
above are specific to this model. For the most accurate and
up-to-date information, it is recommended to contact Fisher &
Paykel’s Customer Care Centre or refer to the user manual provided
with the product.

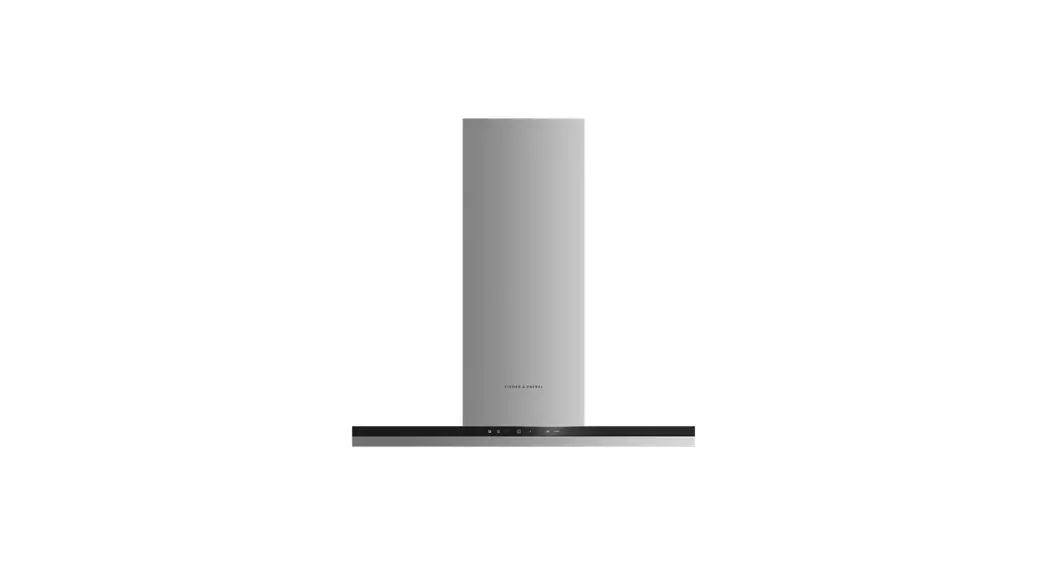

QUICK REFERENCE GUIDE > HC90DCEXB3
Wall Rangehood, 90cm, Box Chimney, with External Motor
Series 7 | Contemporary Stainless Steel and Glass
This wall chimney rangehood has an externally installed inline motor to deliver near silent yet powerful extraction of steam, grease and cooking odours.
External motor delivers near silent operation in the kitchen With three fan speeds plus a boost function, select the perfect extraction rate for your cooking Powerful 1200m3/h maximum airflow Dimmable LED lighting illuminates the cooking surface beautifully
DIMENSIONS
Height Width Depth
FEATURES & BENEFITS
595-1035mm 898mm 500mm
NEAR SILENT EXTRACTION The powerful external motor is installed outside the home to deliver near silent extraction of cooking odours and steam from the kitchen.
SEAMLESS INTEGRATION Designed to match our Contemporary style appliances, this wall chimney rangehood features sleek black glass and stainless steel styling to complement any kitchen design.
EFFECTIVE EXTRACTION This rangehood features three fan speeds plus boost function, providing powerful extraction to quickly remove odours and steam. As odours can linger in the kitchen well after cooking is finished, the timer keeps the rangehood working for up to 15 minutes before automatically turning off.
FULL SURFACE LIGHTING Low energy, dimmable LED lights provide superb illumination over the entire cooking surface.
EASY TO USE This Fisher & Paykel rangehood features a sleek and easy to use touch-control panel.
EASY CLEANING Designed for simple removal, the filters are easy to clean and dishwasher safe. The stainless steel mesh cover just needs a quick wipe to keep clean. An alert reminds you when to clean the filter to ensure you get the best performance out of your
Date: 06.07.2023 > 1
rangehood.
CONSIDERED EFFICIENCY The four speeds with a range of different airflows means you can effectively remove cooking odours with reduced effect on your heating or air conditioning, ensuring less energy is used.
SPECIFICATIONS
Accessories Aluminium filter External motor kit
792577 50170 HB1200E* (included)
Accessories (sold separately) Chimney extension Extra ducting length Light bulb
792492 792961 792556
Fan ratings Maximum air movement Speed 1 sound rating
1200m³/hr 39dBA
Installation and cleaning Dishwasher safe filters Ducted Stainless steel filter cover Two piece height adjustable
3 Top extraction
· ·
Performance Extraction type Fan speeds Filter type
Surface 3
Mesh
QUICK REFERENCE GUIDE > HC90DCEXB3
Number of filters
3
Power requirements Lighting power Supply frequency Supply voltage
8W 50Hz 220-240V
Product dimensions Depth Height Width
500mm 595-1035mm
898mm
Product information Control type
Capacitive touch
Ventilation features Dimmable lights Filter cleaning alert Light type Timer function
· · LED ·
Warranty Parts and labour
2 years
Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
SKU
50169
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher &
Date: 06.07.2023 > 2
