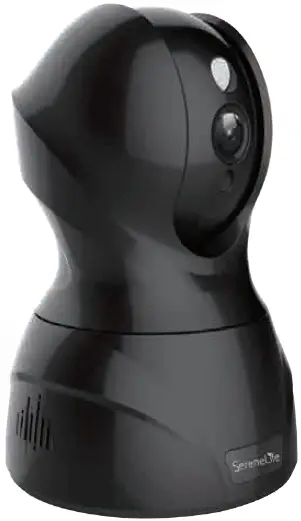

SereneLife IPCAMHD82 Indoor Wireless IP Camera

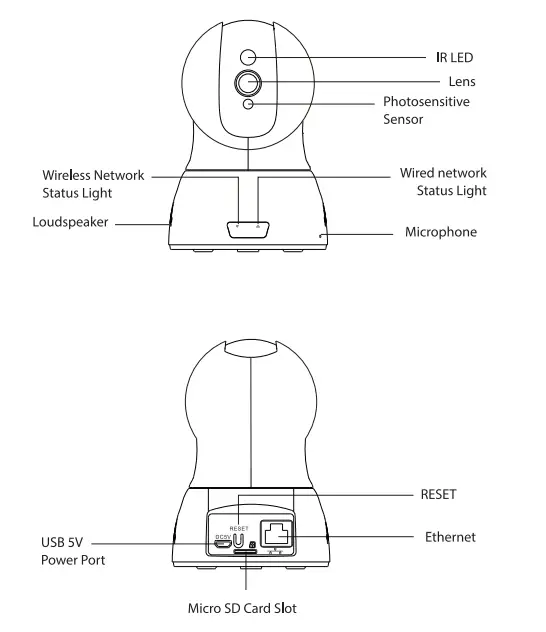

Product Structure Diagram
Don’t forget to register our camera with us online to get a free 1-year manufacturer’s warranty Just go to www.SereneLifeHome.com
SereneViewer’s APP Installation
Scan the ‘SereneViewer’ APP QR code or search to download the app
Setup an Account Username
- Click “Sign Up”
- Create your camera username – 6 characters min – Do not use email address
- Create an account password -Click “Sign Up”
Add Camera to APP

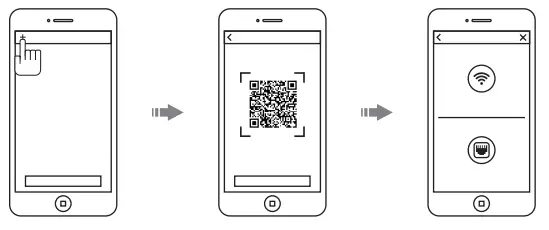

Enter ‘Device List’ and click’+’ icon at the top of the left corner. Then scan the device ID QR code.
Connect to Your Network

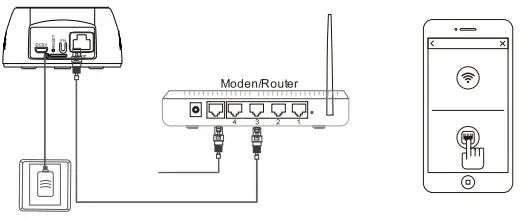

- Method 1: Wired Setup
- Connect power, and Ethernet cable as above.
- watt so seconds for(n) Indicator on the camera to flash green
- After scanning QRCX> de-select the “Ethernet Connection” option

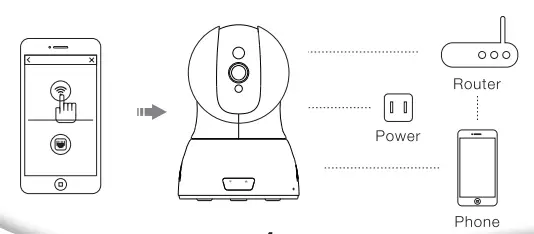

- Method 2: Wi-Fi Connection
- Make sure you are in the same room as your wireless router and plug the camera into power.
- QR Code Method:
- wait 1-2 min for the camera to boot up scan the QR Code, and watch for the \ViFi indicator on the front of the camera to flash red and green alternating.
- Click the Wi-Fi connection icon, and operate it under the APP instructions.
Web Access
After setting up your Camera on the mobile phone you can use your usemame and password to access the camera from any device with an internet browser
Log on to the website: http://cloud.serenellfehome.com/
Passwords
Should you happen to forget a camera’s Individual password you can reset It by performing a hardware resetJustusea pin depressant holds the reset switch for 12-15 seconds. The camera will reboot and run through pan and tilt. If you forget your account password you will need to register a new one and pair the cameras again. Accounts are never associated 11 an email address for password recovery
Mobile App Layout
- Switch between different camera
- Add new devices
- Access and change app global settings
You will see a thumbnail preview for all cameras added to your account. Use this menu to
- Switch between different cameras
- Add new devices
- Access and change app global settings

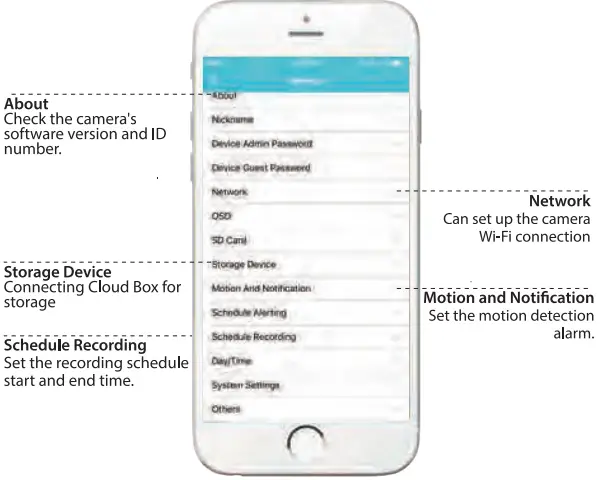

Device Settings
This screen allows you to check and set camera-specific settings. If you see the red dot icon – a firmware update is available. Install available firmware updates to ensure the camera features are working as intended.

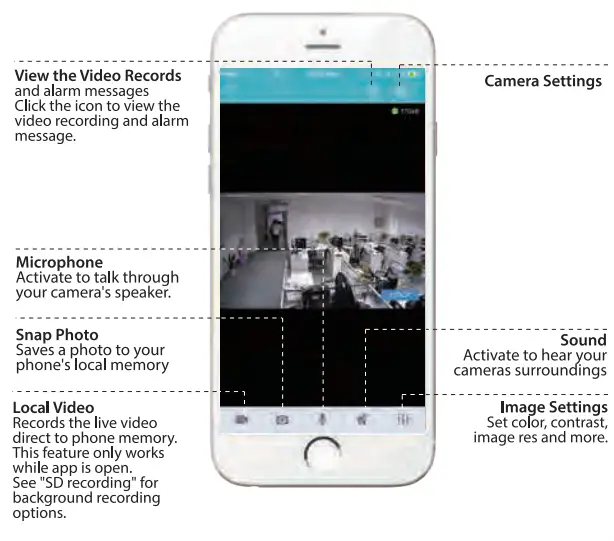

Camera View Page
- This page gives you access to all camera specifications and settings
- Hold the phone vertically or horizon Italy to switch between full-screen mode
- Swipe left and right on the video to reposition the camera
- Spread two fingers apart to zoom in

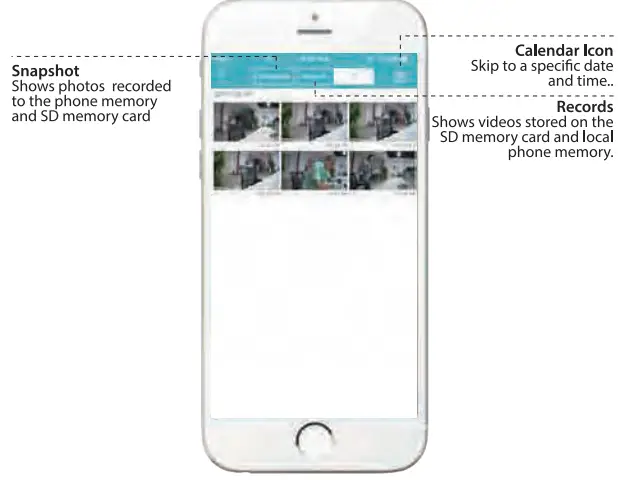

Camera recording
Device Settings
This screen allows you to check and set camera speciñc settings. If you see the red dot icon-a firmware update is available. Install available firmware updates to ensure the camera features are working as intended.
Recording Your Camera
You can choose 3 options for storing recordings for your camera
Local storage
This is the most simple method -just point and shoot. This only works while The the phone app is open and running and will take up memory on your phone.
SD storage
Install an SD card and open up a world of possibilities! Choose between scheduled recording, motion detection triggered recording or just let it run! The oldest videos will be overwritten to make room for the newest. You can download and save the videos from the mobile or website.
CloudBox storage
Sometimes SD storage just doesn’t cut it. With a limit of 32g and the fact that the videos are stored directly in the camera – many people prefer the peace of mind the Cloud Box can bring. Purchase the doud box and back up 2TB of video storage from any device on a single network and check the videos from the same login. Find the Cloud Box for sale on Amazon now! Search “SereneLife doudBox”

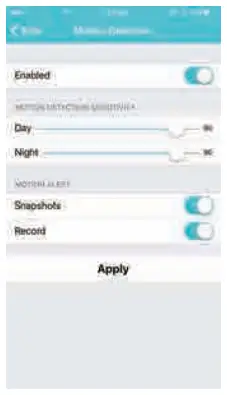

Motion Detection and Notification Settings Explained
You can set notification settings separately for any camera in your account. To access the notification settings, select your camera, and go to the settings tap-then scroll down to ‘motion detection”
Slide the slider to enable motion detection
- You can then choose what actions you would like to occur when your camera detections motion.
- The record will record video to the SD card while the camera detects motion.
- You can also turn to push notifications on and off by selecting “tun alert on” or “turn alert off”:
lf you are finding your camera is alerting you need lessly or failing to alert you if someone is moving, you can adjust the sensitivity for motion detection for the camera.
Goto ‘settings”> “Motion Detection Sensitivity” and adjust the sliders for day and night seperately
How to Improve Playback Performance Choppy video?
Try the following to ease up the demands for data on your camera..
Decrease the Video Stream Quality
You can drop the resolution setting for the camera to make it easier on your home network’s bandwidth.
- Just open up the setting here and adjust until you get the desired performance level.
- Plug your camera into a wired data connection
- Do some tests before throwing in the towel for using the camera wirelessly
- But the facts remain – wires are still quicker..
How to evaluate your home wireless network Evaluate your wireless network
- Are cameras having trouble with wireless? You may want to consider upgrading your wireless network.
Let’s do a basic evaluation of your home wireless network. First, I would recommend comparing your network speed with your wireless speed.
- Run a speed test from a laptop of desktop connected to your router with a wired connection. http://wwW.speedtest.net/
- Compare this value to your wireless network apps like “Speed Test” to see if you have enough available data in the area you would like to set the camera.
- Test your network range
- What is your download speed in the same room as yOur wireless router?
- What is the download speed in the location you are trying to install the camera?
- Is there a significant drop?
What to upgrade?
- if your wired connection is too slow to reach the bandwidth requirements of the camera you may need to consider upgrading your internet service.
- if you have a significant drop in data when testing a wireless connection in the same room as your rou ter, you may want to consider upgrading to a router that can provide higher data transmission speeds
- if you see a significant drop in data when testing in the area you want to install your camera you can either look for an upgraded router that will offer additional range or you can expand your router range witha signal booster.
How to check and install firmware updates
Firmware updates ensure our new feature res will work 100% for your camera It is a good idea to install them when you see they are available. It is recommended that you install updates while on a wired connection to your router. This will ensure loss of bandwidth is not an issue during updates

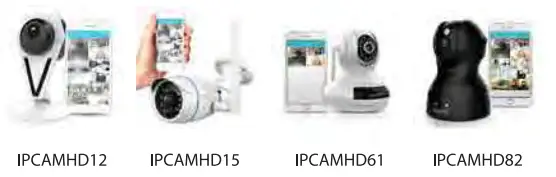

Compatible Products
You can add any number of SerenelLife cameras to your account with us to monitor multiple locations
Technical Specs
- Imaging Sensor: 1/4″ Color CMOS
- Video Resolution: Up to 1080p (1920x 1080 Pixels) 30FPS
- Video File Format MJPEG (H.264)
- Night Vision Distance 32″+ft. (0.01 LUX)
- Wi-Fi Wireless Network: IEEE802.11b/g/n
- Protocols: TCPAP, UDPAP, HTTP, DHCP, RTM, MUTP
- Ethernet Network: 10/10OMbps, Ri-45 Interface
- P2P Technology Plug and Play
- Dynamic Code Rate Filtering Jitter Buffer
- Maximum Micro SD Card Support Size: 128 GB
- Lighting Frequency: 50/60Hz
- Video Compression: H.264
- Audio Compression: AAC (Advance Audio Coding)
- Power Supply: DC 5V, 2A
- Dimensions (Lx Wx H):3.3″x 3.3″x 4.7″
- Sold as: 1
- Weight: 1.50 bs.
Troubleshooting
Can’t connect to WiFi
- Connect the ethernet cable and check connection is working
- Goto “camera settings” > “network” Check the WiFi status is enabled and “List” displays your home network- doublecheck the password.
- In the Ethernet tab – disable the ethernet con neection to force the camera to look for available WiFi network
Still having trouble?
- Try deleting the camera entry from your account
- Hardware rest the camera
- Add the camera as a new device
SD Card is not recognized by the camera
- Check the card is dass 10-32g or less
- Insert the card while the camera is powered down then power up
- Try reformatting the card using your computer using “FAT32”
- Test multiple SD cards
App is crashing -a feature is not working
- Check for app updates
- Check for camera firmware updates
- Contact support with app version, mobile device model and OS version so we can update the app and fix the issue
FAQS
Does it work with 5.4ghz wifi?
No, this unit does not work on 5.4ghz wifi. It will on work on 2.4ghz.
can you change the angle of the camera from your app?
You can turn it left and right. Also, up and down. Love it to check on our baby girl (dog).
Can I login to my wifi from the camera if I have to login through a splash screen?
You can login directly through the SereneViewer App but will still require your WIfi or the password of your Internet router/modem.
Can this camera be powered with batteries?
Have you tried to connect the cable to a usb battery pack
Can I turn off audio at home and do not allow turn it on with the app until I turn the audio back on?
Not sure I understand the question completely. But audio is controlled by the app.
Can you use this with an apple iphone?
The unit works for iOS and Android smartphones.
Can I turn off audio at home and do not allow turn it on with the app until I turn the audio back on
Not sure I understand the question completely. But audio is controlled by the app.
Can you use this with an apple iphone?
the unit works for iOS and Android smartphones.
Can the audio be turned off
Yes, you can turn it off on the app on your phone!
Is there a browser-based page for local access at home? Can snapshots and videos be played in a browser (and perhaps downloaded)?
It’s an app you download on your phone. You can record video or screenshot pics of the live feed and save it to your camera roll. You can listen to audio from live feed and you can also talk. I love my camera.
Can someone explain where the videos go when i download them?
Depending on the model or make of the device you downloaded it onto, but for most devices they should default on the SereneViewer folder. It will also show on the “recent” download or file section or interface of your device
After a short power failure will the camera automatically reset?
Yes it should because it automatically reverts to the last WiFi configuration and connects
Does this camera work with 5G Wi-Fi?
No-it will not.
Can you view the camera from a remote location or do you need to be connected to the wi-fi that the camera is using?
The camera needs to be connected to your home WiFi then you can view your camera using SereneViewer from any remote location either via WiFi or your data plan. You can even set recordings or view them remotely
Can this camera be programmed to record at certain times? Like on at 8pm and off at 2am?
yes you can set a scheduled recording to this unit.
